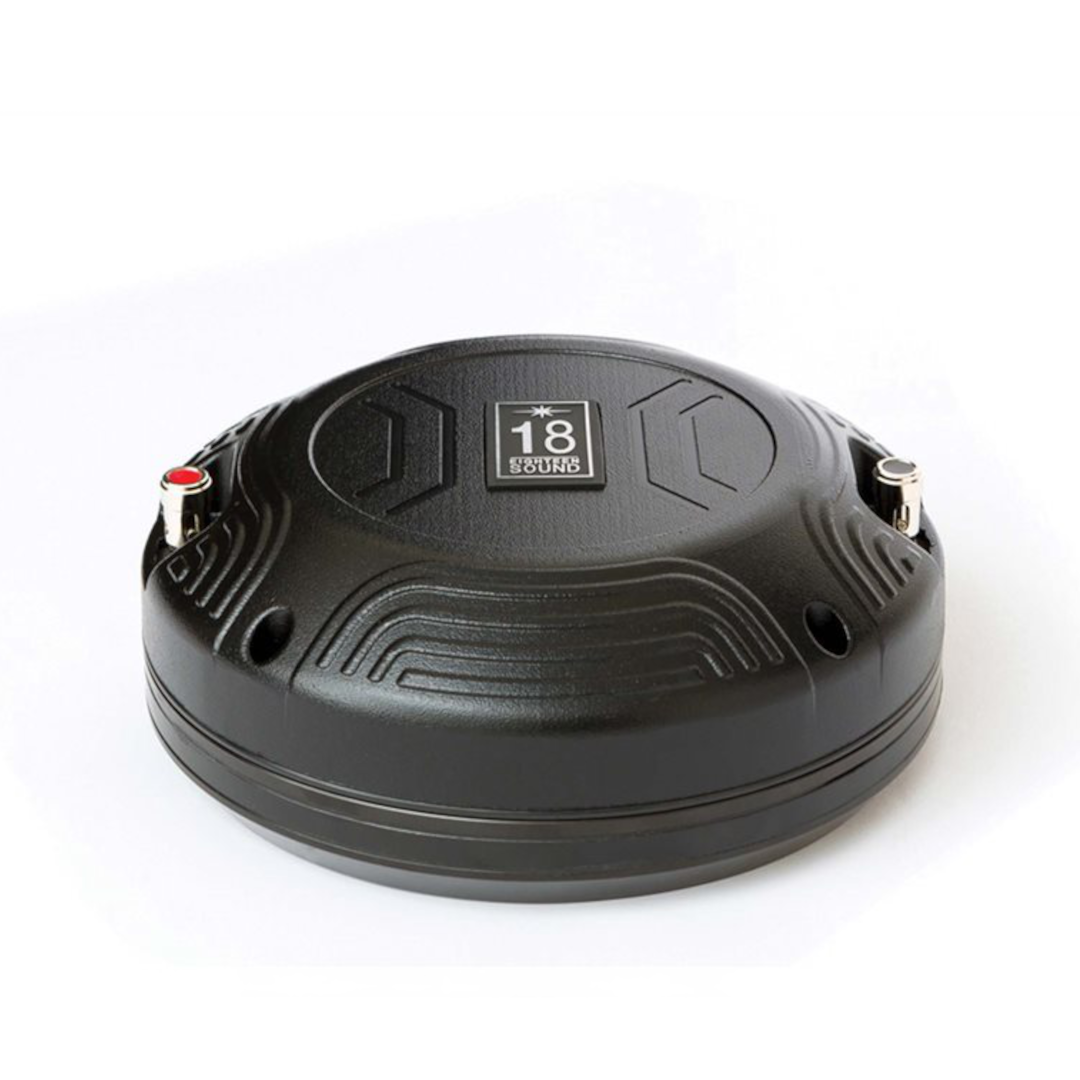

18 Sound ND4015BE – Pure Beryllium Flagship Compression Driver with 25% Extended Piston Range
The 18 Sound ND4015BE is a 1.5-inch exit, 4-inch voice coil neodymium compression driver that has been designed for uncompromised quality sound systems applications. The 100 mm (4-inch) diameter composite material diaphragm is made with a beryllium dome positioned on a polymer surround — the first genuine beryllium diaphragm documented across this entire session’s HF driver coverage, and the material 18 Sound reserves for its most uncompromising applications.
With its very high value of elasticity modulus, beryllium is capable of double the stiffness of titanium or aluminium, with great benefits in transient response and reduced distortion. The piston frequency range motion extends frequency by 25%, showing a predictable, ideal frequency response decay and avoiding high frequency spurious resonances — this specific, quantified 25% piston-range extension claim is a genuinely concrete engineering benefit that distinguishes beryllium from every titanium and aluminium diaphragm documented elsewhere in this session, directly explaining why beryllium remains the premium material choice despite its considerably higher cost and more delicate manufacturing process.
The edge-wound aluminium voice coil, wound on a Nomex former, completes the diaphragm assembly, carrying the same 30% higher tensile elongation advantage over Kapton documented consistently throughout 18 Sound’s HF range. An ultra high precision diaphragm centering system for improved performance and lifespan is a specific serviceability and reliability feature — beryllium diaphragms are notably more fragile than titanium or aluminium, making precise centering during assembly and any subsequent servicing genuinely critical to the driver’s long-term reliability.
Design and Construction of the 18 Sound ND4015BE
The ND4015BE extremely powerful neodymium magnet assembly has been designed to obtain 22 kGauss in the gap for major benefits in transient response — matching the ND2080/ND2080A’s flux density figure, here driving a considerably larger 100 mm coil.
The motor structure, through the precisely coherent phase plug with 4 circumferential slots and copper ring on the pole piece, reduces inductance effect and distortion. The BEM-optimized 4-slot phaseplug design matches the computational acoustic modelling approach documented on the ND4020Ti2, confirming both of 18 Sound’s most premium current-generation compression drivers share this refined phase plug engineering methodology.
Four top plate air ducts have been designed to act as a loading chamber for the diaphragm, implementing mid-band distortion and response figures. The custom designed O-ring creates a tight seal between the plate and the cover, assuring air chamber loading. Excellent heat dissipation and thermal exchange are guaranteed by the direct contact between the magnetic structure and the aluminium cover, which gives a lower power compression value.
A special epoxy coating is applied to the ring magnet and the top and back plates of the magnetic structure, making the driver more resistant to the corrosive effects of salts and oxidisation — epoxy coating is a specific, named treatment here, distinct from the more general “special treatment” language documented on several other 18 Sound drivers.
At 3.2 kg, 150 mm overall diameter, and 57 mm depth, the 18 Sound ND4015BE is lighter than the same-coil-diameter ND4020Ti2 (3.4 kg) despite the additional serviceability hardware, and considerably shallower.
Performance and Applications for the 18 Sound ND4015BE
The 18 Sound ND4015BE delivers 113 dB sensitivity across a 0.9 – 20 kHz frequency range, with a recommended crossover of 1.0 kHz using a 12 dB/octave or steeper high-pass filter — matching the 2-inch ND4020Ti2’s sensitivity figure exactly, from a smaller 1.5-inch throat.
The 140 W AES / 280 W continuous power handling is substantial, and combined with extreme sound clarity even at very high SPL — 18 Sound’s own stated feature — confirms this driver was engineered for the most demanding professional applications where sonic accuracy must be sustained even as output approaches the driver’s limits.
For uncompromised quality sound systems applications — 18 Sound’s own explicit positioning — the 18 Sound ND4015BE’s beryllium diaphragm delivers benefits that no titanium or aluminium alternative documented in this session can match: double the stiffness, 25% extended piston range, and the resulting predictable, ideal frequency response decay that avoids spurious high-frequency resonances entirely.
Conclusion – 18 Sound ND4015BE Compression Driver
The 18 Sound ND4015BE is 18 Sound’s pure beryllium flagship compression driver — the first genuine beryllium diaphragm documented across this session’s HF coverage, delivering double the stiffness of titanium or aluminium and a quantified 25% extension of usable piston frequency range. Combined with the BEM-optimized 4-slot phase plug, ultra high precision diaphragm centering, and 22 kGauss neodymium motor, this driver represents 18 Sound’s most uncompromising HF engineering documented in this session.
For applications where absolute sonic accuracy, extended high-frequency clarity, and freedom from spurious resonance define the requirement — regardless of cost — the 18 Sound ND4015BE is 18 Sound’s definitive answer.
