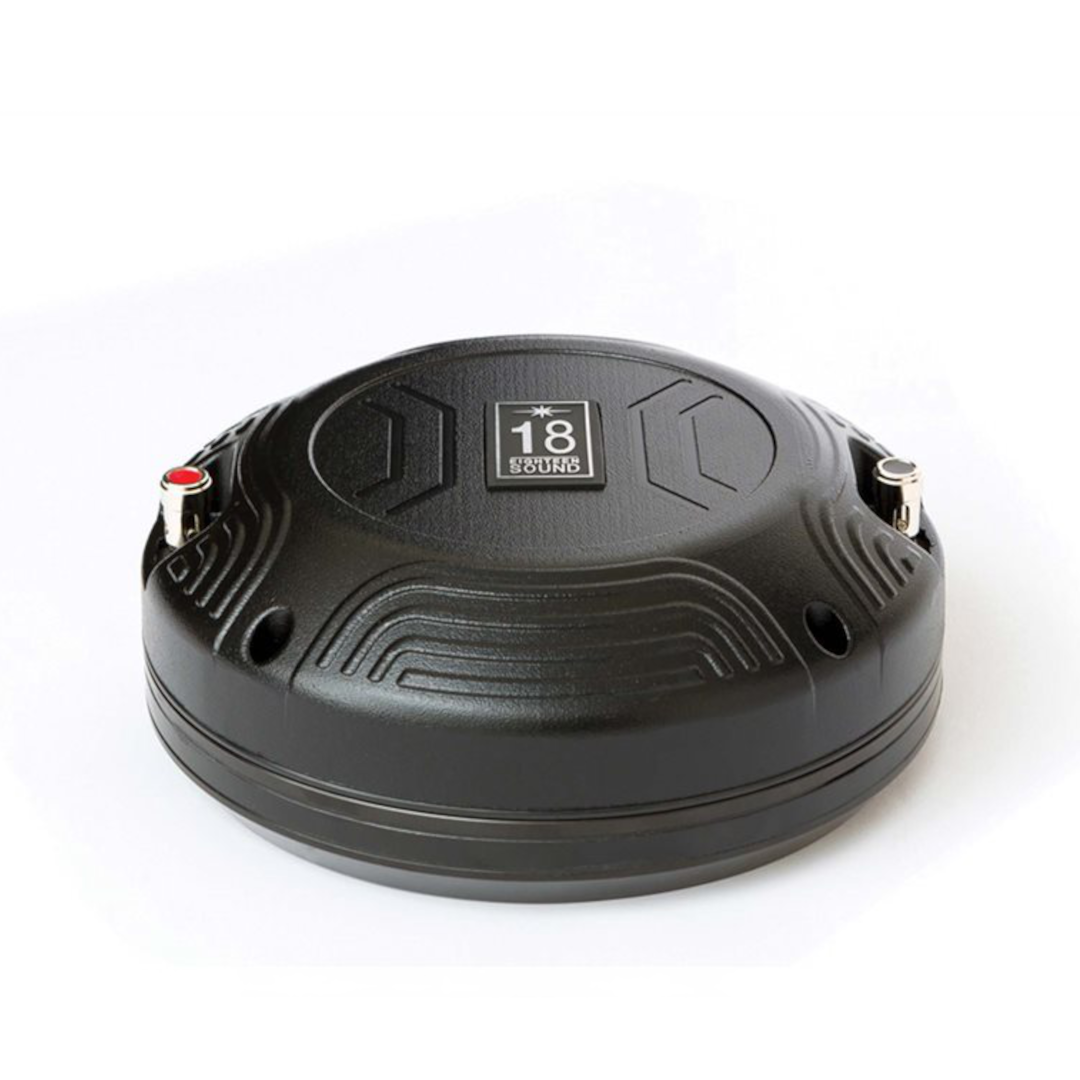

18 Sound NSD4015N – TPM True Piston Motion Driver with Nitride-Coated Titanium and 0.05% Third Harmonic Distortion
The 18 Sound NSD4015N is a 1.5-inch exit, 4-inch voice coil neodymium compression driver designed for extremely high quality sound systems applications. The titanium nitride coated dome — so-called TPM True Piston Motion technology — dramatically improves stiffness with obvious benefits in transient and intermodulation distortion response. This is the third distinct diaphragm technology documented within this closely related 1.5-inch platform family, sitting alongside the standard titanium ND4015Ti2 and the pure beryllium ND4015BE, all sharing the identical 100 mm coil, chassis, and 3.2 kg weight.
With its very high value of elasticity modulus — six times higher than standard titanium — the ultra-thin nitride coated film applied to both sides of the dome doubles the treated dome’s stiffness. The piston frequency range motion extends by 25% when compared to a regular titanium diaphragm, showing a predictable, ideal frequency response decay and avoiding top-end spurious resonances. This results in a more natural sound character up to the top end part of the spectrum — notably, this is the exact same 25% piston-range extension figure documented on the beryllium ND4015BE, suggesting TPM nitride coating achieves a comparable stiffness benefit to genuine beryllium, through an entirely different engineering approach applied to a titanium substrate rather than a different base material.
The nitride-free ellipsoidal suspension shape has been designed to maintain constant titanium stiffness, assuring a 3rd harmonic distortion lower than 0.05% over the whole working frequency range — a genuinely exceptional, precisely quantified distortion specification not matched by any other compression driver documented across this entire session.
Design and Construction of the 18 Sound NSD4015N
The TPM (True Piston Motion) technology is applied specifically to the dome, leaving the suspension itself nitride-free in an ellipsoidal shape — this deliberate material distinction between dome and suspension is the specific engineering choice that maintains constant titanium stiffness in the suspension while gaining the doubled stiffness benefit of nitride coating on the dome itself, together producing the driver’s remarkable sub-0.05% third harmonic distortion figure.
The NSD4015N extremely powerful neodymium magnet assembly has been designed to obtain 22 kGauss in the gap for major benefits in transient response — matching the ND4015BE’s flux density exactly. The motor structure, through the precisely coherent phase plug with 4 circumferential slots and copper ring on the pole piece, reduces inductance effect and distortion.
Four top plate air ducts have been designed to act as a loading chamber for the diaphragm, implementing mid band distortion and response figures. The custom designed O-ring creates a tight seal between the plate and the cover, assuring air chamber loading. Excellent heat dissipation and thermal exchange are guaranteed by the direct contact between the magnetic structure and the aluminium cover, which gives a lower power compression value.
A special epoxy coating is applied to the ring magnet and the top and back plates of the magnetic structure, making the driver more resistant to the corrosive effects of salts and oxidisation — matching the ND4015BE’s exact epoxy treatment description.
At 3.2 kg, 150 mm overall diameter, and 57 mm depth, the 18 Sound NSD4015N matches the physical footprint of both the ND4015BE and ND4015Ti2 precisely, confirming all three diaphragm variants share the identical chassis platform.
Performance and Applications for the 18 Sound NSD4015N
The 18 Sound NSD4015N delivers 111 dB sensitivity across a 0.8 – 20 kHz frequency range, with a recommended crossover of 0.8 kHz using a 12 dB/octave or steeper high-pass filter — 2 dB below the standard titanium ND4015Ti2’s 113 dB, but matching that driver’s power handling exactly at 320 W continuous program.
The comparison across all three siblings in this platform family is genuinely instructive. The standard titanium ND4015Ti2 delivers the highest sensitivity (113 dB) and matching 320 W power handling. The beryllium ND4015BE delivers matching 113 dB sensitivity but lower power handling (280 W) and a higher 1.0 kHz crossover. The 18 Sound NSD4015N delivers slightly lower sensitivity (111 dB) but matches the standard titanium’s full 320 W power handling and 0.8 kHz crossover, while adding the TPM nitride coating’s exceptional sub-0.05% third harmonic distortion specification — a genuinely different value proposition prioritising distortion performance over maximum sensitivity.
For applications where the lowest achievable harmonic distortion is the defining requirement — critical listening environments, high-end touring systems, and studio-grade reinforcement — the 18 Sound NSD4015N’s TPM technology delivers a genuinely quantified advantage that neither sibling driver’s specification sheet documents as explicitly.
Conclusion – 18 Sound NSD4015N Compression Driver
The 18 Sound NSD4015N brings True Piston Motion nitride-coated titanium technology to 18 Sound’s 1.5-inch flagship platform — six times the elasticity modulus of standard titanium, a 25% extended piston range matching the beryllium ND4015BE’s figure, and a remarkable sub-0.05% third harmonic distortion specification across the entire working frequency range.
For applications where minimising harmonic distortion is the paramount requirement, alongside full 320 W power handling and the lowest available 0.8 kHz crossover point, the 18 Sound NSD4015N delivers 18 Sound’s most distortion-optimised engineering within this closely related three-driver platform family.
