18 Sound ND4020Ti2 – Flagship 2-Inch Driver with Record Sensitivity, Power Handling, and a 100mm Coil

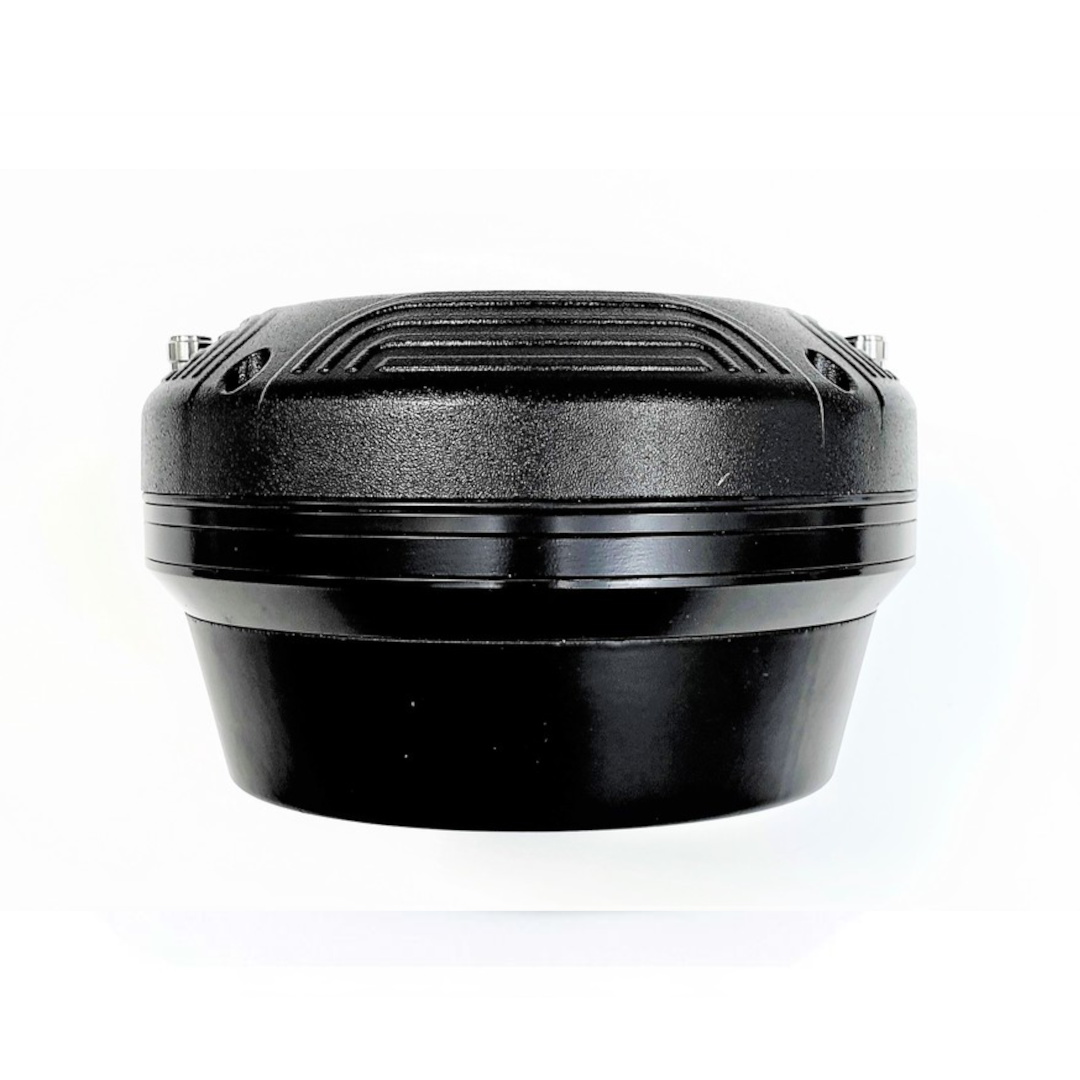

The 18 Sound ND4020Ti2 is a 2-inch exit neodymium compression driver designed for extremely high quality, high output sound system applications. Featuring a four-inch copper-clad aluminium voice coil and dome, the pure titanium membrane with integral surround has been optimised for high sensitivity and efficiency and an extended high frequency region. This 100 mm coil diameter is, by a substantial margin, the largest voice coil fitted to any 2-inch throat driver documented across this entire session — a coil scale more typically associated with large-format compression drivers on wider throats, here packed into a standard 2-inch exit geometry.
While maintaining a broad piston band and low distortion, the results are maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum. At 113 dB sensitivity and 320 W continuous program power handling, the 18 Sound ND4020Ti2 exceeds every other 2-inch compression driver documented in this session on both of these headline specifications simultaneously — surpassing even the ND32ST’s already flagship-tier 112 dB / 240 W figures.
The next-gen titanium diaphragm with integral surround (rather than a separate suspension component joined to the dome) represents a further construction evolution beyond the bent-edge Nomex former joint documented on the ND2060/ND2080/ND32ST family — a genuinely more integrated diaphragm assembly approach for 18 Sound’s current flagship 2-inch platform.
Design and Construction of the 18 Sound ND4020Ti2
The 100 mm (4-inch) edgewound copper-clad aluminium (CCAW) voice coil is the standout engineering feature of the 18 Sound ND4020Ti2 — a genuinely massive coil for a 2-inch throat driver, providing substantially more thermal mass and force generation capacity than the 75 mm coils documented on every other 2-inch driver covered in this session.
The BEM-optimized 4-slot metal alloy phase plug represents a further evolution beyond the ND32ST’s next-gen 4-slot metal alloy design — BEM (Boundary Element Method) is a specific computational acoustic modelling technique, confirming this phase plug’s slot geometry was refined using dedicated acoustic simulation software rather than traditional empirical design, likely producing more precisely tuned wavefront coherence at the horn entrance.
The HF copper sleeve for reduced distortion and increased output works alongside the substantial 2.0 T flux density to control the driver’s large coil and diaphragm assembly with precision, maintaining low distortion across the extended high-frequency region this driver targets.
At 3.4 kg, 150 mm overall diameter, and 87 mm depth, the 18 Sound ND4020Ti2 carries a genuinely substantial physical footprint reflecting its 100 mm coil scale — larger in diameter than the compact ND32ST (120 mm), though still considerably more compact than the ferrite HD2080T (169 mm).
Performance and Applications for the 18 Sound ND4020Ti2
The 18 Sound ND4020Ti2 delivers 113 dB sensitivity across a 0.6 – 20 kHz frequency range, with a recommended crossover of 0.8 kHz using a 12 dB/octave or steeper high-pass filter — matching the low crossover flexibility of the ND2060/ND2080 family while delivering substantially more sensitivity and power handling than either.
The 160 W AES / 320 W continuous power handling is the highest of any 2-inch driver documented across this entire session — a genuinely substantial figure directly attributable to the driver’s 100 mm coil’s thermal capacity, which dwarfs the 75 mm coils found on every competing 2-inch platform in 18 Sound’s range.
For extremely high quality, high output sound system applications — 18 Sound’s own stated design target — the 18 Sound ND4020Ti2 delivers maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum, combining record sensitivity and power handling with the extended high-frequency reach and low distortion that premium touring and installed sound applications demand.
Conclusion – 18 Sound ND4020Ti2 Compression Driver
The 18 Sound ND4020Ti2 is 18 Sound’s current flagship 2-inch compression driver, built around a genuinely oversized 100 mm voice coil that delivers the highest sensitivity (113 dB) and highest power handling (320 W continuous program) of any 2-inch driver documented across this entire session. The BEM-optimized 4-slot phase plug and next-gen titanium diaphragm with integral surround confirm this represents 18 Sound’s most current compression driver engineering in this format.
For extremely high quality, high output sound system applications demanding the absolute maximum available performance from a 2-inch compression driver, the 18 Sound ND4020Ti2 is 18 Sound’s definitive answer.
