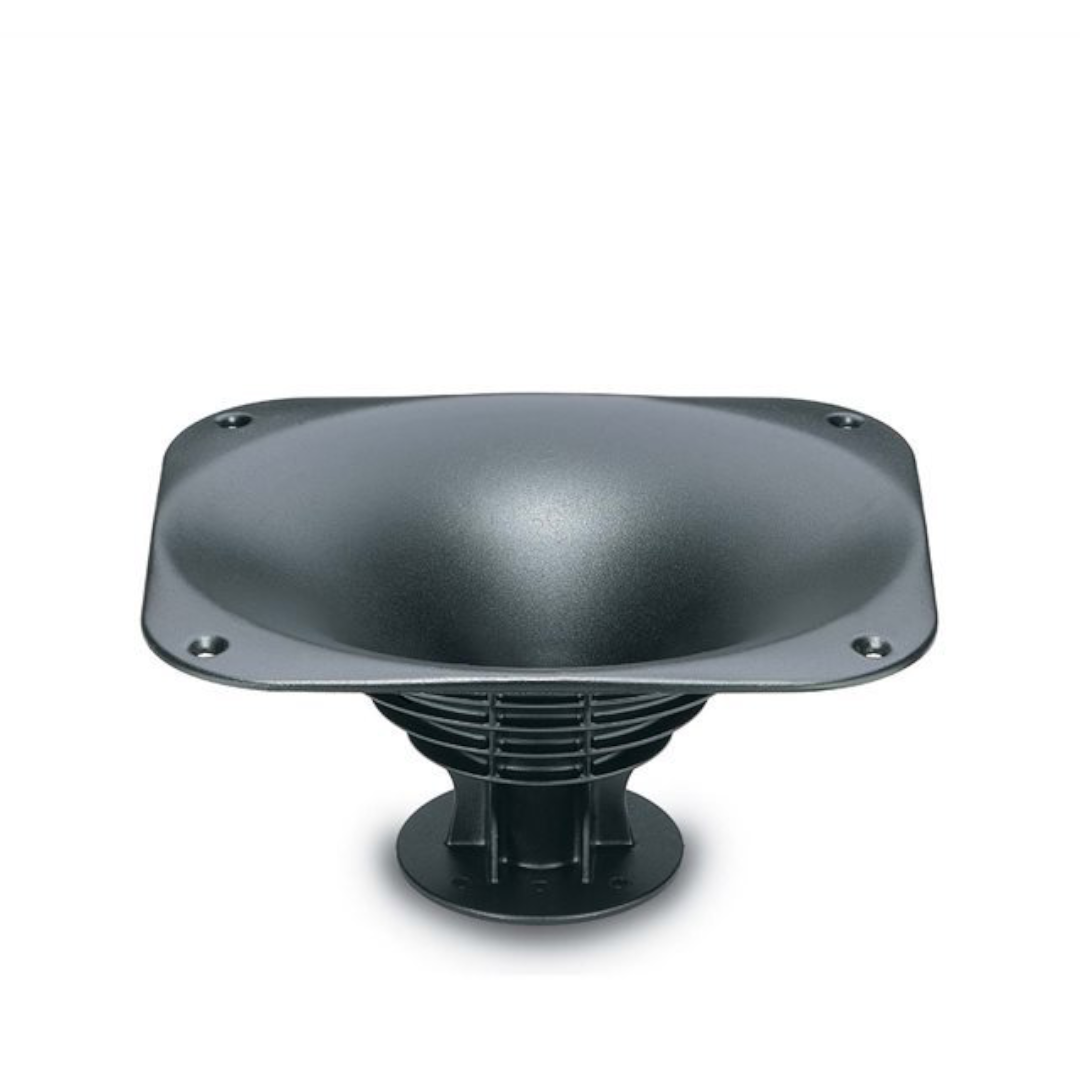

18 Sound XT1086 – 1 inch Elliptical Horn Flare
The 18 Sound XT1086 is a professional-grade constant coverage high-frequency horn designed for sound reinforcement systems that demand exceptional coverage consistency, low distortion, and predictable acoustic performance. Developed using 18 Sound’s proprietary Elliptical Shape System (ESS) technology, the 18 Sound XT1086 delivers outstanding directivity control while maintaining smooth frequency response characteristics both on-axis and off-axis. Designed specifically for use with professional 1-inch exit compression drivers, this horn offers the performance and reliability required for demanding touring, installation, and OEM loudspeaker applications.
In professional loudspeaker design, the horn is one of the most influential components in determining audience coverage, system efficiency, intelligibility, and overall tonal consistency. The 18Sound XT1086 has been carefully engineered to provide a controlled 80° horizontal by 60° vertical coverage pattern while maintaining uniform directivity across a wide operating bandwidth. This ensures listeners throughout the intended coverage area experience consistent sound quality, improved speech intelligibility, and balanced musical reproduction.
Featuring a standard 25.4 mm (1-inch) throat entry, a low cutoff frequency of 800 Hz, and rugged die-cast aluminium construction, the 18 Sound XT1086 combines acoustic precision with exceptional durability. Unlike conventional diffraction horn designs, the unique ESS profile generates a spherical wavefront that minimizes internal reflections and reduces many of the response anomalies commonly associated with traditional horn geometries. The result is a cleaner, more natural sound with improved detail and reduced distortion.
The horn’s compact dimensions further increase its versatility, making it suitable for both standalone loudspeaker systems and tightly packed multi-way designs. Thanks to its controlled coverage characteristics and optimized acoustic loading, the 18Sound XT1086 is equally at home in concert venues, theaters, auditoriums, houses of worship, sports facilities, public address systems, and high-performance custom loudspeaker projects.
Whether incorporated into a new loudspeaker design or used as part of a system upgrade, the 18 Sound XT1086 provides the coverage control, reliability, and acoustic accuracy required by modern professional audio applications.
Proprietary Elliptical Shape System Technology
One of the defining features of the 18Sound XT1086 is the incorporation of the company’s exclusive Elliptical Shape System, commonly referred to as ESS technology.
Unlike traditional diffraction horn designs that can introduce unwanted reflections and irregularities in frequency response, ESS technology has been developed to generate a smoother and more coherent spherical wavefront. This approach significantly improves the transition of acoustic energy from the compression driver into the listening environment.
The carefully engineered elliptical geometry helps reduce distortion while maintaining consistent coverage characteristics throughout the operating bandwidth. As a result, the 18Sound XT1086 provides more accurate sound reproduction, greater clarity, and improved tonal balance across the audience area.
For loudspeaker designers seeking a premium horn solution that prioritizes both sonic accuracy and directivity control, ESS technology represents a major advantage.
Optimized 80° x 60° Coverage Pattern
The 18 Sound XT1086 has been engineered to provide nominal 80-degree horizontal and 60-degree vertical coverage.
This carefully selected dispersion pattern provides an excellent balance between audience coverage and directional control. The 80-degree horizontal coverage enables the horn to cover medium-to-large audience areas effectively without excessive overlap between adjacent loudspeaker systems.
The 60-degree vertical pattern helps focus acoustic energy toward listeners while reducing unwanted ceiling and floor reflections. This controlled behavior contributes to improved speech intelligibility, greater musical definition, and enhanced system efficiency.
Maintaining predictable coverage is one of the primary objectives of professional sound reinforcement design. The 18 Sound XT1086 allows engineers and system designers to create systems with consistent audience coverage while simplifying deployment and system optimization.
The result is a more uniform listening experience throughout the venue.
Uniform On-Axis and Off-Axis Frequency Response
One of the most important performance characteristics of the 18Sound XT1086 is its ability to maintain remarkably consistent response characteristics both on-axis and off-axis.
Many horn designs exhibit tonal shifts as listeners move away from the center listening position. These inconsistencies can negatively affect audience experience and complicate system tuning procedures.
The advanced geometry of the 18 Sound XT1086 minimizes these issues by maintaining smooth and uniform frequency response throughout the intended coverage area. This ensures that listeners positioned throughout the venue experience similar tonal balance and clarity.
Uniform response also improves loudspeaker predictability, making the horn particularly attractive for large installations where audience coverage consistency is essential.
Whether used for speech or music reinforcement, the 18 Sound XT1086 helps deliver a more natural and balanced listening experience.
Constant Directivity Performance
Constant directivity performance is one of the primary goals of modern horn design, and the 18 Sound XT1086 excels in this area.
The horn maintains controlled directivity from approximately 1.4 kHz throughout its operating range. This means that the coverage pattern remains stable across a wide frequency spectrum rather than narrowing dramatically at higher frequencies.
Maintaining constant directivity helps ensure consistent sound distribution throughout the listening environment. Listeners receive similar frequency balance regardless of seating position, improving overall audience satisfaction.
For professional audio engineers, predictable directivity characteristics simplify system design, loudspeaker placement, and equalization procedures.
The controlled behavior of the 18 Sound XT1086 makes it an excellent choice for both single-cabinet systems and more complex multi-cabinet deployments.
Low 800 Hz Cutoff Frequency
The 18 Sound XT1086 features a low cutoff frequency of 800 Hz, allowing the horn to provide effective acoustic loading well into the upper-midrange region.
This capability offers significant advantages during loudspeaker design. Lower horn loading allows designers greater flexibility when selecting crossover frequencies and compression drivers.
By extending controlled directivity to lower frequencies, the 18 Sound XT1086 supports smoother integration between high-frequency and low-frequency sections of the loudspeaker system. This contributes to improved phase alignment, more uniform coverage, and greater overall system coherence.
The horn is recommended for crossover frequencies of 1200 Hz or higher, making it compatible with a wide range of professional compression drivers.
The extended loading capability also improves vocal reproduction by maintaining directivity control across a larger portion of the critical speech spectrum.
Designed for 1-Inch Compression Drivers
The 18 Sound XT1086 utilizes a standard 25.4 mm (1-inch) throat diameter specifically engineered to integrate seamlessly with professional 1-inch exit compression drivers.
This industry-standard configuration provides excellent compatibility with a broad selection of professional high-frequency drivers. The optimized throat geometry promotes efficient acoustic coupling while maintaining smooth frequency response and low distortion.
When paired with high-performance compression drivers, the 18 Sound XT1086 is capable of delivering high sound pressure levels with exceptional clarity and detail.
Its compatibility with widely available professional compression drivers also provides loudspeaker manufacturers and system designers with considerable flexibility during system development.
Whether used in OEM loudspeaker production or custom speaker projects, the XT1086 offers a reliable and versatile platform.
Die-Cast Aluminium Construction
Durability is a critical consideration in professional audio applications, particularly in systems subjected to transportation, vibration, and continuous operation.
To ensure long-term reliability, the 18 Sound XT1086 is manufactured from heavy-duty die-cast aluminium.
This robust construction provides excellent structural rigidity, helping preserve the horn’s carefully engineered geometry throughout years of operation. Maintaining dimensional accuracy is essential for preserving directivity characteristics and frequency response consistency.
Compared to plastic horn designs, die-cast aluminium offers significantly improved resistance to impact damage and mechanical stress.
The result is a horn capable of withstanding the rigors of professional touring, rental inventories, and permanent installation environments.
Superior Heat Transfer Performance
An important advantage of the die-cast aluminium construction used in the 18 Sound XT1086 is its excellent thermal conductivity.
During operation, compression drivers generate heat that can negatively affect performance if not dissipated effectively. Excessive heat buildup can lead to power compression, reduced output capability, and increased distortion.
The aluminium horn structure helps transfer heat away from the compression driver more efficiently than many alternative materials.
This improved heat dissipation contributes to lower power compression, more consistent output levels, and enhanced long-term reliability.
For high-output professional systems operating for extended periods, effective thermal management is a significant performance benefit.
Enhanced Structural Rigidity Through Computer-Aided Analysis
The external structure of the 18 Sound XT1086 has been optimized using advanced computer-aided vibration analysis techniques.
This engineering process allowed 18 Sound to refine the horn’s shape for maximum structural integrity while minimizing unwanted resonance.
The increased rigidity helps reduce vibration-induced coloration and preserves acoustic accuracy during operation. It also contributes to improved durability in environments where loudspeaker systems are exposed to transportation, handling, and continuous high-output use.
This focus on structural optimization demonstrates the attention to detail that characterizes the 18Sound XT1086 design.
The result is improved reliability and more consistent long-term acoustic performance.
Outstanding Speech Intelligibility
Speech intelligibility remains one of the most important requirements in professional sound reinforcement.
The 18 Sound XT1086 contributes to exceptional speech clarity through its controlled directivity, uniform frequency response, and efficient acoustic loading.
By directing sound energy toward the audience while reducing unwanted reflections, the horn helps preserve vocal articulation and definition throughout the listening area.
Its ability to maintain consistent coverage characteristics also ensures more even sound pressure levels across the audience, further improving intelligibility.
These characteristics make the 18 Sound XT1086 particularly effective in conference centers, houses of worship, educational facilities, transportation hubs, and public address systems.
Excellent for High-Output Music Reinforcement
While speech applications benefit greatly from the XT1086’s directivity control, the horn is equally capable in demanding music reinforcement systems.
Its efficient acoustic design allows compatible compression drivers to deliver high output levels while maintaining excellent transient response and low distortion.
Vocals remain detailed and natural, while instruments retain impact, clarity, and definition even at elevated sound pressure levels.
The controlled dispersion pattern also helps distribute sound evenly throughout the audience area, creating a more consistent listening experience.
These characteristics make the 18 Sound XT1086 an excellent choice for live music venues, touring systems, clubs, theaters, arenas, and performance spaces.
Suitable for Touring and Installation Applications
The versatility of the 18 Sound XT1086 allows it to perform effectively in a wide variety of professional environments.
Its rugged construction makes it highly suitable for touring systems where components must withstand constant transportation and handling. At the same time, its controlled directivity and predictable performance make it equally attractive for fixed installations requiring long-term reliability.
The horn’s compact dimensions allow easy integration into modern loudspeaker enclosures while maintaining excellent coverage control.
Whether deployed in portable sound systems or permanent installations, the 18 Sound XT1086 delivers dependable professional performance.
Its combination of ESS technology, constant directivity performance, low-frequency loading capability, and rugged die-cast aluminium construction makes the 18Sound XT1086 a highly versatile professional horn solution.
Conclusion
The 18 Sound XT1086 is a premium professional constant coverage horn engineered to deliver exceptional directivity control, outstanding acoustic consistency, and long-term reliability. Featuring proprietary Elliptical Shape System technology, controlled 80° x 60° dispersion, a low 800 Hz cutoff frequency, advanced die-cast aluminium construction, and uniform on-axis and off-axis response characteristics, the 18 Sound XT1086 provides an ideal solution for demanding sound reinforcement applications. Whether incorporated into touring systems, fixed installations, OEM loudspeaker products, or custom speaker designs, the 18 Sound XT1086 delivers the coverage control, durability, efficiency, and sonic accuracy required by modern professional audio systems.
