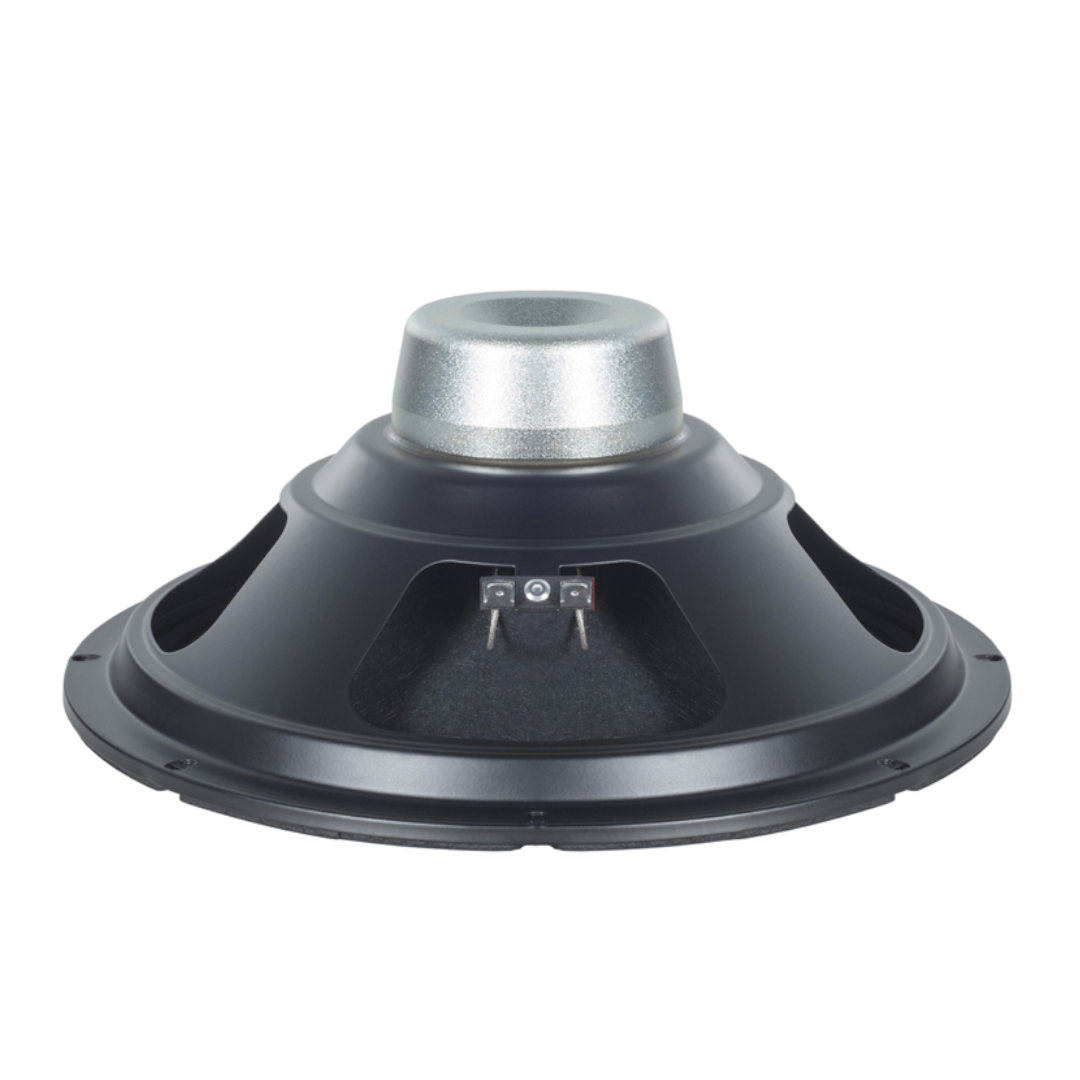

B&C 10CL51 – Best Ultralight 10-Inch Neodymium Woofer at Just 1.3 Kilograms
The B&C 10CL51 weighs 1.3 kg. That makes it the lightest 10-inch professional woofer in B&C’s range — and one of the lightest 10-inch drivers available from any manufacturer. With 96 dB sensitivity, a 60 Hz – 4000 Hz bandwidth, 5.5 mm of linear excursion, and a 30.5 g moving mass from a 51 mm neodymium-powered platform, the B&C 10CL51 delivers the same sensitivity as the larger-coil 10CLA64 while saving an additional half kilogram and reaching 15 Hz deeper into the bass region.
The 2-inch aluminium voice coil is the smallest professional woofer coil in B&C’s 10-inch range, and it’s the engineering decision that makes 1.3 kg possible. Everything about the B&C 10CL51 is optimised for minimum weight — the coil, the motor, the cone, the 7 mm flange thickness, the 108 mm depth. No other driver in B&C’s LF range is this light, this shallow, or this compact.
B&C recommends a 32-litre vented enclosure tuned to 58 Hz. With a Qts of 0.38 that provides genuine sealed/vented flexibility, the B&C 10CL51 adapts to a wide range of cabinet designs — from compact vented two-way tops to sealed column speaker modules to multi-driver arrays where per-driver weight directly determines total system mass.
Design and Construction of the B&C 10CL51
The B&C 10CL51 uses a 51 mm (2-inch) aluminium voice coil wound on a glass fibre former. The 2-inch coil diameter is the smallest in B&C’s 10-inch woofer range — smaller than the CLA64’s 2.5-inch and the PS26/MD26’s 3-inch — and it’s the primary reason this driver weighs less than any other 10-inch woofer B&C makes. The 15 mm winding depth operating in an 8 mm magnetic gap yields 5.5 mm of linear one-way excursion (Xmax) with an additional 5.5 mm of travel (Xvar) before mechanical limits.
The motor uses a neodymium inside-slug magnet in a straight pole configuration, producing 1.05 T of flux density and a force factor (Bl) of 11.6 Tm. The neodymium motor is compact and lightweight — the straight pole design minimises the motor assembly depth, which is how the B&C 10CL51 achieves its 108 mm overall depth, the shallowest of any 10-inch driver in B&C’s range. The 11.6 Tm Bl driving the 30.5 g moving mass produces the 1.57% efficiency and 96 dB sensitivity that characterise this driver.
The exponential cone profile supports pistonic behaviour into the upper mid-range, enabling the 4000 Hz upper bandwidth. The cone has no waterproof treatment, keeping mass at the absolute minimum. A single spider handles suspension, paired with a double-roll surround.
At 1.3 kg with a 7 mm flange thickness — the thinnest in B&C’s entire LF range — and just 108 mm of depth, the B&C 10CL51 is the most physically compact woofer B&C manufactures. It occupies just 1 dm³ of air volume behind the baffle, leaving maximum net internal volume available inside the cabinet for the enclosure alignment.
Performance and Applications for the B&C 10CL51
The B&C 10CL51 delivers 96 dB sensitivity and 1.57% reference efficiency across a 60 Hz – 4000 Hz bandwidth. The sensitivity matches both the 10CLA64 and the 10PS26, which means the B&C 10CL51 produces the same output per watt as the larger-coil alternatives — from a driver that weighs 0.55 kg less than the CLA64 and 4.75 kg less than the ferrite PS26. The efficiency is slightly lower than the CLA64’s 1.65%, reflecting the smaller motor, but the real-world output difference is negligible.
The Thiele–Small parameters show the most flexible alignment profile in B&C’s 10-inch range alongside the CLA64. A Qts of 0.38 and an EBP of 138 Hz place the B&C 10CL51 in the sealed/vented transitional zone — builders can run it vented for extended low-frequency output or sealed for tighter, more controlled bass in smaller cabinets. B&C recommends a 32-litre (1.13 ft³) vented enclosure tuned to 58 Hz, but sealed designs in the 10–15 litre range are viable for compact column speaker modules.
The 150 W AES power rating is the trade-off for the 1.3 kg weight. The smaller 2-inch coil has less thermal mass than the CLA64’s 2.5-inch, which limits sustained power handling. For applications where the driver operates within moderate power levels — column speakers, small venue PA, distributed sound systems — 150 W AES is adequate. For high-power touring applications requiring sustained output, the CLA64 or PS26 offer more thermal headroom at the cost of additional weight.
Ideal applications for the B&C 10CL51 include:
- Column speakers and vertical line arrays where per-driver weight is critical
- Ultra-lightweight portable PA tops and compact two-way speakers
- Flown speaker systems where every gram affects rigging loads
- Multi-driver arrays where total driver weight scales with driver count
- Distributed sound systems and small venue installations where moderate power is sufficient
Specifications – B&C 10CL51
- Nominal Diameter: 250 mm (10 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 5.8 Ω
- Nominal Power Handling: 150 W
- Continuous Power Handling: 300 W
- Sensitivity: 96 dB
- Frequency Range: 60 Hz – 4000 Hz
- Voice Coil Diameter: 51 mm (2 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 15 mm (0.59 in)
- Magnetic Gap Depth: 8 mm (0.31 in)
- Flux Density: 1.05 T
- Magnet Material: Neodymium (inside slug)
- Cone Shape: Exponential
- Cone Treatment: None
- Surround Shape: Double Roll
- Spider: Single
- Pole Design: Straight Pole
- Net Weight: 1.3 kg (2.87 lb)
Thiele–Small Parameters – B&C 10CL51
- Fs: 58 Hz
- Re: 5.2 Ω
- Qes: 0.42
- Qms: 3.5
- Qts: 0.38
- Vas: 36 dm³ (1.27 ft³)
- Sd: 320 cm² (49.6 in²)
- η0: 1.57%
- Xmax: 5.5 mm
- Xvar: 5.5 mm
- Mms: 30.5 g
- Bl: 11.6 Tm
- Le: 0.8 mH
- EBP: 138 Hz
Mounting Information – B&C 10CL51
- Overall Diameter: 257 mm (10.1 in)
- Bolt Circle Diameter: 246 mm (9.7 in)
- Baffle Cutout Diameter: 232 mm (9.1 in)
- Depth: 108 mm (4.25 in)
- Flange and Gasket Thickness: 7 mm (0.28 in)
- Air Volume Occupied by Driver: 1 dm³ (0.03 ft³)
- Recommended Enclosure Volume: 32 dm³ (1.13 ft³)
- Recommended Tuning Frequency: 58 Hz
Conclusion – B&C 10CL51 Woofer
The B&C 10CL51 is the absolute lightest professional woofer in B&C’s LF range. At 1.3 kg, it weighs less than many tweeters and compression drivers — yet it delivers 96 dB sensitivity, 4000 Hz bandwidth, and 5.5 mm of linear excursion from a genuine 10-inch cone. The 2-inch neodymium-powered platform strips every unnecessary gram from the design, producing a driver that practically disappears inside a cabinet.
The trade-off is the 150 W AES power handling — the smallest coil in the range has the least thermal capacity. For applications where moderate power is sufficient — column speakers, distributed sound, small venue PA — the B&C 10CL51 delivers full 96 dB sensitivity without the weight penalty of larger-coil alternatives. An eight-driver column using the B&C 10CL51 adds just 10.4 kg of driver weight — less than two 12-inch ferrite woofers.
For column speakers, ultra-portable PA, multi-driver arrays, flown systems, and any application where total driver weight is the defining constraint, the B&C 10CL51 is the 10-inch woofer that makes the lightest possible system a reality. At 1.3 kg with 96 dB sensitivity and 4000 Hz bandwidth, it proves that minimum weight doesn’t have to mean minimum performance.
