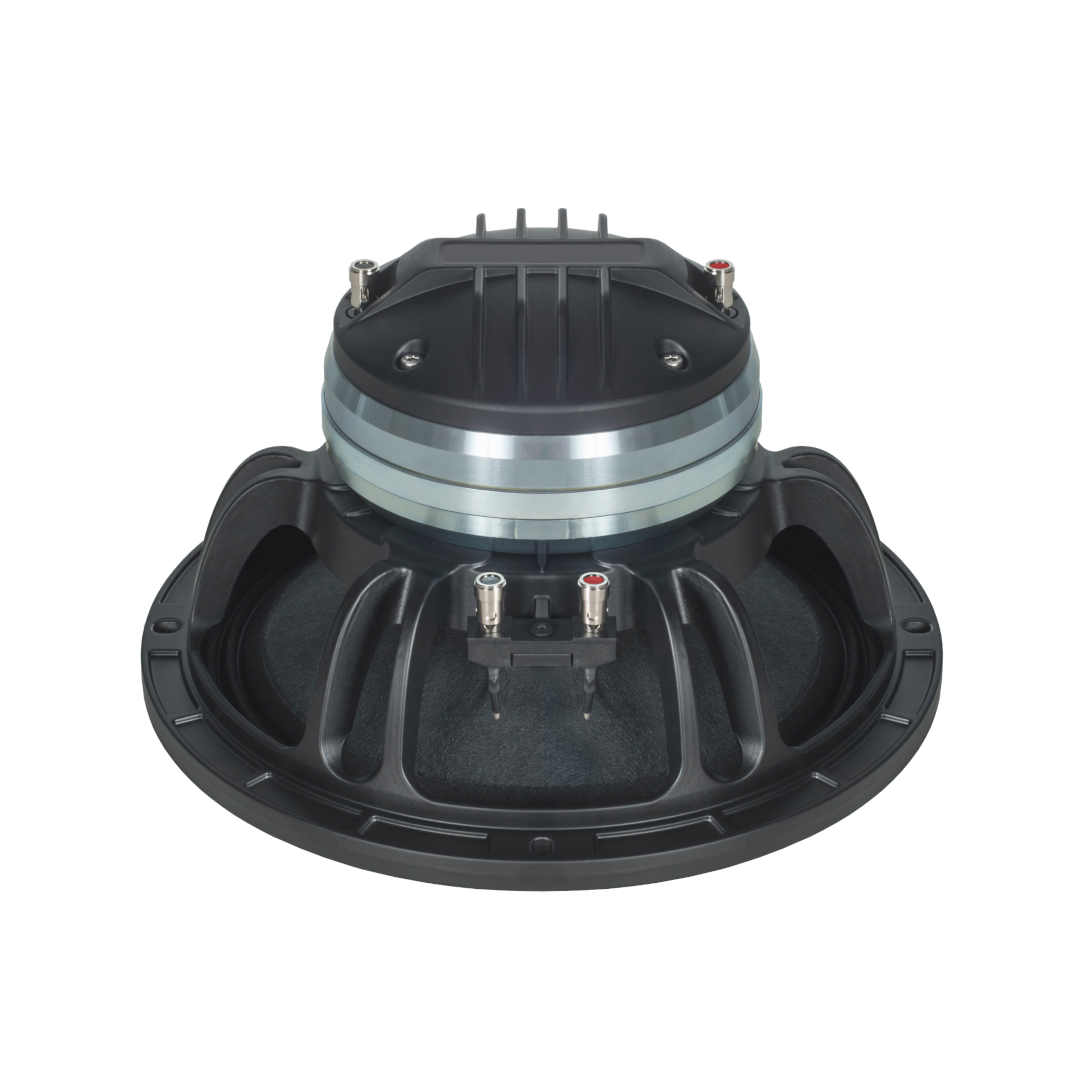

B&C 10CXN76 10 Inch Professional Coaxial Speaker
High-Output Coaxial Performance with Exceptional Clarity and Power Handling
The B&C 10CXN76 is a premium 10-inch professional coaxial speaker engineered for high-output sound reinforcement systems where exceptional fidelity, impressive power handling, and consistent coverage are critical requirements. Combining a powerful low-frequency transducer with an integrated high-frequency compression driver, the B&C 10CXN76 delivers true point-source performance while maintaining the reliability and acoustic precision that have made B&C Speakers a trusted name throughout the professional audio industry.
Developed as part of B&C’s latest generation of advanced neodymium coaxial transducers, the B&C 10CXN76 incorporates larger voice coils, increased magnet mass, improved motor strength, and advanced compression driver technology. These enhancements provide higher output capability, greater thermal stability, improved cone control, and superior sound quality across the entire frequency spectrum.
Designed specifically for applications where maximum SPL must be achieved without sacrificing sonic accuracy, the B&C 10CXN76 features both a 3-inch low-frequency voice coil and a 3-inch high-frequency voice coil. This substantial motor structure allows the driver to achieve significantly higher power handling than previous generations while improving sensitivity, transient response, and long-term reliability.
With 600 Watts continuous low-frequency power handling, 160 Watts continuous high-frequency power handling, a wide frequency response extending from 60 Hz to 18 kHz, and a lightweight neodymium motor assembly, the B&C 10CXN76 is ideally suited for premium stage monitors, portable PA systems, point-source loudspeakers, installation audio systems, houses of worship, theatres, corporate AV environments, and high-performance coaxial speaker designs.
Key Features of the B&C 10CXN76
- Premium 10-inch professional coaxial loudspeaker
- 300 W nominal low-frequency power handling
- 600 W continuous low-frequency power handling
- 80 W nominal high-frequency power handling
- 160 W continuous high-frequency power handling
- 76 mm (3 inch) LF copper voice coil
- 75 mm (3 inch) HF aluminium voice coil
- Titanium compression driver diaphragm
- High-performance neodymium ring magnet structure
- Wide frequency response from 60 Hz to 18 kHz
- Controlled 90° dispersion pattern
- WP waterproof cone treatment
- Excellent phase coherence and point-source performance
- High 96 dB LF sensitivity
- Advanced motor design for improved cone control
- Lightweight professional-grade construction
- Designed for demanding high-SPL applications
Professional Coaxial Design for Superior Sound Reproduction
The B&C 10CXN76 has been designed to deliver the benefits of true coaxial loudspeaker technology while providing the power handling and output capability demanded by modern professional sound reinforcement systems.
Unlike conventional two-way loudspeaker systems that position low-frequency and high-frequency drivers separately within an enclosure, the coaxial architecture of the B&C 10CXN76 places both acoustic sources on the same axis. This creates a true point-source configuration that significantly improves phase alignment and time coherence throughout the listening area.
The result is exceptionally natural sound reproduction with improved imaging, enhanced vocal intelligibility, and more consistent tonal balance across the coverage pattern. Whether used as a stage monitor, front-of-house loudspeaker, or installed sound solution, the B&C 10CXN76 delivers the accuracy and coherence required for critical professional applications.
The driver’s carefully engineered 90-degree dispersion pattern further contributes to consistent audience coverage. This controlled directivity helps maintain tonal consistency throughout the listening space while reducing unwanted reflections and improving overall system intelligibility.
For professional users seeking the sonic advantages of coaxial technology without compromising output capability, the B&C 10CXN76 offers an ideal combination of performance, reliability, and acoustic precision.
Powerful Low-Frequency Performance
At the heart of the B&C 10CXN76 is a highly capable 10-inch low-frequency transducer designed to deliver exceptional output, impressive dynamics, and controlled bass reproduction.
The LF section utilises a substantial 76 mm copper voice coil wound on a robust former assembly. This large voice coil significantly improves thermal handling capabilities, allowing the driver to operate reliably under demanding conditions while maintaining consistent performance.
Rated at 300 Watts nominal power handling and 600 Watts continuous program power, the B&C 10CXN76 is capable of delivering substantial acoustic output while preserving clarity and low distortion.
The driver’s frequency response extends down to 60 Hz, providing excellent low-frequency extension for a 10-inch coaxial design. This makes the driver suitable for compact full-range loudspeaker systems while also allowing seamless integration with dedicated subwoofer systems when additional bass extension is required.
A high sensitivity rating of 96 dB ensures excellent efficiency, allowing system designers to achieve impressive output levels without requiring excessive amplifier power. This contributes to improved system dynamics and greater overall headroom.
The driver’s advanced motor assembly generates a strong BL factor of 18.9 Tm, providing outstanding cone control and accurate transient reproduction. Combined with a carefully optimised moving mass of 58 g, the result is tight, responsive low-frequency performance capable of handling demanding programme material with confidence.
Advanced High-Frequency Compression Driver Technology
The high-frequency section of the B&C 10CXN76 incorporates advanced compression driver technology developed specifically for demanding professional audio applications.
The integrated HF driver features a substantial 75 mm aluminium voice coil coupled to a titanium diaphragm. This combination provides exceptional durability, excellent thermal stability, and highly accurate high-frequency reproduction.
With 80 Watts nominal power handling and 160 Watts continuous power handling, the HF section offers impressive reliability even in demanding live sound environments.
Operating from 1 kHz to 18 kHz, the compression driver delivers exceptional clarity, detail, and articulation throughout the vocal and high-frequency spectrum. A sensitivity rating of 106 dB ensures excellent efficiency and allows the HF section to maintain effortless output even at elevated SPL levels.
The recommended crossover frequency of 1.2 kHz enables smooth integration between the low-frequency and high-frequency sections. This contributes to seamless frequency response and outstanding overall tonal balance.
The titanium diaphragm provides excellent transient response and detailed high-frequency reproduction while maintaining the durability required for professional touring, installation, and reinforcement applications.
Advanced Motor Structure and Engineering
Every component within the B&C 10CXN76 has been carefully engineered to maximise efficiency, reliability, and acoustic performance.
The driver utilises a high-energy neodymium ring magnet assembly that provides exceptional magnetic strength while minimising overall weight. This advanced motor structure contributes to improved efficiency, enhanced cone control, and reduced distortion throughout the operating range.
The LF section generates a flux density of 1.15 Tesla, while the compression driver achieves an impressive 1.85 Tesla. These powerful magnetic fields help maintain accurate diaphragm motion and improve overall system dynamics.
The triple-roll surround design allows controlled cone movement while supporting the driver’s substantial excursion capabilities. With an Xmax of 6 mm and an Xvar of 5.4 mm, the B&C 10CXN76 is capable of reproducing demanding low-frequency content while maintaining excellent linearity.
The woofer cone benefits from B&C’s WP waterproof front-side treatment, providing additional protection against moisture and environmental exposure. This makes the driver particularly suitable for portable sound systems, touring applications, and installations where long-term durability is essential.
The use of a single-spider suspension system further contributes to accurate cone control while maintaining the responsiveness required for high-performance sound reinforcement applications.
Optimised Parameters for Professional Loudspeaker Design
The B&C 10CXN76 has been developed with carefully optimised Thiele-Small parameters that provide exceptional flexibility for enclosure designers.
Key performance parameters include:
- Fs: 58 Hz
- Qts: 0.30
- Qes: 0.31
- Qms: 8.2
- Vas: 19 dm³
- BL: 18.9 Tm
- Le: 0.7 mH
- EBP: 187 Hz
These characteristics indicate a driver particularly well suited to vented enclosure designs where efficiency, transient response, and maximum output are primary objectives.
The combination of a relatively low resonant frequency, strong motor force, and controlled Q values allows designers to achieve impressive low-frequency performance from compact enclosure volumes while maintaining excellent efficiency and power handling.
For loudspeaker manufacturers and system designers, the B&C 10CXN76 provides a highly versatile foundation for developing premium coaxial loudspeaker systems capable of delivering professional results in a wide variety of environments.
Applications for the B&C 10CXN76
Professional Stage Monitors
The coaxial architecture provides excellent phase coherence and consistent coverage, making the B&C 10CXN76 particularly effective in premium stage monitor systems where clarity and intelligibility are essential.
Portable PA Systems
High efficiency, substantial power handling, and compact dimensions make the B&C 10CXN76 an excellent choice for portable sound reinforcement systems that require maximum performance from compact enclosures.
Front-of-House Loudspeakers
The combination of powerful LF performance and detailed HF reproduction allows the driver to perform exceptionally well in compact FOH loudspeaker systems.
Houses of Worship
Clear speech reproduction, controlled coverage, and excellent vocal intelligibility make the B&C 10CXN76 well suited for worship environments where consistent sound quality is critical.
Theatre and Performing Arts Venues
The point-source characteristics of the coaxial design provide accurate imaging and natural sound reproduction for theatrical productions and live performances.
Corporate AV Systems
Consistent coverage and exceptional speech clarity make the B&C 10CXN76 ideal for presentation systems, conference facilities, and corporate audio applications.
Fixed Installation Systems
Its robust construction and high-output capability make the driver suitable for long-term installation in a wide range of commercial and entertainment venues.
Technical Specifications
| Specification | B&C 10CXN76 |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Frequency Range | 60 Hz – 18 kHz |
| Dispersion Angle | 90° |
| LF Power Handling | 300 W |
| LF Continuous Power Handling | 600 W |
| LF Sensitivity | 96 dB |
| LF Voice Coil Diameter | 76 mm (3 in) |
| LF Winding Material | Copper |
| HF Power Handling | 80 W |
| HF Continuous Power Handling | 160 W |
| HF Sensitivity | 106 dB |
| HF Frequency Range | 1 kHz – 18 kHz |
| Recommended Crossover | 1.2 kHz |
| HF Voice Coil Diameter | 75 mm (3 in) |
| HF Diaphragm Material | Titanium |
| Magnet Material | Neodymium Ring |
| Cone Treatment | WP Waterproof Front Side |
| Fs | 58 Hz |
| Qts | 0.30 |
| Vas | 19 dm³ |
| Xmax | 6 mm |
| Xvar | 5.4 mm |
| BL | 18.9 Tm |
| Le | 0.7 mH |
| Overall Diameter | 261 mm |
| Baffle Cutout Diameter | 230 mm |
| Mounting Depth | 148 mm |
| Net Weight | 4.8 kg |
| HF Replacement Diaphragm | MMD3BTN8M |
Why Choose the B&C 10CXN76?
The B&C 10CXN76 represents the latest evolution in high-performance coaxial loudspeaker technology, delivering exceptional output capability, impressive power handling, and outstanding sonic accuracy from a compact professional driver. Designed specifically for applications where fidelity at maximum SPL is a priority, it combines advanced neodymium motor technology with large-format voice coils and premium compression driver engineering.
Its powerful 76 mm low-frequency voice coil delivers substantial bass and midrange authority, while the integrated 75 mm titanium compression driver provides detailed and articulate high-frequency reproduction. Together, these components create a highly efficient point-source loudspeaker solution capable of delivering remarkable clarity and consistency throughout the listening area.
The combination of high sensitivity, excellent cone control, substantial excursion capability, and robust construction ensures dependable performance in demanding live sound, installation, and touring environments. The waterproof cone treatment further enhances durability, making the driver suitable for long-term professional use across a wide range of applications.
Whether deployed in stage monitors, portable PA systems, fixed installations, houses of worship, theatres, corporate venues, or premium coaxial loudspeaker designs, the B&C 10CXN76 provides the performance, reliability, and acoustic precision required by today’s professional audio industry. For loudspeaker designers seeking a premium 10-inch coaxial speaker capable of delivering exceptional output and uncompromising sound quality, the B&C 10CXN76 stands among the finest solutions available in its class.
