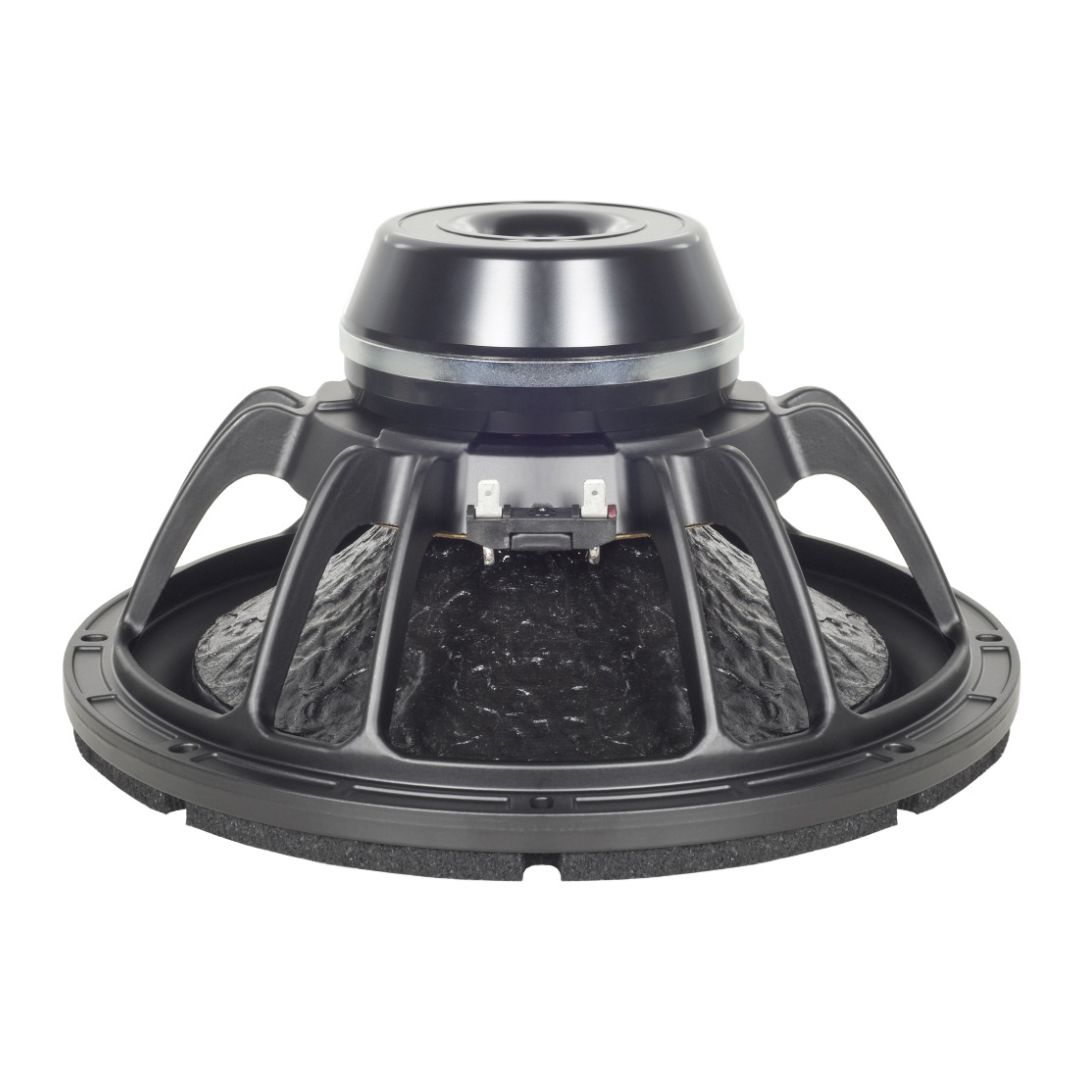

B&C 12BG76 High-Power 12-Inch Neodymium Woofer for Low-Distortion Professional Subwoofer Systems
The B&C 12BG76 is a high-performance 12-inch neodymium woofer designed for professional sound reinforcement applications where low distortion, controlled low-frequency output, and high power handling are required. Positioned within B&C’s BG series, it is optimised for compact vented subwoofers and midbass systems used in portable PA, installed sound, and high-output live sound environments.
With a 76 mm copper voice coil, advanced neodymium motor assembly, and carefully engineered suspension system, the B&C 12BG76 is designed to deliver clean, powerful bass with excellent thermal stability and controlled excursion behaviour. It balances efficiency and linearity, making it suitable for systems that need both output and accuracy.
High-Performance Neodymium Motor with Low Distortion Design
At the core of the B&C 12BG76 is a FEA-optimised neodymium ring magnet motor that provides a strong and stable magnetic field with a flux density of approximately 1.25 T. This high flux density contributes to precise cone control and reduced distortion under load.
The 76 mm (3-inch) copper voice coil is built on a glass fibre former, offering strong thermal resistance and mechanical stability during extended high-power operation. The motor also incorporates an aluminium demodulating ring, which reduces inductance modulation and significantly lowers harmonic distortion in the midbass region.
A ventilated voice coil gap improves airflow through the motor structure, reducing power compression and helping the driver maintain consistent output during long-duration use. Combined with a double silicone spider suspension system, the B&C 12BG76 maintains controlled excursion and predictable behaviour even at high SPL levels.
Controlled Bass Performance for Professional Systems
The B&C 12BG76 is designed for a frequency range of 45 Hz to 1000 Hz, making it suitable for subwoofer and low-mid reinforcement applications where clean bass and articulation are more important than extreme low-frequency extension.
With a sensitivity of 92 dB, the driver is not focused on maximum efficiency, but instead prioritises linearity and low distortion at higher power levels. This makes it well suited to systems where clarity and control are more important than raw output per watt.
Its resonance frequency of 44 Hz allows it to extend into the lower bass region while still maintaining control, making it suitable for compact vented subwoofer designs in professional environments.
Thiele-Small Behaviour and Enclosure Integration
The B&C 12BG76 is optimised for vented enclosure designs, with a Qts of 0.41 and an EBP of approximately 100 Hz, indicating a balanced alignment between control and efficiency rather than extreme tuning toward either sealed or high-efficiency horn-loaded systems.
With a Vas of 32 litres, the driver is suited to relatively compact enclosure volumes. Recommended cabinet size is around 40 litres tuned to approximately 42 Hz, which supports controlled low-frequency extension and tight bass response.
The moving mass of 148 g supports strong low-frequency energy handling while maintaining stability under high excursion conditions. Combined with a BL factor of 22.7 Tm, the motor provides strong cone control and reduced distortion under load.
Power Handling and Professional Reliability
The B&C 12BG76 is rated at 500 W nominal and 1000 W continuous program power handling, giving it substantial headroom for professional sound reinforcement applications.
This power handling is supported by efficient thermal management through the ventilated motor design and copper voice coil construction, allowing the driver to maintain consistent performance during extended operation in high-demand environments.
Its combination of controlled excursion, low distortion motor design, and strong thermal stability makes it suitable for compact subwoofers, midbass systems, and high-quality portable PA systems where reliability is essential.
Specifications
- Nominal Diameter: 320 mm (12″)
- Voice Coil Diameter: 76 mm (3″)
- Continuous Power Handling: 1000 W
- Nominal Power Handling: 500 W
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.5 Ω
- Frequency Range: 45 Hz – 1000 Hz
- Sensitivity: 92 dB
- Resonance Frequency (Fs): 44 Hz
- Qes: 0.44
- Qms: 5.9
- Qts: 0.41
- Vas: 32 litres
- BL Factor: 22.7 Tm
- Xmax: 9.5 mm
- Moving Mass (Mms): 148 g
- Effective Cone Area (Sd): 522 cm²
- Inductance (Le): 1.1 mH
- Recommended Enclosure Volume: 40 litres
- Recommended Tuning Frequency: 42 Hz
Conclusion
The B&C 12BG76 is a high-power neodymium woofer designed for professional systems that require controlled bass performance, low distortion, and strong thermal stability in compact enclosures. Its 76 mm copper voice coil, ventilated motor structure, and optimised suspension system make it well suited to modern PA subwoofers and midbass applications. For designers prioritising clean output, reliability, and controlled low-frequency behaviour, the B&C 12BG76 is a solid professional-grade solution.
