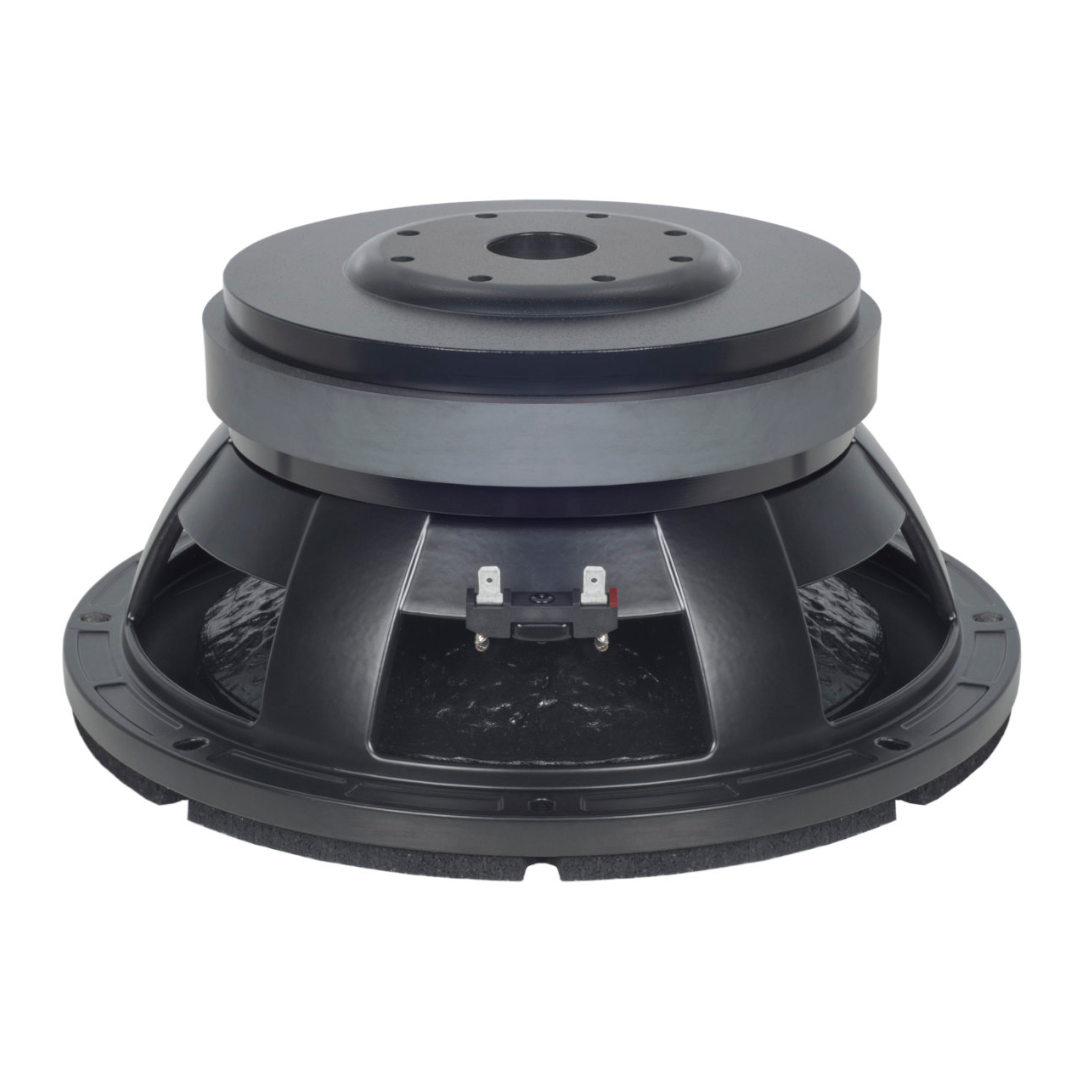

B&C 12FG100 High-Power 12-Inch Subwoofer Driver for High Output Professional Systems
The B&C 12FG100 is a high-performance 12-inch low frequency driver designed for professional subwoofer applications where high power handling, strong excursion capability, and controlled low-frequency reproduction are required. Positioned in B&C’s FG series, this model is engineered for compact vented subwoofer systems used in live sound reinforcement, portable PA, and installation environments where output density and reliability matter more than ultra-deep extension.
At its core, the B&C 12FG100 combines a 100 mm (4-inch) voice coil with a high-efficiency motor structure designed to maintain stability under extreme operating conditions. With a program power rating of 2000 W and a nominal AES rating of 1000 W, the driver is built for demanding systems that require sustained high SPL performance without thermal or mechanical instability.
High Excursion Motor Design with Strong Thermal Control
The B&C 12FG100 is built around a large copper voice coil that delivers excellent thermal endurance and power handling capability. The 100 mm coil is wound on a glass fibre former, ensuring rigidity under heat while maintaining consistent mechanical behaviour during extended operation.
A ferrite motor system with a flux density of approximately 1.1 T provides strong magnetic control, while the BL factor of around 21.4 Tm ensures tight cone control across the working range. This level of motor strength is critical in maintaining low distortion at high excursion levels, particularly in subwoofer applications where cone travel demands are significant.
The driver also incorporates a ventilated motor structure designed to reduce air compression and improve cooling of the voice coil. This helps minimise power compression during long-term high-output operation, ensuring consistent performance in demanding live environments.
A waterproof cone treatment on both sides improves durability, making the B&C 12FG100 suitable for touring systems and installations where environmental exposure is a factor.
Deep Bass Performance with Controlled Bandwidth Behaviour
The B&C 12FG100 operates effectively across a frequency range of 34 Hz to 1000 Hz, placing it firmly in the subwoofer and low-frequency reinforcement category. Its sensitivity of approximately 89.5 dB reflects a design optimised for excursion and output rather than efficiency alone.
The driver’s low resonance frequency of 34 Hz allows it to extend deeper than many standard 12-inch woofers, making it suitable for compact subwoofer designs that still require meaningful low-end performance. However, its primary strength lies in controlled high-output bass rather than ultra-low sub-bass extension.
With a Qts of 0.32 and EBP around 100 Hz, the B&C 12FG100 is best suited to vented enclosure alignments. These parameters indicate a design optimised for efficiency, punch, and output in bass-reflex systems rather than sealed configurations.
The moving mass of approximately 160–170 g contributes to strong low-frequency energy storage while maintaining sufficient control for accurate transient response in professional applications.
Enclosure Design and System Integration
In practical use, the B&C 12FG100 performs best in vented enclosures around 50 litres tuned near 34–40 Hz depending on system design goals. This alignment allows the driver to deliver a balance between low-frequency extension and output capability, making it suitable for compact subwoofer cabinets used in mobile PA systems.
The cone structure features radial geometry combined with a double spider suspension system. This improves mechanical stability at high excursion levels, reducing distortion when the driver is pushed close to its linear limits.
With an Xmax of approximately 10.3 mm, the B&C 12FG100 provides substantial excursion capability for a 12-inch format, allowing it to generate high SPL levels when properly implemented in a DSP-controlled system with appropriate filtering and limiting.
The large effective cone area of 522 cm² further contributes to its ability to move significant air volume, making it effective in single-driver compact subwoofer designs as well as multi-unit arrays.
High Power Handling for Demanding Applications
The B&C 12FG100 is rated at 1000 W AES and 2000 W program power handling, placing it firmly in the high-output professional category. This level of power handling allows it to operate reliably in systems where sustained high SPL output is required over long periods.
The combination of a large copper voice coil, efficient cooling architecture, and robust suspension system ensures thermal stability under continuous load. This makes the driver suitable for touring systems, installed club systems, and portable PA subwoofers where reliability is critical.
Its balance of excursion capability, motor strength, and controlled bandwidth makes it a strong choice for designers building compact but powerful low-frequency systems.
Specifications
- Nominal Diameter: 320 mm (12″)
- Voice Coil Diameter: 100 mm (4″)
- Continuous Power Handling: 2000 W
- Nominal Power Handling: 1000 W AES
- Nominal Impedance: 8 Ω (also available in 4 Ω variant)
- Minimum Impedance: 5.9 Ω
- Frequency Range: 34 Hz – 1000 Hz
- Sensitivity: 89.5 dB
- Resonance Frequency (Fs): 34 Hz
- Qts: 0.32
- Qes: 0.34
- Qms: 5.4
- Vas: 53 dm³
- BL Factor: 21.4 Tm
- Xmax: 10.3 mm
- Moving Mass (Mms): ~162–168 g
- Effective Cone Area (Sd): 522 cm²
- Inductance (Le): 0.96–1.15 mH
- Recommended Enclosure Volume: ~50 litres
- Recommended Tuning Frequency: 34 Hz
- Net Weight: 12.55 kg
Conclusion
The B&C 12FG100 is a high-output professional 12-inch subwoofer driver designed for compact vented systems that demand strong low-frequency performance, high power handling, and controlled excursion behaviour. Its 100 mm voice coil, ferrite motor structure, and extended linear travel make it well suited to demanding live sound and installation environments. For system designers requiring a compact but powerful low-frequency solution with reliable thermal and mechanical performance, the B&C 12FG100 delivers consistent and practical results in professional applications.
