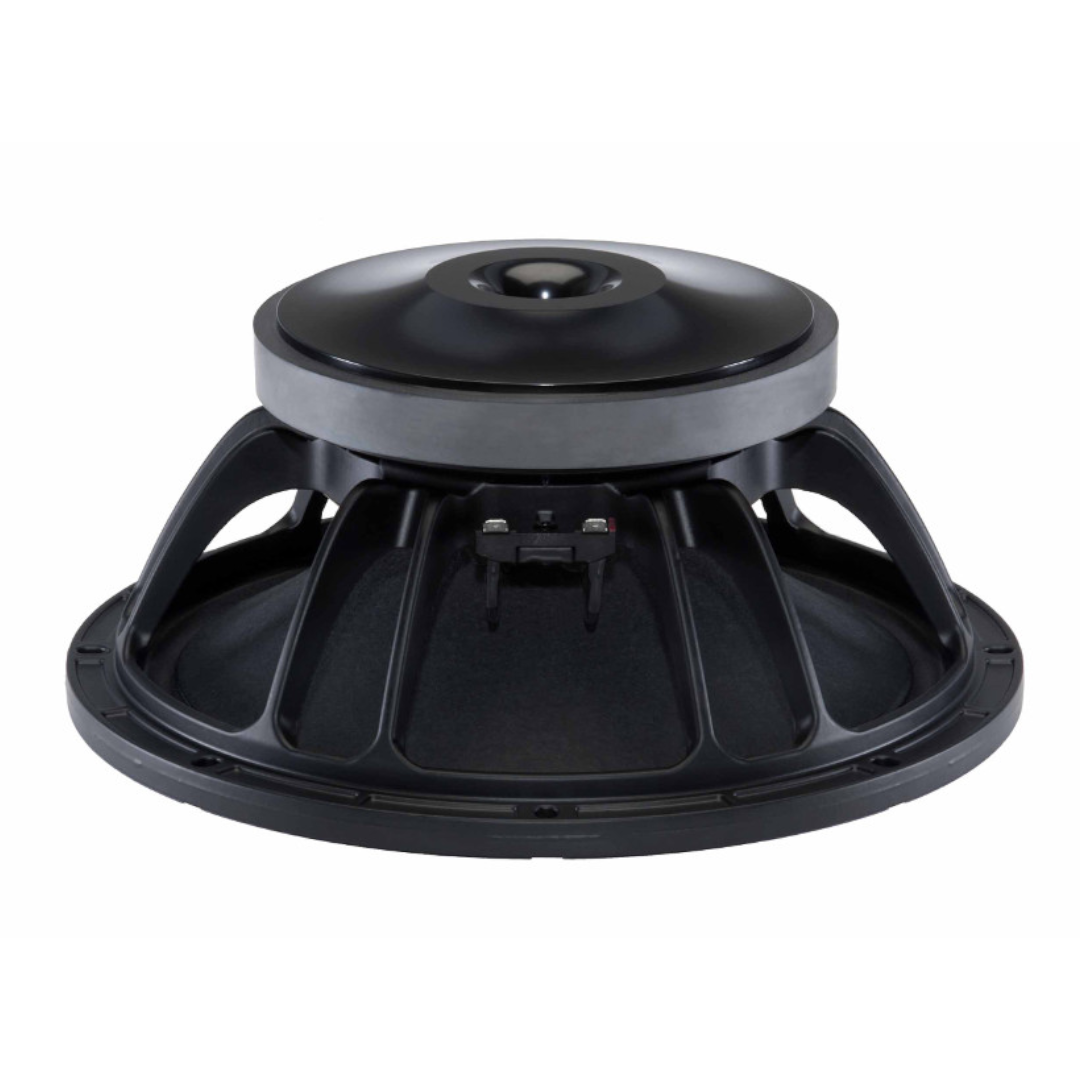

B&C 12FL76 High-Efficiency 12-Inch Woofer Optimised for Vocal Clarity and Midbass Performance
The B&C 12FL76 is a professional 12-inch low frequency driver developed for applications where vocal intelligibility, midrange projection, and efficiency are prioritised over extreme low-frequency extension. Designed as a wide-band woofer, the driver is particularly well suited to speech reinforcement systems, KTV installations, portable PA cabinets, stage monitors, and compact two-way loudspeaker designs that require excellent vocal presence and strong midbass output.
With a 3-inch aluminium voice coil, high sensitivity, and a carefully balanced moving assembly, the B&C 12FL76 delivers the responsiveness and articulation needed for professional sound reinforcement. Its design focuses on maintaining clarity through the critical vocal region while still providing enough low-frequency authority to produce a full and engaging sound from compact enclosures.
Engineered for High Output and Excellent Vocal Projection
One of the defining characteristics of the B&C 12FL76 is its ability to reproduce vocals with exceptional clarity and forward presence. With a sensitivity of 97.5 dB, the driver can generate substantial output with relatively modest amplifier power, making it a highly efficient solution for systems where maximum output and amplifier efficiency are important design considerations.
The frequency response extends from 50 Hz to 4 kHz, allowing the driver to comfortably cover both low-frequency and much of the critical vocal spectrum. This broad operating range makes the B&C 12FL76 particularly attractive for compact two-way loudspeaker systems where a smooth transition to a high-frequency compression driver is required.
Unlike woofers designed primarily for deep bass reproduction, the 12FL76 has been engineered to deliver excellent speech intelligibility and vocal definition. This makes it especially effective in environments where clear communication and vocal reproduction are essential.
Lightweight Moving Assembly and Powerful Ferrite Motor
The B&C 12FL76 utilises a high-performance ferrite motor structure coupled with a 76 mm aluminium voice coil wound on a fibreglass former. This combination provides excellent thermal stability while maintaining a relatively low moving mass of just 64 grams.
The driver’s BL factor of 18.7 Tm provides strong electromagnetic control over cone movement, contributing to excellent transient response and improved accuracy throughout the operating range. This level of motor strength helps the cone start and stop quickly, resulting in cleaner reproduction of vocals, percussion, and dynamic musical content.
A flux density of 1.1 Tesla further contributes to the efficiency and control of the motor system. Together, these design elements allow the B&C 12FL76 to deliver high output levels while maintaining low distortion and excellent clarity.
The cone itself features a weather-resistant treatment on the front surface, helping improve durability in installations where humidity or environmental exposure may be a concern.
Thiele-Small Parameters and Enclosure Considerations
From a system design perspective, the B&C 12FL76 presents a versatile set of Thiele-Small parameters that support compact and efficient enclosure designs.
With an Fs of 50 Hz and a Vas of 57 litres, the driver is capable of producing useful low-frequency output without requiring excessively large cabinet volumes. B&C recommends an enclosure volume of approximately 40 litres tuned to 55 Hz, creating a compact system capable of delivering tight and controlled bass performance.
The Qts of 0.27 and EBP of approximately 185 indicate that the B&C 12FL76 is particularly well suited to vented enclosure alignments. These parameters suggest a driver optimised for efficiency and output rather than deep sub-bass extension, making it an excellent choice for midbass and full-range reinforcement systems.
For designers developing portable PA speakers, speech reinforcement cabinets, or high-output vocal systems, these characteristics make the 12FL76 easy to integrate into practical and cost-effective enclosure designs.
Reliable Power Handling for Professional Applications
The B&C 12FL76 is rated at 400 W AES power handling and 800 W continuous program power handling, providing ample headroom for professional applications. The 3-inch voice coil is designed to dissipate heat efficiently, allowing the driver to maintain performance during extended periods of operation.
The combination of high sensitivity and substantial power handling enables the driver to achieve impressive output levels while reducing the overall amplifier power required. This can lead to improved system efficiency and lower operational demands, particularly in distributed installations and portable systems.
Whether used in a compact FOH cabinet, a vocal monitor, or a dedicated midbass enclosure, the B&C 12FL76 offers the reliability and consistency expected from a professional transducer designed for demanding sound reinforcement environments.
Specifications
- Nominal Diameter: 320 mm (12″)
- Voice Coil Diameter: 76 mm (3″)
- Continuous Power Handling: 800 W
- Nominal Power Handling: 400 W AES
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.5 Ω
- Frequency Range: 50 Hz – 4,000 Hz
- Sensitivity: 97.5 dB
- Resonance Frequency (Fs): 50 Hz
- Qts: 0.27
- Vas: 57 dm³
- BL Factor: 18.7 Tm
- Xmax: 6 mm
- Moving Mass (Mms): 64 g
- Recommended Enclosure Volume: 40 dm³
- Recommended Tuning Frequency: 55 Hz
- Net Weight: 6.85 kg
Conclusion
The B&C 12FL76 is a highly efficient professional woofer designed for applications where vocal clarity, speech intelligibility, and controlled midbass performance are critical. Its powerful ferrite motor, lightweight moving assembly, and carefully balanced Thiele-Small parameters make it particularly well suited to compact vented enclosures and high-output vocal reinforcement systems. For designers seeking a reliable 12-inch driver that prioritises projection, efficiency, and articulation, the B&C 12FL76 remains an excellent choice for a wide range of professional audio applications.
