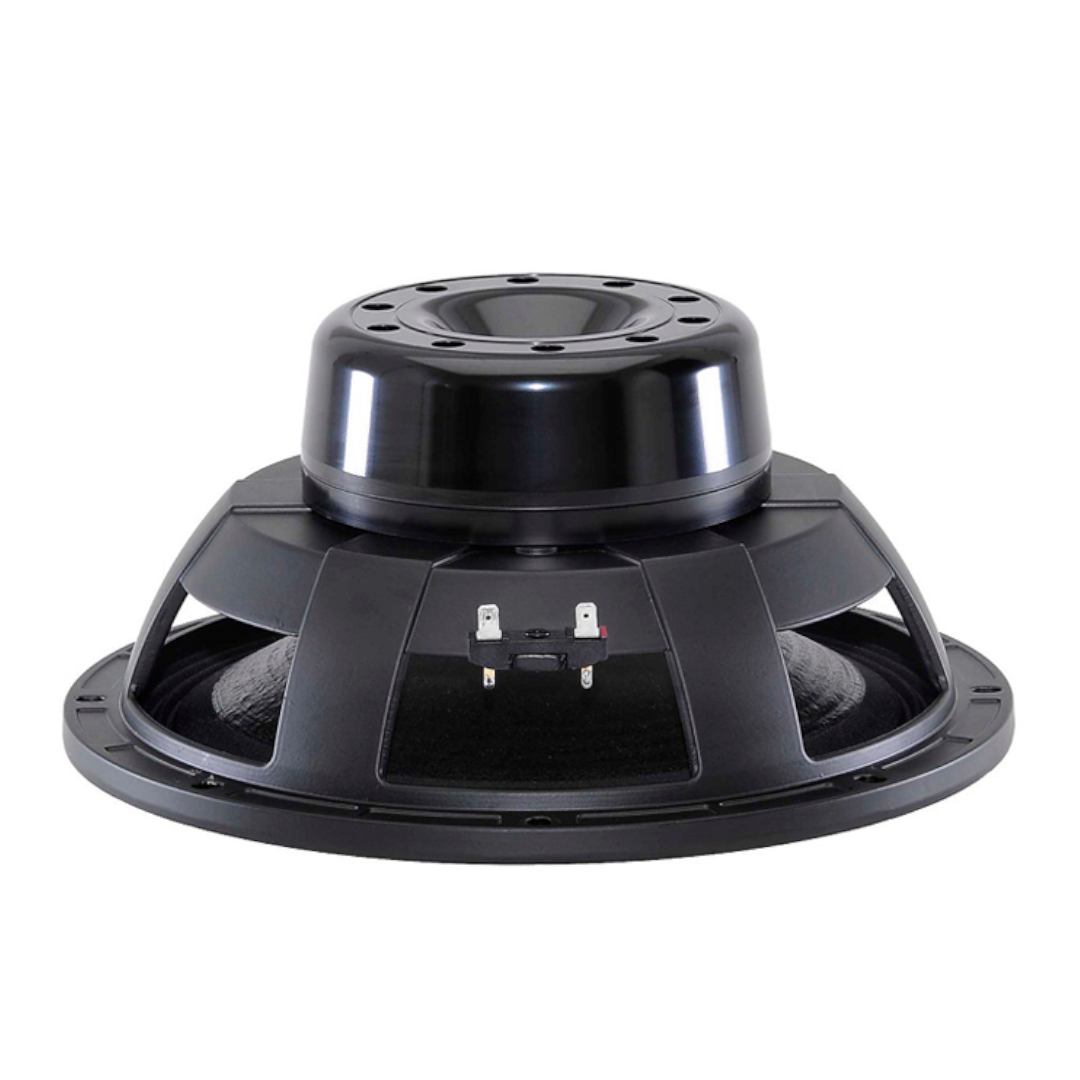

B&C 12NBX100 – Ultimate 12-Inch Neodymium Woofer with 1000 W Power and Maximum Displacement
The B&C 12NBX100 is the most powerful 12-inch driver in B&C’s entire range. With a 1000 W AES power rating, 2000 W continuous program power, 10 mm of linear excursion, and a 25.6 Tm force factor from a 100 mm copper voice coil, the B&C 12NBX100 delivers the kind of power handling and displacement capability that most builders associate with 15-inch drivers — from a 12-inch frame. Every premium feature B&C offers in a neodymium woofer is present: aluminium demodulating ring, ventilated voice coil gap, excursion-optimised woven lead wires, double silicone spider, and TWP waterproof treatment on both sides.
The 4-inch copper voice coil is what makes the B&C 12NBX100’s power handling possible. Fitting a 100 mm coil in a 12-inch frame is an aggressive design choice — it gives the driver thermal capacity that no 3-inch or 3.5-inch coil 12-inch woofer can match, and the copper winding manages heat more effectively than aluminium under sustained high-power use. The result is a 12-inch driver you can push to 1000 W AES without worrying about thermal failure.
Available in 4 and 8 Ω, the B&C 12NBX100 is built for high-power two-way tops, compact bass cabinets, and any application where a 12-inch driver needs to deliver the excursion, power handling, and motor control of a larger format. B&C recommends a 40-litre vented enclosure tuned to 50 Hz — compact enough for portable touring cabinets while delivering genuine low-frequency authority.
Design and Construction of the B&C 12NBX100
The B&C 12NBX100 uses a 100 mm (4-inch) copper voice coil wound on a glass fibre former. A 4-inch coil in a 12-inch frame is the largest coil-to-cone ratio in B&C’s LF range at this format — the coil occupies a substantial portion of the cone’s radiating area, which is the engineering trade-off that enables 1000 W AES power handling from a 12-inch driver. The 25 mm winding depth operating in an 11 mm magnetic gap yields 10 mm of linear one-way excursion (Xmax) with an additional 10 mm of travel (Xvar) before mechanical limits.
The motor uses a neodymium inside-slug magnet in a T-pole configuration, producing 1.1 T of flux density and a force factor (Bl) of 25.6 Tm — the highest Bl of any 12-inch driver in B&C’s range. That massive motor authority driving the 117 g moving mass keeps the cone under firm control even at the 10 mm Xmax that this driver routinely operates at. An aluminium demodulating ring reduces flux modulation in the voice coil gap, keeping harmonic and intermodulation distortion low as power and excursion increase — a critical feature for a driver designed to operate at these sustained displacement levels.
A ventilated voice coil gap allows air circulation around the coil, reducing power compression during sustained high-power operation. Excursion-optimised lead wires woven through the spider prevent fatigue and breakage at the 10 mm linear excursion levels this driver is designed for. Suspension is handled by a double silicone spider with optimised compliance and a triple-roll surround — the most robust suspension system of any 12-inch driver in B&C’s range.
The exponential cone features TWP waterproof treatment on both sides for full weather resistance. At 8.25 kg and 143 mm deep, the B&C 12NBX100 is the heaviest 12-inch driver in B&C’s neodymium range — the 4-inch copper coil, double spider, and reinforced motor assembly account for the added mass. The 320 mm overall diameter and 280 mm baffle cutout fit standard 12-inch mounting patterns.
Performance and Applications for the B&C 12NBX100
The B&C 12NBX100 delivers 96 dB sensitivity and 1.45% reference efficiency across a 40 Hz – 1500 Hz bandwidth. The sensitivity is lower than B&C’s lighter, higher-efficiency 12-inch woofers — the FW76 at 100 dB, the PLB76 at 99 dB — but the B&C 12NBX100 isn’t competing on efficiency. It’s competing on total output capacity. At full rated power, the combination of 96 dB sensitivity and 1000 W AES produces peak output levels that no other 12-inch driver in B&C’s range can approach. When you need a 12-inch driver that handles real sustained power, the B&C 12NBX100 is the only choice.
The Thiele–Small parameters define a driver built for vented enclosures tuned for low-frequency authority. A Qts of 0.22 and an EBP of 171 Hz confirm this is a vented and horn-loaded enclosure driver — the low Qts delivers tight, fast, well-controlled bass response. B&C recommends a 40-litre (1.41 ft³) vented enclosure tuned to 50 Hz — a compact cabinet that leverages the 10 mm Xmax and 531 cm² Sd to produce displacement that rivals some lightweight 15-inch woofers.
The 40 Hz lower frequency limit and 41 Hz Fs make the B&C 12NBX100 one of the deepest-reaching 12-inch woofers in B&C’s range. Combined with 10 mm of linear excursion, this driver produces meaningful output in the sub-bass region where lighter 12-inch woofers have already rolled off. For systems where the 12-inch woofer carries the full bass section without a dedicated sub, that low-frequency reach and displacement headroom are non-negotiable.
Ideal applications for the B&C 12NBX100 include:
- High-power compact two-way tops where the 12-inch carries full bass duties
- Compact vented bass cabinets for touring and live sound reinforcement
- Line array bass sections needing 1000 W power handling in a 12-inch format
- Three-way systems where the 12-inch handles dedicated bass duties below 1.5 kHz
- Dual-driver configurations using 8 Ω parallel pairs for 4 Ω loading
Specifications – B&C 12NBX100
- Nominal Diameter: 320 mm (12 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.5 Ω
- Nominal Power Handling: 1000 W
- Continuous Power Handling: 2000 W
- Sensitivity: 96 dB
- Frequency Range: 40 Hz – 1500 Hz
- Voice Coil Diameter: 100 mm (4 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 25 mm (1 in)
- Magnetic Gap Depth: 11 mm (0.43 in)
- Flux Density: 1.1 T
- Magnet Material: Neodymium (inside slug)
- Cone Shape: Exponential
- Cone Treatment: TWP Waterproof (both sides)
- Surround Shape: Triple Roll
- Spider: Double Silicone
- Pole Design: T-Pole
- Net Weight: 8.25 kg (18.19 lb)
Thiele–Small Parameters – B&C 12NBX100
- Fs: 41 Hz
- Re: 5.1 Ω
- Qes: 0.24
- Qms: 3.9
- Qts: 0.22
- Vas: 51 dm³ (1.8 ft³)
- Sd: 531 cm² (82 in²)
- η0: 1.45%
- Xmax: 10 mm
- Xvar: 10 mm
- Mms: 117 g
- Bl: 25.6 Tm
- Le: 1.9 mH
- EBP: 171 Hz
Mounting Information – B&C 12NBX100
- Overall Diameter: 320 mm (12.6 in)
- Bolt Circle Diameter: 300 mm (11.8 in)
- Baffle Cutout Diameter: 280 mm (11 in)
- Depth: 143 mm (5.63 in)
- Flange and Gasket Thickness: 12 mm (0.47 in)
- Air Volume Occupied by Driver: 4 dm³ (0.14 ft³)
- Recommended Enclosure Volume: 40 dm³ (1.41 ft³)
- Recommended Tuning Frequency: 50 Hz
Conclusion – B&C 12NBX100 Woofer
The B&C 12NBX100 is the most capable 12-inch driver B&C makes. The 1000 W AES power rating, 10 mm Xmax, 25.6 Tm force factor, and full premium feature set — demod ring, ventilated gap, woven leads, double spider, TWP both sides — put it in a class that no other 12-inch driver in B&C’s range can reach. When the application demands maximum power handling and displacement from a 12-inch frame, the B&C 12NBX100 is the only driver in the lineup that answers without qualification.
The trade-off is honest: at 8.25 kg and 1.45% efficiency, this is not the driver you choose for lightweight builds or low-power systems. The B&C 12NBX100 earns its output through sustained high power and long-throw displacement — it needs serious amplification to reach its potential, and when it gets it, the 10 mm Xmax and 25.6 Tm motor deliver bass authority that rivals many 15-inch woofers in output volume displacement.
For high-power touring tops, compact bass cabinets, line array bass sections, and any build where a 12-inch driver needs to handle 1000 W and move air like a larger format, the B&C 12NBX100 is the neodymium 12-inch that closes the gap between 12 and 15. It’s B&C’s best 12-inch woofer — and the specs leave no room for argument.
