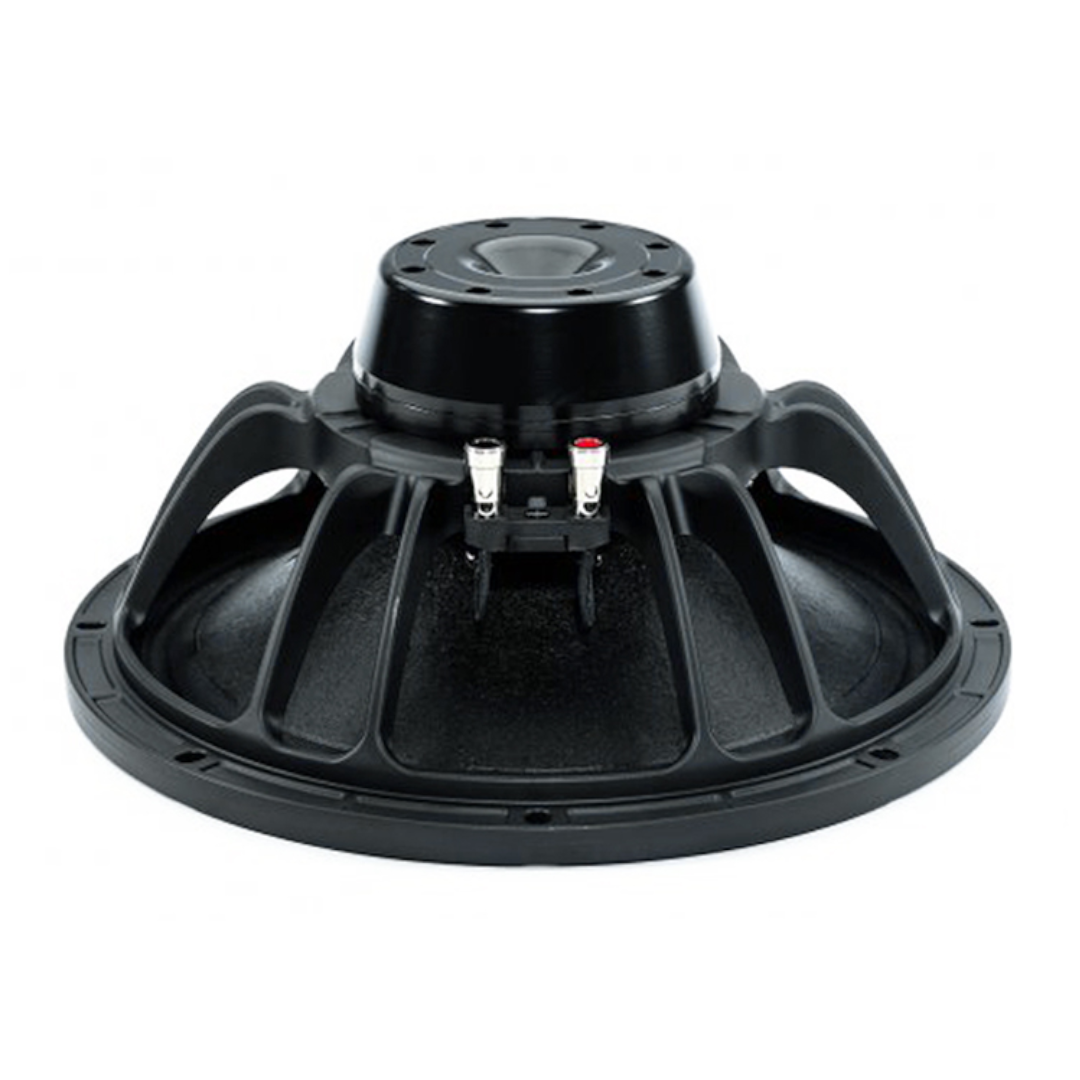

B&C 12NDL76 High-Sensitivity 12-Inch Neodymium Woofer for Professional Midbass and Full-Range Systems
The B&C 12NDL76 is a high-efficiency 12-inch neodymium woofer designed for professional sound reinforcement systems that demand high sensitivity, extended bandwidth, and controlled midbass performance. It is part of B&C’s lightweight NDL series, engineered for compact two-way loudspeakers, portable PA systems, stage monitors, and installation cabinets where output, clarity, and reduced weight are critical design priorities.
With a 76 mm aluminium voice coil, powerful neodymium motor structure, and exceptionally high sensitivity, the B&C 12NDL76 delivers strong acoustic output with minimal amplifier demand. It is optimised for systems that require maximum efficiency and vocal projection, while still maintaining solid low-frequency performance in properly tuned vented enclosures.
Ultra-High Efficiency Neodymium Motor for Maximum Output
At the core of the B&C 12NDL76 is a high-flux neodymium inside-slug motor system designed for extreme efficiency and low moving mass. The motor achieves a flux density of approximately 1.25 T, paired with a BL factor of 20.1 Tm, providing strong electromagnetic control over cone movement.
This motor design is a key reason for the driver’s exceptionally high sensitivity of 100 dB, making it one of the most efficient 12-inch drivers in its class. The result is very high acoustic output even at low to moderate amplifier power levels, which is critical in large-scale PA systems and distributed sound reinforcement applications.
The 76 mm aluminium voice coil is wound on a glass fibre former, balancing low weight with sufficient thermal stability for professional use. A ventilated voice coil gap helps reduce thermal compression, ensuring consistent output during extended high-level operation.
Wide-Band Performance with Strong Midrange Projection
The B&C 12NDL76 is designed as a wide-band woofer with a frequency range of 50 Hz to 2 kHz, making it suitable for both low-frequency reinforcement and midrange reproduction in two-way systems.
Its extended upper bandwidth allows for smooth crossover integration with compression drivers, typically between 1.2 kHz and 1.8 kHz depending on system design. This makes it particularly effective in compact high-output loudspeakers where a single woofer must cover both bass and a significant portion of the vocal range.
The tonal character of the B&C 12NDL76 is highly forward and articulate in the midrange, making it especially effective for speech intelligibility, live vocals, and high-energy music reproduction. This clarity is a defining characteristic of the NDL series.
Thiele-Small Behaviour and Enclosure Design
The B&C 12NDL76 is optimised for vented enclosure applications, with a Qts of approximately 0.20 and an EBP of 238, indicating a very strong preference for bass-reflex designs focused on efficiency and output rather than deep sub-bass extension.
With an Fs of 50 Hz and a Vas of 73 litres, the driver performs well in compact vented enclosures around 40–45 litres tuned in the mid-60 Hz range. This alignment prioritises punch, clarity, and dynamic response over extended low-frequency depth.
The moving mass of just 53 g contributes to extremely fast transient response, allowing the driver to react quickly to dynamic input signals. Combined with the strong neodymium motor, this ensures tight cone control and low distortion even at high output levels.
The effective cone area of 522 cm² allows the driver to move a significant volume of air, supporting strong midbass output despite its lightweight construction.
Power Handling and Thermal Stability
The B&C 12NDL76 is rated at 400 W AES and 800 W program power handling, providing sufficient headroom for professional use in high-output systems. Despite its lightweight design, the aluminium voice coil and ventilated motor structure ensure stable thermal behaviour under continuous operation.
The focus of this driver is efficiency rather than brute force power handling. When paired correctly with DSP processing and appropriate amplification, it delivers extremely high SPL levels relative to its size and weight.
This makes the B&C 12NDL76 particularly suitable for touring systems, portable PA cabinets, and lightweight flown arrays where performance-per-kilogram is a key requirement.
Specifications
- Nominal Diameter: 320 mm (12″)
- Voice Coil Diameter: 76 mm (3″)
- Continuous Power Handling: 800 W
- Nominal Power Handling: 400 W AES
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.2 Ω
- Frequency Range: 50 Hz – 2000 Hz
- Sensitivity: 100 dB
- Resonance Frequency (Fs): 50 Hz
- Qes: 0.21
- Qms: 4.2
- Qts: 0.20
- Vas: 73 dm³
- BL Factor: 20.1 Tm
- Xmax: 7 mm
- Moving Mass (Mms): 53 g
- Effective Cone Area (Sd): 522 cm²
- Inductance (Le): 1 mH
- Recommended Enclosure Volume: ~42 litres
- Recommended Tuning Frequency: ~65 Hz
- Net Weight: ~3.9 kg
Conclusion
The B&C 12NDL76 is a very high-efficiency neodymium woofer designed for professional systems where maximum output per watt, strong vocal projection, and lightweight construction are essential. Its 100 dB sensitivity, fast transient response, and controlled midbass behaviour make it ideal for compact two-way loudspeakers and portable PA systems. For designers prioritising efficiency, clarity, and output density in a 12-inch format, the B&C 12NDL76 remains one of the most capable solutions in its class.
