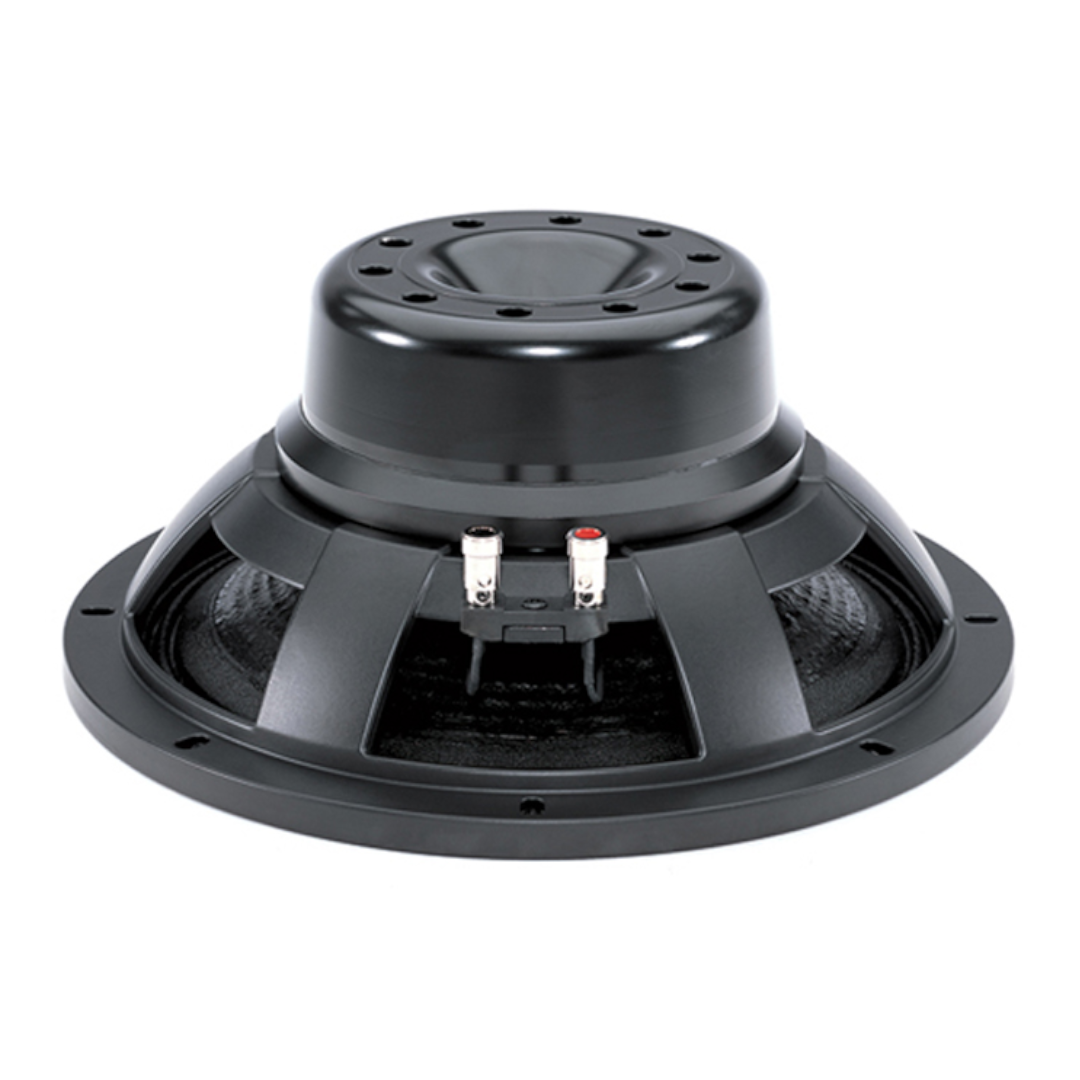

B&C 12NW100 High-Sensitivity 12-Inch Neodymium Woofer for Maximum Output Professional Systems
The B&C 12NW100 is a high-efficiency 12-inch neodymium woofer designed for professional sound reinforcement systems that require extreme sensitivity, high power handling, and wide-bandwidth performance. Positioned within B&C’s NW series, it is engineered for compact two-way loudspeakers, portable PA systems, and installation cabinets where maximum output per watt, vocal clarity, and lightweight construction are critical design priorities.
With a 100 mm (4-inch) copper voice coil, high-flux neodymium motor system, and extremely high sensitivity, the B&C 12NW100 is built to deliver strong SPL levels with minimal amplifier demand while maintaining tight control over cone movement. It is designed for systems that prioritise efficiency and articulation over extended sub-bass depth.
High-Flux Neodymium Motor for Maximum Efficiency and Control
At the core of the B&C 12NW100 is a high-energy neodymium ring magnet motor designed for maximum flux density and extremely low moving inertia. With a flux density of approximately 1.3 T and a BL factor of 25.5 Tm, the motor provides very strong electromagnetic control over cone movement, ensuring accurate response even under high excursion conditions.
The 100 mm copper voice coil is wound on a glass fibre former, giving excellent thermal stability and mechanical rigidity. This large coil allows the driver to handle significant continuous power while maintaining consistent performance during extended operation in high-output environments.
A ventilated voice coil gap improves airflow through the motor structure, reducing thermal compression and helping the driver maintain stable output over long duty cycles. An aluminium demodulating ring is also integrated into the motor to reduce inductance distortion and improve midrange clarity.
The result is a driver that combines extremely high efficiency with strong low-distortion behaviour, even when driven hard in demanding professional systems.
Wide-Band Performance for Midbass and Vocal Projection
The B&C 12NW100 operates over a frequency range of 40 Hz to 2000 Hz, making it suitable for both low-frequency reinforcement and midrange vocal duties in two-way systems.
With a sensitivity of approximately 98.5 dB, the driver produces very high acoustic output from relatively low amplifier power. This makes it highly efficient in systems where amplifier capacity is limited or where multiple cabinets are deployed in distributed sound reinforcement setups.
The extended upper bandwidth allows smooth crossover integration with compression drivers, typically between 1.2 kHz and 1.8 kHz. This makes the B&C 12NW100 ideal for compact high-output loudspeakers where a single woofer must cover both bass and a significant portion of the vocal range.
The tonal response is fast, articulate, and forward in the midrange, supporting strong speech intelligibility and vocal projection in live sound applications.
Thiele-Small Behaviour and Enclosure Design
The B&C 12NW100 is optimised for vented enclosure designs, with a Qts of 0.16 and an EBP of approximately 235, indicating a very strong preference for bass-reflex systems focused on efficiency and output rather than deep bass extension.
With an Fs of 40 Hz and a Vas of 76 litres, the driver performs well in compact vented enclosures around 50 litres tuned to approximately 60 Hz. This alignment prioritises punch, clarity, and dynamic response over extended sub-bass reproduction.
The moving mass of 77 g ensures controlled cone behaviour while still allowing fast transient response. Combined with the extremely strong BL motor, the B&C 12NW100 maintains excellent cone control even at high SPL levels.
The effective cone area of 522 cm² enables strong air displacement, supporting high midbass output despite the driver’s efficiency-focused design.
Power Handling and Professional Reliability
The B&C 12NW100 is rated at 500 W AES and 1000 W program power handling, giving it substantial headroom for professional use in high-output systems.
The copper voice coil and ventilated motor structure provide strong thermal stability, allowing the driver to maintain consistent performance under continuous operation. This makes it suitable for touring systems, portable PA cabinets, and installed sound reinforcement systems where reliability is essential.
Its combination of extremely high sensitivity, low distortion motor design, and wide bandwidth makes it one of the most efficient 12-inch woofers in its class.
Specifications
- Nominal Diameter: 320 mm (12″)
- Voice Coil Diameter: 100 mm (4″)
- Continuous Power Handling: 1000 W
- Nominal Power Handling: 500 W AES
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.9 Ω
- Frequency Range: 40 Hz – 2000 Hz
- Sensitivity: 98.5 dB
- Resonance Frequency (Fs): 40 Hz
- Qes: 0.17
- Qms: 3.7
- Qts: 0.16
- Vas: 76 dm³
- BL Factor: 25.5 Tm
- Xmax: 8 mm
- Moving Mass (Mms): 77 g
- Effective Cone Area (Sd): 522 cm²
- Inductance (Le): 1.25 mH
- Recommended Enclosure Volume: ~50 litres
- Recommended Tuning Frequency: ~60 Hz
Conclusion
The B&C 12NW100 is a very high-efficiency neodymium woofer designed for professional systems that demand maximum output per watt, strong vocal projection, and compact enclosure integration. Its powerful 100 mm voice coil, extremely strong motor structure, and wide operating bandwidth make it ideal for modern two-way PA designs where efficiency and clarity are critical. For system designers prioritising output density, reliability, and dynamic performance in a 12-inch format, the B&C 12NW100 delivers top-tier professional results.
