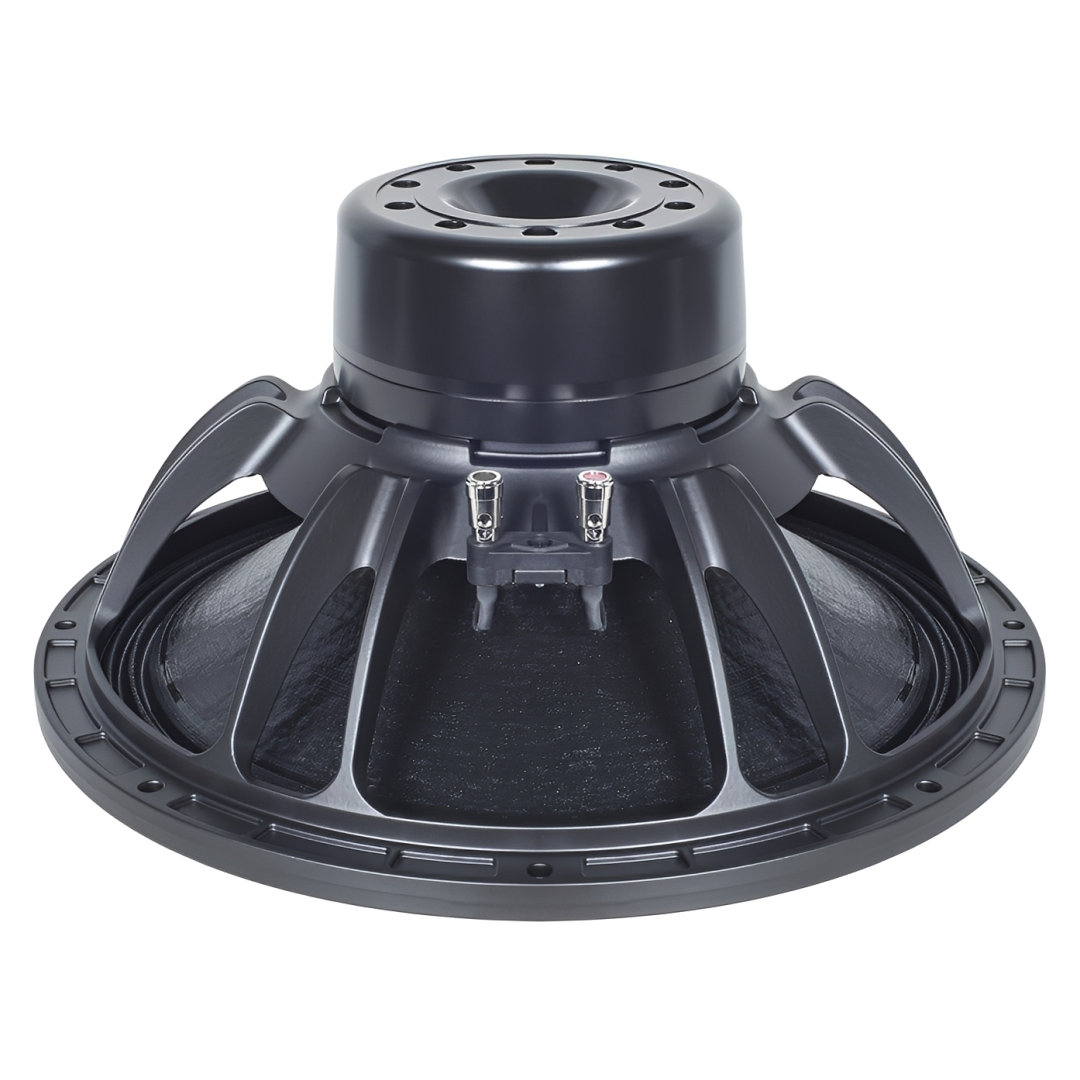

B&C 15DS100 – 15″ High-Energy Subwoofer Driver

The 15DS100 is a 15-inch subwoofer driver made for professional sound systems that demand huge bass output, excellent efficiency, and strong build integrity. Crafted for touring and permanent installations, this driver pushes deep, controlled bass while keeping distortion low. It delivers serious performance where power handling, sensitivity, and clean low-frequency response are essential.

Deep Bass Reach and Accurate Low-Frequency Coverage

With a nominal diameter of 380 mm (15 inches), the 15DS100 is built to move large volumes of air and reproduce deep bass fundamentals with authority. Its frequency range of 39 Hz to 1000 Hz gives it extended low-end reach, allowing for serious subwoofer work while retaining usable output well into the low midrange.

When housed in properly vented subwoofer cabinets, the 15DS100 delivers tight, powerful bass down to below 40 Hz, with clarity in upper bass tones, avoiding muddiness or overload even at high sound pressure levels.

High Power Handling and Thermal Endurance

The 15DS100 boasts a nominal power handling of 1500 W and a continuous program power rating of 3000 W, providing ample headroom for demanding audio material. Its 100 mm (4-inch) voice coil is designed to tolerate thermal stress, allowing it to maintain performance during long sessions without overheating.

This level of power handling ensures that audio peaks are dealt with cleanly, without compromise, and that the driver remains stable under heavy load—making it a reliable component in high-start-performance subwoofer modules.

Excellent Sensitivity and Output Efficiency

With a sensitivity of 96.8 dB (1W/1m), the 15DS100 converts amplifier power to acoustic output efficiently. You’ll get strong sound pressure for less amp power compared to many subwoofers of similar power class. This helps lower distortion and keeps the system cleaner, especially when pushing volume levels.

Good sensitivity also improves dynamic response, meaning the 15DS100 can deliver fast, punchy bass transients without losing impact or clarity even when pushed hard.

Electrical Stability and Compatibility

The driver runs at a nominal impedance of 8 Ω, with a minimum impedance of about 6.2 Ω, giving stable behavior when used with standard amplifiers and crossover networks. This predictable electrical load makes integration simpler, whether in passive subwoofers or active systems with external crossovers, and helps avoid amplifier clipping or undue stress.

Applications and Build Reliability

The 15DS100 is suited for:

• High-output vented subwoofer systems

• Bass modules in large PA or concert stacks

• Permanent installations in clubs, arenas, or outdoor venues

• Systems requiring reliable deep bass with high SPL capability

• OEM designs needing a rugged, consistent low-frequency driver

Built with reinforced suspension, vented motor gap, and coil design optimized for excursion and heat, it holds up under rigorous conditions. The driver’s mechanical robustness and efficient cooling design ensure it sustains performance, set after set.

Specifications

• Nominal Diameter: 380 mm (15 in)

• Voice Coil Diameter: 100 mm (4 in)

• Continuous Power Handling: 3000 W

• Nominal Power Handling: 1500 W

• Nominal Impedance: 8 Ω

• Minimum Impedance: 6.2 Ω

• Frequency Range: 39 Hz – 1000 Hz

• Sensitivity: 96.8 dB (1W/1m)

Performance Summary

The 15DS100 offers a rare combination of high output, efficiency, and clean low-end extension. When driven hard, it retains clarity in upper bass and resists power compression thanks to its robust voice coil and thermal management. It gives designers power reserve and performance that is reliable in both portable and fixed systems.

Conclusion

If you need a 15-inch subwoofer driver that delivers authoritative deep bass, high sensitivity, and immense power handling in a durable package, 15DS100 is a top-tier choice. It balances performance, efficiency, and ruggedness—ideal for applications where bass impact, clarity, and reliability are non-negotiable.

For pro audio setups, touring rigs, or install systems demanding serious low-frequency performance, the B&C 15DS100 delivers results you can build around.
