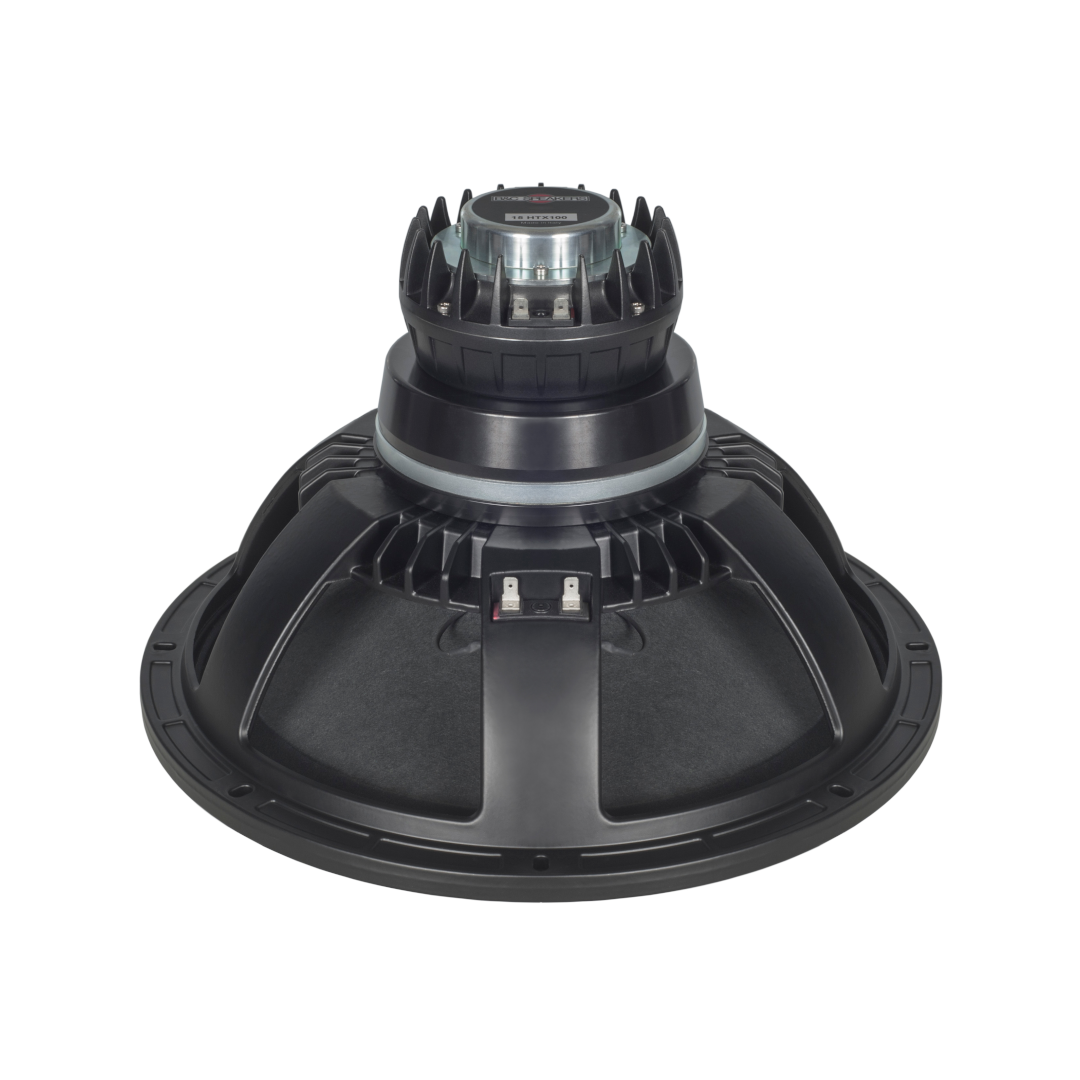

B&C 15HTX100 Professional 15-Inch Triaxial Speaker – 1600W Continuous Power Handling, Neodymium Motor, Full-Range High Output Performance
The B&C 15HTX100 is a premium professional triaxial loudspeaker engineered for high-output sound reinforcement systems that demand exceptional power handling, extended frequency response, and outstanding acoustic performance. Combining an 800W low-frequency section, dedicated mid-frequency compression driver, and integrated high-frequency compression driver into a single compact assembly, the B&C 15HTX100 delivers true point-source performance across an impressive frequency range of 52 Hz to 20 kHz.
Designed for professional touring systems, stage monitors, high-performance point-source loudspeakers, and premium installation projects, the B&C 15HTX100 provides exceptional clarity, remarkable output capability, and consistent coverage. Its advanced triaxial architecture allows system designers to achieve coherent acoustic performance from a single source while reducing enclosure complexity and improving overall system integration.
Featuring a powerful neodymium motor structure, a 100 mm low-frequency voice coil, dedicated mid-frequency and high-frequency compression drivers, and a waterproof treated cone assembly, the B&C 15HTX100 represents one of the most advanced professional loudspeaker solutions available for demanding applications.
Advanced Triaxial Loudspeaker Architecture
The defining feature of the B&C 15HTX100 is its sophisticated triaxial design.
Unlike conventional loudspeakers that require separate low, mid, and high-frequency devices mounted in different locations within an enclosure, the B&C 15HTX100 integrates all three frequency sections into a single acoustic source.
This design significantly improves phase coherence and time alignment across the frequency spectrum.
By maintaining a common acoustic origin, the speaker delivers more consistent frequency response, improved imaging, and smoother off-axis performance.
The result is a highly coherent listening experience that remains consistent throughout the coverage area.
For professional sound reinforcement systems, this translates directly into improved vocal intelligibility, enhanced musical detail, and more uniform audience coverage.
Powerful 15-Inch Low Frequency Performance
At the foundation of the B&C 15HTX100 is a high-performance 15-inch low-frequency transducer designed to deliver powerful bass and midbass reproduction.
The LF section features an 800W nominal power rating and an impressive 1600W continuous power handling capability.
This substantial power capacity allows the driver to operate confidently in demanding professional applications where high output and long-term reliability are essential.
The 100 mm (4-inch) aluminium voice coil provides excellent thermal management while maintaining low moving mass.
Combined with a strong neodymium motor generating 1.5 Tesla of magnetic flux density, the woofer achieves exceptional control and efficiency.
A sensitivity rating of 99 dB ensures impressive acoustic output while minimizing amplifier requirements.
The result is deep, punchy low-frequency performance with excellent transient response and outstanding dynamic capability.
Dedicated Midrange Compression Driver
The integrated mid-frequency section is responsible for one of the most critical regions of the audible spectrum.
Human hearing is particularly sensitive to the frequencies reproduced by the midrange driver, making its performance essential for vocal clarity and instrument definition.
The B&C 15HTX100 incorporates a dedicated mid-frequency compression driver featuring a 76 mm (3-inch) aluminium voice coil and HT Polymer Ring diaphragm.
With 90W nominal power handling and 180W continuous power capacity, the midrange section provides exceptional output and reliability.
Sensitivity reaches an impressive 108.5 dB, allowing the driver to reproduce vocal and instrumental content with outstanding clarity and projection.
Covering frequencies from 500 Hz to 5.5 kHz, the midrange driver handles the majority of critical vocal information while maintaining excellent tonal accuracy.
This dedicated approach allows the B&C 15HTX100 to achieve significantly greater detail and intelligibility than traditional two-way loudspeaker systems.
High-Frequency Detail and Extended Response
The high-frequency section of the B&C 15HTX100 has been engineered to deliver precise reproduction of upper harmonics and transient information.
Featuring a 51 mm (2-inch) aluminium voice coil and HT Polymer Ring diaphragm, the HF driver combines low mass with excellent durability.
Power handling reaches 50W nominal and 100W continuous, ensuring reliable operation in demanding professional environments.
The high-frequency driver operates from 5 kHz to 20 kHz and delivers a sensitivity rating of 108.5 dB.
This extended response provides exceptional detail and clarity across the upper frequency spectrum.
Vocals remain crisp and articulate, cymbals maintain their natural shimmer, and instruments retain their fine harmonic detail.
The result is a highly refined listening experience that remains accurate even at elevated sound pressure levels.
Exceptional Efficiency and Output Capability
Efficiency is one of the defining characteristics of the B&C 15HTX100.
The combination of a 99 dB low-frequency sensitivity rating and 108.5 dB sensitivity ratings for both mid and high-frequency sections allows the system to produce remarkable acoustic output.
High sensitivity enables greater sound pressure levels while reducing amplifier demands.
This improves overall system efficiency while minimizing thermal stress on associated electronics.
For touring systems and fixed installations alike, the ability to achieve higher output from available amplifier power represents a significant advantage.
The B&C 15HTX100 is capable of delivering the performance required for demanding professional environments while maintaining exceptional clarity and control.
Neodymium Motor Technology
The B&C 15HTX100 utilizes an advanced neodymium motor structure throughout its design.
Neodymium magnets provide significantly higher magnetic energy density than conventional ferrite motors while reducing overall weight.
This allows the driver to achieve exceptional performance without excessive mass.
The powerful motor system improves cone control, transient response, and efficiency.
It also contributes to the impressive output capability that defines the B&C 15HTX100.
For professional audio applications where weight reduction is critical, the use of neodymium technology offers substantial practical benefits without compromising performance.
Waterproof Cone Treatment for Long-Term Reliability
Professional loudspeaker systems often operate in challenging environments where exposure to humidity and changing environmental conditions is unavoidable.
To enhance durability, the B&C 15HTX100 features TWP waterproof cone treatment applied to both sides of the cone assembly.
This treatment improves resistance to moisture while helping preserve long-term performance consistency.
The treated paper cone maintains excellent acoustic characteristics while offering improved environmental protection.
For portable systems, outdoor events, and installation projects, this additional durability provides valuable peace of mind.
Ideal Applications for the B&C 15HTX100
The versatility of the B&C 15HTX100 makes it suitable for a wide range of professional audio applications.
Touring Sound Systems
High output capability, exceptional efficiency, and coherent point-source performance make the driver an outstanding choice for professional touring systems.
Stage Monitors
The integrated triaxial design provides excellent coverage consistency and vocal clarity, making it highly effective in demanding monitoring applications.
Premium Point-Source Loudspeakers
The B&C 15HTX100 enables designers to create powerful full-range loudspeaker systems without requiring multiple separate transducers.
Houses of Worship
Speech intelligibility and musical clarity are critical requirements in worship environments.
The B&C 15HTX100 excels in both areas.
Performance Venues
Live music venues benefit from the driver’s combination of high output, extended frequency response, and controlled directivity.
Fixed Installations
The compact integration of three frequency sections simplifies enclosure design while maintaining professional performance standards.
Robust Construction and Professional Engineering
Every aspect of the B&C 15HTX100 has been engineered for professional use.
The triple-roll surround supports extended excursion while maintaining control.
The double silicone spider enhances mechanical stability during high-power operation.
A curvilinear cone profile contributes to smooth frequency response and improved acoustic behaviour.
The vented box loading recommendation allows designers to optimize low-frequency performance while maintaining excellent overall system efficiency.
These engineering decisions combine to create a loudspeaker capable of delivering reliable performance in demanding professional applications.
Why Choose the B&C 15HTX100?
The B&C 15HTX100 offers a unique combination of performance, integration, and efficiency.
Its triaxial architecture provides true point-source behaviour across an exceptionally wide frequency range.
The powerful low-frequency section delivers substantial bass output, while dedicated midrange and high-frequency compression drivers ensure outstanding vocal clarity and high-frequency detail.
High sensitivity ratings throughout the system maximize acoustic output while reducing amplifier demands.
Neodymium motor technology provides exceptional performance while minimizing weight.
Combined with waterproof cone treatment and professional-grade construction, the B&C 15HTX100 delivers the reliability and performance expected from a flagship B&C loudspeaker.
Technical Specifications
General Specifications
- Nominal Diameter: 380 mm (15 in)
- Frequency Range: 52 Hz – 20 kHz
- Dispersion Angle: 60°
- Woofer Cone Treatment: TWP Waterproof Both Sides
Low Frequency Section
- Nominal Impedance: 8 Ω
- Minimum Impedance: 7 Ω
- Nominal Power Handling: 800 W
- Continuous Power Handling: 1600 W
- Sensitivity: 99 dB
- Frequency Range: 52 Hz – 1 kHz
- Voice Coil Diameter: 100 mm (4 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Flux Density: 1.5 T
Mid Frequency Section
- Nominal Impedance: 8 Ω
- Minimum Impedance: 7.5 Ω
- Nominal Power Handling: 90 W
- Continuous Power Handling: 180 W
- Sensitivity: 108.5 dB
- Frequency Range: 500 Hz – 5.5 kHz
- Recommended Crossover: 700 Hz
- Voice Coil Diameter: 76 mm (3 in)
- Diaphragm Material: HT Polymer Ring
High Frequency Section
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.5 Ω
- Nominal Power Handling: 50 W
- Continuous Power Handling: 100 W
- Sensitivity: 108.5 dB
- Frequency Range: 5 kHz – 20 kHz
- Recommended Crossover: 4.5 kHz
- Voice Coil Diameter: 51 mm (2 in)
- Diaphragm Material: HT Polymer Ring
Thiele-Small Parameters
- Fs: 52 Hz
- Re: 5.5 Ω
- Qes: 0.305
- Qms: 5.9
- Qts: 0.29
- Vas: 78 dm³
- Sd: 855 cm²
- Xmax: 10 mm
- Xvar: 8.5 mm
- Mms: 125 g
- Bl: 27 Tm
- Le: 0.9 mH
- EBP: 170 Hz
Mounting Information
- Overall Diameter: 393 mm (15.5 in)
- Baffle Cutout Diameter: 355 mm (14 in)
- Depth: 261 mm (10.28 in)
- Net Weight: 10.8 kg (23.8 lb)
Service Kits
- HF Replacement Diaphragm: MMDDCX354HF8
- MF Replacement Diaphragm: MMDDCX354MF8
Conclusion
The B&C 15HTX100 is a flagship professional triaxial loudspeaker designed for applications where maximum performance, exceptional clarity, and uncompromising reliability are required. Combining a powerful 15-inch woofer with dedicated midrange and high-frequency compression drivers, the B&C 15HTX100 delivers true point-source performance across an impressive frequency range from 52 Hz to 20 kHz.
With 1600W continuous low-frequency power handling, advanced neodymium motor technology, waterproof cone treatment, and outstanding sensitivity throughout all frequency sections, the B&C 15HTX100 provides the output capability and sonic accuracy demanded by today’s most challenging professional audio environments.
For system designers seeking a premium triaxial solution capable of delivering world-class performance in touring systems, stage monitors, installation loudspeakers, and high-output point-source applications, the B&C 15HTX100 stands among the most advanced and capable loudspeaker solutions available.
