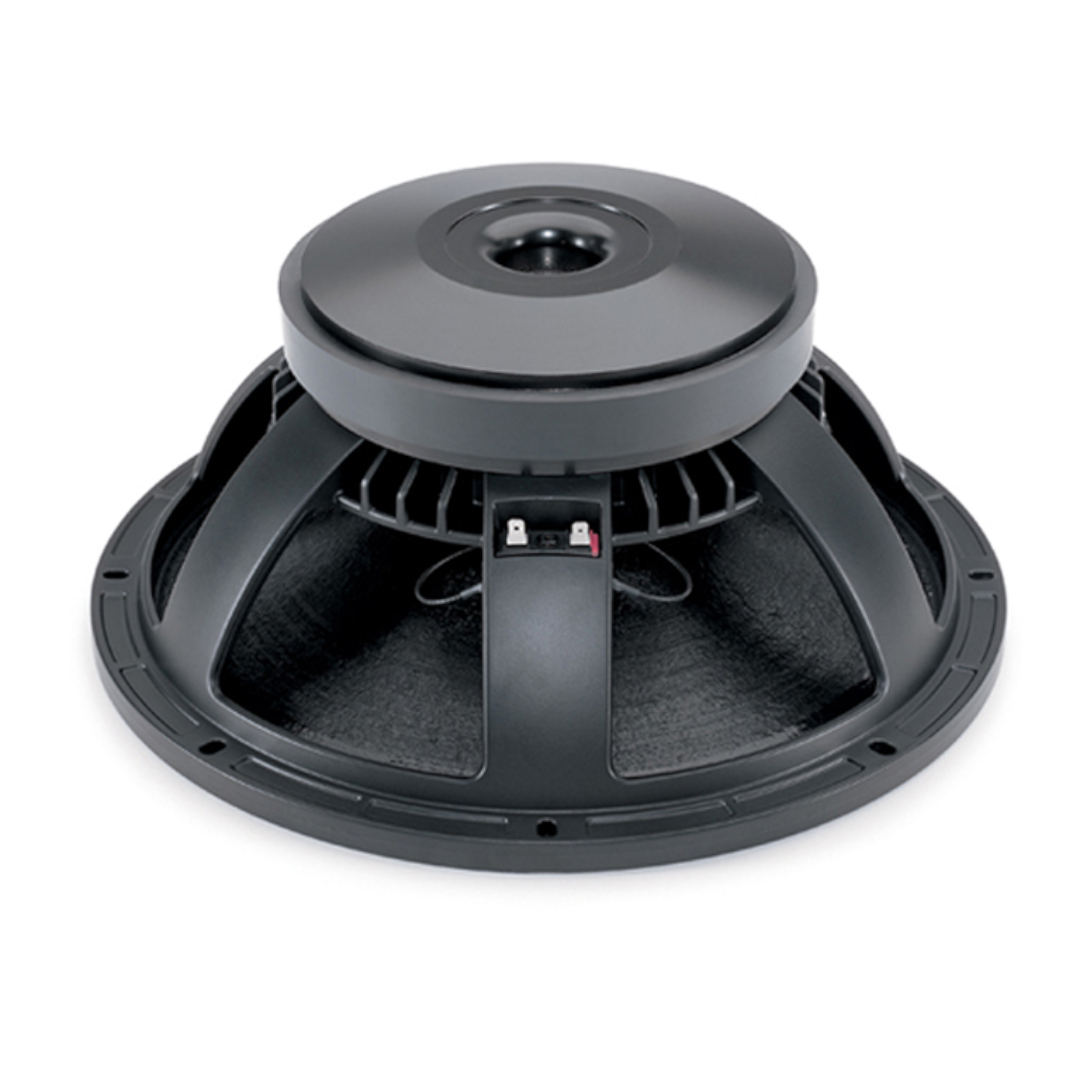

B&C 15PZB100 – High-Sensitivity 15-Inch Subwoofer Driver for Efficiency-Focused Builds

The B&C 15PZB100 is the high-sensitivity option in B&C’s ferrite 15-inch subwoofer range — a driver that prioritises output per watt over everything else. With 97 dB sensitivity, 2.1% reference efficiency, and a 25.8 Tm force factor from a 4-inch copper coil, the B&C 15PZB100 converts amplifier watts into acoustic output more effectively than any other 15-inch sub in the B&C ferrite lineup. When amplifier power is limited or when you need maximum SPL from the fewest channels, this is the 15-inch driver that earns its keep.

The PZB architecture is consistent across B&C’s range — exponential cone, double-roll surround, straight pole motor, high flux density — and the 15-inch version delivers the same design philosophy that makes the 18PZB100 a favourite among efficiency-minded builders. A Qts of 0.29 and an EBP of 130 Hz place the B&C 15PZB100 firmly in vented and horn-loaded territory, where its efficiency advantage translates directly into real-world output.

B&C recommends a compact 105-litre vented enclosure tuned to 39 Hz — a practical cabinet size that suits both portable touring subs and permanent install applications without requiring an oversized box to perform well.

Design and Construction of the B&C 15PZB100

The B&C 15PZB100 uses a 100 mm (4-inch) copper voice coil wound on a glass fibre former. The 21 mm winding depth operating in a 9 mm magnetic gap yields 8 mm of linear one-way excursion (Xmax) with an additional 6.5 mm of travel (Xvar) before mechanical limits. The relatively shallow 9 mm gap combined with the high 1.15 T flux density is part of how B&C achieves the elevated force factor — the coil sees intense flux concentration throughout its travel range.

The motor uses a ferrite magnet in a straight pole configuration, producing 1.15 T of flux density and a force factor (Bl) of 25.8 Tm. That’s a significant step up from the 15PS100’s 21.2 Tm — and the lighter 154 g moving mass (vs the PS100’s 160 g) means the motor’s grip on the cone assembly is even more authoritative. This combination of higher Bl and lower Mms is the foundation of the B&C 15PZB100’s 97 dB sensitivity — a full 2 dB advantage over the PS100.

The cone profile is exponential rather than radial, enhancing stiffness and supporting pistonic behaviour at higher frequencies. This is why the B&C 15PZB100 operates usefully to 2000 Hz despite being classified as a subwoofer — you get bandwidth that extends well into the mid-bass region for more flexible crossover design. The double-roll surround supports this extended bandwidth while the double silicone spider provides controlled compliance.

TWP waterproof treatment on both sides of the cone provides moisture resistance for outdoor deployments. At 11.6 kg, the B&C 15PZB100 is heavier than the PS100 (9.8 kg) due to the larger ferrite magnet required to achieve the higher flux density — a reasonable trade for the 2 dB sensitivity gain and the stronger motor control.

Performance and Applications for the B&C 15PZB100

The B&C 15PZB100 delivers 97 dB sensitivity and 2.1% reference efficiency across a 40 Hz – 2000 Hz bandwidth. To put that efficiency figure in context, the B&C 15PZB100 produces roughly 55% more acoustic output per watt than the 15PS100 (2.1% vs 1.35%). In practical terms, a 500 W amplifier driving the B&C 15PZB100 delivers the same output as roughly 780 W driving the PS100. That’s a meaningful advantage when you’re building systems on a budget or running multiple cabinets from limited amplifier channels.

The Thiele–Small parameters define a clear design intent. A Qts of 0.29 and an EBP of 130 Hz place the B&C 15PZB100 firmly in vented and horn-loaded enclosure territory — this driver doesn’t belong in a sealed box. The recommended 105-litre (3.7 ft³) vented enclosure tuned to 39 Hz is a compact, practical cabinet that delivers strong output in the 40–200 Hz range where most live sound energy lives.

Horn-loaded designs are where the B&C 15PZB100 truly excels. The low Qts, exponential cone profile, and high Bl-to-Mms ratio all favour horn loading, where the acoustic impedance match amplifies the driver’s already-high sensitivity. For builders designing 15-inch bass bins, scoop-style enclosures, or tapped horns, this driver’s parameters are a natural fit.

Ideal applications for the B&C 15PZB100 include:

• Horn-loaded bass bins and scoop-style subwoofer enclosures
• Vented subwoofer cabinets for high-efficiency live sound systems
• Compact 15-inch subs exploiting the 105-litre recommended enclosure
• Multi-driver configurations using 8 Ω parallel pairs for 4 Ω loading
• DIY builds where amplifier power is limited and sensitivity is the priority

Specifications – B&C 15PZB100

• Nominal Diameter: 380 mm (15 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.4 Ω
• Nominal Power Handling: 700 W
• Continuous Power Handling: 1400 W
• Sensitivity: 97 dB
• Frequency Range: 40 Hz – 2000 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Copper
• Former Material: Glass Fibre
• Winding Depth: 21 mm (0.83 in)
• Magnetic Gap Depth: 9 mm (0.35 in)
• Flux Density: 1.15 T
• Magnet Material: Ferrite
• Cone Shape: Exponential
• Cone Treatment: TWP Waterproof (both sides)
• Surround Shape: Double Roll
• Spider: Double Silicone
• Pole Design: Straight Pole
• Net Weight: 11.6 kg (25.57 lb)

Thiele–Small Parameters – B&C 15PZB100

• Fs: 39 Hz
• Re: 5.2 Ω
• Qes: 0.3
• Qms: 6.5
• Qts: 0.29
• Vas: 110 dm³ (3.8 ft³)
• Sd: 855 cm² (132.5 in²)
• η0: 2.1%
• Xmax: 8 mm
• Xvar: 6.5 mm
• Mms: 154 g
• Bl: 25.8 Tm
• Le: 2 mH
• EBP: 130 Hz

Mounting Information – B&C 15PZB100

• Overall Diameter: 393 mm (15.5 in)
• Bolt Circle Diameter: 374 mm (14.7 in)
• Baffle Cutout Diameter: 354 mm (13.9 in)
• Depth: 174 mm (6.85 in)
• Flange and Gasket Thickness: 16 mm (0.63 in)
• Air Volume Occupied by Driver: 5.2 dm³ (0.18 ft³)
• Recommended Enclosure Volume: 105 dm³ (3.7 ft³)
• Recommended Tuning Frequency: 39 Hz

Conclusion – B&C 15PZB100 Subwoofer Driver

The B&C 15PZB100 is the efficiency king of B&C’s ferrite 15-inch subwoofer range. At 97 dB sensitivity and 2.1% efficiency, it delivers over 50% more acoustic output per watt than the 15PS100 — a difference you can hear immediately in a side-by-side comparison. The stronger 25.8 Tm motor driving a light 154 g cone assembly means this driver responds fast and hits hard, with the kind of punch that makes horn-loaded bass bins come alive.

The PZB design hallmarks are all present — exponential cone for extended bandwidth, double-roll surround for controlled compliance, and a straight pole motor for concentrated flux. These aren’t cosmetic differences from the PS100; they represent a fundamentally different approach to driver design, one that favours motor authority and acoustic efficiency over raw displacement and power handling.

If you’re building horn-loaded 15-inch subs, high-efficiency vented cabinets, or any system where you want maximum output from minimum amplifier power, the B&C 15PZB100 is the 15-inch ferrite sub that delivers the most bang per watt — and the compact 105-litre enclosure means the cabinet stays manageable too.
