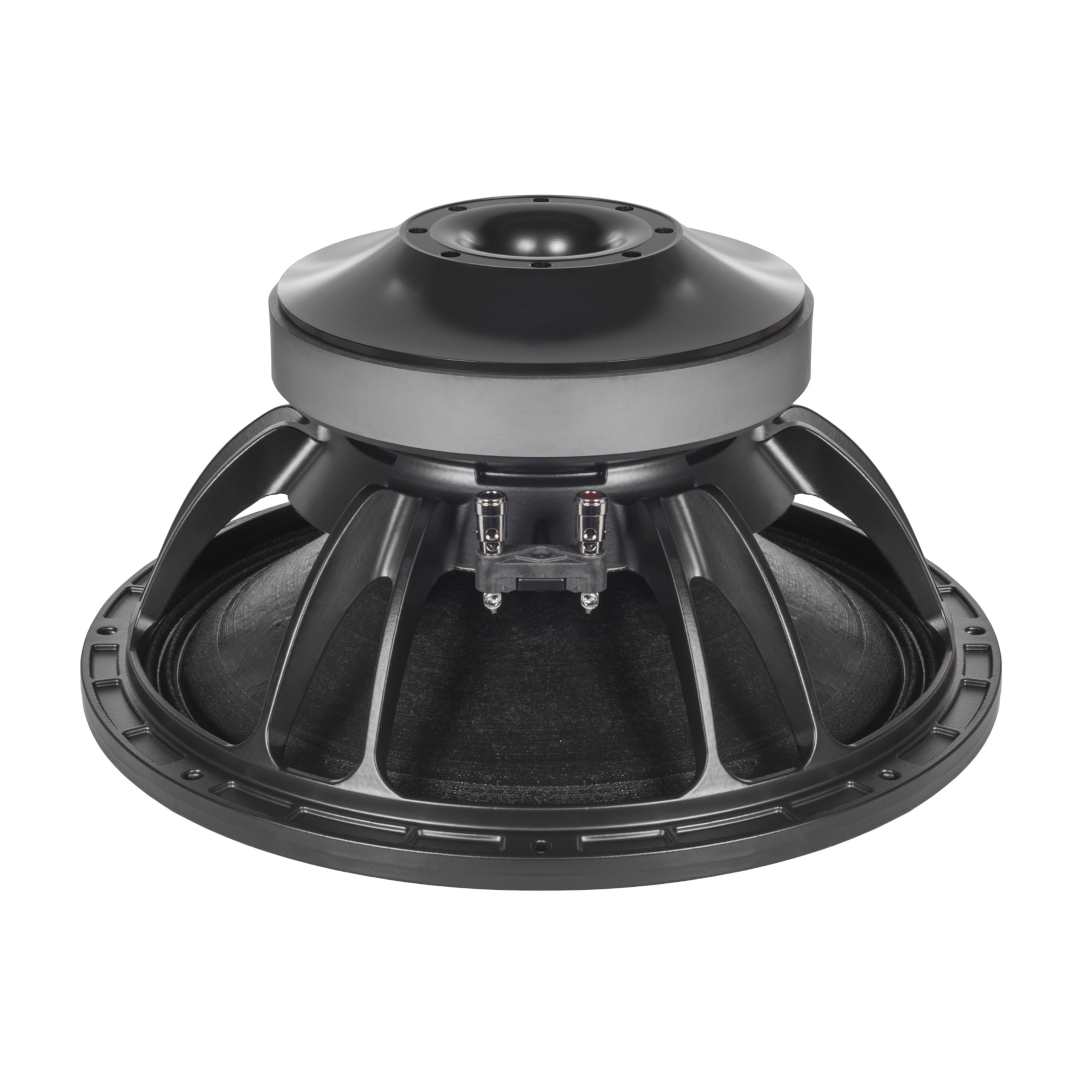

B&C 15TBW100 – Best 15-Inch Ferrite Subwoofer Driver for Demanding Low-Frequency Systems
The B&C 15TBW100 in its 8 Ω configuration is the flagship of B&C’s ferrite 15-inch subwoofer range — a full-featured, high-power driver that carries every premium motor feature in B&C’s arsenal. With a 1500 W AES power rating, 3000 W continuous program power, 12 mm of linear excursion, and 96 dB sensitivity, the B&C 15TBW100 delivers performance that bridges the gap between ferrite and neodymium territory without the neodymium price tag.
The 8 Ω impedance makes this the natural choice for dual-driver sub cabinets — two B&C 15TBW100 drivers wired in parallel present a 4 Ω load to a single amplifier channel, doubling your cone area and displacement while staying within the amp’s optimal operating range. For builders designing dual-15 subs that need to hit hard and stay clean, this is the impedance variant to spec.
The 8 Ω version also gains a meaningful edge over the 4 Ω variant in sensitivity and motor authority — 96 dB (vs 95 dB), 26.4 Tm Bl (vs 22.56 Tm), and a lighter 181 g moving mass (vs 197 g). Every watt works harder in the 8 Ω version, making it the more efficient of the two impedance options.
Design and Construction of the B&C 15TBW100
The B&C 15TBW100 uses a 100 mm (4-inch) split winding copper voice coil wound on a glass fibre former. The split winding topology distributes the coil into separate sections for improved thermal dissipation — the same architecture that enables the driver’s 1500 W AES power rating, the highest of any ferrite 15-inch driver in B&C’s range. The 31 mm winding depth operating in a 15 mm magnetic gap yields 12 mm of linear one-way excursion (Xmax) with a generous 13.5 mm of additional travel (Xvar) before mechanical limits.
The motor uses a ferrite magnet in a T-pole configuration, producing 1.15 T of flux density and a force factor (Bl) of 26.4 Tm. That Bl figure is notably stronger than the 4 Ω variant’s 22.56 Tm, and driving a lighter 181 g moving mass produces the tighter motor control and higher sensitivity that characterise the 8 Ω version. An aluminium demodulating ring reduces flux modulation in the voice coil gap, directly lowering harmonic and intermodulation distortion as excursion and power increase.
A ventilated voice coil gap allows air circulation around the coil, fighting power compression during sustained high-power use. Excursion-optimised lead wires woven through the spider prevent fatigue and breakage at the 12 mm linear excursion levels this driver routinely operates at. Suspension is handled by a double silicone spider with optimised compliance and a triple-roll surround.
The radial cone features TWP waterproof treatment on both sides for weather resistance. The physical frame is identical to the 4 Ω version — same 393 mm overall diameter, same 191 mm depth, same 12.2 kg net weight. If you’ve designed a cabinet around either impedance variant, the other drops in with no changes required.
Performance and Applications for the B&C 15TBW100
The B&C 15TBW100 (8 Ω) delivers 96 dB sensitivity and 1.6% reference efficiency across a 40 Hz – 1500 Hz bandwidth. The 1 dB sensitivity gain over the 4 Ω version comes from the stronger 26.4 Tm force factor acting on the lighter 181 g moving mass — a combination that extracts more acoustic output per watt from the same motor assembly. In a dual-driver cabinet, that efficiency advantage compounds: two 8 Ω drivers in parallel will outperform two 4 Ω drivers in series at the same amplifier output.
The Thiele–Small parameters are well-suited to vented enclosure designs. A Qts of 0.31 and an EBP of 118 Hz place the B&C 15TBW100 firmly in vented and horn-loaded territory, with just enough Qts flexibility for builders who want to experiment with slightly different alignment strategies. B&C recommends a 95-litre (3.35 ft³) vented enclosure tuned to 40 Hz — the same recommendation as the 4 Ω version, making impedance swaps between the two variants straightforward.
The full premium feature set — split winding coil, demodulating ring, ventilated gap, woven leads — means the B&C 15TBW100 maintains cleaner, more consistent output under sustained load than any other ferrite 15-inch sub in the B&C range. Where the PS100 and PZB100 start to compress and distort at their rated limits, the TBW100 stays composed and keeps pushing.
Ideal applications for the B&C 15TBW100 include:
- Dual-driver 15-inch subwoofer cabinets with parallel wiring to a single amp channel
- High-power vented sub enclosures for touring and live sound reinforcement
- Horn-loaded bass-bin designs where the low Qts and high Bl are ideal
- Permanent install systems in clubs, venues, and houses of worship
- Serious DIY builds demanding maximum excursion and power handling from a 15-inch ferrite platform
Specifications – B&C 15TBW100
- Nominal Diameter: 380 mm (15 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.7 Ω
- Nominal Power Handling: 1500 W
- Continuous Power Handling: 3000 W
- Sensitivity: 96 dB
- Frequency Range: 40 Hz – 1500 Hz
- Voice Coil Diameter: 100 mm (4 in)
- Winding Material: Copper (split winding)
- Former Material: Glass Fibre
- Winding Depth: 31 mm (1.22 in)
- Magnetic Gap Depth: 15 mm (0.59 in)
- Flux Density: 1.15 T
- Magnet Material: Ferrite
- Cone Shape: Radial
- Cone Treatment: TWP Waterproof (both sides)
- Surround Shape: Triple Roll
- Spider: Double Silicone
- Pole Design: T-Pole
- Net Weight: 12.2 kg (26.9 lb)
Thiele–Small Parameters – B&C 15TBW100
- Fs: 39 Hz
- Re: 5.3 Ω
- Qes: 0.33
- Qms: 4.4
- Qts: 0.31
- Vas: 96 dm³ (3.39 ft³)
- Sd: 855 cm² (132.5 in²)
- η0: 1.6%
- Xmax: 12 mm
- Xvar: 13.5 mm
- Mms: 181 g
- Bl: 26.4 Tm
- Le: 2.2 mH
- EBP: 118 Hz
Mounting Information – B&C 15TBW100
- Overall Diameter: 393 mm (15.5 in)
- Bolt Circle Diameter: 374 mm (14.7 in)
- Baffle Cutout Diameter: 354 mm (13.9 in)
- Depth: 191 mm (7.52 in)
- Flange and Gasket Thickness: 14 mm (0.55 in)
- Air Volume Occupied by Driver: 6 dm³ (0.21 ft³)
- Recommended Enclosure Volume: 95 dm³ (3.35 ft³)
- Recommended Tuning Frequency: 40 Hz
Conclusion – B&C 15TBW100 Subwoofer Driver
The B&C 15TBW100 in 8 Ω is the smarter pick for dual-driver sub cabinets and for builders who want the most output per watt from B&C’s flagship ferrite 15-inch platform. The stronger 26.4 Tm force factor and lighter 181 g moving mass give it a genuine 1 dB sensitivity advantage over the 4 Ω variant — a difference that compounds in multi-driver configurations where efficiency matters at every stage.
Everything that makes the TBW100 the best ferrite 15-inch sub in B&C’s range is here — split winding coil, demodulating ring, ventilated gap, woven leads, 12 mm of Xmax, and 1500 W AES power handling. No other ferrite 15 in the lineup comes close on the combination of excursion, power, and distortion performance.
For dual-15 touring subs, high-power permanent installs, and any build where the B&C 15TBW100 needs to deliver its best into an 8 Ω load, this is the impedance variant that maximises what the platform can do. Same frame, same cabinet, better efficiency — and the parallel wiring option opens up system designs that the 4 Ω version can’t support.
