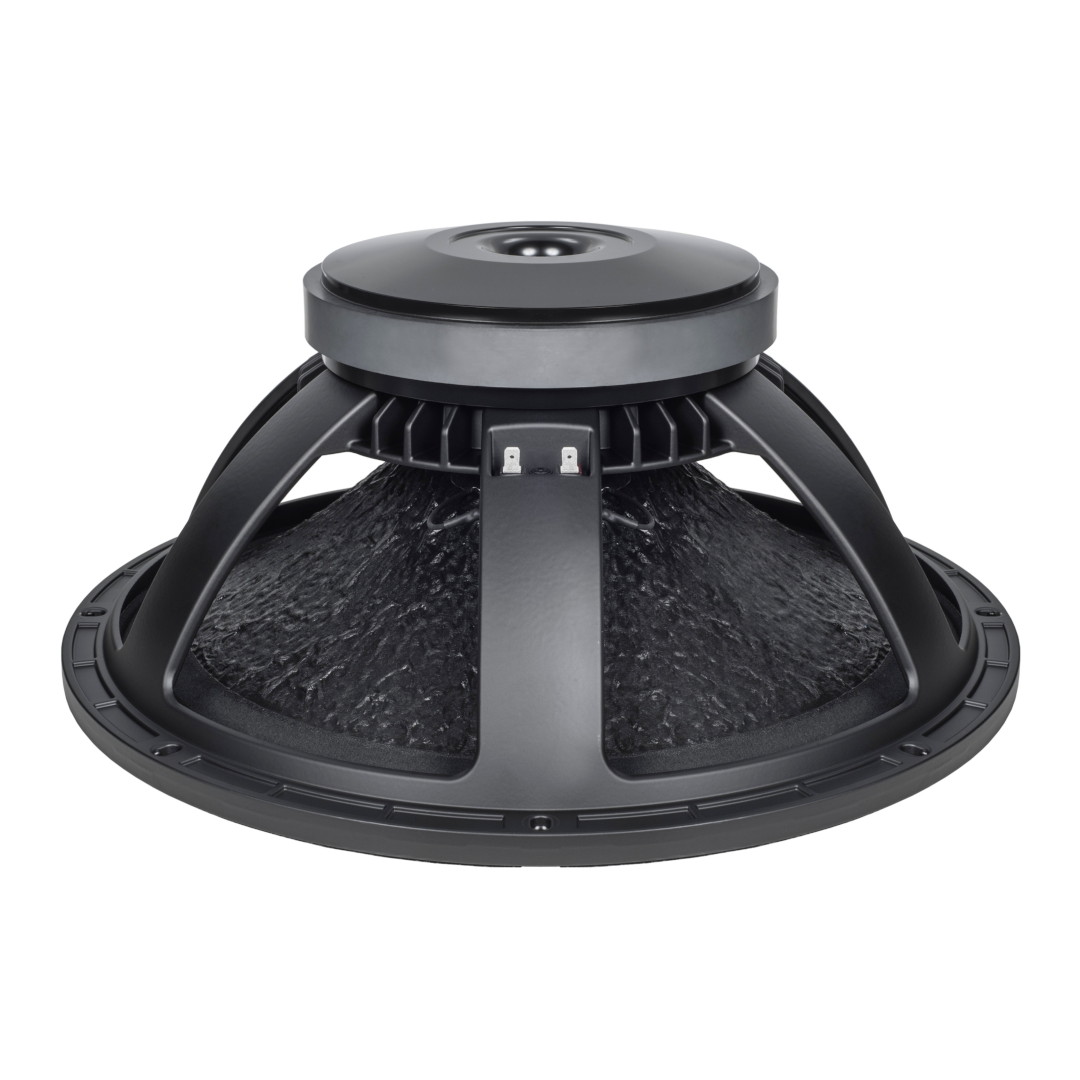

B&C 18PZW100 – Outstanding 18-Inch Subwoofer Driver Balancing Sensitivity and Power

The B&C 18PZW100 is the balanced option in B&C’s ferrite 18-inch lineup — a driver that combines high sensitivity with genuine power handling in a way that neither the PS100 nor the PZB100 quite manage on their own. With 97.6 dB sensitivity, a 1000 W AES power rating, and 2000 W continuous program power, the B&C 18PZW100 gives you the output-per-watt advantage of a lightweight cone assembly backed by enough thermal capacity to handle sustained high-power use.

The 37 Hz – 2000 Hz frequency range and a Qts of 0.36 position this driver as a versatile platform that works well in both vented and horn-loaded enclosures. It’s efficient enough to deliver serious output from modest amplification, yet robust enough to take real power when the gig demands it.

Also known as the 18/126 in some regions, the B&C 18PZW100 has earned a reputation as a proven workhorse in live sound reinforcement. At 12.25 kg with a ferrite motor, it keeps weight and cost practical while delivering performance that competes with drivers carrying much higher price tags.

Design and Construction of the B&C 18PZW100

The B&C 18PZW100 runs a 100 mm (4-inch) copper voice coil wound on a glass fibre former. The 21 mm winding depth operating in an 11 mm magnetic gap yields 8 mm of linear one-way excursion (Xmax) with a generous 10.5 mm of additional travel (Xvar) before mechanical limits. That extra Xvar headroom is a real advantage during transient peaks — the driver can absorb momentary over-excursion without bottoming out or suffering immediate damage.

The motor uses a ferrite magnet in a T-pole configuration, producing 1 T of flux density and a force factor (Bl) of 25.5 Tm. The T-pole design concentrates flux more efficiently than a straight pole, and the 25.5 Tm Bl driving a 209 g moving mass gives you tight motor control with fast transient response. That ratio of force factor to moving mass is the foundation of the B&C 18PZW100’s 97.6 dB sensitivity and 2.32% reference efficiency.

The cone profile is exponential — a geometry that increases stiffness and helps maintain pistonic behaviour at higher frequencies. This is why the B&C 18PZW100 operates usefully up to 2000 Hz, giving you flexibility in crossover point selection. The triple-roll surround provides a wider compliance window than the double-roll design found on the PZB100, contributing to the lower Fs of 37 Hz and the more moderate Qts.

Suspension is completed by a double silicone spider with optimised compliance. TWP waterproof treatment on both sides of the cone provides moisture resistance for outdoor deployments. The 8 Ω nominal impedance makes the B&C 18PZW100 ideal for parallel wiring in dual-driver cabinets, presenting a comfortable 4 Ω load to a single amplifier channel.

Performance and Applications for the B&C 18PZW100

The B&C 18PZW100 delivers 97.6 dB sensitivity and 2.32% reference efficiency across a 37 Hz – 2000 Hz bandwidth. Those numbers place it in a sweet spot — nearly as efficient as the PZB100 (97 dB / 3.1%) but with meaningfully higher power handling (1000 W AES vs 700 W) and a lower Fs that extends usable output further into the sub-bass region.

The Thiele–Small parameters reveal a versatile alignment profile. A Qts of 0.36 and an EBP of 97 Hz point primarily toward vented enclosures, but the driver sits close enough to the sealed/vented boundary to work in either topology depending on your design goals. B&C recommends a 150-litre (5.3 ft³) vented enclosure tuned to 40 Hz — a compact, practical cabinet volume that suits touring and portable applications.

Where the B&C 18PZW100 distinguishes itself from the PZB100 is in sustained power handling and excursion headroom. The 10.5 mm of Xvar beyond the 8 mm linear Xmax gives you a total of 18.5 mm of one-way excursion before damage — a comfortable margin that means the driver handles real-world transient peaks with confidence. Combined with the higher 1000 W AES rating, this is a driver you can push harder and longer without worrying about thermal or mechanical failure.

Ideal applications for the B&C 18PZW100 include:

• Vented subwoofer cabinets for live sound reinforcement and touring
• Horn-loaded bass-bin designs where efficiency and power handling both matter
• Dual-driver sub cabinets using 8 Ω parallel pairs
• Compact portable PA subs where the 150-litre recommended volume keeps cabinet size manageable
• DIY builds where high sensitivity reduces amplifier requirements without sacrificing output

Specifications – B&C 18PZW100

• Nominal Diameter: 460 mm (18 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.2 Ω
• Nominal Power Handling: 1000 W
• Continuous Power Handling: 2000 W
• Sensitivity: 97.6 dB
• Frequency Range: 37 Hz – 2000 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Copper
• Former Material: Glass Fibre
• Winding Depth: 21 mm (0.83 in)
• Magnetic Gap Depth: 11 mm (0.43 in)
• Flux Density: 1 T
• Magnet Material: Ferrite
• Cone Shape: Exponential
• Cone Treatment: TWP Waterproof (both sides)
• Surround Shape: Triple Roll
• Spider: Double Silicone
• Pole Design: T-Pole
• Net Weight: 12.25 kg (27.01 lb)

Thiele–Small Parameters – B&C 18PZW100

• Fs: 37 Hz
• Re: 5.1 Ω
• Qes: 0.38
• Qms: 7.9
• Qts: 0.36
• Vas: 186 dm³ (6.57 ft³)
• Sd: 1210 cm² (187.55 in²)
• η0: 2.32%
• Xmax: 8 mm
• Xvar: 10.5 mm
• Mms: 209 g
• Bl: 25.5 Tm
• Le: 1.58 mH
• EBP: 97 Hz

Mounting Information – B&C 18PZW100

• Overall Diameter: 460 mm (18.11 in)
• Bolt Circle Diameter: 440 mm (17.32 in)
• Baffle Cutout Diameter: 422 mm (16.61 in)
• Depth: 202 mm (7.95 in)
• Flange and Gasket Thickness: 16 mm (0.65 in)
• Air Volume Occupied by Driver: 9.5 dm³ (0.34 ft³)
• Recommended Enclosure Volume: 150 dm³ (5.3 ft³)
• Recommended Tuning Frequency: 40 Hz

Conclusion – B&C 18PZW100 Subwoofer Driver

The B&C 18PZW100 occupies the sweet spot in B&C’s ferrite 18-inch range. It gives you the high sensitivity of the PZB100 with meaningfully better power handling and excursion headroom, while staying lighter and more efficient than the PS100. If you’re choosing between B&C’s ferrite 18s and you want one driver that balances efficiency, power, and reliability without compromise, the B&C 18PZW100 is the one to reach for.

The compact 150-litre recommended enclosure, extended 2000 Hz bandwidth, and 8 Ω impedance make it a practical choice for everything from portable PA subs to horn-loaded bass bins. The 10.5 mm of Xvar beyond linear excursion gives you a safety margin that matters in real-world use where transient peaks don’t respect datasheet limits.

For builders who want a proven, efficient 18-inch platform that can handle serious power and deliver high-output bass from a manageable cabinet, the B&C 18PZW100 has earned its reputation as one of B&C’s most reliable performers in the field.
