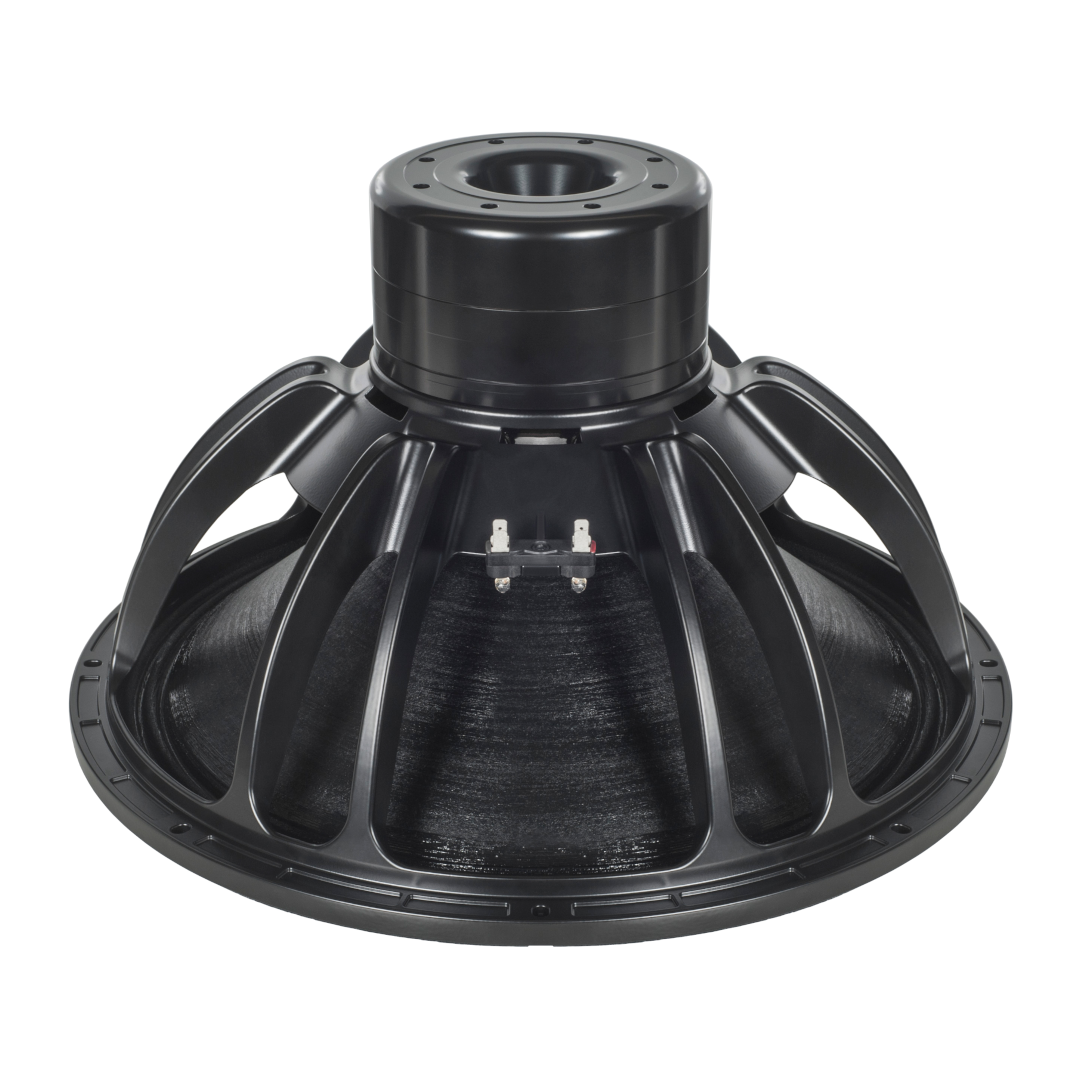

B&C 19RS115 – Precision 19-Inch Subwoofer Driver with Unmatched Power Density

The B&C 19RS115 is B&C’s first-ever 19-inch subwoofer driver, and it enters the lineup with a clear mission: deliver the output and displacement of a large-format sub while keeping sensitivity high and weight low. Built on the new RS Series motor platform, this driver takes the proven four-layer aluminium voice coil design from B&C’s popular DS Series and pushes it further with a higher-flux motor and extended excursion capability.

With a 2000 W AES power rating, 4000 W continuous program power, and 23.5 mm of linear excursion, the B&C 19RS115 is purpose-built for high-output subwoofer applications where every watt needs to count. At just 15.8 kg, it’s significantly lighter than most 21-inch alternatives — a meaningful advantage for touring rigs and portable systems.

The 19-inch format itself is the sweet spot here. You get more radiating area than an 18-inch driver without the cabinet bulk of a 21, making the B&C 19RS115 an ideal candidate for compact sub designs that still need to hit hard in the low end.

Design and Construction of the B&C 19RS115

The heart of the B&C 19RS115 is its 116 mm (4.5-inch) four-layer copper-clad aluminium wire voice coil wound on a glass fibre former. The four-layer winding geometry is key — it concentrates more energy in the magnetic gap while generating less heat than a comparable two-layer design with a larger coil diameter. The result is higher sensitivity and better thermal behaviour without sacrificing power handling.

The motor uses a neodymium inside-slug magnet in a T-pole configuration, fitted with an aluminium demodulating ring. That demodulating ring is doing real work — it reduces flux modulation in the voice coil gap, which directly translates to lower harmonic and intermodulation distortion under load. Combined with a force factor (Bl) of 42 Tm, the motor exerts exceptional control over the 447 g moving mass, keeping transients tight even at high excursion levels.

Suspension is handled by a double silicone spider with optimised compliance, paired with a triple-roll surround. The 54 mm winding depth operating in a 14 mm magnetic gap yields 23.5 mm of linear one-way excursion (Xmax) with 19 mm of additional travel (Xvar) before mechanical limits. Lead wires are woven through the spider — an excursion-optimised design that prevents fatigue and breakage during sustained high-displacement use.

The straight-profile cone features TWP waterproof treatment on both sides, giving you weather resistance for outdoor rigs and festival deployments. A ventilated voice coil gap rounds out the thermal design, reducing power compression so output stays consistent when the driver is working hard over extended sets.

Performance and Applications for the B&C 19RS115

The B&C 19RS115 covers a 30 Hz – 1000 Hz frequency range with 96.7 dB sensitivity and 2.3% reference efficiency. For a long-throw 19-inch transducer carrying 447 g of moving mass, that sensitivity figure is impressive — it means you’re getting meaningful output from every watt before you even start pushing power.

The Thiele–Small parameters tell a clear story. A Qts of 0.20 and an EBP of 138 Hz place this driver firmly in vented or horn-loaded enclosure territory. The low Fs of 29 Hz combined with a Vas of 197 litres means it wants a reasonably sized vented cabinet — expect something in the 150–200 litre range depending on your alignment target and tuning frequency. The 1450 cm² of radiating area multiplied by 23.5 mm of Xmax gives you substantial displacement capability for deep sub-bass work.

Where the B&C 19RS115 really stands out is in power density. B&C’s own positioning is direct — this driver outperforms many alternatives that rely on larger-diameter voice coils and higher power ratings but lack the motor efficiency to convert that power into useful acoustic output. The RS Series approach favours a balanced motor over brute-force power handling, and that philosophy shows in the numbers.

Ideal applications for the B&C 19RS115 include:

• Compact touring subwoofer cabinets that need maximum output in minimum size
• Vented and horn-loaded sub designs for live sound reinforcement
• Permanent install systems in clubs, venues, and houses of worship
• High-output DIY subwoofer builds where weight and efficiency matter

Specifications – B&C 19RS115

• Nominal Diameter: 483 mm (19 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.5 Ω
• Nominal Power Handling: 2000 W
• Continuous Power Handling: 4000 W
• Sensitivity: 96.7 dB
• Frequency Range: 30 Hz – 1000 Hz
• Voice Coil Diameter: 116 mm (4.5 in)
• Winding Material: Copper-Clad Aluminium Wire (four-layer)
• Former Material: Glass Fibre
• Winding Depth: 54 mm (2.13 in)
• Magnetic Gap Depth: 14 mm (0.55 in)
• Flux Density: 0.9 T
• Magnet Material: Neodymium (inside slug)
• Cone Shape: Straight
• Cone Treatment: TWP Waterproof (both sides)
• Surround Shape: Triple Roll
• Spider: Double Silicone
• Pole Design: T-Pole
• Net Weight: 15.8 kg (34.83 lb)

Thiele–Small Parameters – B&C 19RS115

• Fs: 29 Hz
• Re: 4.6 Ω
• Qes: 0.21
• Qms: 6.2
• Qts: 0.20
• Vas: 197 dm³ (6.96 ft³)
• Sd: 1450 cm² (224.75 in²)
• η0: 2.3%
• Xmax: 23.5 mm
• Xvar: 19 mm
• Mms: 447 g
• Bl: 42 Tm
• Le: 4.1 mH
• EBP: 138 Hz

Mounting Information – B&C 19RS115

• Overall Diameter: 494 mm (19.45 in)
• Bolt Circle Diameter: 476 mm (18.74 in)
• Baffle Cutout Diameter: 455 mm (17.91 in)
• Depth: 285 mm (11.22 in)
• Flange and Gasket Thickness: 13 mm (0.51 in)

Conclusion – B&C 19RS115 Subwoofer Driver

The B&C 19RS115 carves out a new category in B&C’s lineup. The 19-inch format gives you more cone area than an 18 without the weight and cabinet volume of a 21, and the RS Series motor architecture backs that up with a force factor and efficiency that punches well above what the 4.5-inch voice coil diameter might suggest on paper.

For builders looking to get maximum acoustic output per kilogram, the B&C 19RS115 makes a compelling case. The combination of 96.7 dB sensitivity, 23.5 mm of Xmax, and a 42 Tm force factor at just 15.8 kg is a rare combination in the sub driver market. Add in the aluminium demodulating ring for cleaner output under load, and you’ve got a driver that performs as well as it measures.

Whether you’re designing compact touring subs, high-output permanent install systems, or a serious DIY build that needs real low-end authority, the B&C 19RS115 delivers the power density and control to get the job done, without the bulk.
