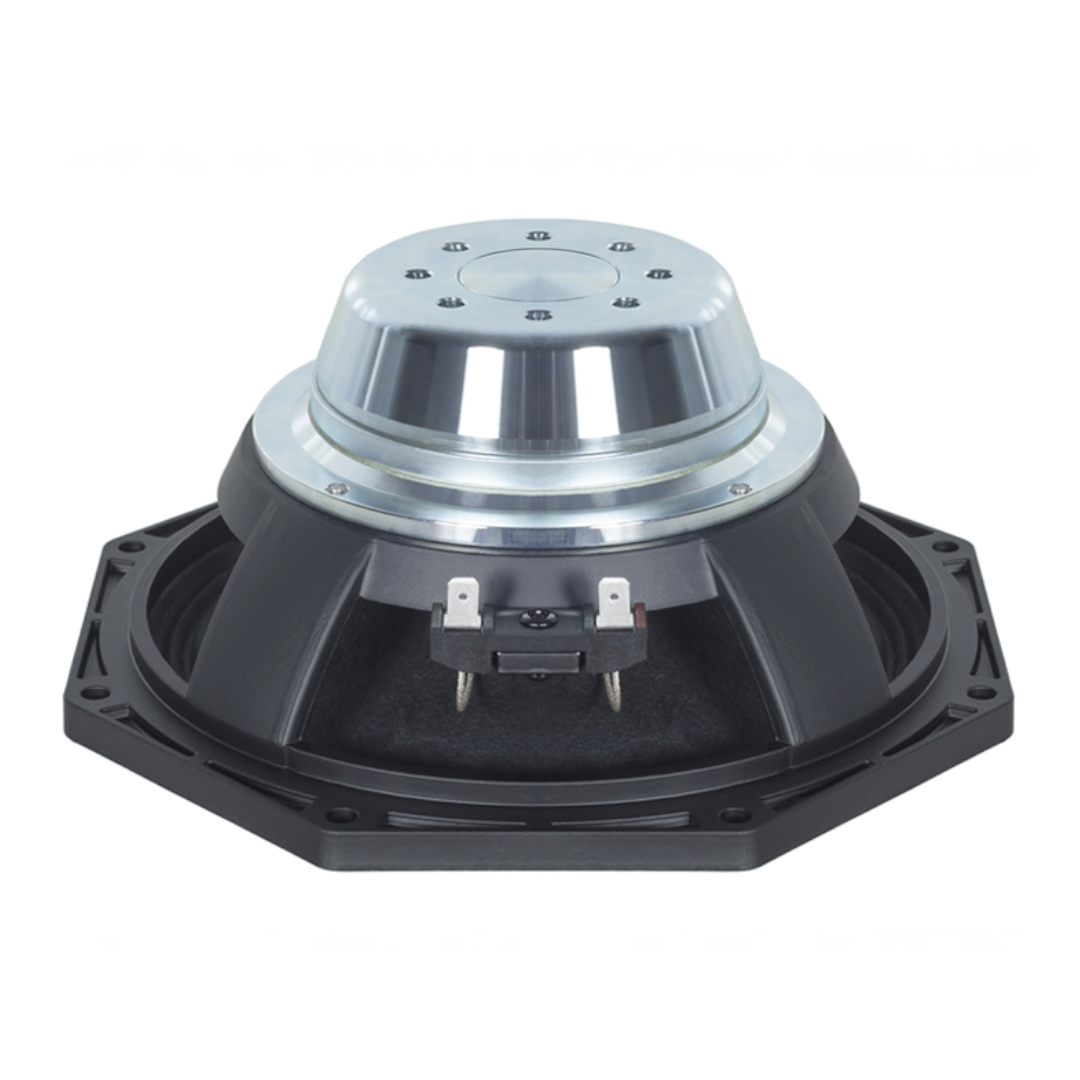

B&C 8MDN51 8″ Professional Mid-Bass LF Driver
The B&C 8MDN51 is a professional 8-inch mid-bass driver engineered for high-efficiency sound reinforcement applications where lightweight construction, strong motor control, and compact enclosure integration are essential. Built around a neodymium motor assembly and optimized moving system, the B&C 8MDN51 delivers high output capability while maintaining reduced overall driver weight for portable and installed professional audio systems.
Designed for compact two-way loudspeaker systems, stage monitors, portable PA systems, and professional mid-bass reinforcement applications, the B&C 8MDN51 combines efficient thermal management with strong transient response. Its carefully optimized motor structure and suspension geometry allow the driver to maintain controlled performance while operating across a broad mid-bass bandwidth.
Key Features
- 200 W nominal power handling
- 400 W continuous program power capacity
- 51 mm (2 inch) aluminium voice coil
- Neodymium ring magnet assembly
- 97 dB sensitivity
- 70 Hz – 4000 Hz frequency response
- Ventilated voice coil gap for reduced power compression
- Lightweight neodymium motor structure
- WP waterproof front cone treatment
- Optimized for compact high-efficiency loudspeaker systems
Lightweight Neodymium Motor Design
The B&C 8MDN51 utilizes a neodymium ring magnet motor assembly, allowing the driver to maintain strong magnetic force while significantly reducing overall weight compared to traditional ferrite designs. This lower weight makes the driver particularly attractive for portable systems where reduced system mass is important.
The motor assembly generates 1.45 T flux density, providing strong control over cone movement while maintaining efficiency across the operating range. Combined with the optimized magnetic structure, this contributes to the driver’s high sensitivity and controlled transient response.
A ventilated voice coil gap improves airflow through the motor structure, helping reduce heat buildup during continuous operation. Better thermal management contributes to lower power compression and improved long-term stability under demanding operating conditions.
Voice Coil Construction and Thermal Stability
At the center of the B&C 8MDN51 is a 51 mm aluminium voice coil wound on a Kapton former. This combination provides an effective balance between thermal stability and reduced moving mass, helping maintain responsiveness while supporting sustained power handling capability.
The driver supports 200 W nominal power handling and 400 W continuous program power handling, allowing reliable operation in demanding professional audio applications requiring sustained output capability.
The relatively low 23 g moving mass contributes to fast transient behavior and improved mid-bass articulation, helping the driver maintain strong dynamic performance within compact enclosure designs.
Cone Geometry and Suspension Design
The B&C 8MDN51 uses an exponential cone profile combined with a double-roll surround geometry. This configuration supports controlled cone movement while maintaining the excursion capability required for compact mid-bass applications.
A single spider suspension system maintains mechanical stability while helping preserve efficiency and predictable cone behavior across the operating bandwidth. The suspension geometry supports both transient response and controlled excursion performance.
The cone assembly incorporates WP waterproof front-side treatment, improving resistance against humidity and environmental exposure in both portable and installed sound reinforcement systems.
Compact System Integration and Acoustic Performance
The B&C 8MDN51 is optimized for compact loudspeaker designs where efficiency, reduced weight, and enclosure size are important design priorities.
Its combination of 97 dB sensitivity, compact dimensions, and relatively low moving mass makes it suitable for applications requiring strong output capability while minimizing cabinet volume and total system weight. The driver’s parameters also support efficient integration into two-way systems and compact reflex cabinet designs.
Typical applications include:
- Compact two-way loudspeaker systems
- Portable PA cabinets
- Professional stage monitors
- Mid-bass reinforcement systems
- Installed sound applications
- Lightweight touring loudspeakers
Technical Specifications
Nominal Diameter: 200 mm (8 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.7 Ω
Nominal Power Handling: 200 W
Continuous Program Power: 400 W
Sensitivity: 97 dB
Frequency Range: 70 Hz – 4000 Hz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Aluminium
Former Material: Kapton
Winding Depth: 16 mm
Magnetic Gap Depth: 8 mm
Flux Density: 1.45 T
Magnet Material: Neodymium Ring
Cone Shape: Exponential
Surround Shape: Double Roll
Spider Design: Single
Pole Design: T-Pole
Woofer Cone Treatment: WP Waterproof Front Side
Thiele-Small Parameters
Fs: 70 Hz
Re: 5.1 Ω
Qes: 0.21
Qms: 3.7
Qts: 0.20
Vas: 16 dm³
Sd: 220 cm²
η₀: 2.4 %
Xmax: 6 mm
Xvar: 6 mm
Mms: 23 g
BL Factor: 15.3 Tm
Le: 0.8 mH
EBP: 333 Hz
Mounting Information
Overall Diameter: 225 mm
Bolt Circle Diameter: 210 mm
Baffle Cutout Diameter: 187 mm
Depth: 95 mm
Flange and Gasket Thickness: 11 mm
Air Volume Occupied by Driver: 1.1 dm³
Net Weight: 2.6 kg
Shipping Weight: 3.05 kg
Shipping Box: 255 × 255 × 150 mm
Recone Kit: RCK008MDN518
Applications
The B&C 8MDN51 is engineered for professional mid-bass applications requiring lightweight construction, efficient output, and compact enclosure integration. Its neodymium motor structure, high sensitivity, and optimized thermal management make it particularly suitable for portable loudspeaker systems, stage monitoring applications, compact PA systems, and professional sound reinforcement installations.
For system designers requiring a lightweight professional mid-bass driver with strong efficiency and reliable long-term performance, the B&C 8MDN51 delivers a balanced combination of output capability, reduced weight, and installation flexibility.
