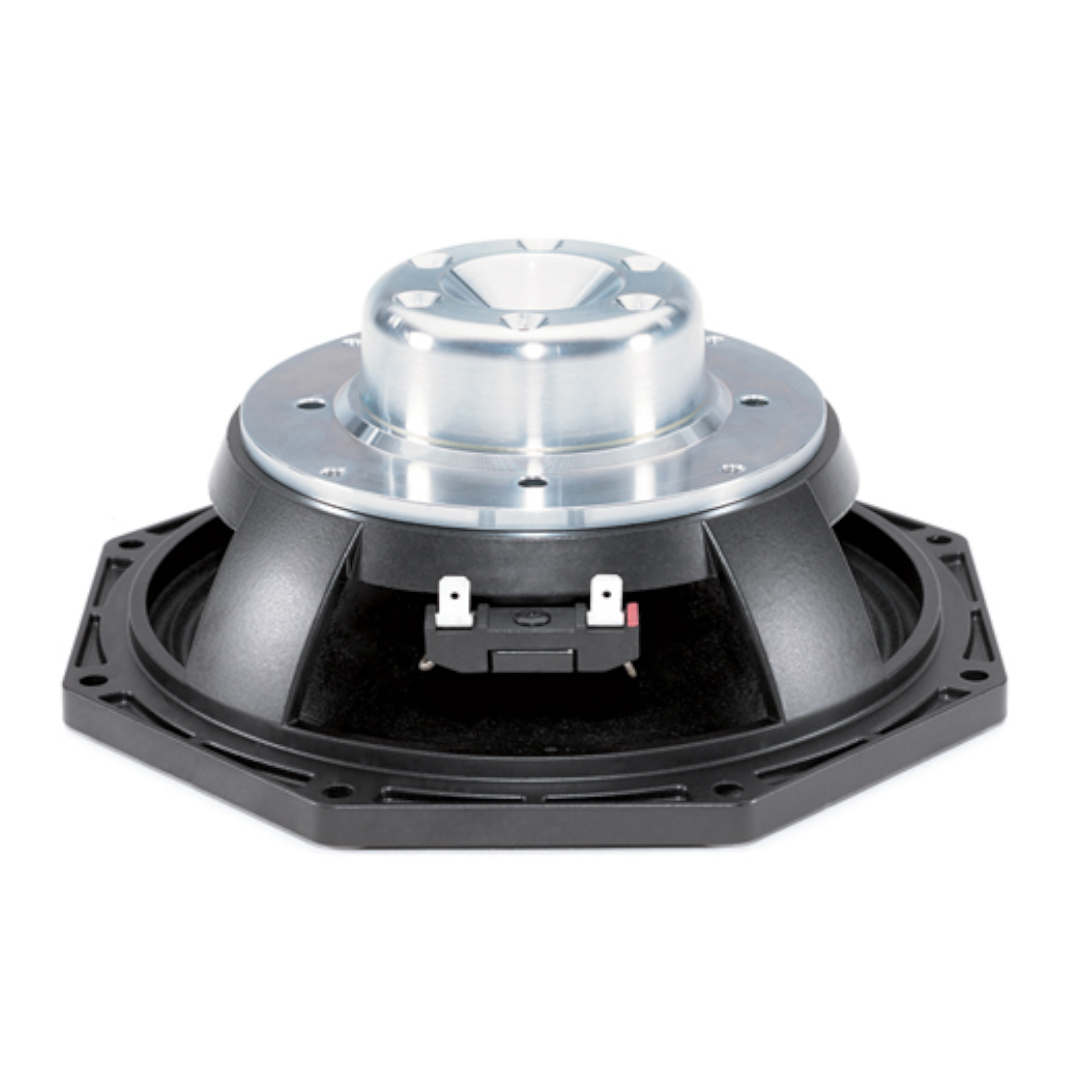

B&C 8NDL51 8″ Professional Woofer LF Driver
The B&C 8NDL51 is a professional 8-inch woofer LF driver engineered for compact high-efficiency loudspeaker systems requiring lightweight construction, strong thermal stability, and controlled low-frequency performance. Built around a lightweight neodymium inside slug motor structure, the B&C 8NDL51 delivers professional output capability while minimizing total system weight, making it particularly suitable for portable sound reinforcement systems and compact loudspeaker designs.
Designed for compact two-way systems, stage monitors, portable PA cabinets, and professional low-frequency applications, the B&C 8NDL51 combines optimized cooling technologies with carefully engineered suspension geometry to maintain stable output during sustained operation. Its compact enclosure compatibility and lightweight motor assembly allow system designers to reduce overall cabinet size and weight without compromising performance.
Key Features
- 200 W nominal power handling
- 400 W continuous program power capacity
- 51 mm (2 inch) copper voice coil
- 94 dB sensitivity
- 65 Hz – 3000 Hz frequency response
- Lightweight neodymium inside slug magnet assembly
- Shorting copper cap for extended HF response
- Ventilated voice coil gap for reduced power compression
- TWP waterproof cone treatment on both sides
- Optimized for compact vented enclosure applications
Lightweight Neodymium Motor Design
The B&C 8NDL51 utilizes a neodymium inside slug motor structure, allowing the driver to maintain strong magnetic performance while significantly reducing overall weight compared to conventional ferrite motor designs. Reduced weight is particularly beneficial in portable sound systems where transportability and cabinet mass are important considerations.
The motor incorporates a shorting copper cap, designed to reduce inductance variation and extend upper-frequency performance. This technology helps improve crossover integration and contributes to smoother response characteristics when used in compact multi-way loudspeaker systems.
With a measured 1.05 T flux density, the motor structure maintains effective control over cone movement while supporting consistent output and efficient energy transfer throughout the operating range.
Voice Coil Construction and Thermal Performance
At the center of the B&C 8NDL51 is a 51 mm copper voice coil wound on a glass fibre former. This construction provides thermal stability while maintaining mechanical rigidity under sustained power conditions. The larger voice coil geometry supports improved heat dissipation and contributes to long-term reliability.
The driver supports 200 W nominal power handling and 400 W continuous program power handling, allowing it to perform reliably in demanding professional applications. A ventilated voice coil gap increases airflow through the motor assembly, helping minimize heat buildup and reduce power compression during prolonged operation.
This thermal management approach contributes to more stable output characteristics under higher continuous loads and improves consistency during demanding operation.
Cone Geometry and Suspension Design
The B&C 8NDL51 utilizes an exponential cone profile combined with a double-roll surround geometry, supporting controlled cone movement while maintaining excursion capability for compact low-frequency applications. This cone design helps preserve efficiency while maintaining predictable behavior throughout the operating bandwidth.
A single spider suspension system provides mechanical stability and controlled movement characteristics during higher output conditions. The cone assembly incorporates TWP waterproof treatment on both sides, improving resistance against humidity and environmental exposure in both portable and installed sound reinforcement systems.
Compact Enclosure Integration
One of the major strengths of the B&C 8NDL51 is its compatibility with compact vented cabinet designs.
The manufacturer recommends a 14 dm³ enclosure volume with a 65 Hz tuning frequency, allowing designers to achieve useful low-frequency extension from compact cabinet sizes. These loading characteristics make the driver suitable for portable applications where enclosure volume and system weight must remain controlled.
Typical applications include:
- Compact two-way loudspeaker systems
- Portable PA systems
- Professional stage monitors
- Compact bass reflex enclosures
- Installed sound systems
- Lightweight professional loudspeaker designs
Technical Specifications
Nominal Diameter: 200 mm (8 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.6 Ω
Nominal Power Handling: 200 W
Continuous Program Power: 400 W
Sensitivity: 94 dB
Frequency Range: 65 Hz – 3000 Hz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 17 mm
Magnetic Gap Depth: 8 mm
Flux Density: 1.05 T
Magnet Material: Neodymium Inside Slug
Cone Shape: Exponential
Surround Shape: Double Roll
Spider Design: Single
Pole Design: Straight Pole
Cone Treatment: TWP Waterproof Both Sides
Recommended Enclosure: 14 dm³
Recommended Tuning: 65 Hz
Thiele-Small Parameters
Fs: 66 Hz
Re: 5.3 Ω
Qes: 0.41
Qms: 3.6
Qts: 0.37
Vas: 14 dm³
Sd: 220 cm²
η₀: 1 %
Xmax: ±7 mm
Xvar: ±7 mm
Mms: 28 g
BL Factor: 12.4 Tm
Le: 0.5 mH
EBP: 161 Hz
Mounting Information
Overall Diameter: 225 mm
Bolt Circle Diameter: 210 mm
Baffle Cutout Diameter: 187 mm
Depth: 90 mm
Flange and Gasket Thickness: 11 mm
Air Volume Occupied by Driver: 1.1 dm³
Net Weight: 1.85 kg
Shipping Weight: 2.3 kg
Shipping Box: 255 × 255 × 150 mm
Recone Kit: RCK008NDL518
Applications
The B&C 8NDL51 is engineered for professional low-frequency applications requiring lightweight construction, compact enclosure loading, and dependable output capability. Its neodymium motor structure, waterproof cone treatment, and compact cabinet compatibility make it particularly suitable for portable PA systems, stage monitors, installed audio systems, and compact professional loudspeaker designs.
For system designers requiring a lightweight professional woofer optimized for compact systems and reduced overall cabinet weight, the B&C 8NDL51 provides a balanced combination of efficiency, portability, and reliable professional performance.
