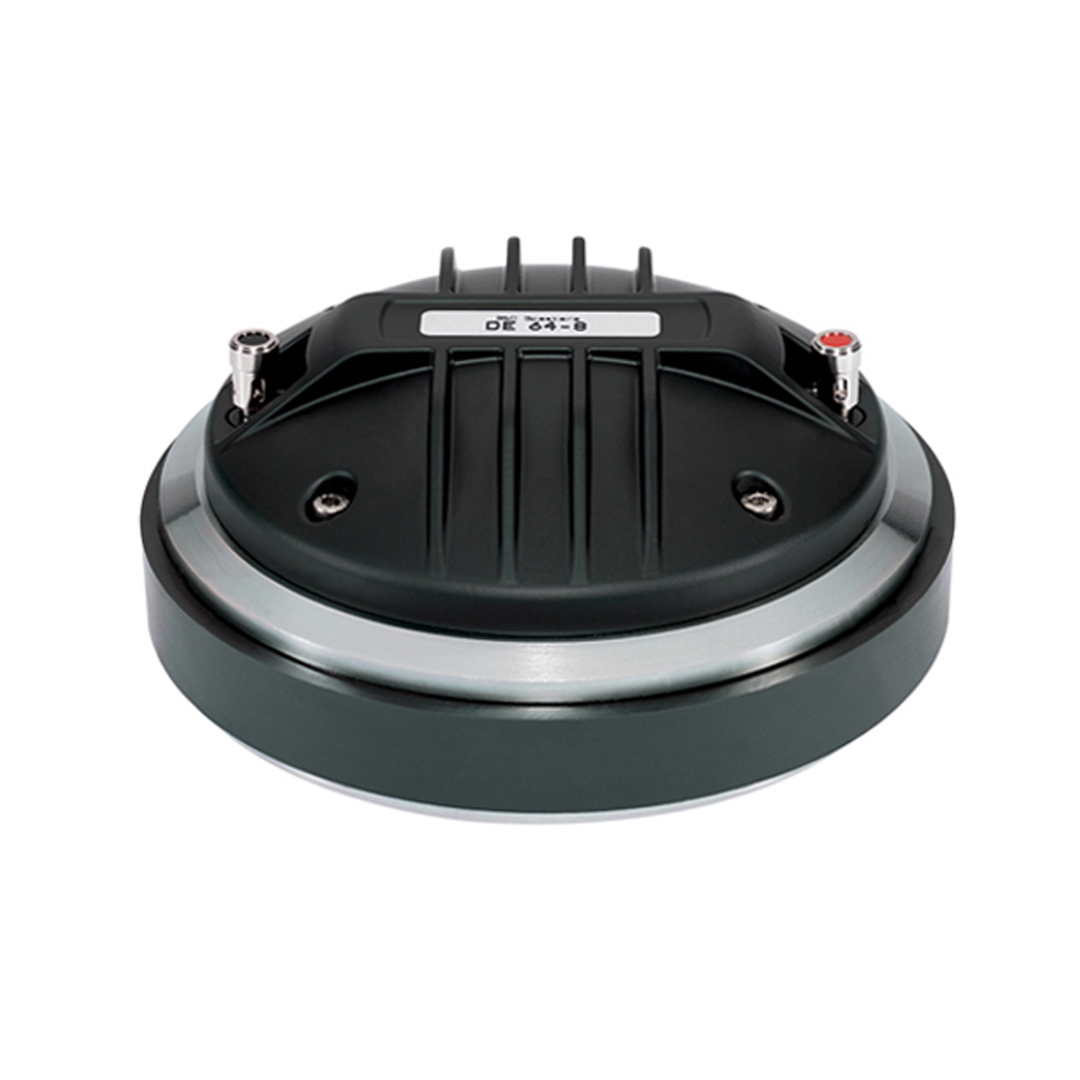

B&C DE64TN – High-Power 2-Inch Titanium Compression Driver for Professional Sound Reinforcement
The B&C DE64TN is a high-performance 2-inch compression driver engineered for professional loudspeaker systems that demand exceptional output, reliable power handling, and outstanding vocal clarity. Designed around a robust 75 mm (3-inch) aluminium voice coil, a powerful 1.6 Tesla neodymium motor structure, and a precision titanium diaphragm, the B&C DE64TN delivers the performance required for touring systems, stadium installations, high-output point source loudspeakers, and premium fixed-installation sound reinforcement.
Within the professional audio industry, 2-inch compression drivers occupy a unique position. They are often chosen for applications where high acoustic output, lower crossover frequencies, and superior midrange projection are essential. The B&C DE64TN has been developed specifically to excel in these demanding environments, offering an impressive 110 W AES power handling rating, 220 W continuous program power capacity, and a broad operating range extending from 1 kHz to 18 kHz.
With a sensitivity rating of 107.5 dB, the driver provides exceptional efficiency, allowing system designers to achieve substantial sound pressure levels while minimising amplifier requirements. This high efficiency contributes to improved system headroom, greater dynamic performance, and reduced thermal stress throughout the signal chain.
The B&C DE64TN combines the authority and projection traditionally associated with large-format compression drivers with the detail and articulation required for modern professional sound reinforcement. Its ability to reproduce vocals, speech, and high-frequency programme material with accuracy and consistency makes it an excellent choice for loudspeaker manufacturers, system integrators, and professional audio engineers seeking a premium 2-inch compression driver solution.
Whether deployed in a large-format touring enclosure, a stadium PA system, a theatre installation, or a high-performance club sound system, the B&C DE64TN delivers the reliability and sonic performance expected from a professional-grade B&C transducer.
Purpose-Built 2-Inch Compression Driver Design
The B&C DE64TN has been engineered to maximise the advantages offered by a 2-inch throat format.
Compared with smaller throat compression drivers, a 2-inch design offers several benefits:
- Improved low-frequency loading
- Enhanced midrange authority
- Greater acoustic output capability
- Increased system efficiency
- Lower crossover flexibility
- Superior vocal projection
These characteristics make large-format compression drivers particularly effective in professional sound reinforcement systems where long-throw performance and high output are required.
The DE64TN takes full advantage of these benefits, delivering a sound character that combines powerful midrange reproduction with smooth high-frequency extension.
For system designers, this results in improved flexibility when creating loudspeaker systems intended for demanding applications.
Powerful 75 mm Voice Coil Architecture
At the centre of the B&C DE64TN is a substantial 75 mm (3-inch) aluminium voice coil.
The voice coil plays a critical role in determining both power handling capability and long-term reliability.
A larger voice coil offers significant advantages:
- Greater thermal capacity
- Improved heat dissipation
- Higher continuous output capability
- Reduced thermal compression
- Increased operational consistency
- Enhanced durability
The DE64TN is rated for:
- 110 W nominal power handling
- 220 W continuous program power handling
allowing it to maintain exceptional performance even under sustained high-output operating conditions.
In demanding professional environments where loudspeaker systems may be required to operate continuously for extended periods, thermal stability becomes essential.
The large voice coil helps ensure consistent performance throughout long events while reducing the risk of performance degradation caused by excessive heat build-up.
High-Energy Neodymium Motor System
The B&C DE64TN incorporates a powerful neodymium motor structure generating 1.6 Tesla of magnetic flux density.
The motor system is responsible for controlling diaphragm movement and converting electrical energy into acoustic output with maximum efficiency.
The benefits of the high-energy motor include:
- Increased sensitivity
- Improved transient response
- Better diaphragm control
- Reduced distortion
- Higher output capability
- Enhanced dynamic performance
The strong magnetic field ensures accurate diaphragm movement even during demanding programme material and high sound pressure level operation.
This contributes directly to the driver’s impressive sensitivity rating and overall sonic performance.
Neodymium technology also enables a more compact and lightweight design than comparable ferrite-based alternatives.
Despite its substantial output capability, the DE64TN remains relatively manageable in terms of weight and installation requirements.
Titanium Diaphragm Technology
A defining feature of the B&C DE64TN is its precision-engineered titanium diaphragm.
Titanium remains one of the most widely respected diaphragm materials in professional audio due to its excellent combination of rigidity, durability, and low mass.
The benefits of titanium include:
- Excellent stiffness-to-weight ratio
- Outstanding transient response
- High power handling capability
- Superior long-term durability
- Exceptional projection characteristics
- Consistent performance at elevated SPL levels
These characteristics allow the DE64TN to reproduce complex programme material with remarkable accuracy while maintaining the output levels required in professional sound reinforcement environments.
Titanium diaphragms are particularly valued in touring and installed sound applications where systems must deliver consistent performance under challenging operating conditions.
The DE64TN uses these properties to provide strong vocal articulation, excellent speech intelligibility, and impressive high-frequency detail.
Exceptional Efficiency and Acoustic Output
The B&C DE64TN achieves a sensitivity rating of 107.5 dB.
This level of efficiency provides significant advantages for professional loudspeaker systems.
Benefits include:
Greater Output per Watt
More acoustic energy is produced from every watt of amplifier power.
Improved System Headroom
Higher efficiency allows systems to operate with increased dynamic range.
Reduced Amplifier Demand
Less amplifier power is required to achieve target sound pressure levels.
Enhanced Reliability
Lower amplifier stress can contribute to improved overall system longevity.
Better Dynamic Performance
Highly efficient drivers respond quickly and accurately to transient programme material.
For large-scale sound reinforcement applications, these benefits can significantly improve overall system performance.
Wide Frequency Response and Crossover Flexibility
The B&C DE64TN offers a frequency response spanning:
1 kHz – 18 kHz
This broad operating range allows the driver to reproduce critical vocal information, speech content, and high-frequency detail with exceptional consistency.
The driver features a recommended crossover frequency of:
1 kHz
This relatively low crossover capability provides several benefits:
- Better integration with low-frequency drivers
- Improved vocal coherence
- Enhanced directivity control
- Reduced crossover complexity
- Greater design flexibility
For professional loudspeaker manufacturers, the ability to cross over at 1 kHz can significantly improve system performance throughout the critical vocal region.
This makes the DE64TN particularly effective in applications where speech intelligibility and vocal projection are priorities.
Low Inductance for Enhanced High-Frequency Accuracy
The B&C DE64TN features an inductance rating of only 0.14 mH.
Low inductance contributes to:
- Improved transient response
- Better high-frequency extension
- More predictable crossover behaviour
- Increased clarity
- Reduced phase irregularities
These characteristics help maintain smooth and accurate performance throughout the driver’s operating range.
For system designers working with advanced DSP processing and sophisticated crossover networks, low inductance can simplify integration and improve overall system predictability.
Built for Demanding Professional Applications
The B&C DE64TN has been developed specifically for high-output professional audio environments.
Typical applications include:
- Touring sound systems
- Stadium PA systems
- Arena sound reinforcement
- Festival audio systems
- Large-format point source loudspeakers
- Theatre installations
- Houses of worship
- Concert venues
- Nightclubs
- Corporate AV systems
- Performing arts centres
- Fixed installation sound reinforcement
Its combination of power handling, efficiency, and large-format compression driver performance makes it particularly well suited to applications where coverage consistency and vocal clarity are essential.
Rugged Mechanical Construction
The B&C DE64TN has been engineered for long-term reliability in demanding professional environments.
Physical dimensions include:
- Overall diameter: 156 mm
- Depth: 66 mm
- Net weight: 3.9 kg
Mounting is achieved using:
- Four M6 mounting holes
- 102 mm bolt circle
- 90-degree spacing
The robust construction ensures compatibility with industry-standard 2-inch horn systems while providing the durability required for professional touring and installation applications.
Its substantial build quality reflects the driver’s intended use in high-performance loudspeaker systems where reliability is critical.
Technical Specifications
B&C DE64TN Technical Specifications
Throat Diameter: 50 mm (2 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.4 Ω
Nominal Power Handling: 110 W
Continuous Power Handling: 220 W
Sensitivity: 107.5 dB
Frequency Range: 1 kHz – 18 kHz
Recommended Crossover Frequency: 1 kHz
Voice Coil Diameter: 75 mm (3 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 1.6 T
Diaphragm Material: Titanium
Mounting Information
B&C DE64TN Mounting Dimensions
Mounting Pattern: Four M6 mounting holes positioned 90° apart on a 102 mm (4 in) bolt circle
Overall Diameter: 156 mm (6.1 in)
Depth: 66 mm (2.6 in)
Net Weight: 3.9 kg (8.6 lb)
Shipping Weight: 4.02 kg (8.86 lb)
Shipping Box Dimensions: 190 x 190 x 80 mm (7.48 x 7.48 x 3.15 in)
Why Choose the B&C DE64TN?
The B&C DE64TN is a premium large-format compression driver designed for professional audio systems that require exceptional output capability, outstanding vocal projection, and dependable long-term performance. Featuring a powerful 75 mm aluminium voice coil, 110 W AES power handling, 220 W program power capacity, a 1.6 Tesla neodymium motor, and a durable titanium diaphragm, it delivers the performance demanded by modern touring and installation sound systems.
Its 2-inch throat design provides excellent midrange authority and low-frequency loading, while the 107.5 dB sensitivity ensures efficient operation and substantial acoustic output. The broad frequency response from 1 kHz to 18 kHz allows the driver to handle a wide range of programme material with impressive clarity and detail.
For loudspeaker manufacturers, system integrators, rental companies, and professional audio engineers seeking a reliable and high-output compression driver, the B&C DE64TN offers an exceptional balance of power handling, efficiency, bandwidth, and professional-grade reliability. It remains one of the most capable 2-inch compression drivers in the B&C professional audio catalogue, delivering the performance required for the world’s most demanding sound reinforcement applications.
