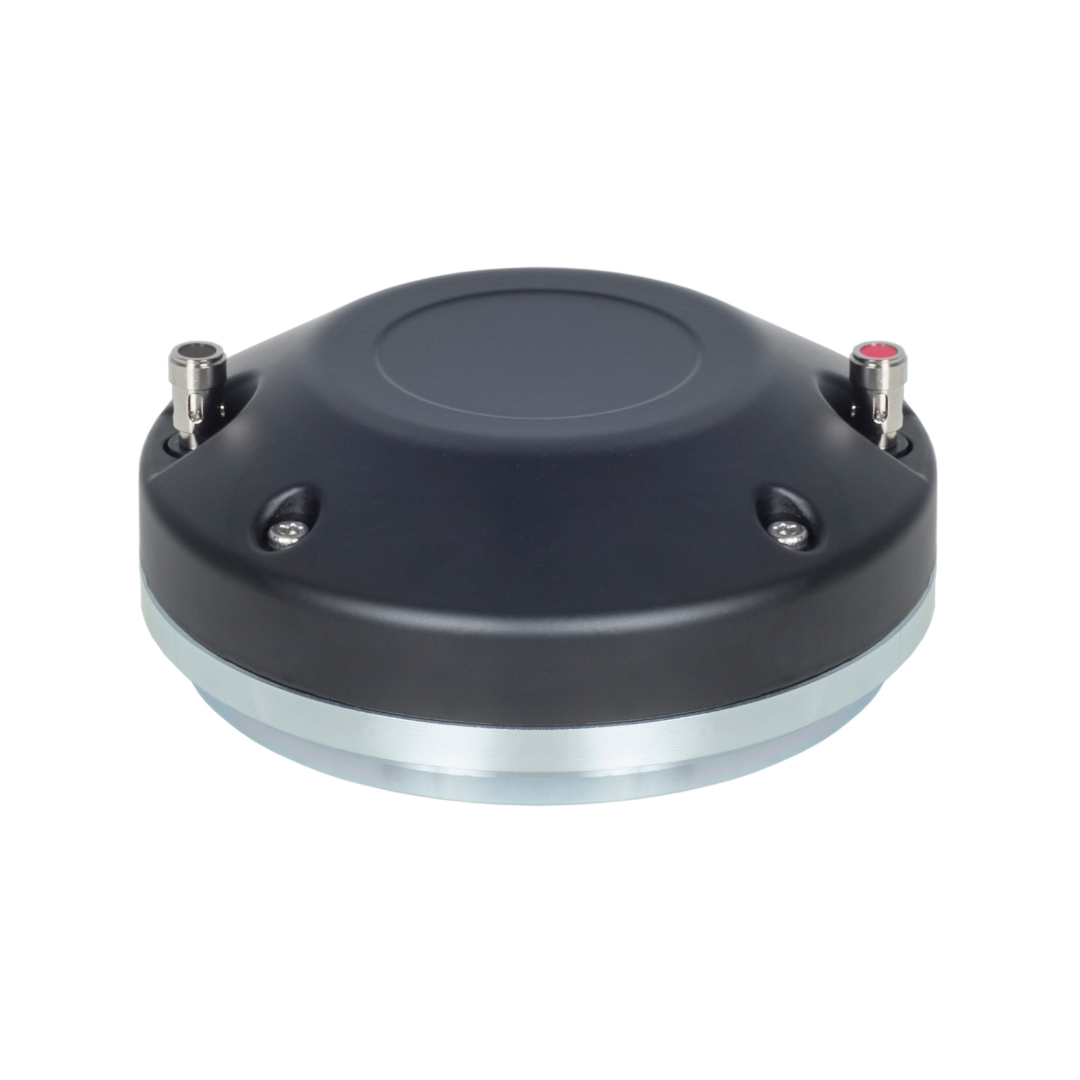

B&C DE914TN – Highest Flux Density 1.4-Inch Compression Driver with 75 mm Voice Coil and 110 Watt AES Power Handling
The B&C DE914TN sits at the very top of B&C’s professional 1.4-inch compression driver range, combining a massive 75 mm (3-inch) voice coil, 110 W AES power handling, 108 dB sensitivity, and an industry-leading 2.05 Tesla neodymium motor. Among B&C’s high-frequency compression drivers, the DE914TN is notable not simply because of its power rating, but because it achieves that rating while generating the highest magnetic flux density found in B&C’s 1.4-inch compression driver catalogue.
While models such as the DE800 and DE90TN also deliver 110 W AES power handling, the B&C DE914TN takes motor strength a step further. Its 2.05 T flux density exceeds the DE800’s 1.85 T and the DE90TN’s 1.8 T, giving the diaphragm greater electromagnetic control throughout its operating range. For system designers, that means improved efficiency, enhanced transient response, greater detail retrieval, and exceptional accuracy at high output levels.
The DE914TN combines this powerful motor structure with a pure titanium diaphragm, a material widely respected in professional touring audio for its stiffness, projection, and ability to maintain clarity at extreme sound pressure levels. The result is a compression driver capable of delivering outstanding vocal articulation, exceptional presence, and long-throw projection in large-scale sound reinforcement systems.
With a frequency response extending from 500 Hz to 18 kHz, a recommended crossover frequency of 1.2 kHz, and a compact 2.4 kg neodymium design, the B&C DE914TN is engineered for premium touring loudspeakers, large-format point source systems, stadium installations, arena sound reinforcement, and flagship line array designs where maximum performance is the priority.
The combination of 110 W AES power handling, 220 W continuous program power, 2.05 Tesla flux density, and a 75 mm voice coil places the B&C DE914TN among the most capable high-frequency compression drivers available for professional loudspeaker design.
Design and Construction of the B&C DE914TN
At the heart of the B&C DE914TN is a 75 mm aluminium voice coil, one of the largest voice coils used in B&C’s professional high-frequency compression driver range.
Voice coil diameter is one of the primary factors that determines a compression driver’s thermal capacity. Larger coils distribute heat across a greater surface area, allowing the assembly to withstand sustained power levels that would quickly overwhelm smaller designs.
This is the reason the DE914TN achieves:
- 110 W AES power handling
- 220 W continuous program power
- Extended thermal stability
- High output over prolonged operating periods
Compared with B&C’s 65 mm voice coil models such as the DE680TN, DE640U, DE640P, and DE610 family, the larger 75 mm coil provides significantly greater thermal capacity and long-term reliability under demanding operating conditions.
For touring systems operating at high SPL levels night after night, this additional thermal headroom becomes a significant advantage.
The voice coil uses aluminium winding material, selected for its excellent conductivity and low mass. Lower moving mass allows the diaphragm assembly to respond rapidly to transient information while maintaining the efficiency required for professional sound reinforcement applications.
The result is a driver capable of delivering substantial output without sacrificing clarity or dynamic accuracy.
The Most Powerful Motor in B&C’s 1.4-Inch Compression Driver Range
The defining feature of the B&C DE914TN is its remarkable 2.05 Tesla magnetic flux density.
This figure is not simply impressive on paper. It has direct implications for real-world performance.
The motor generates more magnetic force than virtually every other 1.4-inch compression driver in B&C’s range:
| Model | Flux Density |
|---|---|
| DE640P | 1.95 T |
| DE800 | 1.85 T |
| DE90TN | 1.80 T |
| DE82TN | 1.80 T |
| DE60TN | 1.60 T |
| DE914TN | 2.05 T |
The stronger magnetic field exerts greater control over the voice coil and diaphragm assembly.
This produces several important benefits:
- Improved transient response
- Better diaphragm control
- Increased efficiency
- Reduced distortion
- Superior dynamic accuracy
- Enhanced detail retrieval
When reproducing complex programme material at high output levels, stronger motor control helps maintain clarity and definition that weaker motors can struggle to preserve.
The 2.05 Tesla motor is therefore one of the primary reasons the DE914TN occupies a flagship position within B&C’s compression driver portfolio.
Pure Titanium Diaphragm Technology
The B&C DE914TN uses a pure titanium diaphragm, a material that has become a benchmark choice for professional touring and concert sound systems.
Titanium offers several important advantages.
Its high stiffness allows the diaphragm to maintain pistonic behaviour over a wide operating bandwidth. This helps preserve detail and accuracy while minimizing unwanted flexing and breakup modes.
Titanium is also extremely durable under the mechanical stresses encountered in professional sound reinforcement applications.
Compared with polymer diaphragms, titanium generally delivers:
- Greater projection
- Increased presence
- Enhanced vocal intelligibility
- Stronger upper-midrange energy
- Superior long-distance coverage
This makes titanium particularly popular in touring systems where sound must maintain impact and intelligibility across large audiences.
Compared with the composite Polyimide/Titanium diaphragm used in the DE800, the DE914TN’s pure titanium diaphragm delivers a more direct and energetic presentation, making it particularly effective in high-output environments where maximum projection is required.
The titanium diaphragm is one of the key reasons the B&C DE914TN excels in large-format professional audio systems.
Exceptional Power Handling Performance
The B&C DE914TN is rated at:
- 110 W AES power handling
- 220 W continuous program power
These figures place it among the highest-rated compression drivers in B&C’s product range.
The combination of the large 75 mm voice coil, powerful neodymium motor, and titanium diaphragm allows the driver to maintain performance under demanding operating conditions.
Many compression drivers can achieve high peak output for short periods.
Far fewer can sustain high output levels over extended periods while maintaining sonic consistency.
The DE914TN is specifically engineered for this type of continuous operation.
Its thermal design allows the driver to maintain stability during:
- Concert touring
- Festival sound systems
- Stadium reinforcement
- Arena productions
- Large-scale installation systems
For professionals who require dependable high-output performance, this thermal capability is a major advantage.
Frequency Response and Low-Frequency Extension
The B&C DE914TN offers a frequency response spanning 500 Hz to 18 kHz.
This unusually low extension for a compression driver provides system designers with additional flexibility when integrating the driver into multi-way loudspeaker systems.
Lower operating capability allows:
- Improved crossover flexibility
- Better integration with midrange devices
- Reduced crossover complexity
- More consistent directivity through the crossover region
The recommended crossover frequency of 1.2 kHz ensures reliable operation while taking advantage of the driver’s substantial motor and diaphragm assembly.
For large-format two-way systems, this capability can simplify system architecture while maintaining excellent performance.
Efficiency and Acoustic Output
The 108 dB sensitivity rating of the DE914TN places it among the most efficient compression drivers in its class.
High sensitivity means more acoustic output is produced from every watt of amplifier power.
This provides several advantages:
- Greater maximum SPL capability
- Increased system headroom
- Reduced amplifier requirements
- Improved overall efficiency
Combined with the driver’s substantial power handling capacity, the result is exceptional output capability suitable for large-scale professional sound reinforcement.
The DE914TN is designed to deliver the projection and dynamic authority required for demanding live sound environments.
Compact Size for a Flagship Compression Driver
Despite its powerful motor and large voice coil assembly, the B&C DE914TN remains remarkably compact.
Dimensions include:
- 131 mm overall diameter
- 53 mm depth
- 2.4 kg net weight
For a compression driver featuring a 75 mm voice coil and 110 W AES rating, these dimensions are exceptionally efficient.
The use of neodymium magnet technology allows B&C to achieve high motor strength while maintaining practical installation dimensions.
This makes the DE914TN suitable for:
- Line arrays
- Compact touring enclosures
- Point source loudspeakers
- Stadium systems
- High-performance installation products
The compact form factor simplifies enclosure integration without compromising performance.
Performance Advantages in Touring Systems
The B&C DE914TN is particularly well suited to touring sound reinforcement.
Its combination of:
- 75 mm voice coil
- 110 W AES power handling
- 2.05 T motor strength
- 108 dB sensitivity
- Titanium diaphragm
creates a driver capable of maintaining clarity and output under the demanding conditions encountered in professional touring environments.
Long operating hours, high SPL requirements, and constant transportation place enormous demands on compression drivers.
The DE914TN is engineered specifically to meet those challenges.
Its titanium diaphragm provides the projection needed for large venues, while the powerful motor maintains control and accuracy even under extreme operating conditions.
For premium touring systems, this combination is highly desirable.
Ideal Applications for the B&C DE914TN
The B&C DE914TN is ideally suited for:
- Premium touring loudspeakers
- Professional line arrays
- Stadium sound systems
- Arena sound reinforcement
- Festival PA systems
- High-output point source speakers
- Houses of worship
- Large-scale installation projects
- Concert sound systems
- Professional stage monitoring
- High-SPL entertainment venues
- Corporate event sound reinforcement
Its combination of efficiency, power handling, projection, and reliability makes it suitable for the most demanding professional audio applications.
Technical Specifications
B&C DE914TN Technical Specifications
Throat Diameter: 36 mm (1.4 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.4 Ω
Nominal Power Handling: 110 W
Continuous Power Handling: 220 W
Sensitivity: 108 dB
Frequency Range: 500 Hz – 18 kHz
Recommended Crossover Frequency: 1.2 kHz
Voice Coil Diameter: 75 mm (3 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 2.05 T
Diaphragm Material: Titanium
Mounting Information
B&C DE914TN Mounting Dimensions
Mounting Pattern: Four M6 holes positioned 90° apart on a 102 mm (4 in) bolt circle
Overall Diameter: 131 mm (5.2 in)
Depth: 53 mm (2.09 in)
Net Weight: 2.4 kg (5.29 lb)
Shipping Weight: 2.45 kg (5.39 lb)
Shipping Box Dimensions: 140 x 135 x 62 mm (5.51 x 5.31 x 2.44 in)
Conclusion – Why Choose the B&C DE914TN?
The B&C DE914TN is one of the most technically impressive compression drivers in the B&C catalogue. Its combination of a 75 mm voice coil, 110 W AES power handling, 220 W continuous power rating, 108 dB sensitivity, and an industry-leading 2.05 Tesla magnetic motor positions it among the highest-performing 1.4-inch compression drivers available for professional audio applications.
What ultimately separates the B&C DE914TN from competing models is motor strength. The 2.05 T magnetic structure provides greater diaphragm control than any other B&C 1.4-inch compression driver, contributing to exceptional transient response, efficiency, and clarity at high output levels.
For touring systems, premium line arrays, stadium installations, arena sound reinforcement, and flagship loudspeaker designs where maximum performance is required, the B&C DE914TN delivers a combination of power handling, efficiency, projection, and reliability that places it firmly at the top of B&C’s professional high-frequency compression driver range.
