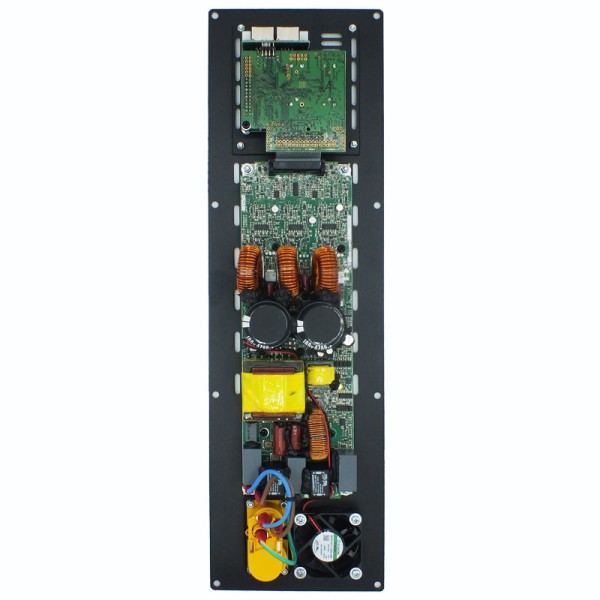

RAM Audio PowerPack DSP AS 1K5 Plate Amplifier
The RAM Audio PowerPack AS 1K5 is a 2-channel Class-D plate amplifier designed to build active loudspeakers or convert existing passive cabinets into self-powered systems. As part of the ASYM series, it features a lightweight switching power supply and an integrated FIR-compatible digital signal processor.

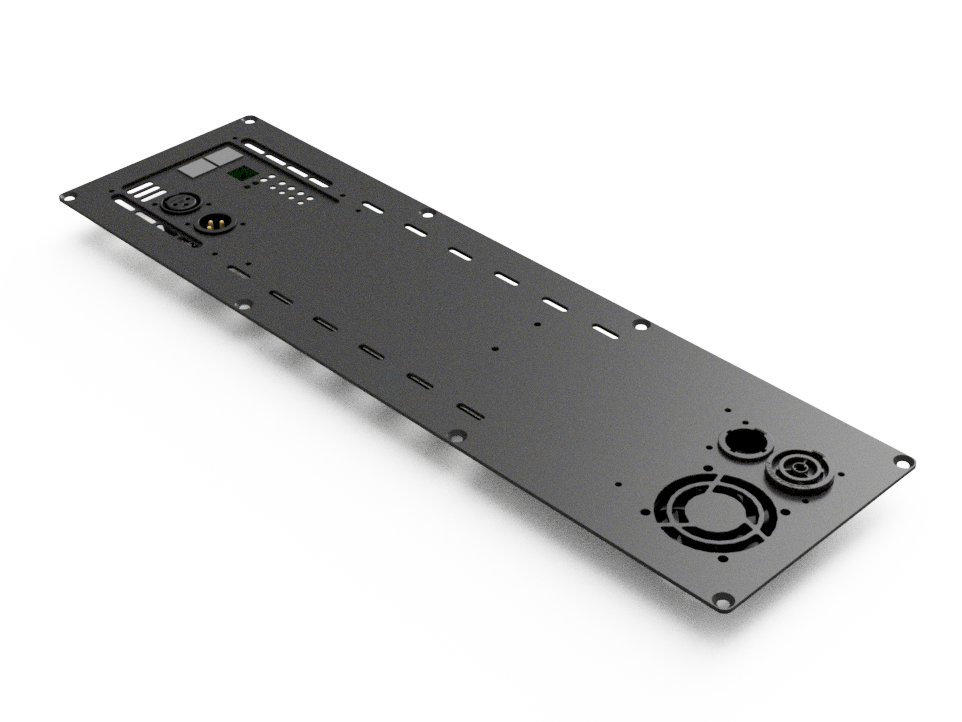

While sharing the architecture, chassis dimensions, and software backend of the larger AS-2K3, the AS 1K5 operates with a symmetrical power split across its two channels and includes bridging functionality.
Key Features
- Integrated Digital Signal Processor: 64-bit double-precision 96 kHz DSP utilizing 96 kHz/32-bit AD/DA converters. Features 2000 taps FIR capability and a latency of 0.6 ms.
- Preset Management: 4 quick-presets selectable via an external hardware button, with capacity for up to 20 user preset libraries.
- Networking and Control: Dual-port RJ45 Ethernet switch supporting daisy-chain configurations for telemetry monitoring and DSP adjustment. Dedicated USB Type-B port for configuration adjustments and firmware utility installations via RAM_OCS control software.
- Monitoring Interfaces: Integrated physical indicators and metering for signal presence, operational status, input/output levels, temperature tracking, current draw, and real-time impedance monitoring.
- Power & Safety Architectures: Incorporates Advanced Power Management System (PMS™), Intelligent Clip Limiting (ICL™), alongside defenses against turn-on transients, overheating, DC faults, RF signals, overcurrent, and mismatched loads.
- Physical Connections: Neutrik-sourced hardware including an XLR input, XLR link out, powerCON True1 input and output loop, and internal Speakon terminals for driver routing.
Shop more RAM AUDIO Products.
DSP / RAM_OCS
This Digital Signal Processor is a very versatile processor useful for any kind of sound system and configurable for any sound application possible. It is real time fully programmable directly from the front panel in the amplifiers or through Ethernet or USB by means of RAM Audio own control software, RAM_OCS.
• High performance 96kHz/24 bits AD/DA converters
• 64 bit double-precision 96kHz DSP process
• 20dBu maximum analog input
• 0.85 ms minimum process latency time
• Custom FIR process up to 1000 taps
• Dante, AES67 and AES3 input versions
About RAM Audio
RAM Audio products are engineered and manufactured in Spain, with a strong focus on high-performance amplifier design and long-term reliability. The brand combines advanced Class D and power management technologies with strict quality control processes to ensure consistent, dependable operation in demanding professional environments. Their production philosophy emphasizes efficiency, thermal stability, and electrical robustness, resulting in amplifiers that perform reliably under continuous load.
Over the years, RAM Audio has built a solid reputation in the professional audio market, particularly in touring, fixed installation, and large-scale sound reinforcement applications. The brand is widely recognized for delivering powerful, stable amplification solutions that balance performance, durability, and real-world usability, making RAM Audio a trusted choice for system integrators and audio professionals who require uncompromising reliability.
