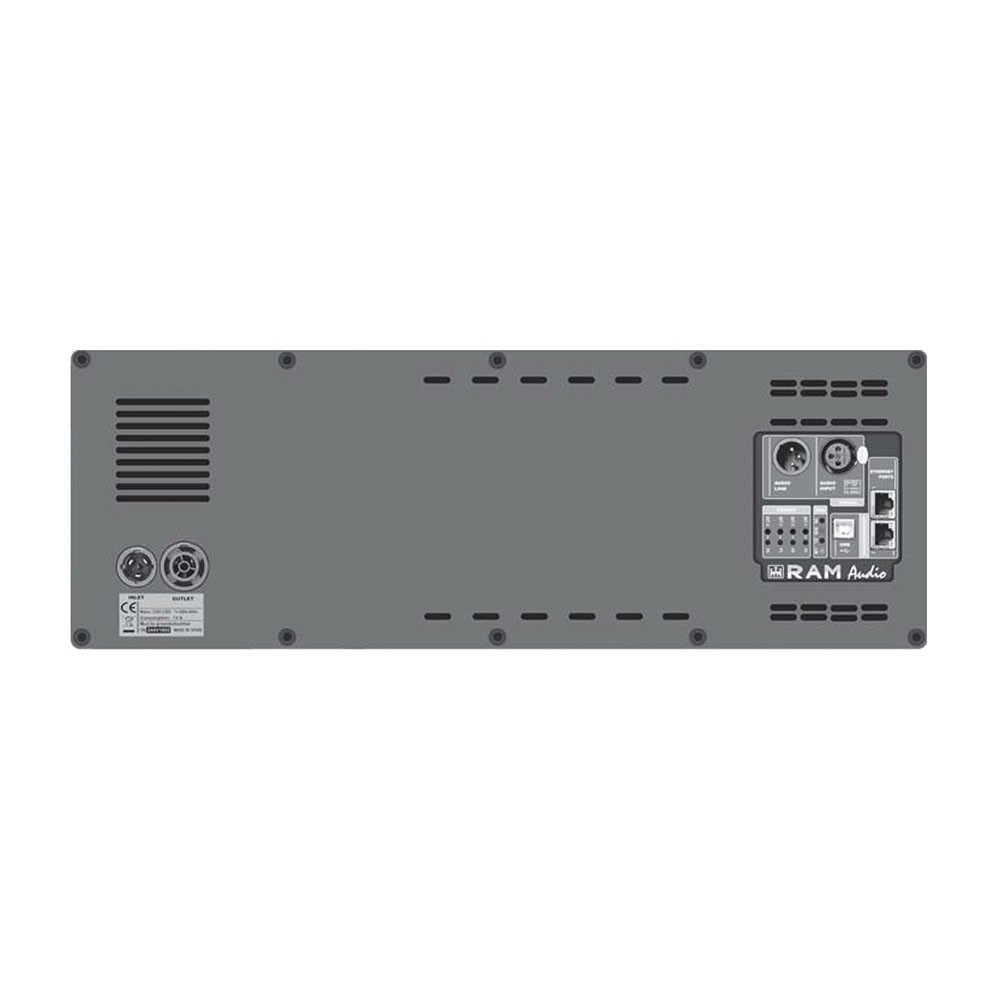

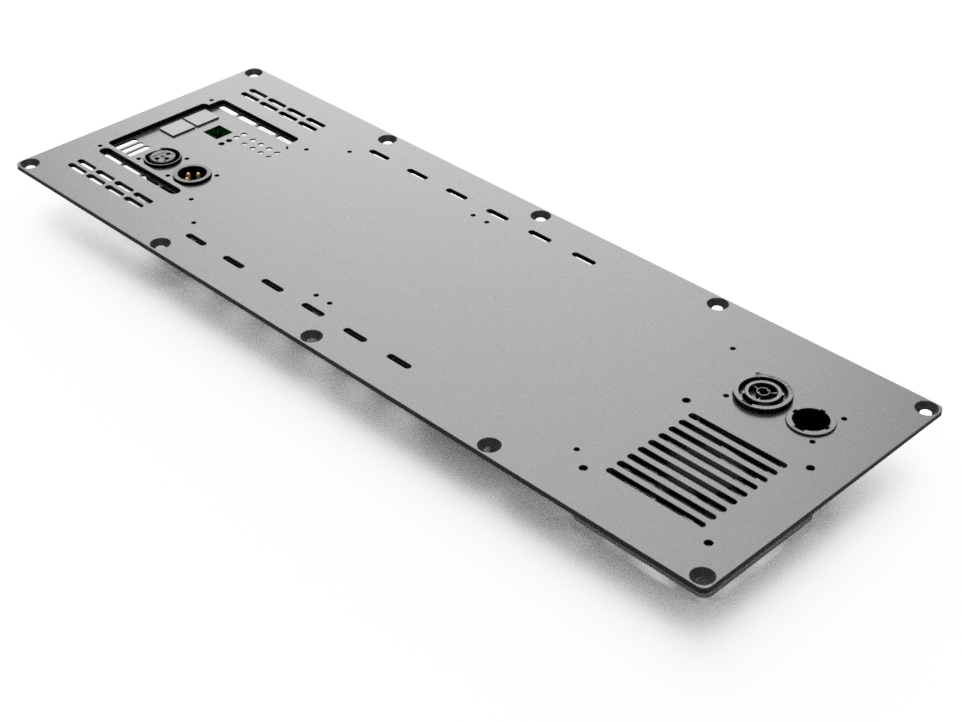

RAM Audio PowerPack DSP SB 3K Plate Amplifier

The RAM Audio PowerPack SB 3K (commonly referred to as the DSP 3K) is a 2-channel Class-D plate amplifier specifically engineered for low-frequency applications and high-demand subwoofer systems. Part of the SUB series, this model is designed to deliver sustained power to demanding subwoofers while incorporating an advanced FIR-compatible digital signal processor and comprehensive telemetry monitoring.

Key Features

• Integrated Digital Signal Processor: 64-bit double-precision 96 kHz DSP utilizing 96 kHz/32-bit AD/DA converters. Features 2000 taps FIR capability, up to 40 meters (116ms) of delay shared between input/output, and a minimal latency of 0.6 ms.

• Preset Management: 4 quick-presets selectable via an external hardware button, with a internal memory library capable of storing up to 20 user presets.

• Networking and Control: Dual-port RJ45 Ethernet switch supporting daisy-chain configurations for telemetry monitoring and DSP adjustment. Dedicated USB Type-B port for configuration adjustments and firmware utility installations via RAM_OCS control software.

• Monitoring Interfaces: Hardware indicators for standby mode, signal presence, operational status, input/output levels, temperature tracking, current draw, and real-time impedance monitoring.

• Power & Safety Architectures: Incorporates Advanced Power Management System (PMS™), Intelligent Clip Limiting (ICL™), alongside defenses against turn-on transients, overheating, DC faults, RF signals, short circuits, and mismatched loads.

• Physical Connections: Neutrik-sourced hardware including an XLR input, XLR link out, powerCON True1 input and output loop, and internal Speakon terminals for driver routing.

Shop more RAM AUDIO Products.

DSP / RAM_OCS

This Digital Signal Processor is a very versatile processor useful for any kind of sound system and configurable for any sound application possible. It is real time fully programmable directly from the front panel in the amplifiers or through Ethernet or USB by means of RAM Audio own control software, RAM_OCS.

• High performance 96kHz/24 bits AD/DA converters
• 64 bit double-precision 96kHz DSP process
• 20dBu maximum analog input
• 0.85 ms minimum process latency time
• Custom FIR process up to 1000 taps
• Dante, AES67 and AES3 input versions
