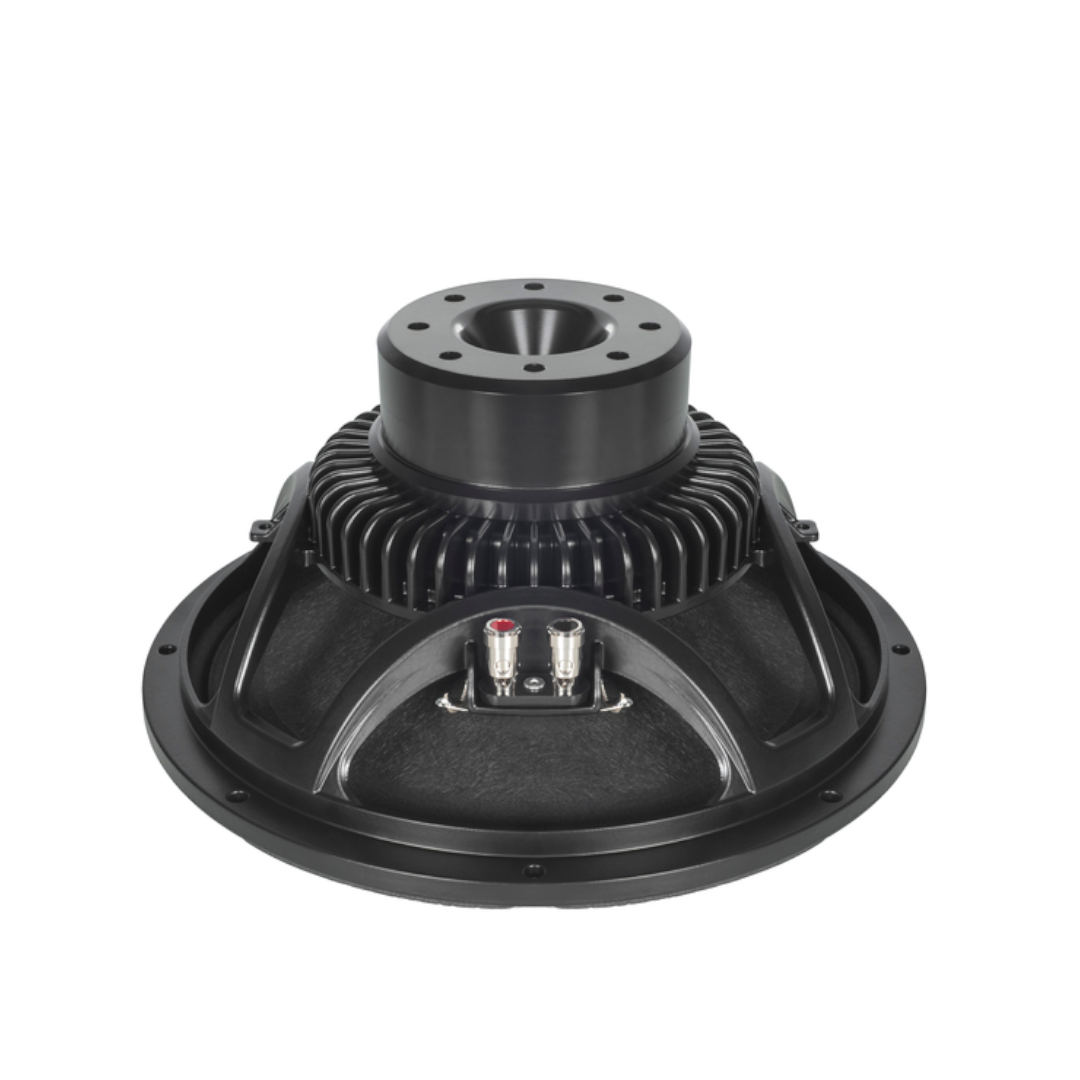

18 Sound 12ND940 – LF Driver

18 Sound 12ND940 – Flagship 12-Inch Neodymium Woofer with 75 mm Edgewound Coil and 600 Watt Power Handling

The 18 Sound 12ND940 is a high-power, high-output, extended low frequency neodymium transducer which meets the most stringent requirements in high-quality professional transducers — and represents the updated version of 18 Sound’s flagship 12ND930, to which it is a direct replacement with improved construction. With a 75 mm copper edgewound voice coil, SDR distortion reduction, 100 dB sensitivity, 600 W AES / 1200 W continuous program power handling, and a 0.20 Qts that is the most motor-dominant alignment of any 12-inch driver we’ve documented from 18 Sound, the 18 Sound 12ND940 delivers the current pinnacle of 18 Sound’s 12-inch neodymium engineering.

The high level of performance and sound quality have been achieved by exploiting the most advanced technologies available today. Thanks to its versatility, the 18 Sound 12ND940 can be used in 2-way compact reflex enclosures, in multiway systems, and in high-loading subwoofers as small as 70 litres — spanning compact reflex, bandpass, and horn-loaded configurations. Few 12-inch drivers we’ve covered from any manufacturer offer this breadth of stated application range within a single flagship model.

The neodymium magnet assembly assures high flux concentration, low power compression, and excellent heat exchange, resulting in high levels of force factor and power handling with an optimum power-to-weight ratio. The 22.2 Tm force factor is exceptional, and the 245 Hz EBP confirms a motor with genuinely extreme control over the moving assembly — the 0.20 Qts is lower than every other 18 Sound 12-inch driver we’ve documented, including the previous benchmark 12NMB1000’s 0.19 (a near-identical figure, achieved here from a woofer-class driver with far more excursion and bass extension rather than a pure mid-bass specialist).

At 4.3 kg with weather-protected cone and plate treatment, the 18 Sound 12ND940 is 18 Sound’s current flagship 12-inch neodymium woofer.

Design and Construction of the 18 Sound 12ND940

The 18 Sound 12ND940 employs a 75 mm (3-inch) copper edge-wound voice coil assembly wound on a strong fibreglass former to improve force transmission and power handling. The edgewound construction packs more conductor into the magnetic gap per unit of coil height, maximising the force-generating conductor length — a technique 18 Sound applies across several of its highest-performance coil designs.

The deep-profile curvilinear cone, created from a special high-strength wood pulp, has been designed to achieve the best possible linearity within its frequency range. The cone surround is highly resistant to ageing and fatigue. The in-house developed cone treatment is humidity repellent and significantly dampens bell-mode resonances — the same dual-function cone treatment philosophy found across 18 Sound’s premium driver range, addressing environmental durability and acoustic performance simultaneously.

The already low distortion and sound quality are further improved by the Demodulating Ring (SDR), which flattens impedance and phase with a constant power transfer — producing the 0.57 mH inductance figure from a substantial 75 mm coil, a genuinely well-controlled result for this coil scale without dual-ring or AIC assistance.

The 22.2 Tm force factor driving 66 g of moving mass produces 100 dB sensitivity and 3.6% reference efficiency — both exceptional figures for a 12-inch driver of this power class. The Bl/Mms ratio of 0.336 Tm/g, combined with the 0.20 Qts and 245 Hz EBP, defines a motor with extreme control over the cone through the full 7.6 mm Xmax and 7.0 mm Xvar excursion range.

At 4.3 kg, 310 mm overall diameter, 283 mm baffle cutout, and 147 mm depth, the 18 Sound 12ND940 carries a substantially lighter chassis than the DDR-equipped 12NLW9300 (6.2 kg) or the extreme-Xmax 12NLW9410 (7.3 kg), despite offering comparable or superior power handling and motor performance to both — confirming this driver’s improved construction claim against its 12ND930 predecessor and its position as 18 Sound’s most refined current 12-inch neodymium platform.

Performance and Applications for the 18 Sound 12ND940

The 18 Sound 12ND940 delivers 100 dB sensitivity across a 50 Hz – 3000 Hz bandwidth. The 600 W AES / 1200 W continuous program power handling positions this driver among the highest-power 12-inch options in 18 Sound’s range, while the 0.20 Qts extreme motor dominance confirms the driver’s suitability for horn-loaded applications where the tightest, fastest, most precisely controlled output is the priority.

18 Sound recommends a 30-litre (1.06 ft³) vented enclosure tuned to 60 Hz — a remarkably compact cabinet volume for a driver handling 1200 W continuous program, reflecting the extreme motor control the 0.20 Qts and 245 Hz EBP provide. The driver’s versatility extends to high-loading subwoofer applications in enclosures as small as 70 litres across compact reflex, bandpass, and horn-loaded configurations.

The 7.6 mm Xmax with 7.0 mm Xvar provides substantial displacement for a driver in this sensitivity and power class — combined with the 531 cm² radiating area, the 18 Sound 12ND940 produces meaningful bass extension while maintaining the tight motor control that its low Qts demands.

For two-way compact reflex enclosures, the 50 Hz – 3000 Hz bandwidth pairs naturally with a compression driver crossed over in the 2000–3000 Hz range. For multiway systems, the driver’s stated versatility positions it as a genuine mid-bass to woofer bridge component. For high-loading compact subwoofers, the 600 W AES power handling and deep-profile cone combine for serious sustained low-frequency output from cabinets as small as 70 litres.

As the direct replacement for the 12ND930 with improved construction, the 18 Sound 12ND940 represents 18 Sound’s current thinking on what a flagship 12-inch neodymium woofer should deliver: extreme motor control, high power handling, exceptional sensitivity, and application versatility spanning two-way, multiway, and subwoofer use cases from a single platform.

Conclusion – 18 Sound 12ND940 Woofer

The 18 Sound 12ND940 is 18 Sound’s current flagship 12-inch neodymium woofer — the updated, improved-construction replacement for the 12ND930. The 75 mm copper edgewound coil with SDR, 100 dB sensitivity, 600 W AES / 1200 W continuous program power handling, and a 0.20 Qts that represents the most extreme motor dominance we’ve documented in 18 Sound’s 12-inch range combine to meet the most stringent requirements in high-quality professional transducers.

The driver’s stated versatility — 2-way compact reflex enclosures, multiway systems, and high-loading compact subwoofers as small as 70 litres — confirms this is engineered as a genuine do-everything 12-inch platform rather than a single-application specialist.

For builders seeking 18 Sound’s current best 12-inch neodymium woofer, spanning two-way, multiway, and subwoofer applications with exceptional sensitivity, power handling, and motor control, the 18 Sound 12ND940 is the driver 18 Sound built to meet the most stringent professional requirements. One hundred dB, 600 watts AES, 0.20 Qts — the current flagship of the 12-inch range.
