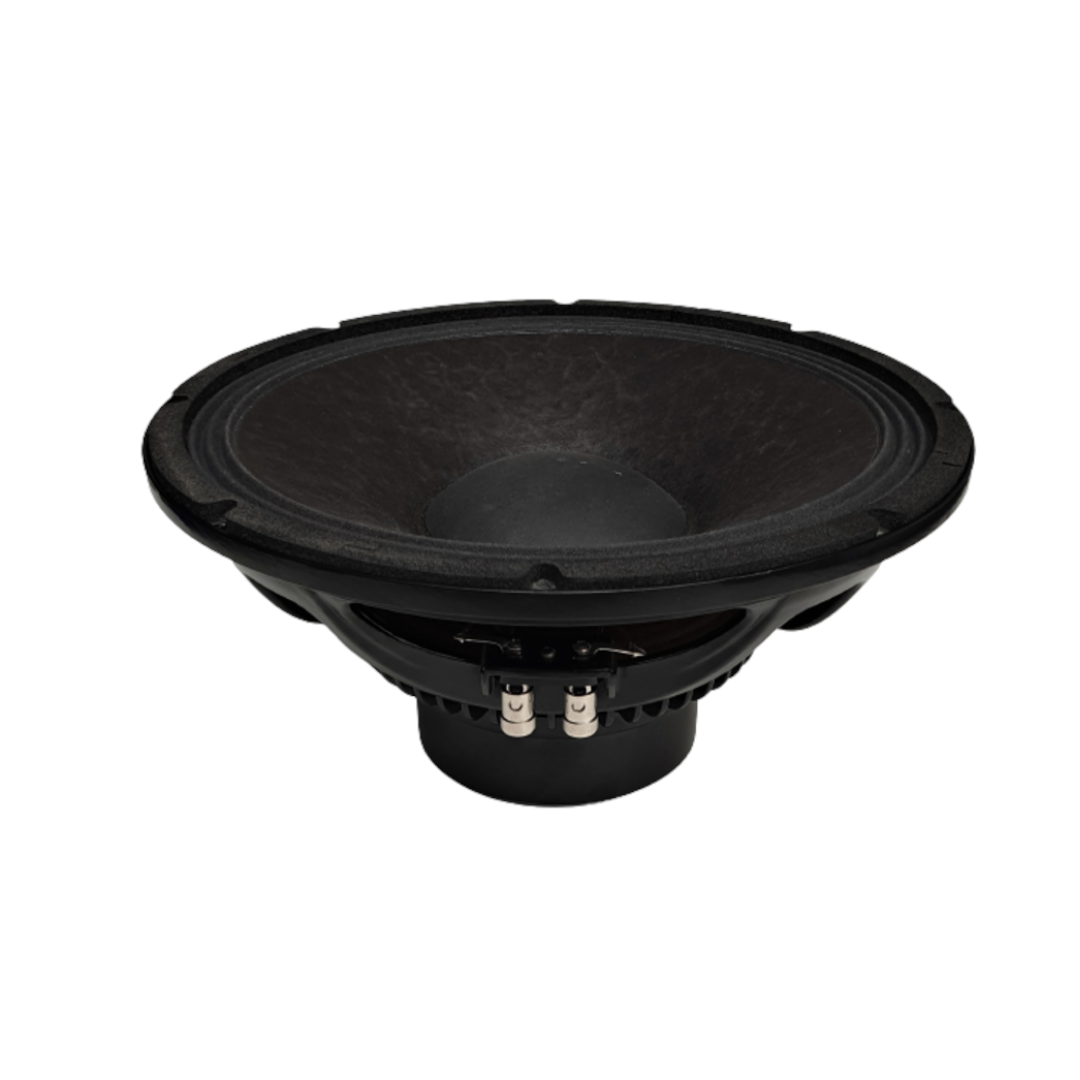

18 Sound 12NW350 – Extreme High-Power 12-Inch Neodymium Woofer with 88 mm ISV Voice Coil and 800 Watt Handling
The 18 Sound 12NW350 brings the massive 88 mm voice coil platform found on 18 Sound’s most powerful 10-inch Dual Gap driver into a traditional single-motor 12-inch chassis — meeting the market requirement for the linearity, efficiency, and power handling of the 12NTLW3500 in a more conventional format for compact system integration. With 800 W AES / 1600 W continuous program power handling, 98 dB sensitivity, an extremely balanced Bl, and 8.3 mm Xmax, the 18 Sound 12NW350 is built for two-way systems and high-power line array applications where the 12-inch format needs to deliver flagship-level power in a traditional chassis geometry.
The 88 mm (3.5-inch) CCAW voice coil is the largest single-motor coil we’ve encountered in any 18 Sound 12-inch driver — the same coil diameter found on the Dual Gap 10NTLW3500, here deployed in a conventional single-gap motor rather than a dual-gap architecture. The ISV (Interleaved Sandwich Voice Coil) technology carries windings on both outer and inner surfaces of a high-strength fibreglass former, producing a mass-balanced coil and an extremely linear motor assembly with reduced tendency for eccentric behaviour when driven hard — 18 Sound specifically highlights the extremely balanced Bl as a defining feature.
The 8.3 mm Xmax is the highest of any 18 Sound 12-inch driver we’ve covered — exceeding the 12W750’s 8.0 mm and providing genuine long-throw displacement from a 75 g moving mass. Combined with the 800 W AES power handling, the 18 Sound 12NW350 produces substantial low-frequency output for a driver that fits a standard 12-inch cabinet cutout.
At 5.1 kg — remarkably light given the 88 mm coil, 75 g moving mass, and 800 W AES rating — the external neodymium motor delivers a power-to-weight ratio that no ferrite 12-inch alternative can approach. 18 Sound lists the 12NTLW3500 as the alternative/current model, positioning this driver as the traditional-chassis complement to that flagship Dual Gap platform.
Design and Construction of the 18 Sound 12NW350
The 18 Sound 12NW350 uses an 88 mm (3.5-inch) CCAW (copper-clad aluminium wire) voice coil with a 22 mm winding depth operating in an 11 mm magnetic gap — dimensions that match the massive coil platform found on 18 Sound’s Dual Gap 10NTLW3500, here implemented as a traditional single-gap neodymium motor rather than the dual-gap architecture. The ISV technology places windings on both outer and inner surfaces of a high-strength fibreglass former, creating the mass-balanced coil that produces an extremely linear motor assembly with reduced eccentric behaviour under hard driving.
The magnetic structure has been optimised using FEA CAD resource to maximise flux density in the voice coil gap. The 19.2 Tm force factor driving 75 g of moving mass produces 98 dB sensitivity and 2.0% reference efficiency — the extremely balanced Bl that 18 Sound highlights maintains consistent force output across the 8.3 mm Xmax, keeping distortion low at the high displacement levels the driver is designed to reach.
The curvilinear paper cone — described in the datasheet as a straight profile — is made from special high-strength wood pulp designed to achieve the best possible linearity within the intended frequency range while controlling bell-mode resonances around the cone circumference. The reinforced, water-repellent, treated paper cone construction is 18 Sound’s most durable cone treatment, positioning the 18 Sound 12NW350 for the harshest touring and outdoor conditions.
The triple roll suspension, made from polycotton material more resistant to ageing and fatigue than traditional cotton-based surrounds, supports the 8.3 mm Xmax with 7.5 mm of additional Xvar headroom beyond the linear limit — substantial mechanical reserve for transient peaks.
Voice coil cooling uses airways between the chassis back plate and the top plate of the magnet, channelling heated air from the voice coil and gap away for dissipation through the chassis basket. Given the increasing use of audio systems at outdoor events, 18 Sound specifically engineered the 18 Sound 12NW350 for adverse weather and high-humidity performance through an exclusive cone and magnet plate treatment process.
The DDR (Double Demodulating Rings) technology tag appears in 18 Sound’s feature listing for the 18 Sound 12NW350, indicating the motor carries dual-ring distortion reduction consistent with 18 Sound’s most refined driver platforms, alongside the ISV coil’s inherent linearity.
At 5.1 kg, 310 mm overall diameter, 283 mm baffle cutout, and 150 mm depth, the 18 Sound 12NW350 fits a standard 12-inch cabinet cutout despite the massive 88 mm coil and correspondingly substantial motor structure.
Performance and Applications for the 18 Sound 12NW350
The 18 Sound 12NW350 delivers 98 dB sensitivity across a 50 Hz – 3500 Hz bandwidth. The 800 W AES / 1600 W continuous program power handling is the highest of any 12-inch driver in 18 Sound’s range we’ve covered — matching the power class of the flagship 10NTLW3500 but from a 12-inch cone with more radiating area.
18 Sound recommends a 30-litre (1.06 ft³) vented enclosure tuned to 58 Hz — a remarkably compact cabinet volume given the driver’s power handling and displacement capability, reflecting the 0.34 Qts alignment and the motor’s extreme control over the 75 g moving mass.
18 Sound specifically positions the 18 Sound 12NW350 for multiway systems and high-power line arrays. The 3500 Hz upper bandwidth, while narrower than the ferrite two-way-oriented 12-inch drivers, is entirely appropriate for a driver primarily intended to deliver maximum bass and mid-bass output at the highest sustained power in demanding touring applications.
The 8.3 mm Xmax with 7.5 mm Xvar produces substantial volume displacement — combined with the 531 cm² radiating area, the driver moves significant air per cycle, supporting genuine full-range low-frequency output at the 800 W AES power level.
The relationship to the 12NTLW3500 — listed as the alternative/current model — suggests the 18 Sound 12NW350 predates or complements a Dual Gap flagship 12-inch driver sharing similar coil dimensions but with the dual-gap architecture’s doubled thermal dissipation and Bl symmetry benefits. For builders specifying new systems, checking the 12NTLW3500’s specifications directly is worthwhile; for maintenance of existing 18 Sound 12NW350 installations or where the traditional single-gap chassis geometry is specifically required, this driver remains a formidable performer.
Conclusion – 18 Sound 12NW350 Woofer
The 18 Sound 12NW350 brings an 88 mm ISV voice coil — the same massive coil platform found on 18 Sound’s Dual Gap 10-inch flagship — into a traditional single-motor 12-inch chassis. The 800 W AES / 1600 W program power handling, 19.2 Tm extremely balanced Bl, and 8.3 mm Xmax combine for a driver that delivers flagship-level output and displacement from a standard 12-inch cutout at just 5.1 kg.
The extremely balanced Bl and DDR-tagged motor technology confirm this is a driver engineered for the demanding distortion and thermal requirements of high-power line array and multiway touring applications. For systems requiring maximum sustained power handling from a 12-inch neodymium woofer, the 18 Sound 12NW350 delivers a genuinely rare combination of coil size, power handling, and displacement — though builders specifying new systems should also evaluate the listed 12NTLW3500 alternative for potential Dual Gap advantages.
