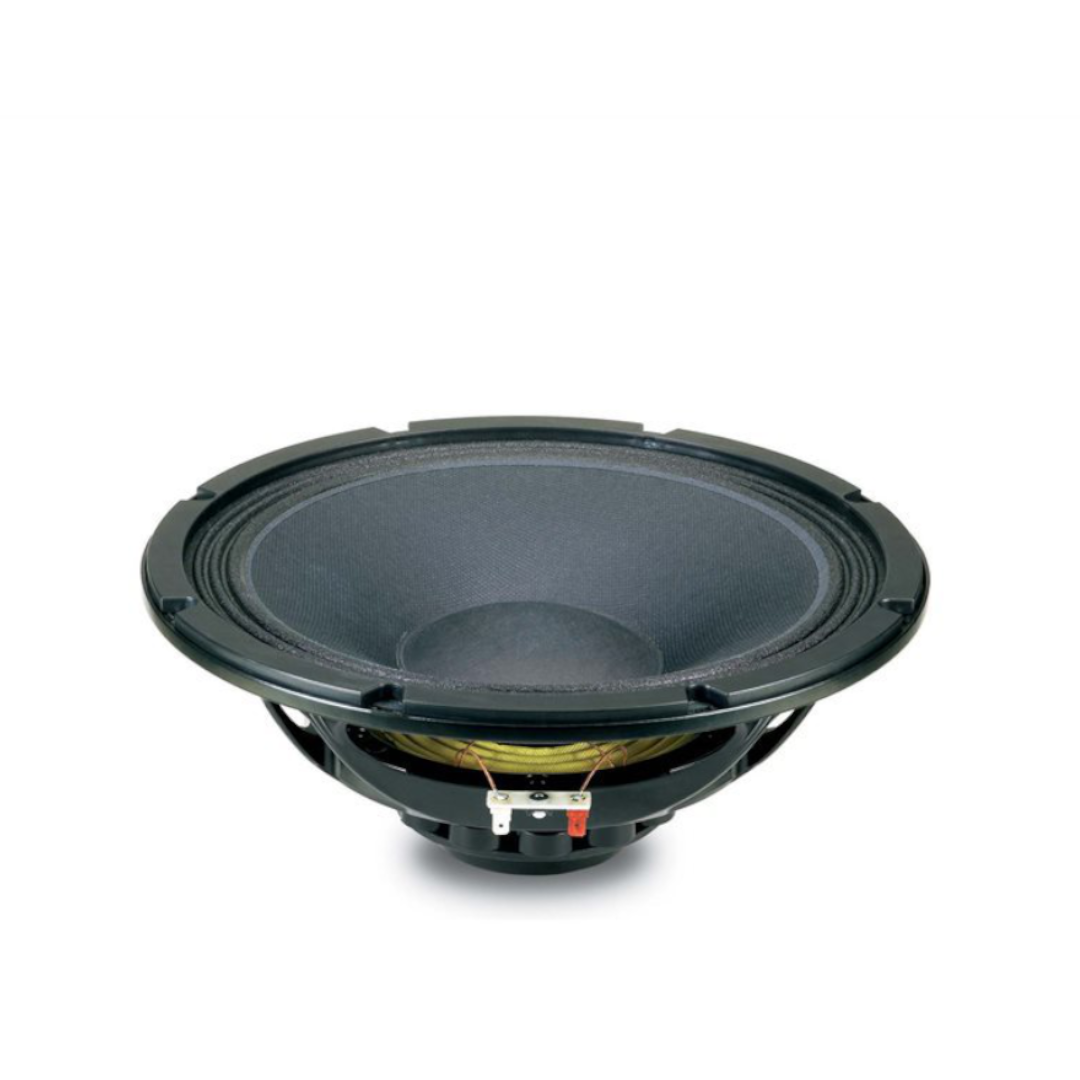

18 Sound 12NMB420 – High-Sensitivity 12-Inch Neodymium Mid-Bass with ISV Coil and 100.5 dB Output
The 18 Sound 12NMB420 is a 12-inch neodymium mid-bass transducer that delivers 100.5 dB sensitivity — the highest of any neodymium 12-inch driver we’ve covered from 18 Sound — from a compact 65 mm ISV voice coil, external neodymium magnet, and the SDR plus copper sleeve combination that 18 Sound specifically credits for optimum balance in reproducing instantaneous peaks on mid frequencies. At just 3.0 kg, the 18 Sound 12NMB420 is also the lightest neodymium mid-bass in the 12-inch range, purpose-designed for compact two-way systems.
At the heart of the driver is a carefully engineered drive system designed to assure linear, low-distortion output, high power capability, and efficient heat transfer. 18 Sound built the 65 mm ISV coil with high-strength fibreglass carrying windings on both outer and inner surfaces to achieve a mass-balanced coil — the same fundamental architecture found throughout 18 Sound’s ISV range, here producing an extremely linear motor assembly with reduced tendency to eccentric behaviour when driven hard.
The onboard copper sleeve positioned in the gap, coupled with the SDR (Single Demodulating Ring), produces the 0.2 mH inductance figure — exceptionally low for a driver without the full Dual Gap architecture, and lower than most SDR-only designs we’ve covered in 18 Sound’s range. This combination results in optimum balance for reproducing instantaneous peaks on mid frequencies, directly reducing intermodulation distortion.
The external neodymium magnet configuration is considerably more efficient than the traditional under-pole magnet topology, assuring high flux concentration, low power compression, and excellent heat exchange — allowing the 18 Sound 12NMB420 to achieve high levels of force factor and power handling with a power-to-weight ratio at the upper level. 18 Sound now lists the 12MB700 as the alternative/current model.
Design and Construction of the 18 Sound 12NMB420
The 18 Sound 12NMB420 employs a 65 mm (2.5-inch) aluminium Interleaved Sandwich Voice Coil (ISV), in which a high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a mass-balanced coil — the ISV architecture producing an extremely linear motor assembly with reduced tendency to eccentric behaviour when driven hard, the same engineering principle found across 18 Sound’s entire ISV range.
The 13.9 Tm force factor driving 33.5 g of moving mass produces the driver’s 100.5 dB sensitivity — a Bl/Mms ratio of 0.415 Tm/g that reflects a motor tuned for maximum output-per-watt from a genuinely light moving assembly. The onboard copper sleeve positioned in the magnetic gap, coupled with the SDR, produces the combined distortion reduction and inductance linearisation that gives the 18 Sound 12NMB420 its remarkably low 0.2 mH Le — significantly lower than most single-ring SDR designs we’ve covered.
The high-quality paper cone has a smooth, curvilinear profile design specifically engineered to eliminate bell-mode resonances within the intended frequency range. This is carried by a specially treated and damped triple-roll linen suspension designed to control excursion while maintaining piston action linearity through the 4.0 mm Xmax.
The external neodymium magnet assembly is the driver’s central efficiency advantage — considerably more efficient than the traditional under-pole magnet topology, providing high flux concentration, low power compression, and excellent heat exchange from a compact, lightweight motor structure. This external configuration is the mechanism by which the 18 Sound 12NMB420 achieves such a favourable power-to-weight ratio at just 3.0 kg.
Weather-protected cone and plate treatment provides outdoor durability for touring and installed applications facing routine weather exposure.
At 3.0 kg, 315 mm overall diameter, 282 mm baffle cutout, and 127 mm depth, the 18 Sound 12NMB420 is dramatically lighter than every ferrite 12-inch driver in 18 Sound’s range and lighter than the traditional single-gap neodymium 12NW350 (5.1 kg) by a wide margin — the compact 65 mm coil and mid-bass-optimised motor tuning keep total weight low.
Performance and Applications for the 18 Sound 12NMB420
The 18 Sound 12NMB420 delivers 100.5 dB sensitivity across a 55 Hz – 6000 Hz bandwidth. The most extended bass, lowest distortion, and best control is usually realised in properly designed vented enclosures — in such designs, the vent or port actually provides the lowest octave of output, reducing the driver’s excursion at these frequencies compared to sealed enclosures and directly reducing harmonic distortion and the possibility of the speaker bottoming out.
18 Sound recommends typical vented enclosure sizes from 40 litres up, with tunings from 50 to 60 Hz, and specifically suggests low frequency equalisation to improve bass output if the system operates without a subwoofer. The recommended amplifier size ranges from 250 up to 500 W — matching the driver’s 300 W AES / 450 W program handling with appropriate headroom.
The 6000 Hz upper bandwidth is the widest of any neodymium 12-inch driver in 18 Sound’s range we’ve covered, providing extensive overlap for compact two-way systems crossing over to a compression driver in the 2000–2500 Hz region — exactly the application 18 Sound specifically designed the 18 Sound 12NMB420 for.
The 0.28 Qts and 176 Hz EBP define a motor-dominant, strongly vented-oriented alignment. The 4.0 mm Xmax confirms the mid-bass design intent rather than bass extension — this driver is optimised for output and control in the mid-bass band, not maximum low-frequency displacement.
The comparison to the traditional single-gap 12NW350 illustrates the ISV/SDR platform’s efficiency advantage at the mid-bass scale. The 12NW350 delivers 98 dB sensitivity, 8.3 mm Xmax, and 800 W AES power handling from an 88 mm coil at 5.1 kg — a bass-extension and displacement-oriented driver. The 18 Sound 12NMB420 delivers 100.5 dB sensitivity, 300 W AES power handling, and 4.0 mm Xmax from a 65 mm coil at 3.0 kg — a mid-bass sensitivity and efficiency-oriented driver at 41% less weight.
18 Sound now lists the 12MB700 as the current alternative model — likely a ferrite successor or updated neodymium platform continuing the compact two-way mid-bass role this driver was designed for.
Conclusion – 18 Sound 12NMB420 Mid-Bass Driver
The 18 Sound 12NMB420 delivers the highest sensitivity of any neodymium 12-inch mid-bass driver in 18 Sound’s range at 100.5 dB, from the lightest neodymium 12-inch chassis at just 3.0 kg. The SDR and copper sleeve combination in the magnetic gap produces an exceptionally low 0.2 mH inductance, supporting the driver’s specific design purpose: optimum reproduction of instantaneous mid-frequency peaks with minimal intermodulation distortion.
Specially designed for compact two-way systems, the 18 Sound 12NMB420 combines linear, low-distortion output with high power capability and efficient heat transfer from an external neodymium motor topology that delivers a power-to-weight ratio at the upper level of 18 Sound’s range. For compact two-way builds prioritising mid-bass sensitivity, weight, and inductance linearity over maximum bass extension or displacement, the 18 Sound 12NMB420 remains a formidable specification even as 18 Sound points to the 12MB700 as the current recommendation.
