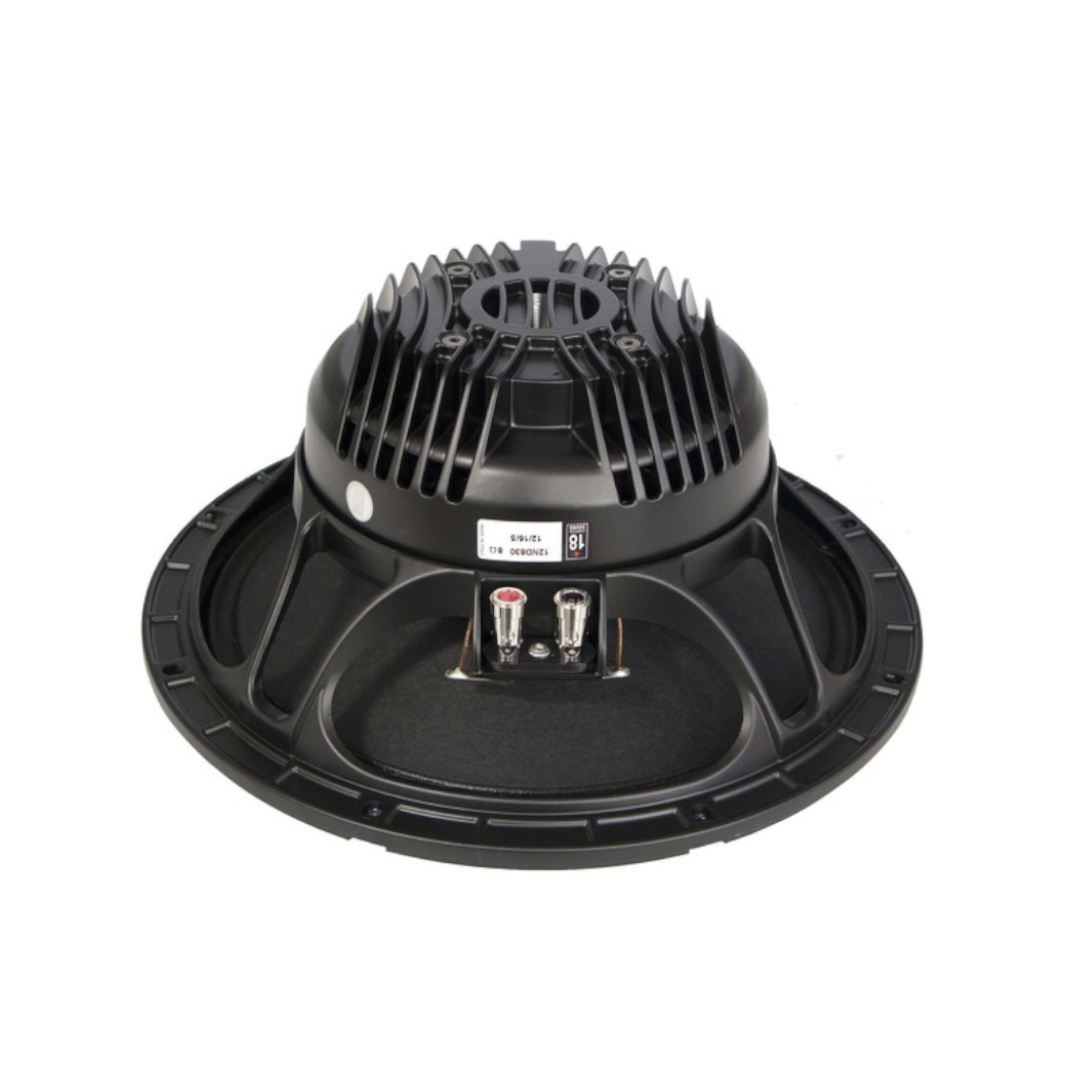

18 Sound 12ND830 – Lightweight 12-Inch Neodymium Mid-Bass with Aluminium ISV Coil and 99 dB Sensitivity
The 18 Sound 12ND830 is a 300 mm (12-inch) neodymium mid-bass transducer that, in 18 Sound’s own words, differs from the 12ND930 in the wire conception, offering a lighter speaker with a lower force factor. Where the 12ND930 uses a copper-wound 75 mm ISV coil producing 21.2 Tm, the 18 Sound 12ND830 uses an aluminium-wound 75 mm ISV coil producing 17.6 Tm — a deliberate engineering trade-off that reduces both weight and motor force while maintaining the same coil diameter, cone platform, and thermal management philosophy.
The 18 Sound 12ND830 finds its ideal application in compact reflex enclosures where a considerable amount of low frequencies and low distortion are required. Its optimum low weight makes it suitable for fixed installations or portable professional loudspeaker systems — a driver positioned specifically for applications where the weight savings of aluminium winding matter more than the 12ND930’s additional motor force.
The neodymium magnet assembly developed by 18 Sound’s engineers assures high flux concentration, low power compression, and excellent heat exchange, since the external magnet configuration is considerably more efficient than traditional under-pole magnet topology. The direct contact between the large heat sink and the specially designed basket, together with the magnetic structure, represents a fundamental improvement in thermal connection and heat dissipation — the same thermal management philosophy found on the 12ND930, adapted here for the aluminium coil platform.
At 4.3 kg with a 53 Hz – 5000 Hz bandwidth — wider than the 12ND930’s 4500 Hz upper limit — and available in both 4 and 8 Ω, the 18 Sound 12ND830 offers the widest impedance flexibility of any 12ND-series driver we’ve documented. 18 Sound lists the 12ND930 as the alternative/current model.
Design and Construction of the 18 Sound 12ND830
The 18 Sound 12ND830’s 75 mm Interleaved Sandwich Voice Coil (ISV) assembly is wound on a strong fibreglass former which improves force transmission and thermal power handling — the same ISV architecture and coil diameter found on the 12ND930, but wound with aluminium wire rather than copper. This material substitution is the specific engineering change 18 Sound highlights as the driver’s defining differentiator: differs from the 12ND930 in the wire conception, offering a lighter speaker with a lower force factor.
Aluminium winding is lighter than copper per unit of conductor length but has higher electrical resistance, which typically produces a somewhat lower force factor for an equivalent coil geometry — exactly the trade-off reflected in the 17.6 Tm Bl figure compared to the 12ND930’s 21.2 Tm. The 46 g moving mass is also notably lighter than the 12ND930’s 57 g, both factors contributing to the driver’s optimum low weight.
The direct contact between the large heat sink and the specially designed basket, together with the magnetic structure, represents a fundamental improvement in thermal connection and heat dissipation. The result is increased power handling capabilities and lower power compression — the same large-heatsink cooling philosophy as the 12ND930, engineered specifically for this basket design.
The deep-profile curvilinear cone, made from a special high-strength wood pulp, has been designed to achieve the best possible linearity within its frequency range. The cone surround, made from linen material, is highly resistant to ageing and fatigue. The in-house developed cone treatment is fully water repellent and also gives a significant degree of rigidity to the cone — a dual-function treatment where the water-repellent coating additionally stiffens the cone structure, a slightly different emphasis from the humidity-repellent-plus-bell-mode-damping treatment found on the 12ND930 and 12ND940.
A special coating applied to both the top and back plates makes the 18 Sound 12ND830 far more resistant to the corrosive effects of salts and oxidisation.
At 4.3 kg, 315 mm overall diameter, 282 mm baffle cutout, 140 mm depth, and 9 mm flange, the 18 Sound 12ND830 is 100 g lighter than the 12ND930’s 4.4 kg despite sharing identical overall diameter, baffle cutout, and depth — the weight saving comes entirely from the lighter coil and moving assembly rather than any change in chassis dimensions.
Performance and Applications for the 18 Sound 12ND830
The 18 Sound 12ND830 delivers 99 dB sensitivity across a 53 Hz – 5000 Hz bandwidth — 1 dB above the 12ND930’s 98 dB and with 500 Hz more upper-frequency extension (5000 vs 4500 Hz), despite the lower force factor. The lighter 46 g moving mass extracts this sensitivity advantage from less raw motor force, illustrating that sensitivity depends on the Bl/Mms ratio rather than force factor alone.
18 Sound recommends a 75-litre (2.65 ft³) vented enclosure tuned to 55 Hz — a larger cabinet than the 12ND930’s 70-litre recommendation, and considerably larger than the 12ND940’s compact 30-litre alignment, reflecting this driver’s specific optimisation for compact reflex enclosures requiring considerable low-frequency output.
The 450 W AES / 700 W continuous program power handling is lower than the 12ND930’s 500 W AES / 800 W, the direct consequence of the aluminium coil’s different thermal and electrical characteristics compared to copper. For applications where the 12ND830’s specific weight-to-performance ratio suits the deployment — portable systems, fixed installations where handling weight matters — this power handling remains substantial.
The 6.5 mm Xmax matches the 12ND930 exactly, confirming the two drivers share the same suspension excursion geometry despite their different coil weights and force factors.
The comparison to the 12ND930 is 18 Sound’s own explicit positioning: same coil diameter, same fundamental ISV architecture, same thermal management approach, but aluminium winding trading force factor and power handling for reduced weight and marginally higher sensitivity with wider bandwidth. For fixed installations and portable professional loudspeaker systems where the driver’s weight is handled repeatedly — touring, rental, installation labour — the 18 Sound 12ND830’s lighter construction offers genuine practical advantages over the heavier copper-wound 12ND930.
The dual 4/8 Ω impedance availability provides system design flexibility that neither the 12ND930 nor the 12ND940 offer (both 8 Ω only) — the 4 Ω variant maximises power transfer for single-driver applications where amplifier headroom is limited.
Conclusion – 18 Sound 12ND830 Mid-Bass Driver
The 18 Sound 12ND830 is 18 Sound’s own explicitly documented lightweight alternative to the 12ND930 — the same 75 mm ISV coil diameter and fibreglass former, rewound in aluminium rather than copper to reduce both weight and force factor. The result is a driver that is 100 g lighter, 1 dB more sensitive, and reaches 500 Hz further into the upper bandwidth, while trading 50 W AES power handling and 3.6 Tm of force factor for those gains.
For compact reflex enclosures requiring considerable low-frequency output and low distortion, combined with the practical advantage of lower handling weight for fixed installations and portable professional systems, the 18 Sound 12ND830 delivers a genuinely useful engineering trade-off within 18 Sound’s flagship 12-inch platform family. The dual 4/8 Ω impedance availability adds system design flexibility unmatched by its heavier siblings.
