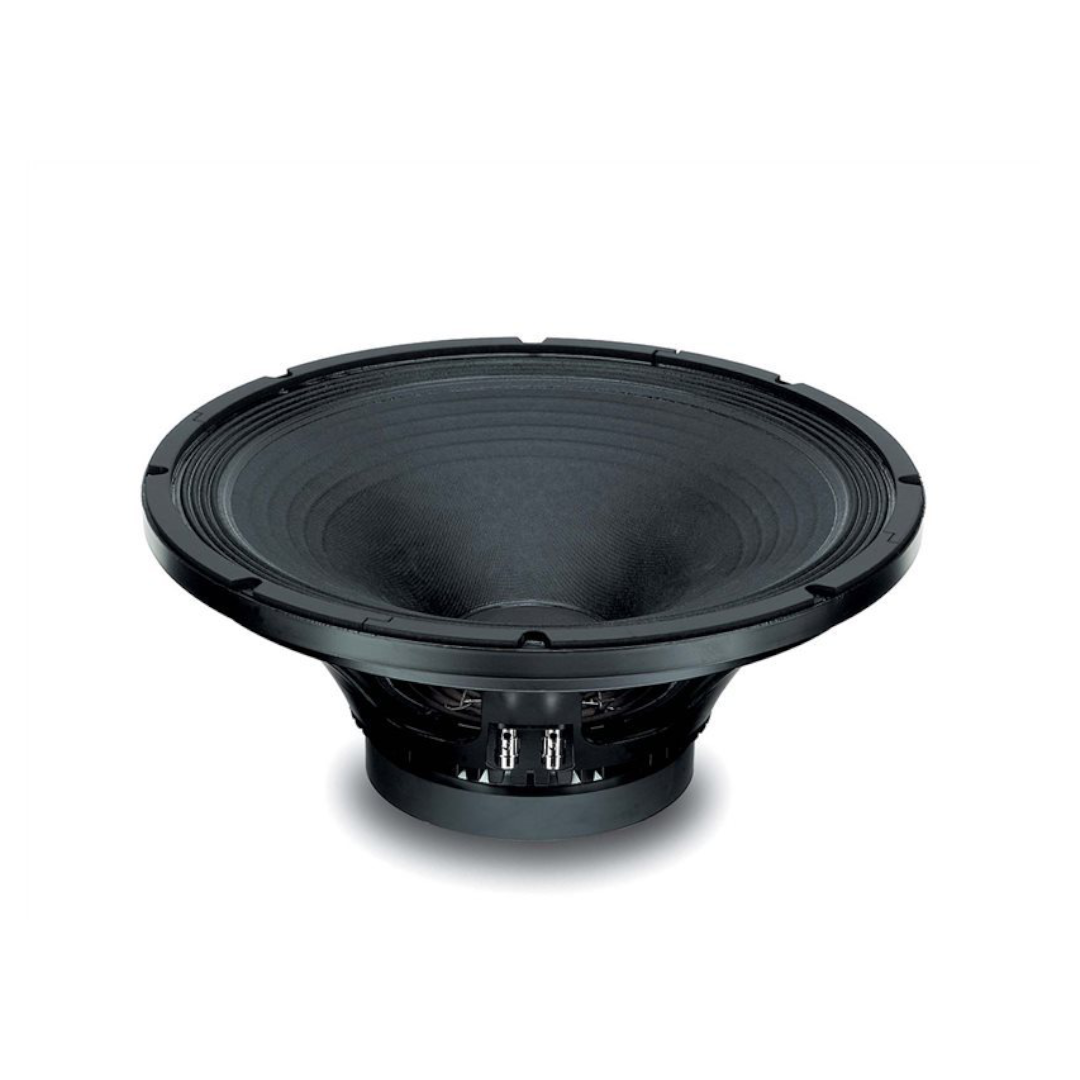

18 Sound 15MB606 – Lightweight Ferrite 15-Inch Mid-Bass with 101 dB Sensitivity and Flexible Qts
The 18 Sound 15MB606 high-output mid-bass has been designed for use as a bass and low-midrange driver in tuned reflex enclosures, in two-way systems. It combines high sensitivity (101 dB 1W/1m) with high power handling capability — the third generation documented in this session’s coverage of the MB700 family lineage, and the lightest of the three at 6.7 kg.
The smooth textured curvilinear paper cone, in conjunction with the viscose dampened multiroll suspension, provides excellent cone dampening and excursion control. The 75 mm aluminium voice coil employs 18 Sound’s Interleaved Sandwich Voice Coil (ISV) technology, in which a high-strength fibreglass former carries windings on the outer and inner surfaces to achieve a mass-balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behaviour when driven hard.
A special treatment is applied to the top and the back plate which increases their resistance to the corrosive effects of salts and oxidisation. This treatment is more effective than any other treatment in use today by other manufacturers — a direct comparative claim against competing manufacturers rather than 18 Sound’s own alternative product lines, a distinctive framing not seen elsewhere in this session.
At 6.7 kg — 1.6 kg lighter than both the 15MB650 and 15MB700 documented immediately prior — the 18 Sound 15MB606 delivers 101 dB sensitivity, only marginally below its successors, from the lightest chassis in this specific driver family. 18 Sound now lists the 15MB700 as the alternative/current model.
Design and Construction of the 18 Sound 15MB606
The 75 mm aluminium voice coil employs the Interleaved Sandwich Voice Coil (ISV) technology, in which a high-strength fibreglass former carries windings on the outer and inner surfaces to achieve a mass-balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behaviour when driven hard. The low inductance coil results in improved transient response.
Excellent heat dissipation has been achieved by incorporating air channels in the basket design, between the basket and top plate. Maximum flux concentration and force factor in the gap are assured by the unique shape and design of the top and back plates, which was created using Magnetic Flux FEA CAD simulation.
The 15.1 Tm force factor driving 63 g of moving mass produces 101 dB sensitivity and the 0.35 Qts / 116 Hz EBP alignment — the most flexible Qts of the three drivers in this family, giving builders more genuine sealed-enclosure compatibility than the tighter-Qts 15MB650 (0.26) and 15MB700 (0.29).
At 6.7 kg, 387 mm overall diameter, 353 mm baffle cutout, 171 mm depth, and 19 mm flange, the 18 Sound 15MB606 is the lightest of the three closely related drivers documented in this family, despite carrying the same fundamental 75 mm ISV coil and ferrite motor architecture.
Performance and Applications for the 18 Sound 15MB606
The 18 Sound 15MB606 delivers 101 dB sensitivity across a 45 Hz – 4800 Hz bandwidth — matching the 15MB650’s wide 4800 Hz upper limit, and 500 Hz wider than the 15MB700’s 4300 Hz.
18 Sound recommends a 100-litre (3.53 ft³) vented enclosure tuned to 45 Hz. The 400 W AES / 600 W continuous program power handling matches both the 15MB650 and 15MB700.
The 0.35 Qts is the most flexible alignment of the three-driver family, positioning the 18 Sound 15MB606 as the best candidate for sealed enclosure designs among this specific driver lineage — where the 15MB700 and 15MB650’s tighter Qts firmly favour vented topology, this driver genuinely works well in either configuration.
For applications where the lightest weight within this driver family matters — touring rigs, multi-cabinet installations, systems where cumulative weight compounds — the 18 Sound 15MB606’s 6.7 kg is a meaningful advantage over both its heavier siblings, at only a marginal sensitivity cost.
Conclusion – 18 Sound 15MB606 Mid-Bass Driver
The 18 Sound 15MB606 is the lightest driver in 18 Sound’s 15MB700 mid-bass family, delivering 101 dB sensitivity and the most flexible 0.35 Qts alignment of the three closely related drivers documented in this session. The plate corrosion treatment’s direct comparative claim against other manufacturers’ treatments underscores 18 Sound’s confidence in this specific engineering detail.
For compact two-way systems where minimum weight and enclosure flexibility matter alongside high sensitivity, the 18 Sound 15MB606 delivers a genuinely capable specification within this driver family.
