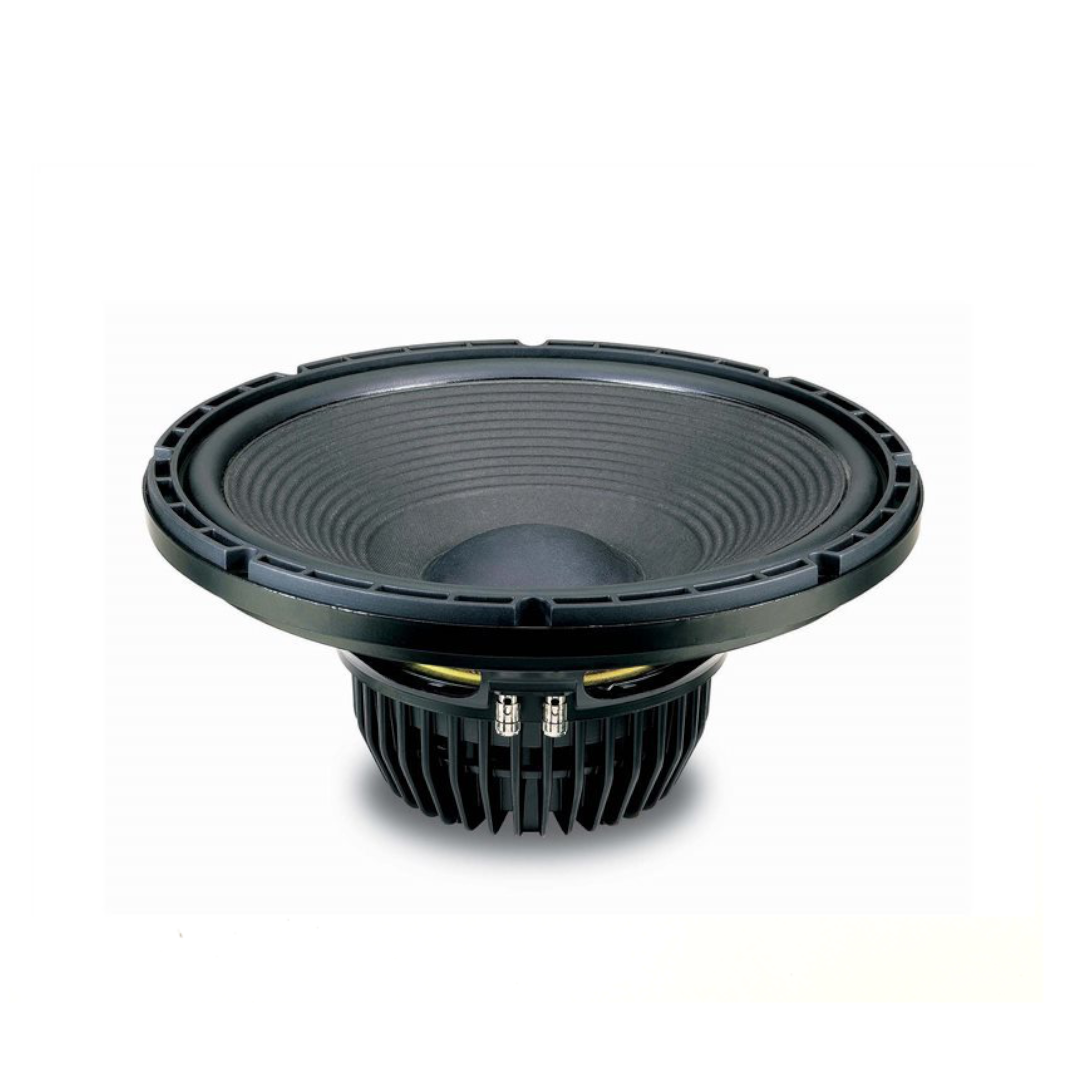

18 Sound 15NLW9500 – Industry-Standard-Setting 15-Inch Subwoofer with DSS, DDR, and 7kW Peak Power
The 18 Sound 15NLW9500 is an extended low frequency loudspeaker which, per 18 Sound’s own historic marketing description, sets a new industry standard in 15-inch (380 mm) neodymium 4-inch voice coil high performance transducers. The 18 Sound 15NLW9500 has a remarkable 35 Hz downwards extension with 96 dB average sensitivity and achievable peak power levels of 7 kW. As with the 12LW800 documented earlier in this session, note the discrepancy between the marketing-stated 35 Hz extension and the published 42 Hz spec sheet bandwidth lower limit — builders should confirm the actual usable low-frequency limit against the current datasheet PDF.
Extensive care has been taken in order to symmetrise both mechanical and electromagnetic non-linear behaviour. The transducer has been designed to cover the low-frequency band in bass reflex configuration. Application range moves from studio monitors up to cinema subwoofers as well as professional sound reinforcement systems, where deep low frequencies are required. It can be used in enclosures from 90 litres in size upwards, with tuning frequencies of about 33 Hz.
The 18 Sound 15NLW9500 is one of only two drivers documented in this entire session combining both DSS (Double Silicon Spider) suspension technology and DDR (Double Demodulating Rings) distortion reduction simultaneously — the other being the 12LW1400. This dual-technology combination, together with the onboard aluminium heatsink and air-diffractor cooling system, positions the 18 Sound 15NLW9500 as one of the most comprehensively engineered 15-inch subwoofer platforms in 18 Sound’s history.
At 7.0 kg with a 24 mm flange — the thickest of any 15-inch driver documented in this session — the 18 Sound 15NLW9500 was built for the most demanding professional applications. 18 Sound now lists the 15LW1401 as the alternative/current model.
Design and Construction of the 18 Sound 15NLW9500
The neodymium magnet assembly assures high flux concentration, low power compression, and excellent heat exchange. This results in high levels of force factor and power handling with an optimum power-to-weight ratio. The 21.6 Tm force factor driving 146 g of moving mass produces 96 dB sensitivity and the 0.32 Qts / 102 Hz EBP alignment.
The heatsink has been specifically studied using FEA simulators, and the necessary heat transfer to the dissipative structure has been improved. The heatsink concept has been further improved by using an air-diffractor that offers high thermal capacity and has been designed to force air moved by the dust cap through the fins and cool it down — a genuinely distinctive cooling mechanism, using the cone assembly’s own pumping action (the dust cap moving air as the cone reciprocates) to actively drive cooling airflow through the heatsink fins rather than relying on passive convection alone.
The direct contact between the heatsink and the basket, together with the magnetic structure, represents a fundamental improvement in heat dissipation, increasing power handling capabilities and lowering the power compression figure.
The carbon fibre reinforced, straight-sided ribbed cone has been adopted in order to enable the transducer to withstand high loading designs as well as high power peaks — the same carbon fibre reinforcement approach documented on the 12NLW9300, 12LW800/801, and 15NMB1000, here applied at the largest scale in this session’s 15-inch coverage.
Maximum strength, smooth response, and high displacement piston motion have been obtained using Double Silicon Spider technology (DSS) and a large excursion surround. The rubber suspension system has been designed to provide symmetric large-signal behaviour throughout the whole working range, providing low harmonic distortion at different excitation levels — the DSS’s two silicon spiders working in combination with the surround, exactly as documented on the 12NW530 and 15NW530 earlier in this session, here combined additionally with DDR’s dual demodulating rings for motor-side distortion control.
At 7.0 kg, 387 mm overall diameter, 353 mm baffle cutout, 177 mm depth, and a 24 mm flange — the thickest flange of any 15-inch driver documented in this session — the 18 Sound 15NLW9500 carries the substantial structural reinforcement its extreme power handling and 9.0 mm Xmax demand.
Performance and Applications for the 18 Sound 15NLW9500
The 18 Sound 15NLW9500 delivers 96 dB sensitivity across a published 42 Hz – 2000 Hz bandwidth. 18 Sound recommends a 120-litre (4.24 ft³) vented enclosure tuned to 37 Hz for the specific published specification, though the marketing text separately mentions enclosures from 90 litres upward with tunings around 33 Hz — as with the bandwidth discrepancy, builders should verify the current recommendation against the datasheet PDF.
The 1000 W AES / 1400 W continuous program power handling, combined with 18 Sound’s claimed achievable peak power levels of 7 kW, describes genuinely extreme transient handling capability — the peak figure representing momentary transient capacity rather than the sustained thermal capacity the continuous program rating reflects.
Application range moves from studio monitors up to cinema subwoofers as well as professional sound reinforcement systems, where deep low frequencies are required — a genuinely broad application scope reflecting the driver’s combination of extended bass extension, high power handling, and the low-distortion engineering that DSS and DDR together provide.
The 9.0 mm Xmax, combined with the 850 cm² radiating area, produces substantial volume displacement appropriate for the cinema subwoofer and professional sound reinforcement applications 18 Sound specifically identifies.
Available in both 4 and 8 Ω, the 18 Sound 15NLW9500 provides system design flexibility for both single-driver and multi-driver subwoofer configurations at this premium performance tier.
Conclusion – 18 Sound 15NLW9500 Subwoofer Driver
The 18 Sound 15NLW9500 was 18 Sound’s industry-standard-setting 15-inch neodymium subwoofer platform, combining DSS suspension technology and DDR distortion reduction — a pairing documented in only one other driver across this entire session, the 12LW1400. The FEA-designed aluminium heatsink with dust-cap-driven air-diffractor cooling represents a genuinely distinctive thermal engineering approach, and the carbon fibre reinforced straight-sided ribbed cone provides the structural durability the driver’s extreme power handling demands.
18 Sound now lists the 15LW1401 as the current alternative. For historical reference, replacement of existing installations, or specific applications requiring this exact combination of DSS/DDR technology and cooling architecture, the 18 Sound 15NLW9500 remains a formidably engineered platform — though the marketing/spec discrepancies documented above warrant direct confirmation with 18 Sound before final specification.
