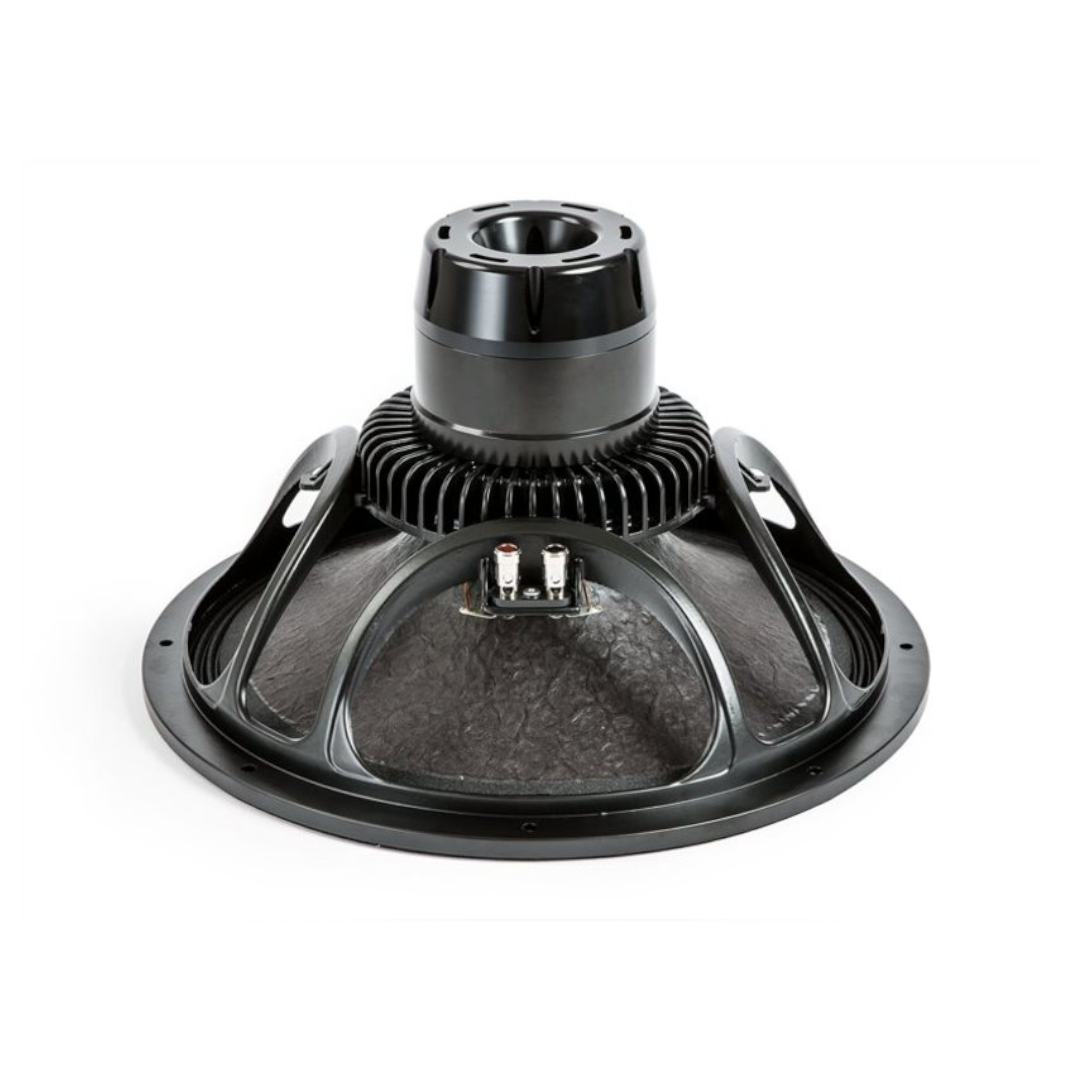

18 Sound 15NTLW3500 – Flagship 15-Inch Dual Gap Neodymium Woofer with 1800 Watt Handling at 5.1 kg
The 18 Sound 15NTLW3500 represents the latest 18 Sound technology for high quality, low distortion applications. The Dual Gap technology comes directly from the Tetracoil motor structure and uses the same concept to maximise its benefits in terms of thermal dissipation and Bl symmetry to a wider frequency band, making the 18 Sound 15NTLW3500 the perfect component both as a woofer and a mid-bass — the same Dual Gap philosophy documented on the 10 and 12-inch DG flagships, here scaled to 15 inches with genuinely extraordinary results.
Dual gap motors linearise inductance, and the perfect balance 18 Sound reached between the motor and the ultra-linear suspension allows both very high excursion and extreme precision in the mid-band with the lowest intermodulation distortion in the professional market. This feature, together with its extreme low weight, makes the 18 Sound 15NTLW3500 the perfect component for the highest-quality line arrays and two-way systems, thanks also to its 1800 W power handling capabilities.
At 5.1 kg — a genuinely extraordinary weight for a driver rated at 900 W AES / 1800 W continuous program power handling — the 18 Sound 15NTLW3500 delivers by far the best power-to-weight ratio of any 15-inch driver documented in this session. For comparison, the ferrite 15W700 weighs 8.5 kg at only 450 W AES, and the extreme Tetracoil 15TLW3000 weighs 12.5 kg at 1500 W AES. The 18 Sound 15NTLW3500 nearly matches the Tetracoil driver’s power handling from 41% of its weight.
18 Sound specifically highlights the extremely balanced Bl shape for maximum SPL, optimised thermal conductivity, and maximum linearity and inductance symmetry for extended mid-band clarity — ideal for two-way and line array applications from a very light neo motor.
Design and Construction of the 18 Sound 15NTLW3500
The 18 Sound 15NTLW3500 uses an 88 mm (3.5-inch) dual voice coil operating in a neodymium Dual Gap (DG) motor assembly. The Dual Gap architecture doubles the coil surface exposed to the magnetic field at any given position — the same fundamental mechanism documented on the 10NTLW3500 and 12NTLW3500 — producing thermal dissipation twice as efficient as single-gap designs and the Bl symmetry that maintains consistent force output across the excursion range.
The 19.5 Tm force factor driving 106 g of moving mass produces 98 dB sensitivity and 2.8% reference efficiency. The Bl/Mms ratio, combined with the Dual Gap’s inherent inductance linearisation, produces the driver’s remarkable 0.46 mH Le — dramatically lower than every ferrite 15-inch driver covered in this session (ranging from 1.04 to 1.78 mH), confirming the Dual Gap advantage holds at 15 inches exactly as documented at smaller diameters.
The triple roll suspension provides ultra-linear excursion control through the substantial 8.3 mm Xmax. The straight cone profile with water and UV repellent treatment on both sides provides genuine outdoor durability for touring and permanent installation use.
At 5.1 kg, the “very light Neo Motor” 18 Sound specifically credits in its feature list is the mechanism behind this driver’s extraordinary power-to-weight ratio — an external neodymium magnetic circuit combined with the Dual Gap’s efficient thermal architecture delivers 900 W AES from a driver that weighs less than half of the comparable ferrite platforms in 18 Sound’s own 15-inch range.
At 393 mm overall diameter, 357 mm baffle cutout, and 229 mm depth, the 18 Sound 15NTLW3500 is notably deeper than the ferrite W-series drivers (161–184 mm) but considerably shallower than the extreme Tetracoil 15TLW3000’s 245 mm — the Dual Gap motor structure requires more mounting depth than a single-gap design, but delivers its power handling at a fraction of the weight and depth of the even more extreme Tetracoil alternative.
Performance and Applications for the 18 Sound 15NTLW3500
The 18 Sound 15NTLW3500 delivers 98 dB sensitivity across a 40 Hz – 4000 Hz bandwidth — the widest bandwidth and deepest bass extension of any 15-inch driver documented in this session except the specialised Tetracoil 15TLW3000, and here achieved alongside genuine two-way and line array bandwidth rather than the 15TLW3000’s narrow 50–2000 Hz subwoofer-only range.
18 Sound recommends an 80-litre (2.83 ft³) vented enclosure tuned to 50 Hz — a genuinely compact cabinet volume for a driver handling 1800 W continuous program, reflecting the Dual Gap motor’s extreme thermal efficiency and the driver’s overall design optimisation for compact, high-performance system integration.
The maximum linearity and inductance symmetry for extended mid-band clarity that 18 Sound specifically highlights makes the 18 Sound 15NTLW3500 genuinely suitable as a mid-bass component in addition to full woofer duty — the 0.46 mH inductance keeps crossover behaviour predictable well into the mid-band, unlike the higher-inductance ferrite alternatives where crossover designers must compensate for impedance rise.
For line arrays where per-element weight compounds directly across the total system, the 18 Sound 15NTLW3500’s 5.1 kg weight at 900 W AES power handling represents a transformative specification — a 16-element line array using this driver saves substantial total weight compared to any ferrite alternative delivering comparable power, directly affecting rigging calculations and touring logistics.
Available in both 4 and 8 Ω, the 18 Sound 15NTLW3500 provides the impedance flexibility needed for both single-driver and multi-driver line array configurations at this premium performance tier.
Conclusion – 18 Sound 15NTLW3500 Woofer
The 18 Sound 15NTLW3500 is 18 Sound’s flagship Dual Gap 15-inch driver — the same 88 mm coil technology documented at 10 and 12 inches, here delivering 900 W AES / 1800 W continuous program power handling from a driver weighing just 5.1 kg. The extremely balanced Bl shape, optimised thermal conductivity, and Dual Gap inductance linearisation combine for what 18 Sound describes as the lowest intermodulation distortion in the professional market.
The 0.46 mH inductance — dramatically lower than every ferrite 15-inch alternative in this session — confirms the Dual Gap technology’s crossover-simplifying advantage holds at the largest diameter documented so far. For the highest-quality line arrays and two-way systems where maximum power handling, minimum weight, and extended mid-band clarity all matter simultaneously, the 18 Sound 15NTLW3500 is the 15-inch driver 18 Sound built to deliver all three at once.
