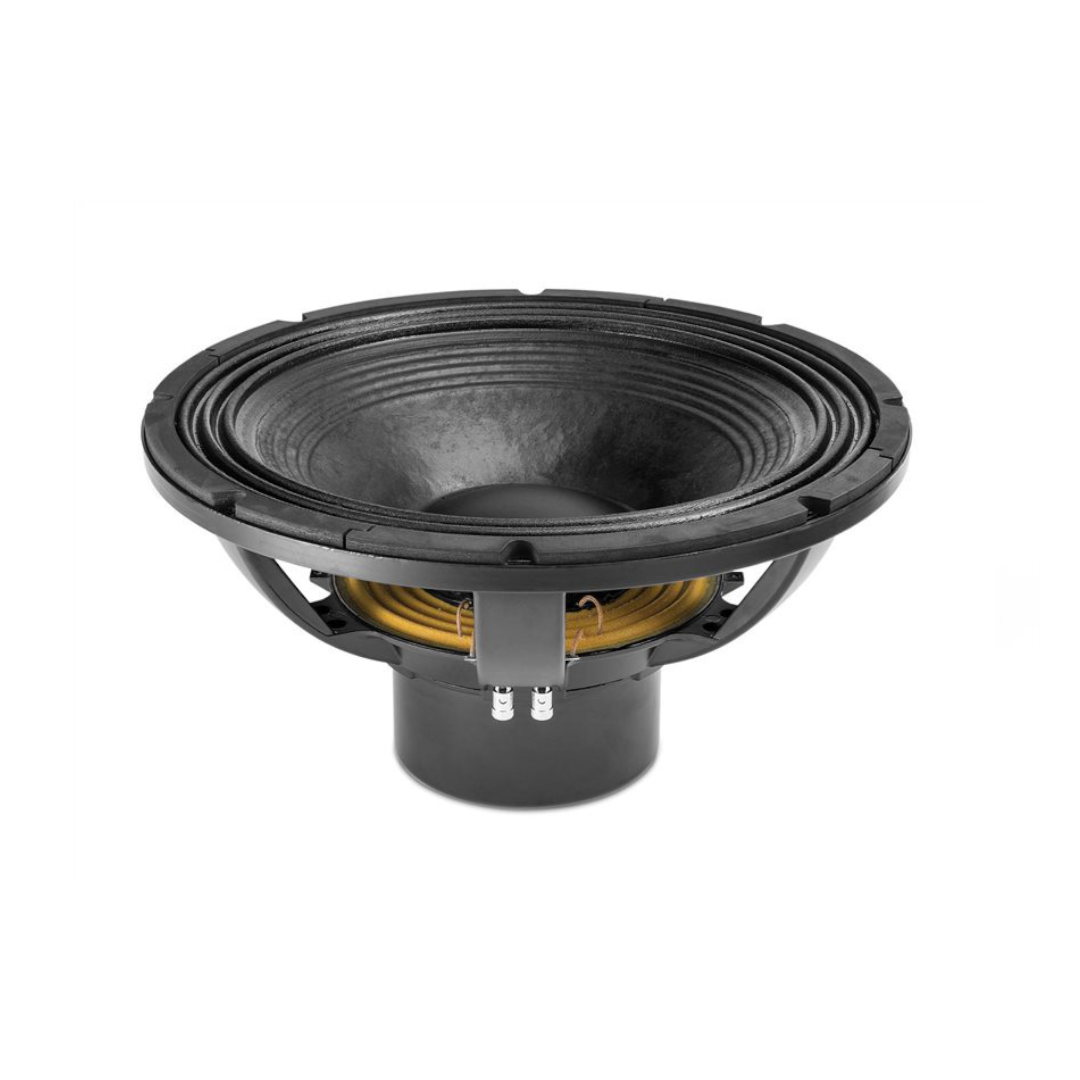

18 Sound 18iD – TSS Triple Silicon Spider 2Ω Subwoofer for Powersoft iPAL Amplification
The 18 Sound 18iD is an 18-inch neodymium ultra high performance subwoofer — and unlike the closely related iD200 and 18iDSDS documented immediately prior in this session, the 18 Sound 18iD has been optimised specifically for vented and bandpass subwoofer cabinet designs rather than the “any cabinet, even the most compact” positioning found on its siblings, and is recommended for being driven by a Class D or iPal(™) amplifier able to deliver 3600 W program power without clipping.
This is the first driver documented across this entire comprehensive session to use TSS (Triple Silicon Spider) technology rather than DSS (Double Silicon Spider) — a three-spider suspension architecture rather than two, thanks to which the 18 Sound 18iD is able to control the moving mass with high linearity, showing an exceptional stability of mechanical parameter values in the long term. Bl force factor, as well as all other electro-dynamic parameters, are linear within the working range. This, together with the exceptional high excursion behaviour — 70 mm before damage, ±14 mm linear Xmax — makes the 18 Sound 18iD an extremely low distortion, highly dynamic transducer.
The 18 Sound 18iD also carries an aluminium demodulating ring (SDR) for lower distortion — a distortion reduction technology absent from both the iD200 and 18iDSDS’s published feature lists, marking this as the most comprehensively equipped driver of the three closely related 2 Ω Powersoft iPAL-optimised platforms documented in this session.
At 30–2500 Hz, the 18 Sound 18iD’s bandwidth is dramatically wider than the iD200/iDSDS pair’s narrow 29–1000 Hz — reflecting this driver’s positioning for conventional vented and bandpass subwoofer applications rather than the ultra-compact “any cabinet design” flexibility its siblings target.
Design and Construction of the 18 Sound 18iD
The 18 Sound 18iD features a state-of-the-art 5.3-inch inside-outside ISV copper voice coil enabling extraordinary transient results. The 18iD has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful voice coil. Special attention was given to the optimisation of air flow into the gap without introducing audible noise. A low-density material air diffractor placed into the heatsink acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
The TSS (Triple Silicon Spider) suspension is the defining engineering difference from its DSS-equipped siblings — three silicon spiders working together, rather than two, to provide the symmetric large-signal behaviour that keeps distortion low across the driver’s substantial excursion range. This is a more elaborate suspension architecture than any other driver documented across this entire session, and the combination with the aluminium demodulating ring (SDR) addresses both mechanical and electromagnetic nonlinearity simultaneously.
The 24.0 Tm force factor driving 420 g of moving mass produces 95 dB sensitivity and the 0.26 Qts / 148 Hz EBP alignment — a lighter moving mass than the iD200/iDSDS pair’s 444 g, contributing to this driver’s overall lighter 12.5 kg weight.
The composite fibre reinforced, straight ribbed cone with water and UV repellent treatment provides the structural rigidity and outdoor durability needed for sustained high-SPL operation.
At 12.5 kg, 462 mm overall diameter, 416 mm baffle cutout, 236 mm depth, and 26 mm flange, the 18 Sound 18iD is notably lighter than the iD200/18iDSDS pair (16.0 kg) despite sharing the same fundamental 135 mm coil diameter — the TSS suspension and different cone/motor tuning account for the weight difference.
Performance and Applications for the 18 Sound 18iD
The 18 Sound 18iD delivers 95 dB sensitivity across a 30 Hz – 2500 Hz bandwidth — dramatically wider than the iD200/iDSDS’s narrow 1000 Hz upper limit, confirming this driver’s suitability for conventional vented and bandpass subwoofer applications rather than the ultra-narrow deep-bass-only positioning of its siblings.
18 Sound recommends a 200-litre (7.06 ft³) vented enclosure tuned to 40 Hz. The 1800 W AES / 3600 W continuous power handling on 2 Ω loads matches the iD200/iDSDS pair exactly, confirming all three drivers share the same fundamental thermal capacity from their common 135 mm coil platform, despite the different suspension technology and resulting bandwidth.
The 70 mm total mechanical excursion limit before damage, combined with the ±14 mm linear Xmax, gives system designers genuine confidence in this driver’s mechanical headroom — the same explicit damage-limit disclosure philosophy documented on the 18NLW9601/9601C pair earlier in this session.
For vented and bandpass subwoofer cabinet designs specifically requiring Powersoft iPAL or Class D amplifier optimisation at 2 Ω, combined with the most sophisticated suspension technology (TSS) and distortion reduction (SDR) documented among 18 Sound’s Class D-optimised range, the 18 Sound 18iD delivers the most comprehensively engineered platform of the three closely related drivers covered in this session.
Conclusion – 18 Sound 18iD Subwoofer Driver
The 18 Sound 18iD is the most sophisticated of 18 Sound’s three closely related 2 Ω Powersoft iPAL-optimised 18-inch drivers — the only one carrying TSS (Triple Silicon Spider) suspension technology, the only one with SDR distortion reduction documented in its feature list, and the widest bandwidth (30–2500 Hz versus the iD200/iDSDS’s narrow 1000 Hz limit).
Specifically optimised for vented and bandpass subwoofer cabinet designs, at 12.5 kg — 3.5 kg lighter than its siblings — the 18 Sound 18iD delivers a genuinely distinct engineering approach within 18 Sound’s Class D amplifier-optimised subwoofer family, closing out this session’s comprehensive exploration of 18 Sound’s entire 18-inch LF driver range.
