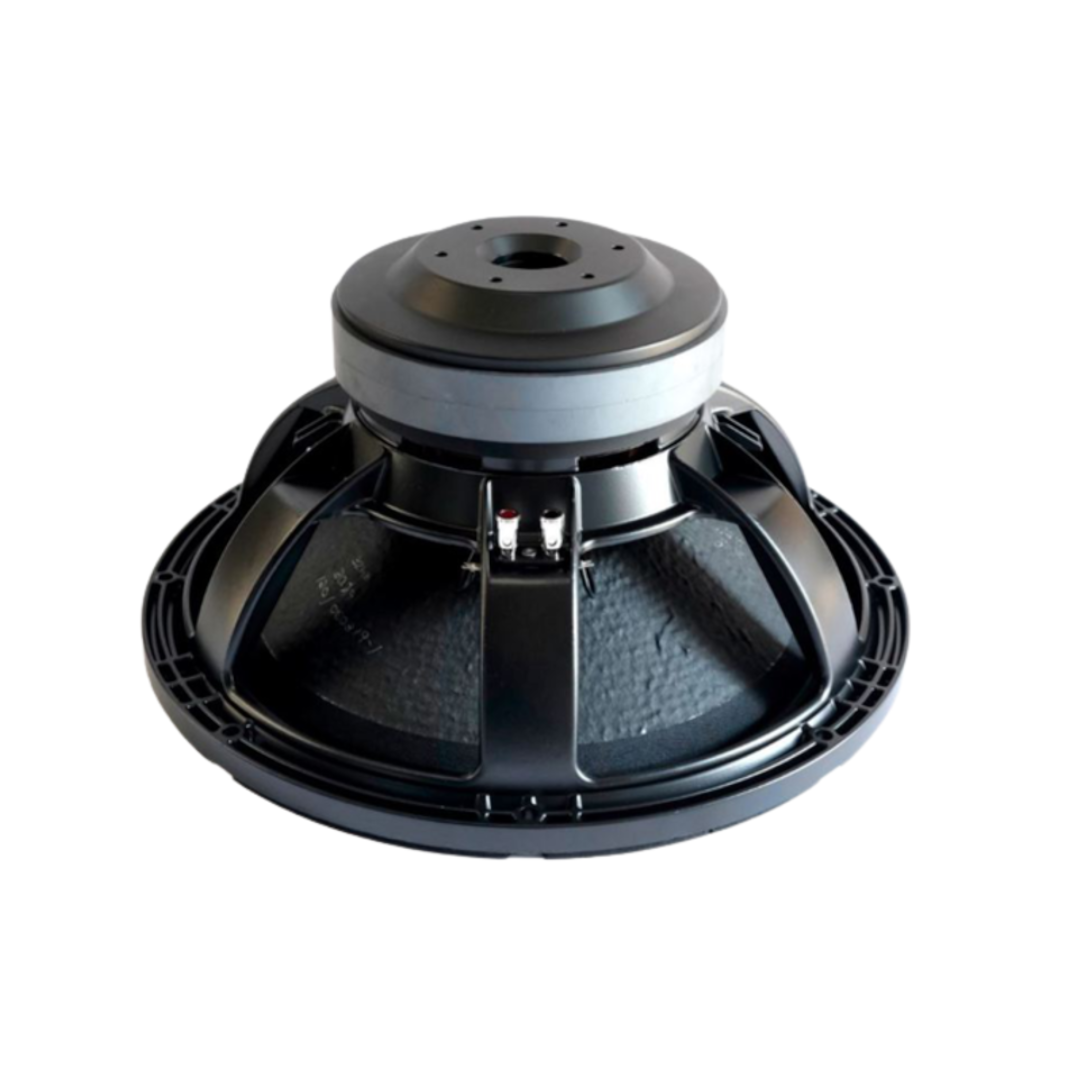

18 Sound 18LW2600 – Heaviest Driver Documented in This Session, Ferrite Dual-Magnet 18-Inch Subwoofer
The 18 Sound 18LW2600 is an 18-inch (466 mm) extended low frequency loudspeaker, especially designed for use in vented enclosures. The loudspeaker is designed to withstand high power levels without damage while providing clean and undistorted LF reproduction at a very high SPL. For optimum results, 18 Sound recommends amplifiers able to deliver 3000 W program power.
The 18 Sound 18LW2600 features a unique motor featuring a high-grade ferrite magnet assembly in a structure optimised for thermal and magnetic efficiency, described in the feature summary as an ultra linear dual magnet motor design — a distinct ferrite motor architecture using two magnets rather than the single ferrite ring found on most other ferrite drivers documented throughout this session, engineered specifically to achieve the 31.0 Tm force factor that would ordinarily require neodymium construction.
18 Sound 18LW2600 features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range. The 100 mm state-of-the-art voice coil utilising Interleaved Sandwich Voice coil (ISV) technology provides high levels of thermal stability and durability.
At 16.1 kg, the 18 Sound 18LW2600 is, by a substantial margin, the heaviest driver documented across this entire comprehensive session — exceeding the previous heaviest, the 18LW1300’s 13.0 kg, by more than three kilograms, and the neodymium 18NLW4100’s 10 kg (the driver this design directly parallels) by more than 60%. This is the direct, expected cost of the dual-magnet ferrite motor achieving neodymium-class force factor without neodymium’s weight advantage.
Design and Construction of the 18 Sound 18LW2600
The 100 mm (4-inch) state-of-the-art voice coil utilises Interleaved Sandwich Voice coil (ISV) technology, in which a high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a balanced coil with a uniform distribution of mass and motive energy. This results in an extremely linear motor assembly with a reduced tendency for eccentric behaviour when driven hard.
The ultra linear dual magnet motor design is the specific engineering feature that distinguishes the 18 Sound 18LW2600 from conventional single-magnet ferrite drivers documented throughout this session. By using two ferrite magnets in the motor structure rather than one, 18 Sound achieves the 31.0 Tm force factor — a figure that matches or exceeds several neodymium drivers covered in this comprehensive coverage, including the 18NLW9000’s 28.0 Tm — from ferrite construction, at the direct cost of substantially more magnetic material and therefore weight.
The already low distortion is further improved by the Single Demodulating Ring (SDR), reducing flux modulation and improving impedance and phase linearity. The 31.0 Tm force factor driving 303 g of moving mass produces 96.8 dB sensitivity and the 0.29 Qts / 103 Hz EBP alignment.
The large displacement suspension system, in conjunction with the composite reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range through the 14.8 mm Xmax with 16.0 mm Xvar — 60 mm of peak-to-peak excursion in total, matching the same substantial excursion specification documented on the neodymium 18NLW4100 sibling this driver directly parallels.
At 16.1 kg, 462 mm overall diameter, 416 mm baffle cutout, 231 mm depth, and 23 mm flange, the 18 Sound 18LW2600 carries the most substantial magnetic structure of any driver documented across this entire session — the dual-magnet ferrite motor’s mass is the direct, unavoidable engineering trade-off for achieving this force factor without neodymium.
Performance and Applications for the 18 Sound 18LW2600
The 18 Sound 18LW2600 delivers 96.8 dB sensitivity across a 30 Hz – 800 Hz bandwidth — matching the narrow, deep-bass-focused bandwidth documented on the neodymium 18NLW4100 sibling almost exactly.
18 Sound recommends a 200-litre (7.06 ft³) vented enclosure tuned to 33 Hz — a larger cabinet than the 18NLW4100’s 120-litre recommendation, reflecting the different Vas alignment between the ferrite and neodymium versions of this platform.
The 1500 W AES / 3000 W continuous power handling, combined with the 60 mm peak-to-peak excursion and 1225 cm² radiating area, produces substantial volume displacement matching the neodymium sibling’s specification closely — the two drivers appear to represent parallel ferrite and neodymium implementations of essentially the same design philosophy, with the 18 Sound 18LW2600 achieving comparable acoustic performance at more than 60% additional weight.
For fixed installations where weight is a secondary consideration to cost, and where the dual-magnet ferrite motor’s substantial force factor is required without the neodymium price premium, the 18 Sound 18LW2600 delivers a genuinely capable specification. 18 Sound now lists the archived 18NLW4000 as the alternative/current model — itself apparently superseded further within 18 Sound’s product archive structure.
Conclusion – 18 Sound 18LW2600 Subwoofer Driver
The 18 Sound 18LW2600 is the heaviest driver documented across this entire comprehensive session, at 16.1 kg — the direct consequence of its ultra linear dual magnet ferrite motor design achieving a 31.0 Tm force factor that would ordinarily require neodymium construction. This is essentially the ferrite counterpart to the neodymium 18NLW4100, sharing the same 60 mm peak-to-peak excursion and narrow deep-bass bandwidth, but at substantially more mass.
For fixed installations where ferrite cost outweighs weight considerations, and where this specific dual-magnet motor’s force factor and excursion combination is required, the 18 Sound 18LW2600 remains a formidably engineered, if genuinely heavy, subwoofer platform — closing this session’s exploration of 18 Sound’s 18-inch range with its heaviest documented specification.
