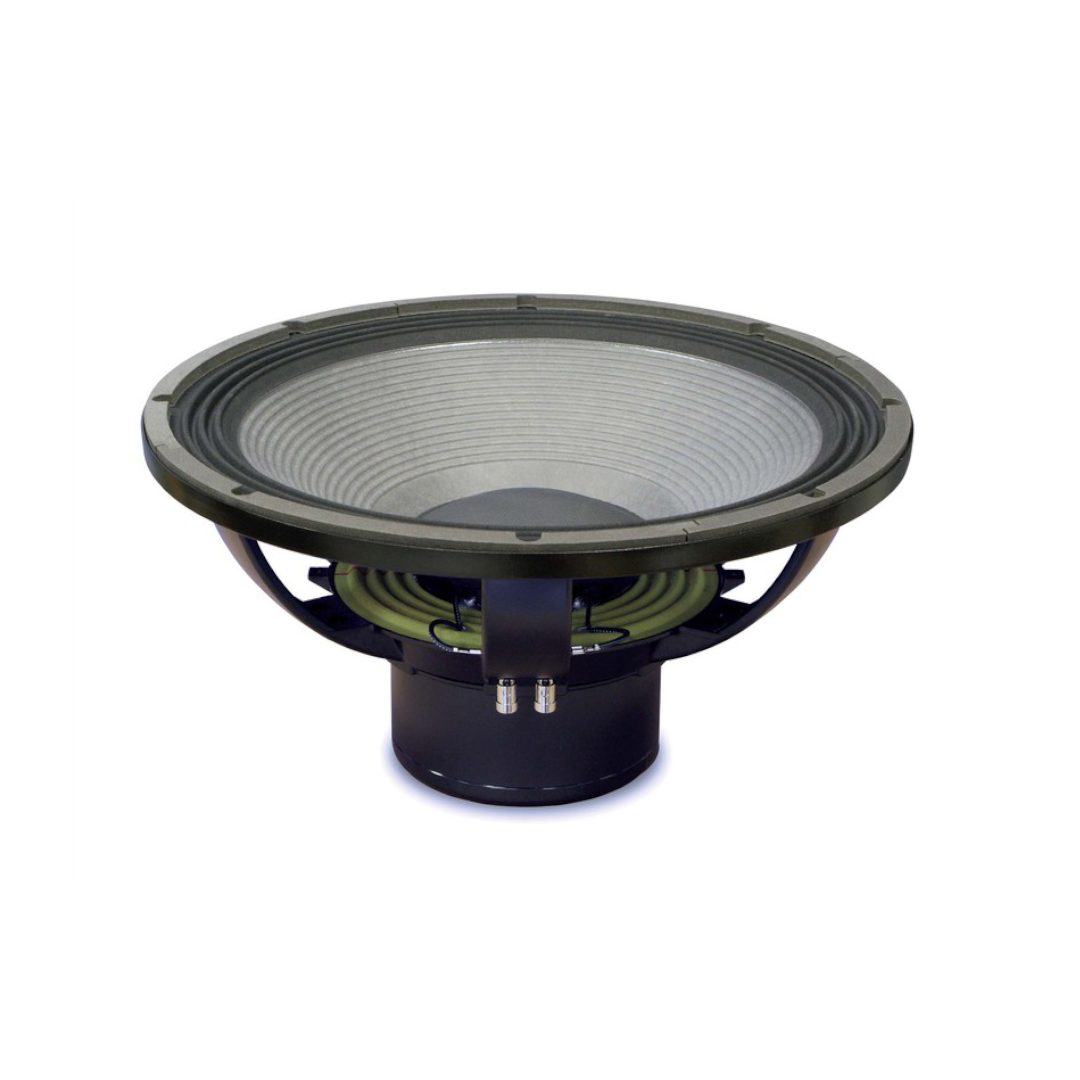

18 Sound 18NLW9000 – 135mm Neodymium Subwoofer Optimised for Direct Radiation and Bandpass Cabinets
The 18 Sound 18NLW9000 is a low frequency 18-inch neodymium high-performance transducer that has been optimised for direct radiation and bandpass subwoofer cabinet designs — a specific application focus distinct from the reflex, bandpass, and horn-loaded general positioning documented on most other subwoofers covered in this session. For optimum results, recommended amplifier should be able to deliver 3600 W program power without clipping.
At the heart of the updated design stays the improved double silicon spider based on DSS technology, letting the 18 Sound 18NLW9000 control the moving mass with high linearity, showing an exceptional stability of mechanical parameter values in the long term. The transducer design features a high-performance large displacement suspension system for improved cone control at very high level of SPL matching.
18 Sound engineers have obtained the best possible results with today’s available materials in terms of clean and undistorted LF reproduction at ultra high SPL, with the lowest possible power compression figure. The state-of-the-art 5.3-inch diameter ISV copper voice coil enables the 18 Sound 18NLW9000 to handle up to 3600 W program power. Bl force factor, as well as all other electro-dynamic parameters, are linear within the working range allowing 60 mm of excursion before damage — a slightly more conservative mechanical limit disclosure than the 70 mm figure documented on the 18NLW9601/9601C pair, though both use the same fundamental 135 mm coil platform.
The low distortion and sound quality are further improved by an aluminium demodulating ring (SDR technology) that flattens impedance and phase with a constant power transfer.
Design and Construction of the 18 Sound 18NLW9000
The 18 Sound 18NLW9000 has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful 5.3-inch coil. Special attention was given to the optimisation of air flow into the gap without introducing audible noise — the same acoustic and thermal engineering philosophy documented consistently across 18 Sound’s most premium subwoofer platforms throughout this session.
A special low-density material air diffractor placed into the backplate acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
The carbon fibre reinforced, straight ribbed cone shows a proprietary resin treatment for extra pulp strength and water-repellent properties. A special coating applied to both the top and back plates makes the transducer far more resistant to the corrosive effects of salts and oxidisation.
The 28.0 Tm force factor driving 218 g of moving mass produces 97 dB sensitivity and the 0.31 Qts / 106 Hz EBP alignment — a moderately flexible, vented-oriented alignment that suits the direct radiation and bandpass applications 18 Sound specifically optimised this driver for.
At 12.5 kg, 462 mm overall diameter, 422 mm baffle cutout, 237 mm depth, and 26 mm flange, the 18 Sound 18NLW9000 shares the 135 mm coil family’s substantial construction, though at slightly less weight than the 18NLW9601/9601C pair’s 12.8 kg.
Performance and Applications for the 18 Sound 18NLW9000
The 18 Sound 18NLW9000 delivers 97 dB sensitivity across a 32 Hz – 2500 Hz bandwidth. 18 Sound recommends a 200-litre (7.06 ft³) vented enclosure tuned to 36 Hz.
The 1800 W AES / 3600 W continuous power handling, combined with the 14.0 mm Xmax and 1222 cm² radiating area, produces substantial volume displacement appropriate for the direct radiation and bandpass cabinet designs this driver was specifically optimised for — direct radiation applications benefit from this driver’s linear Bl and electro-dynamic behaviour across the full working range, ensuring output remains clean and undistorted without the acoustic loading a horn or waveguide would otherwise provide.
For bandpass cabinet designs specifically, the driver’s substantial power handling and controlled excursion behaviour support the acoustic loading and pressure dynamics that bandpass enclosures place on a driver, where the transducer operates entirely enclosed rather than radiating directly into free space.
18 Sound now lists the 18NTLW5000 — the Tetracoil flagship documented as the ultimate driver in this entire session — as the alternative/current model, confirming this 135 mm single-coil platform has been superseded by the dual-coil Tetracoil architecture at the top of 18 Sound’s current 18-inch range.
Conclusion – 18 Sound 18NLW9000 Subwoofer Driver
The 18 Sound 18NLW9000 is a 135 mm coil 18-inch neodymium subwoofer specifically optimised for direct radiation and bandpass cabinet designs — combining DSS suspension technology, SDR distortion reduction, and a carbon fibre reinforced cone for clean, undistorted LF reproduction at ultra-high SPL. The 3600 W continuous power handling and 14.0 mm Xmax provide substantial output capability for these specific application categories.
18 Sound now points builders toward the Tetracoil 18NTLW5000 as the current alternative — the genuine pinnacle documented across this entire comprehensive session. For direct radiation and bandpass applications specifically, or where compatibility with existing 18NLW9000 installations matters, this driver remains a capable, well-engineered platform.
