18 Sound 18W2001 – Updated 18-Inch High-Output Subwoofer with Quantified Power and Weight Improvements

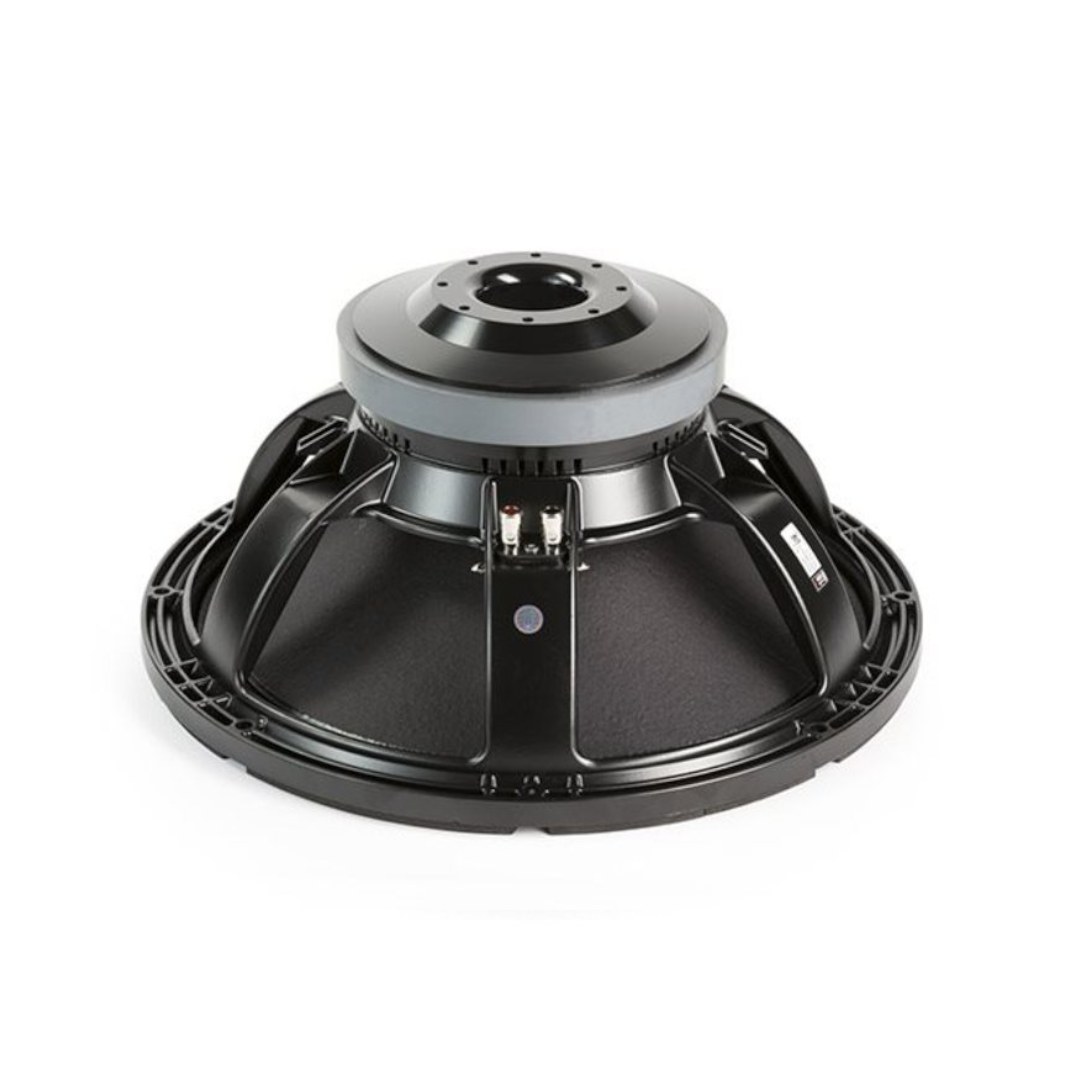

The 18 Sound 18W2001 is the updated version of the classic 18W2000, a low frequency subwoofer which sets a benchmark in 18-inch (460 mm) high-output transducers. Showing 20% higher power handling and 10% lower weight, it represents a significant development of the acclaimed 18W1000 model — the first 18-inch driver documented in this session, and one that continues the pattern of specific, quantified generational improvement claims seen on the 15LW2400 earlier.
The 18 Sound 18W2001 can be used as a low bass or subwoofer component in either a reflex, bandpass, or horn-loaded configuration. It provides clean, linear, undistorted low-frequency reproduction at very high power levels. The high excursion capabilities of the surround and suspension system, in conjunction with the Double Silicon Spider (DSS), enable the 18 Sound 18W2001 to achieve high levels of linear travel while maintaining full control of the moving mass.
The 18 Sound 18W2001 uses the voice coil ventilation technology developed for 18 Sound’s flagship 9000 neodymium transducer series — the same premium cooling technology documented on the 15LW2400 earlier in this session, here applied at the largest diameter covered. A special low-density multi-cell material air diffractor has been placed into the backplate acting as a cooling system, increasing power handling capability and lowering the power compression figure.
As a final result, 18 Sound engineers obtained almost 1 dB reduction in full-power power compression value if compared to 18LW1400, and an increased program power handling value of 2400 Watt. 18 Sound now lists the 18LW1251 as the alternative/current model.
Design and Construction of the 18 Sound 18W2001
The 100 mm diameter copper wire voice coil employs the Interleaved Sandwich Voice Coil (ISV) technology, in which a high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a balanced coil with a uniform distribution of mass and motive energy. This results in an extremely linear motor assembly.
Maximum flux concentration and force factor in the gap is assured by the unique shape and design of the top and back plates, which have been researched and designed using 18 Sound’s in-house magnetic flux FEA CAD resource. The 27.1 Tm force factor driving 143 g of moving mass produces 99 dB sensitivity and the 0.25 Qts / 142 Hz EBP alignment — a genuinely powerful motor for a driver of this diameter and application class.
The high-quality curvilinear cone assures smooth response and exceptional strength with maximum reliability under high mechanical stress. The high excursion capabilities of the surround and suspension system, in conjunction with the Double Silicon Spider (DSS), enable the driver to achieve high levels of linear travel while maintaining full control of the moving mass through the 7.0 mm Xmax.
The 18 Sound 18W2001 uses the voice coil ventilation technology developed for 18 Sound’s flagship 9000 neodymium transducer series — a premium cooling architecture applied here to a ferrite platform. A special low-density multi-cell material air diffractor has been placed into the backplate acting as a cooling system, increasing power handling capability and lowering the power compression figure.
The 18 Sound 18W2001 is able to perform in adverse weather conditions or in areas of high humidity. This key feature has been achieved using an exclusive water-repellent cone treatment and magnetic plate coating which resists against environmental corrosion.
At 11.5 kg, 462 mm overall diameter, 416 mm baffle cutout, 205 mm depth, and 19 mm flange, the 18 Sound 18W2001 establishes the baseline mounting footprint for 18-inch drivers in this session’s coverage.
Performance and Applications for the 18 Sound 18W2001
The 18 Sound 18W2001 delivers 99 dB sensitivity across a 37 Hz – 3000 Hz bandwidth — a genuinely deep lower-frequency extension for a subwoofer-class transducer. 18 Sound recommends a 200-litre (7.06 ft³) vented enclosure tuned to 42 Hz.
The 1200 W AES / 2400 W continuous program power handling, combined with the driver’s quantified 20% power handling improvement and 10% weight reduction over the 18W2000 it replaces, confirms genuine engineering progress rather than a simple rebadge. The nearly 1 dB reduction in full-power power compression versus the 18LW1400 further demonstrates sustained output consistency under demanding operating conditions.
The 7.0 mm Xmax with the 1134 cm² radiating area produces enormous volume displacement — the largest radiating area of any driver documented across this entire session, appropriate for the high-SPL subwoofer applications this driver targets.
For touring and installed subwoofer applications requiring maximum sustained power handling from the largest diameter format in 18 Sound’s range, the 18 Sound 18W2001 delivers a genuinely benchmark-setting specification for the 18-inch high-output category.
Conclusion – 18 Sound 18W2001 Subwoofer Driver
The 18 Sound 18W2001 sets a benchmark in 18-inch high-output transducers, delivering quantified 20% power handling improvement and 10% weight reduction over its own predecessor, the 18W2000, plus an additional nearly 1 dB power compression improvement over the 18LW1400. The 27.1 Tm force factor, DSS suspension technology, and premium 9000-series voice coil ventilation combine for a driver purpose-built for the most demanding high-SPL subwoofer applications.
18 Sound now lists the 18LW1251 as the alternative/current model. For applications requiring the largest available diameter and maximum sustained power handling documented in this session, the 18 Sound 18W2001 remains a formidably engineered platform.
