18 Sound 18NLW4100 – Ultra-Light 18-Inch Deep Bass Specialist with 60mm Peak-to-Peak Excursion

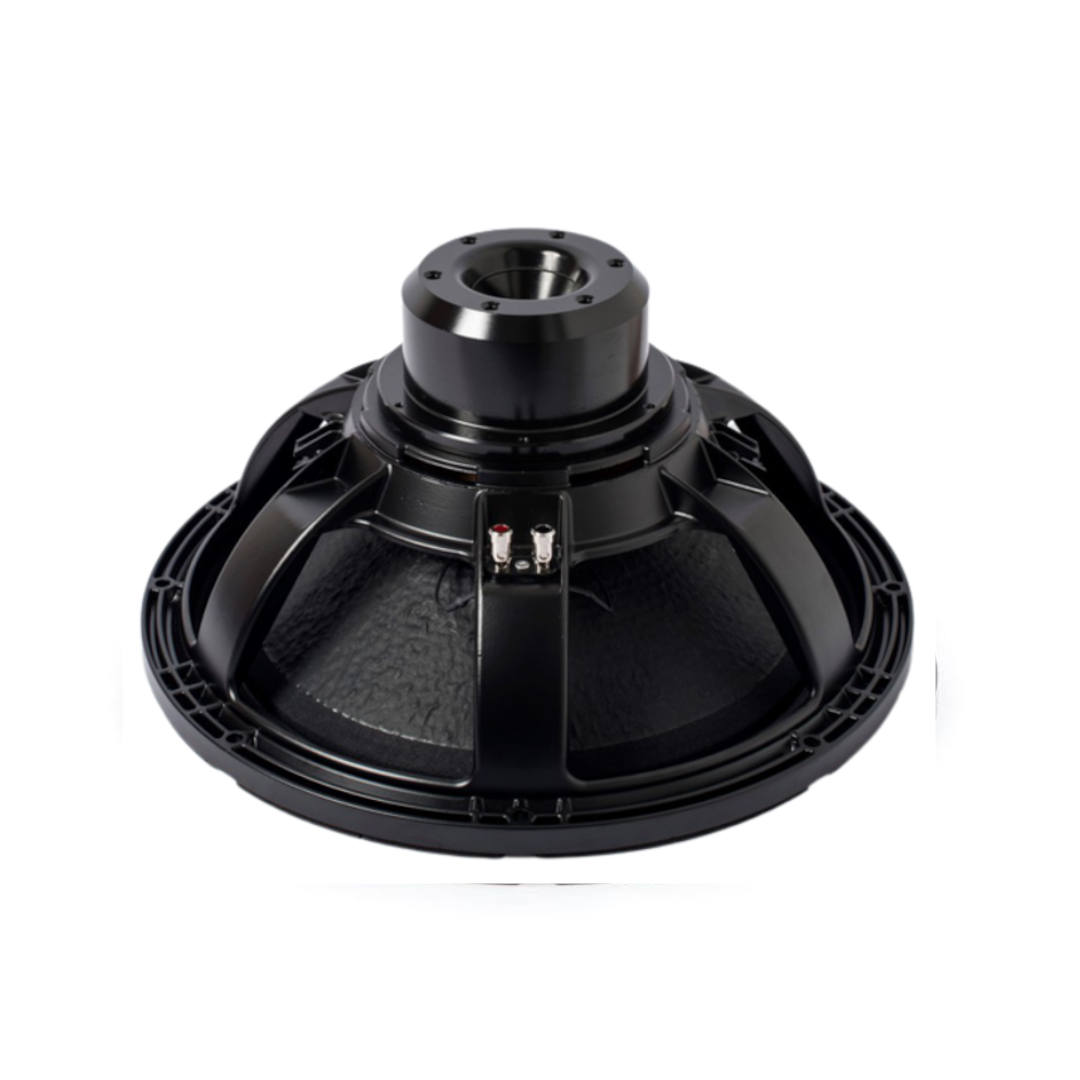

The 18 Sound 18NLW4100 is an 18-inch (466 mm) ultra-light extended low frequency loudspeaker, especially designed for use in vented enclosures. The loudspeaker is designed to withstand high power levels without damage while providing clean and undistorted LF reproduction at a very high SPL. For optimum results, 18 Sound recommends amplifiers able to deliver 3000 W program power.
The 18 Sound 18NLW4100 features a unique motor featuring a high-grade Neo magnet assembly in a structure optimised for thermal and magnetic efficiency. Features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range.
The 100 mm state-of-the-art voice coil utilising Interleaved Sandwich Voice coil (ISV) technology provides high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor.
At 10.0 kg, the 18 Sound 18NLW4100 is the second-lightest 18-inch driver documented across this entire session, exceeded only by the 18NLW9400’s 8.7 kg — genuinely remarkable given the driver’s substantial 1500 W AES / 3000 W continuous program power handling and 60 mm peak-to-peak excursion capability. The 30–800 Hz bandwidth is the narrowest documented among any 18-inch driver in this session, confirming this transducer’s singular, uncompromising focus on deep-bass reproduction.
Design and Construction of the 18 Sound 18NLW4100
The 100 mm (4-inch) state-of-the-art voice coil utilises Interleaved Sandwich Voice coil (ISV) technology, providing high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor. The 29.0 Tm force factor driving 307 g of moving mass produces 96.5 dB sensitivity, 1.5% reference efficiency, and the 0.34 Qts / 88 Hz EBP alignment.
The large displacement suspension system, in conjunction with the composite reinforced, straight ribbed cone, allows an ultra-linear piston action and provides full mechanical control across the entire working range through the 15.0 mm Xmax with 16.0 mm Xvar — 60 mm of peak-to-peak excursion in total, a genuinely substantial mechanical travel specification 18 Sound highlights directly in the feature summary rather than requiring calculation from the individual Xmax and Xvar figures.
The already low distortion is further improved by the Single Demodulating Ring (SDR), reducing flux modulation and improving impedance and phase linearity across the driver’s substantial excursion range.
Weather protected cone and plates provide outdoor durability for touring and installed applications facing routine weather exposure.
At 10.0 kg, 462 mm overall diameter, 416 mm baffle cutout, 232 mm depth, and 23 mm flange, the neodymium motor’s efficiency is the clear enabler of this driver’s remarkably low weight relative to its 307 g moving mass and substantial power handling — a genuinely favourable power-to-weight ratio within 18 Sound’s 18-inch range.
Performance and Applications for the 18 Sound 18NLW4100
The 18 Sound 18NLW4100 delivers 96.5 dB sensitivity across a deliberately narrow 30 Hz – 800 Hz bandwidth — the narrowest documented among any 18-inch driver in this comprehensive session, confirming this transducer’s uncompromising focus on pure deep-bass reproduction with no attempt to extend into mid-bass territory whatsoever.
18 Sound recommends a 120-litre (4.24 ft³) vented enclosure tuned to 33 Hz — a genuinely compact cabinet volume for an 18-inch driver of this power and excursion class, especially designed for use in vented enclosures per 18 Sound’s own positioning.
The 1500 W AES / 3000 W continuous power handling, combined with the 60 mm peak-to-peak excursion and 1225 cm² radiating area, produces enormous volume displacement from a driver that weighs just 10.0 kg — a genuinely favourable combination of output capability and portability.
For touring subwoofer applications where minimum weight matters alongside substantial deep-bass output and power handling, the 18 Sound 18NLW4100’s combination of light construction and extreme excursion capability makes it a compelling option among 18 Sound’s 18-inch range. 18 Sound now lists the 18LW2600 as the alternative/current model.
Conclusion – 18 Sound 18NLW4100 Subwoofer Driver
The 18 Sound 18NLW4100 is an ultra-light 18-inch deep-bass specialist, delivering 1500 W AES / 3000 W continuous program power handling and 60 mm of peak-to-peak excursion from just 10.0 kg — the second-lightest 18-inch driver documented across this entire session. The deliberately narrow 30–800 Hz bandwidth confirms this driver’s singular purpose, engineered specifically for compact vented enclosures where maximum sustained deep-bass SPL from minimum weight is the priority.
For touring and installed subwoofer applications where weight genuinely matters alongside substantial power handling and excursion capability, the 18 Sound 18NLW4100 delivers a formidable combination even as 18 Sound now points builders toward the 18LW2600 as the current alternative.
