18 Sound 18NLW9601C – Record Force Factor 18-Inch Subwoofer with 135mm Coil and 70mm Mechanical Excursion Limit

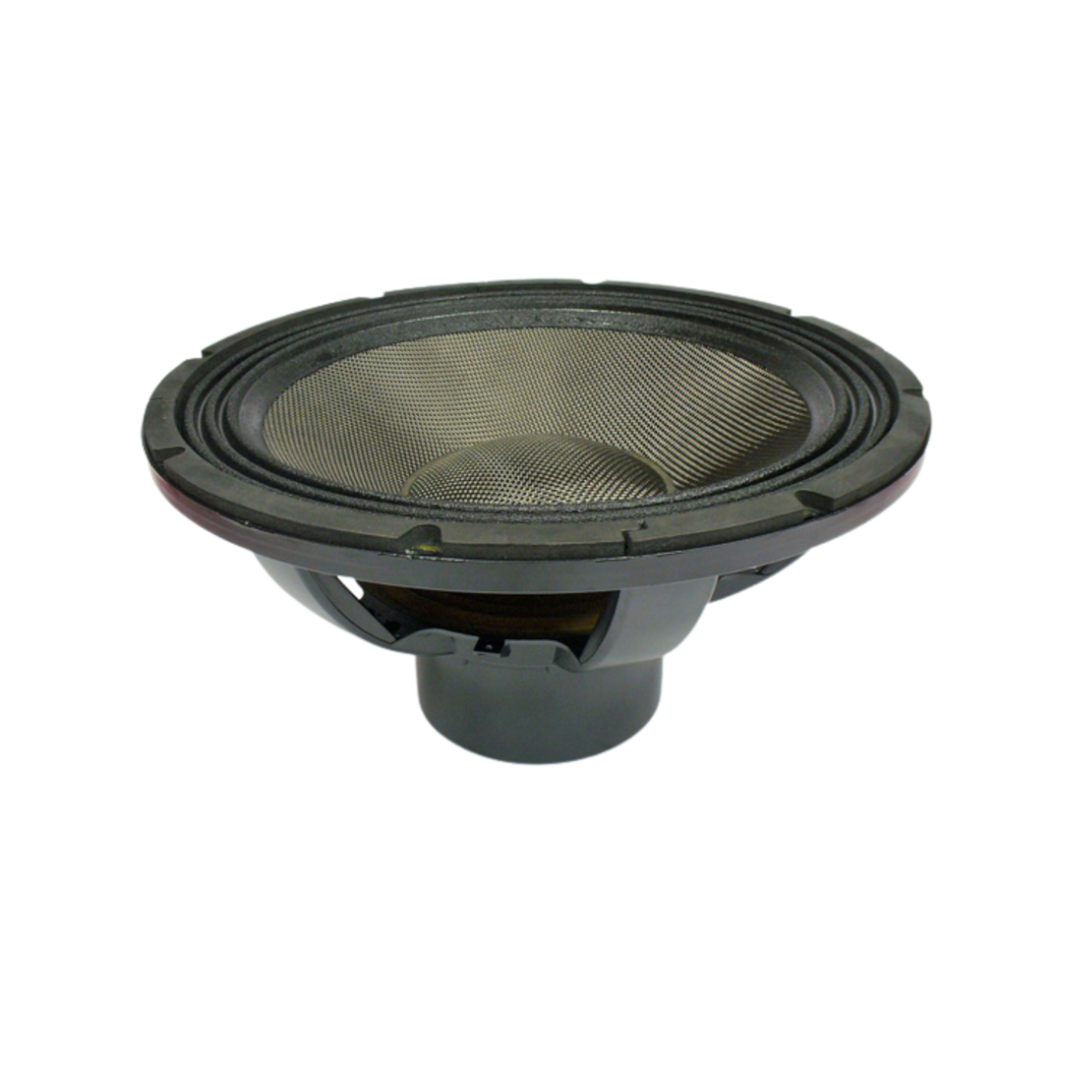

The 18 Sound 18NLW9601C is an extended low frequency 18-inch neodymium high-performance transducer — the evolution of the industry standard 18NLW9601. The loudspeaker has been designed for use as a subwoofer component, in either a reflex, bandpass, or horn-loaded high SPL demanding application. For optimum results, the recommended amplifier should be able to deliver 3600 W program power.
At the heart of the transducer stands a double silicon spider based on DSS technology, letting the 18 Sound 18NLW9601C control the moving mass with high linearity, showing an exceptional stability of mechanical parameter values in the long term. The state-of-the-art 5.3-inch diameter ISV copper-clad aluminium wire (CCAW) voice coil shows an inside-outside split winding, four-layer design, enabling the driver to handle up to 3600 W program power. This 135 mm coil diameter is the largest single (non-Tetracoil) voice coil documented anywhere across this entire session — larger even than the 115 mm single coil found on the 15NLW4500.
Bl force factor, as well as all other electro-dynamic parameters, are linear within the working range. This, together with the exceptional high excursion behaviour — 70 mm before damage, ±14 mm linear Xmax — makes the 18 Sound 18NLW9601C an extremely low-distortion, highly dynamic transducer. The explicit disclosure of a 70 mm total mechanical travel limit before physical damage occurs is a level of specificity not documented anywhere else across this comprehensive session — a genuinely useful engineering detail for system designers pushing this driver to its absolute limits.
The 31.7 Tm force factor is the highest documented across this entire session, at any diameter — exceeding even the dual-coil Tetracoil 18NTLW5000’s 31.3 Tm, a genuinely remarkable achievement from a single-coil design.
Design and Construction of the 18 Sound 18NLW9601C
The 18 Sound 18NLW9601C has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful voice coil. Special attention was given to the optimisation of air flow into the gap without introducing audible noise — the same noise-conscious cooling engineering philosophy documented on the 12MB650 earlier in this session, here applied to a driver of vastly greater scale and power handling.
A low-density foam diffractor placed into the vent hole acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
The already low distortion and sound quality have been further improved by the aluminium demodulating ring (SDR technology), that flattens impedance and phase versus frequency — the combination of SDR ring-based distortion reduction alongside DSS suspension technology addresses both electromagnetic and mechanical sources of nonlinearity simultaneously, the same dual-pronged approach documented on several of this session’s most sophisticated drivers.
The 135 mm split-winding, four-layer CCAW voice coil is the largest single coil documented across this entire session. The four-layer, inside-outside split winding construction distributes the substantial conductor mass required for this coil diameter in a way that maintains the balanced, symmetric behaviour that produces the driver’s exceptional linearity claim — Bl force factor, as well as all other electro-dynamic parameters, are linear within the working range.
The carbon cone shows extreme high strength and water-repellent properties. A special coating applied to both the top and back plates makes the transducer far more resistant to the corrosive effects of salts and oxidisation.
At 12.8 kg, 462 mm overall diameter, 416 mm baffle cutout, 236 mm depth, and 26 mm flange, the 18 Sound 18NLW9601C carries substantial but not extreme mass given the scale of its 135 mm coil — the neodymium motor’s efficiency keeps total weight below both the ferrite 18TLW3000 (13.2 kg) and 18W1001 (13.6 kg) despite this driver’s record-setting force factor.
Performance and Applications for the 18 Sound 18NLW9601C
The 18 Sound 18NLW9601C delivers 95 dB sensitivity across a 30 Hz – 2300 Hz bandwidth — genuine infrasonic extension to 30 Hz, matching the deepest reach documented in this session.
The 1800 W AES / 3600 W continuous power handling, combined with the ±14 mm linear Xmax and 1130 cm² radiating area, produces enormous sustained volume displacement. The explicit 70 mm total mechanical travel disclosure — nearly five times the linear Xmax figure — gives system designers genuine confidence in the driver’s mechanical headroom for the most extreme transient peaks, without needing to infer this margin from Xvar alone as is typical elsewhere in 18 Sound’s documentation.
The exceptional stability of mechanical parameter values in the long term that 18 Sound specifically credits to the DSS suspension is a genuine practical benefit for fixed installation and touring applications where consistent performance over years of service, rather than just initial specification, defines the driver’s real-world value.
For reflex, bandpass, or horn-loaded high SPL demanding applications where the highest available force factor, genuine mechanical linearity across the full working range, and explicit damage-limit disclosure matter for system design confidence, the 18 Sound 18NLW9601C represents one of the most rigorously engineered and documented subwoofer drivers covered across this entire session.
Conclusion – 18 Sound 18NLW9601C Subwoofer Driver
The 18 Sound 18NLW9601C is the evolution of the industry-standard 18NLW9601, delivering the highest force factor documented across this entire session — 31.7 Tm from a 135 mm split-winding four-layer CCAW coil, exceeding even the dual-coil Tetracoil 18NTLW5000. The combination of DSS suspension technology and SDR distortion reduction addresses both mechanical and electromagnetic nonlinearity simultaneously, while the explicit 70 mm mechanical damage limit and ±14 mm linear Xmax disclosure provide system designers with genuine engineering transparency.
For high SPL reflex, bandpass, or horn-loaded subwoofer applications demanding 3600 W continuous power handling and the strongest available motor force in 18 Sound’s entire catalogue, the 18 Sound 18NLW9601C is a formidably engineered platform that closes this session’s coverage with yet another record-setting specification.
