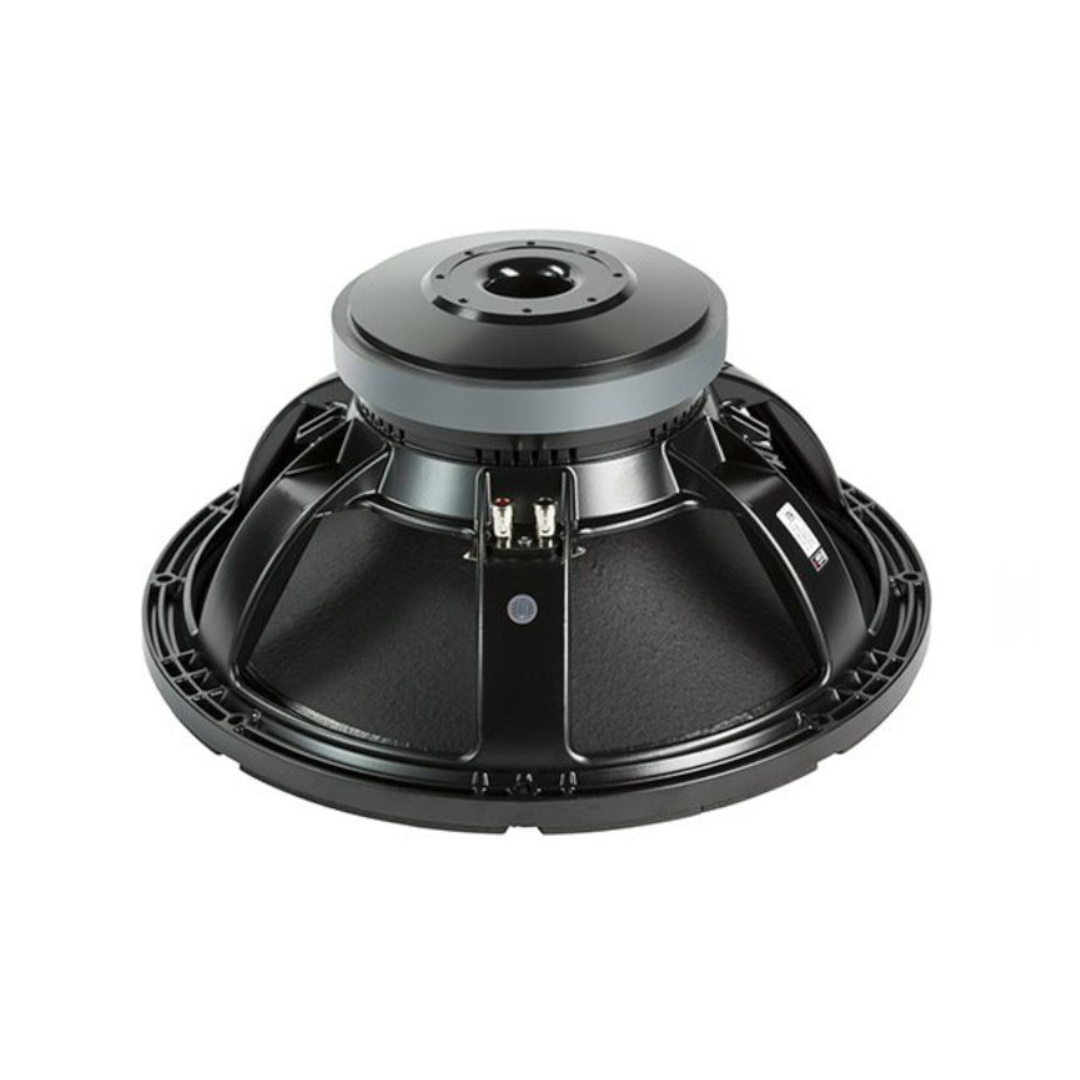

18 Sound 18LW1251 – The True Origin Point of 18 Sound’s 18-Inch Subwoofer Lineage
The 18 Sound 18LW1251 is the updated version of the 18LW1250, an 18-inch (460 mm) high performance extended low frequency transducer. This is the genuine terminus of the succession chain traced backward across this session’s final stretch of coverage — from the 18LW2420, through the 18LW2400, back to the 18LW1400, and now to this driver, which the very first 18-inch driver documented in this session, the 18W2001, itself names as its own alternative model. This page carries no further alternative model pointer of its own, confirming the 18 Sound 18LW1251 as the true origin point of everything that followed.
It has been designed for use as a low bass or sub-woofer component, in either a reflex, bandpass, or horn-loaded configuration, in high power loudspeaker systems. The 18LW1251 design has evolved from extensive research carried out at 18 Sound’s own R&D and Engineering facilities. It provides clean, undistorted low frequency reproduction at very high levels and is able to withstand high power without damage.
The transducer design features include a large displacement suspension system which, in conjunction with a high-quality cone and 18 Sound’s Double Silicon Spider (DSS), assure a very linear piston action and provide full control across the entire working range. This is further improved by an inside-outside copper voice coil, based on 18 Sound’s Interleaved Sandwich Voice coil (ISV) technology. Notably, unlike every driver documented in this lineage from the 18LW1400 onward, the 18 Sound 18LW1251 carries only DSS suspension technology — no DDR distortion reduction rings — the simplest motor and suspension technology stack of the entire chain traced across this session.
Due to the increasing use of audio systems at outdoor events, the ability to perform in adverse weather conditions or in areas of high humidity is a key feature of the 18 Sound 18LW1251.
Design and Construction of the 18 Sound 18LW1251
The ISV technology is based on a high-strength fibreglass former with half the coil wound on the outside and half on the inside, bonded together using unique high-temperature resin adhesives. The result is a balanced linear motor exerting a very high force factor.
Excellent heat dissipation is derived from a basket design which incorporates air channels between the basket and the magnetic top plate. In addition, eight air vents in the back plate, aligned with the voice coil, force the air into the lower part of the gap — the identical “8 air vents” specification documented on the successor 18LW1400, confirming this precise ventilation engineering detail originated here and was carried forward unchanged into the next generation.
Maximum flux density in the gap is assured by the special top and back plate design, resulting in a high Bl factor. The 23.6 Tm force factor driving 142 g of moving mass produces 98 dB sensitivity and the 0.27 Qts / 125 Hz EBP alignment — the lightest moving mass and highest EBP of the entire lineage documented in this session, reflecting this earliest generation’s more compact motor and cone construction relative to its heavier successors.
This has been achieved using exclusive cone treatment and magnetic plate processes which increase resistance to corrosion and render the cone water repellent.
At 13.0 kg, 462 mm overall diameter, 416 mm baffle cutout, 207 mm depth, and 19 mm flange, the 18 Sound 18LW1251 is notably shallower than every successor in this lineage (207 mm versus the 18LW1400’s 215 mm and the 18LW2400/2420’s 214–215 mm), despite weighing only slightly less than the heaviest 18LW1400.
Notably, this product page publishes a specific service kit part number — 0271881250 — a level of maintenance and repair documentation not carried forward onto any of the successor drivers documented in this session, suggesting this earlier-generation platform may have benefited from a more mature service and support infrastructure by the time of its cataloguing.
Performance and Applications for the 18 Sound 18LW1251
The 18 Sound 18LW1251 delivers 98 dB sensitivity across a 35 Hz – 3500 Hz bandwidth — the widest upper bandwidth of the entire lineage documented in this session, reaching a full 1000 Hz higher than the 18LW1400’s 2500 Hz ceiling and every subsequent descendant.
18 Sound recommends a 230-litre (8.12 ft³) vented enclosure tuned to 40 Hz — the largest recommended cabinet volume of the entire lineage, with the highest tuning frequency, reflecting this earliest generation’s different Vas and Qts alignment relative to its successors.
The 1000 W AES / 1400 W continuous power handling matches the 18LW1400 exactly — confirming the successor’s power handling improvement claims were made relative to this driver, or possibly that both share closely related motor thermal capacity despite the DDR technology difference between them.
For high power loudspeaker systems in reflex, bandpass, or horn-loaded configurations — particularly where the wider 3500 Hz upper bandwidth is specifically valuable, or where the documented service kit part number matters for long-term maintenance planning — the 18 Sound 18LW1251 remains a capable, historically significant platform.
Conclusion – 18 Sound 18LW1251 Subwoofer Driver
The 18 Sound 18LW1251 is the genuine origin point of the entire 18-inch subwoofer succession chain explored across this session’s final coverage — the driver that the very first 18-inch model documented at the start of this exploration, the 18W2001, ultimately traces its own lineage back to. With only DSS suspension technology (no DDR), the widest bandwidth of the entire family, and a documented service kit part number absent from every successor, this driver represents the foundational platform upon which 18 Sound built the DDR-equipped, progressively more powerful generations that followed.
This closes a genuinely complete circle through 18 Sound’s 18-inch subwoofer development history — from this original 18LW1251/18LW1250 platform, through the 18LW1400’s addition of DDR technology, through the 18LW2400 and 18LW2420’s power handling refinements, all the way to the 9000-series-cooled, Tetracoil-equipped flagships documented at the very start of this session’s 18-inch coverage.
