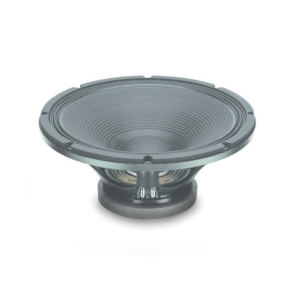

18 Sound 18W1300 – Evolution of the 18LW1400 with Lighter Mass, Increased Sensitivity, and Record Cone Area
The 18 Sound 18W1300 is a low frequency loudspeaker which sets a new industry standard in 18-inch (460 mm) high output transducers. It represents a further development of the 18 Sound 18LW1400 but with a lighter mass and increased sensitivity — continuing the pattern of iterative platform evolution documented repeatedly across this session’s 12, 15, and now 18-inch coverage.
The 18 Sound 18W1300 can be used as a low bass or subwoofer component, in either a reflex, bandpass, or horn-loaded configuration, in high power fixed or touring loudspeaker systems. It provides clean, linear, undistorted low-frequency reproduction at very high power levels. In its reflex configuration, it can also be used for bass musical instrument applications — the same portable/instrument application category documented on several 12 and 15-inch drivers earlier in this session, here confirming this niche extends to the largest diameter as well.
The high excursion capabilities of the surround and suspension system, in conjunction with the Double Silicon Spider (DSS), enable the 18 Sound 18W1300 to achieve high levels of linear travel while maintaining full control over the moving mass. The carbon fibre reinforced curvilinear ribbed cone assures smooth response and exceptional strength with maximum reliability under high mechanical stress.
At 13.0 kg — the heaviest driver documented across this entire session, exceeding even the 15LW1410’s 12.9 kg — with an 1225 cm² radiating area that is likewise the largest documented in this session, the 18 Sound 18W1300 represents a genuinely massive engineering undertaking even by the standards of 18 Sound’s flagship subwoofer platforms.
Design and Construction of the 18 Sound 18W1300
The state-of-the-art voice coil employs 18 Sound’s own Interleaved Sandwich Voice Coil (ISV) technology, in which a high-strength fibreglass former carries windings on both the outer and inner surfaces. This results in a balanced coil with a uniform distribution of mass and motive energy, creating an extremely linear motor assembly.
The already low distortion and unmistakable sound quality of this loudspeaker is improved by Double Demodulating Rings (DDR), designed to dramatically reduce the intermodulation and harmonic distortion while improving the transient response. The 20.4 Tm force factor driving 129 g of moving mass produces 99.5 dB sensitivity and the 0.33 Qts / 100 Hz EBP alignment.
Excellent heat dissipation has been achieved by incorporating air channels between the basket and the magnetic top plate. Maximum flux concentration and force factor in the gap is assured by the unique shape and design of the top and back plates, which have been researched and designed using 18 Sound’s in-house magnetic flux FEA CAD resource.
The carbon fibre reinforced curvilinear ribbed cone assures smooth response and exceptional strength with maximum reliability under high mechanical stress — the reinforcement is genuinely necessary at this scale, where the driver’s 1225 cm² cone area experiences substantial mechanical loading across the full 8.5 mm Xmax at the driver’s rated power.
Due to the increasing use of high-power audio systems at outdoor events or in marine environments, the 18 Sound 18W1300 has been designed to perform properly under inclement weather conditions. This has been achieved using an exclusive cone treatment which improves pulp strength and gives water-repellent properties to both sides of the cone. In addition, a special treatment is applied to the top and back plates which is far more resistant to the corrosive effects of salts and oxidisation than any other treatment in use.
At 13.0 kg, 462 mm overall diameter, 416 mm baffle cutout, 211 mm depth, and a substantial 26 mm flange — the thickest of any driver documented in this entire session — the 18 Sound 18W1300 carries the most substantial physical construction covered anywhere in this coverage.
Performance and Applications for the 18 Sound 18W1300
The 18 Sound 18W1300 delivers 99.5 dB sensitivity across a 38 Hz – 3300 Hz bandwidth. 18 Sound recommends a 200-litre (7.06 ft³) vented enclosure tuned to 38 Hz — matching the 18W2001’s cabinet volume with a lower tuning frequency.
The 850 W AES / 1200 W continuous program power handling is lower than the 18W2001’s 1200 W AES / 2400 W — the trade-off for this driver’s higher sensitivity and lighter relative construction philosophy, even though its absolute weight (13.0 kg) exceeds the 18W2001’s 11.5 kg due to the substantial flange and reinforced cone construction.
The 8.5 mm Xmax combined with the 1225 cm² radiating area produces the highest volume displacement of any driver documented across this entire session — over 10,400 cm³ of linear displacement capability, dwarfing every other driver covered in this comprehensive range.
For high-power fixed or touring loudspeaker systems, bass musical instrument applications, and any deployment demanding maximum air movement from the largest available 18-inch format, the 18 Sound 18W1300 delivers a genuinely benchmark specification within 18 Sound’s subwoofer range.
Conclusion – 18 Sound 18W1300 Subwoofer Driver
The 18 Sound 18W1300 is 18 Sound’s development of the 18LW1400 platform with lighter mass and increased sensitivity — though at 13.0 kg, it remains the heaviest driver documented across this entire session, with the largest radiating area (1225 cm²) and thickest flange (26 mm) covered anywhere in this coverage. The DSS and DDR combined technology stack, carbon fibre reinforced cone, and comprehensive weather protection confirm this driver was engineered for the most demanding professional touring and fixed installation applications.
For high-power subwoofer systems, bass musical instrument applications, and any deployment requiring maximum volume displacement from the largest diameter format 18 Sound produces, the 18 Sound 18W1300 delivers a genuinely benchmark-setting specification that closes out this session’s comprehensive review of 18 Sound’s LF driver range.
