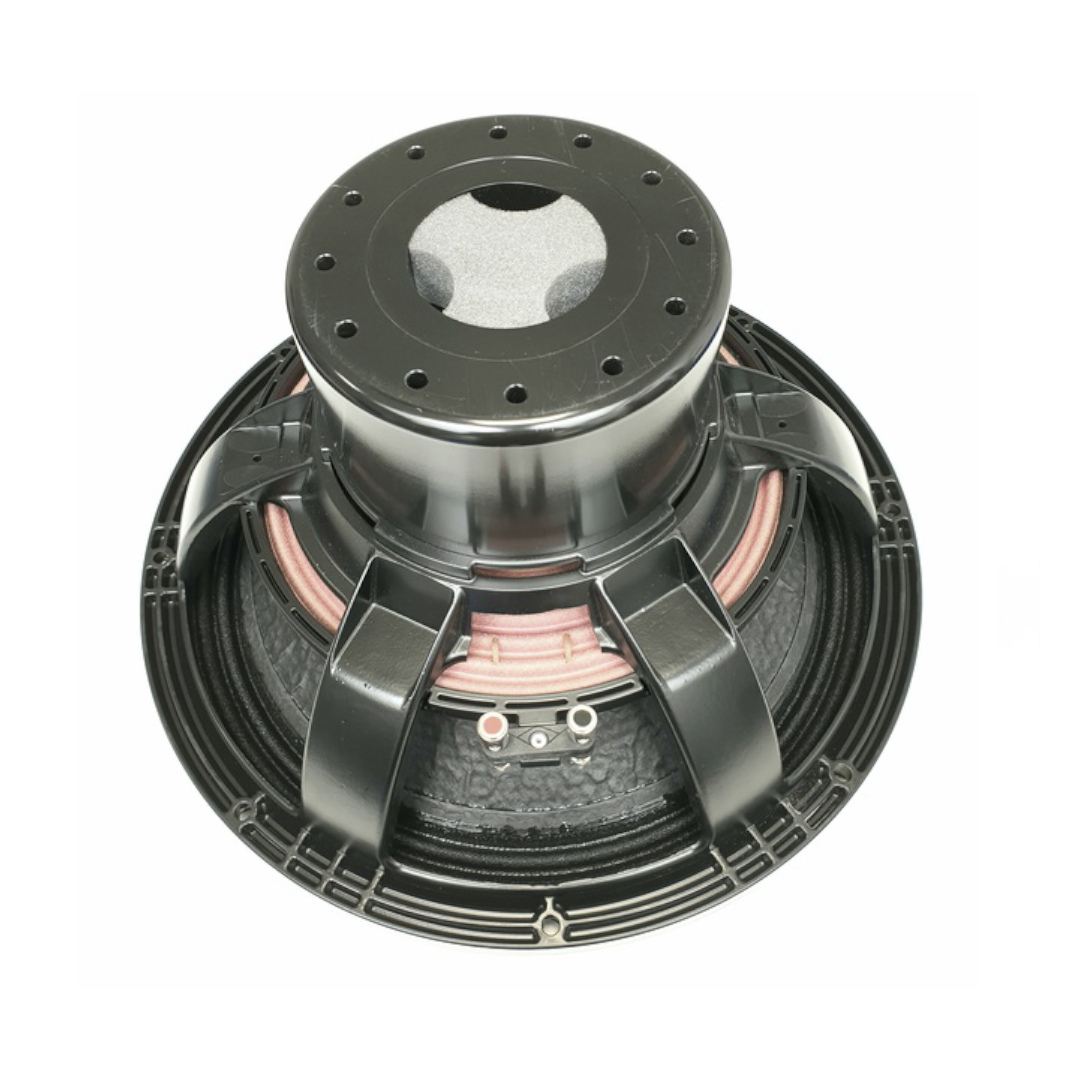

18 Sound 18iDSDS – 2Ω Class D-Optimised 18-Inch Subwoofer Built for Powersoft iPAL Amplification
The 18 Sound 18iDSDS is an 18-inch neodymium ultra high performance subwoofer — and a genuinely distinct product category from every other driver documented across this entire comprehensive session. The transducer has been optimised for any subwoofer cabinet design (even the most compact) and is recommended for being driven by a Class D or iPAL(™) amplifier able to deliver 3600 W program power without clipping on 2 ohm loads. This is the first and only 2 Ω driver documented anywhere in this coverage — a deliberate impedance choice that only makes sense in the context of specific Class D amplifier platforms designed to drive very low impedance loads efficiently.
18 Sound engineers have obtained the best possible results with today’s available materials in terms of clean and undistorted LF reproduction at ultra high SPL, with the lowest possible power compression figure. The design features include a large displacement suspension system specifically designed for matching the composite fibre reinforced, straight ribbed cone. Thanks to the Double Silicon Spider (DSS) technology, the 18 Sound 18iDSDS is able to control the moving mass with high linearity, showing an exceptional stability of mechanical parameter values in the long term.
Bl force factor, as well as all other electro-dynamic parameters, are linear within the working range. This, together with the exceptional high excursion behaviour — ±18 mm linear Xmax — makes the 18 Sound 18iDSDS an extremely low distortion, highly dynamic transducer. The 0.17 Qts is the lowest documented across this entire session, confirming extreme motor dominance even at this driver’s substantial 444 g moving mass.
The naming convention itself signals this product’s positioning — “iD” for Class D optimisation, matched specifically to Powersoft’s iPAL amplifier platform standard, a partnership-level integration between transducer and amplification not documented on any other driver in this comprehensive coverage.
Design and Construction of the 18 Sound 18iDSDS
The 18 Sound 18iDSDS features a state-of-the-art 5.3-inch inside-outside ISV aluminium voice coil enabling extraordinary transient results — the 45 mm winding depth operating in an 18 mm magnetic gap produces the driver’s substantial ±18 mm linear Xmax, among the highest documented across this session, exceeded only by the 18NLS4000’s 22.3 mm and the Tetracoil 18NTLS5000’s 17.75 mm figures documented earlier.
The 18 Sound 18iDSDS has been developed after intense FEA and fluid dynamics simulation and testing, focusing on dissipating the heat generated by the powerful voice coil. Special attention was given to the optimisation of air flow into the gap without introducing audible noise — the identical noise-conscious cooling philosophy documented across several of 18 Sound’s most premium subwoofer platforms throughout this session. A low-density material air diffractor placed into the heatsink acts as a cooling system, increasing the power handling capability and lowering the power compression figure.
The 24.4 Tm force factor driving 444 g of moving mass produces 95 dB sensitivity, 2.0% reference efficiency, and the extraordinary 0.17 Qts / 161 Hz EBP alignment — the lowest Qts documented anywhere in this comprehensive session, confirming absolute electromagnetic dominance over this driver’s substantial moving mass.
At 1.3 Ω DC resistance and 1.9 Ω minimum impedance, this driver is engineered to be driven at genuinely low impedance — a deliberate choice that maximises power transfer specifically from Class D amplifier topologies (like Powersoft’s iPAL platform) that are designed to deliver their rated power efficiently into low-impedance loads, rather than the conventional 4/8/16 Ω conventions documented on every other driver in this session.
At 16.0 kg, 462 mm overall diameter, 417 mm baffle cutout, 238 mm depth, and 24 mm flange, the 18 Sound 18iDSDS carries substantial construction reflecting its 135 mm coil, extreme excursion suspension, and reinforced cone.
Performance and Applications for the 18 Sound 18iDSDS
The 18 Sound 18iDSDS delivers 95 dB sensitivity across a 29 Hz – 1000 Hz bandwidth. 18 Sound recommends a 120-litre (4.24 ft³) vented enclosure tuned to 33 Hz.
The 1800 W AES / 3600 W continuous power handling on 2 Ω loads is a genuinely different specification framework from every other driver documented in this session — at 2 Ω, this power handling figure requires an amplifier platform specifically capable of driving such low impedance efficiently, which is exactly what the Powersoft iPAL standard reference is signalling to system integrators.
The ±18 mm linear Xmax, combined with the 1225 cm² radiating area, produces enormous volume displacement, and the exceptional 0.17 Qts ensures this displacement translates into tight, precisely controlled bass output rather than the loose, underdamped behaviour that extreme excursion combined with lower motor control would otherwise produce.
For system integrators specifically building around Powersoft iPAL amplification, or any Class D platform optimised for low-impedance operation, the 18 Sound 18iDSDS represents a purpose-built pairing that maximises the specific advantages that low-impedance Class D amplification offers — reduced cabling losses relative to power delivered, and amplifier topologies that achieve their peak efficiency at exactly this impedance range.
Conclusion – 18 Sound 18iDSDS Subwoofer Driver
The 18 Sound 18iDSDS is a genuinely distinct product within this session’s comprehensive coverage — the only 2 Ω driver documented, purpose-built for Class D and specifically Powersoft iPAL amplification. The 135 mm coil, DSS suspension technology, ±18 mm Xmax, and record-low 0.17 Qts combine for a transducer engineered around a specific amplifier ecosystem rather than conventional multi-impedance system design flexibility.
Limited to U.S. distribution through Thunderball Marketing, the 18 Sound 18iDSDS is a specialised platform for system integrators specifically building around low-impedance Class D amplification — a genuinely different design philosophy from every other driver documented across this entire session.
