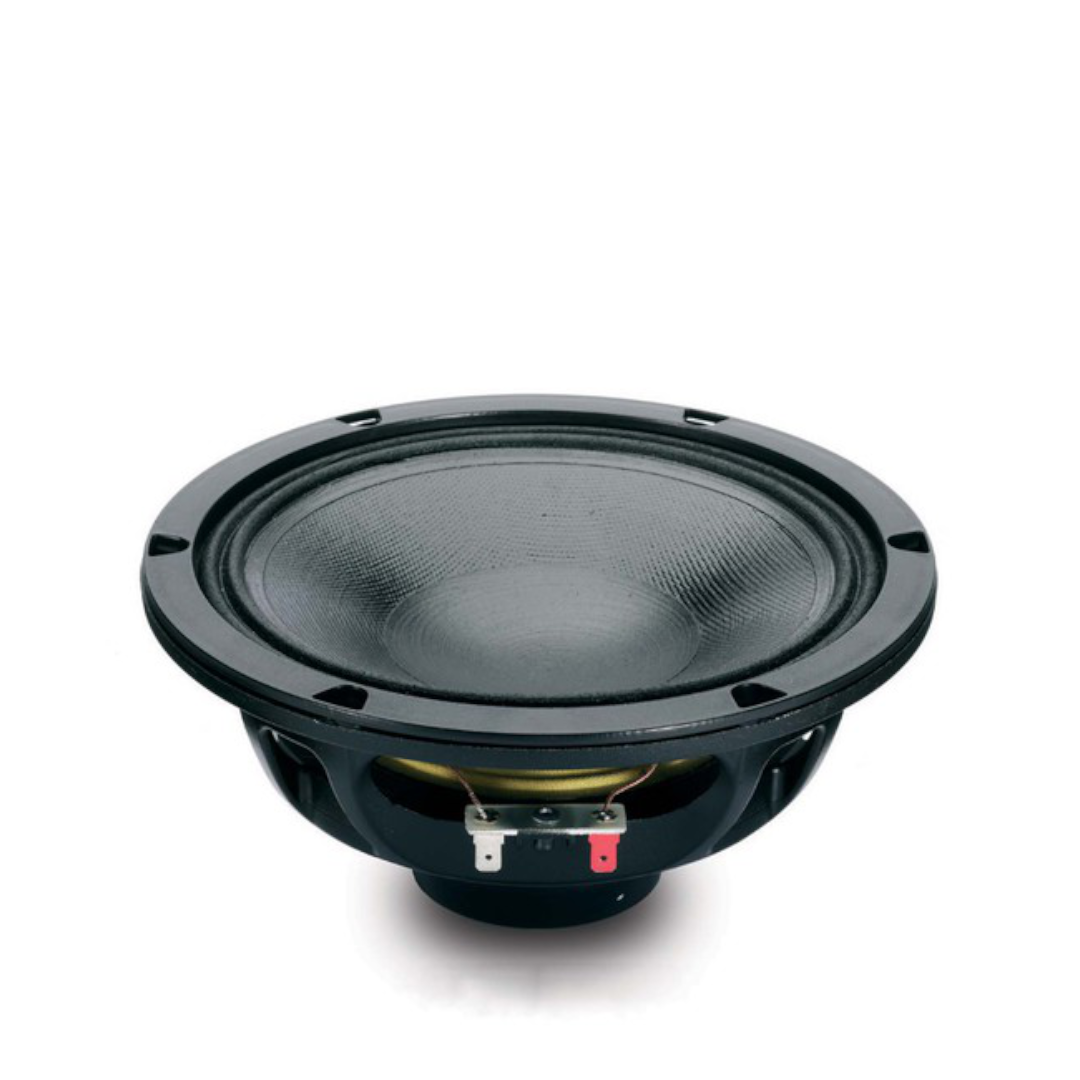

18 Sound 8NMB420 – Precision 8-Inch Neodymium Mid-Bass with ISV Voice Coil and 5500 Hz Bandwidth
The 18 Sound 8NMB420 is a dedicated 8-inch neodymium mid-bass driver built around 18 Sound’s ISV (Interleaved Sandwich Voice Coil) technology and SDR (Single Demodulating Ring) distortion reduction. With 95 dB sensitivity, 280 W AES power handling, a 60 Hz – 5500 Hz bandwidth, 0.35 mH inductance, and a 14.9 g moving mass that produces the fastest transient response of any 18 Sound 8-inch mid-bass, the 18 Sound 8NMB420 delivers the mid-band linearity and precision that has made it one of the most specified 8-inch drivers in the professional audio industry.
The 5500 Hz bandwidth is the specification that set the 18 Sound 8NMB420 apart when it launched — and it remains competitive against every 8-inch driver in the range. The 14.9 g moving mass maintains controlled pistonic output well into the upper mid-range, covering vocals, guitars, and percussive transient detail from a single transducer that can cross over to a compression driver at 2000–2500 Hz with substantial overlap.
The ISV voice coil is the technology foundation. The 51 mm inside/outside wound construction creates a mass-balanced coil with symmetrical inductance behaviour, producing the 0.35 mH Le that keeps the impedance curve flat well into the upper operating range. The SDR absorbs flux modulations in the magnetic gap, reducing harmonic distortion as power and excursion increase.
At 1.7 kg with an external neodymium magnet, weather-protected cone, and availability in 4, 8, and 16 Ω, the 18 Sound 8NMB420 is the lightweight, triple-impedance entry point to 18 Sound’s premium 8-inch ISV mid-bass range.
Design and Construction of the 18 Sound 8NMB420
The 18 Sound 8NMB420 uses a 51 mm (2-inch) aluminium ISV (Interleaved Sandwich Voice Coil) wound on a high-strength glass fibre former. The ISV architecture places conductor on both inner and outer surfaces of the former, creating a mass-balanced coil with symmetrical energy distribution. The balanced winding produces more linear motor behaviour, lower harmonic distortion, and the 0.35 mH inductance that keeps the impedance curve flat through the 5500 Hz upper bandwidth.
The 14.9 g moving mass is the lightest of any 18 Sound 8-inch mid-bass driver. The curvilinear paper cone uses a unique wood pulp composition designed for maximum rigidity and stiffness at minimum weight. The lightweight mass is the engineering foundation for both the 95 dB sensitivity and the 5500 Hz bandwidth — lighter cones accelerate faster and maintain pistonic motion at higher frequencies.
The external neodymium magnet provides high flux concentration and excellent heat exchange. The external placement creates a larger surface area for thermal dissipation, reducing power compression during sustained operation. Voice coil cooling uses airways between the chassis back plate and the magnet faceplate, channelling heated air away from the coil and gap.
The SDR (Single Demodulating Ring) in the magnetic circuit reduces flux modulation as the voice coil moves through the gap. For a mid-bass driver operating in the 200–3000 Hz frequency range where the human ear is most sensitive to distortion, the SDR is a critical feature that keeps the output clean at all power levels.
The 10 Tm force factor driving 14.9 g produces the 0.28 Qts and 196 Hz EBP that place the 18 Sound 8NMB420 in motor-dominant vented territory. The double roll surround provides progressive compliance through the 5.8 mm Xmax. The humidity-repellent cone treatment provides outdoor durability without adding moving mass.
At 1.7 kg, 210 mm overall diameter, 186 mm baffle cutout, 99 mm depth, and 14 mm flange, the 18 Sound 8NMB420 is the lightest ISV-equipped 8-inch mid-bass in the range and among the shallowest.
Performance and Applications for the 18 Sound 8NMB420
The 18 Sound 8NMB420 delivers 95 dB sensitivity across a 60 Hz – 5500 Hz bandwidth. The 5500 Hz upper limit extends into the upper mid-range where vocal presence and consonant clarity define intelligibility, providing extensive overlap with compression drivers crossed over at 2000–2500 Hz.
The 0.35 mH inductance is the ISV coil’s most impactful contribution to system performance. Low inductance means the impedance curve remains flat and predictable through the upper operating range, simplifying crossover design in both passive and active systems. In passive networks, the low inductance reduces the need for impedance compensation circuits. In active systems, it produces more predictable response that DSP manages with simpler, more phase-linear filters.
The triple impedance availability — 4, 8, and 16 Ω — provides the widest system design flexibility of any 18 Sound 8-inch ISV mid-bass. The 4 Ω suits single-driver applications where maximum power transfer is desired. The 8 Ω is the professional standard. The 16 Ω is essential for line arrays and multi-driver configurations.
The comparison across 18 Sound’s 8-inch woofer range places the 18 Sound 8NMB420 as the lightweight entry with the widest impedance availability. The 8NW650 (65 mm ISV, 96 dB, 2.4 kg) provides more Bl and wider bandwidth. The 8NTLW2000 (51 mm Tetracoil, 97.5 dB, 1.5 kg) provides more power and sensitivity from dual-gap technology at lighter weight. The 8NMB750 (75 mm ISV DDR, 96.5 dB, 3.5 kg) provides the highest Bl and dual distortion reduction. The 18 Sound 8NMB420 provides the lightest ISV-equipped weight (1.7 kg), the widest impedance range (4/8/16 Ω), and the lowest inductance of any SDR-equipped 8-inch (0.35 mH) — the accessible, versatile entry point with proven technology.
Conclusion – 18 Sound 8NMB420 Mid-Bass Driver
The 18 Sound 8NMB420 is the ISV/SDR entry point to 18 Sound’s premium 8-inch mid-bass range. The 51 mm ISV coil provides symmetrical inductance behaviour at 0.35 mH. The SDR provides flux modulation cancellation. The 14.9 g moving mass provides the fastest transient response. The 5500 Hz bandwidth covers the upper mid-range. And the 4/8/16 Ω triple impedance provides the widest configuration flexibility.
The 1.7 kg weight, 99 mm depth, and 95 dB sensitivity deliver proven ISV/SDR technology in the most compact, lightest ISV-equipped package in the 8-inch range. For builders who need more motor force, the 8NW650 and 8NMB750 step up the Bl. For more power and lighter weight, the 8NTLW2000 brings Tetracoil dual-gap technology. The 18 Sound 8NMB420 is the driver that makes 18 Sound’s ISV and SDR technology accessible — the most widely specified 8-inch in the range for a reason.
