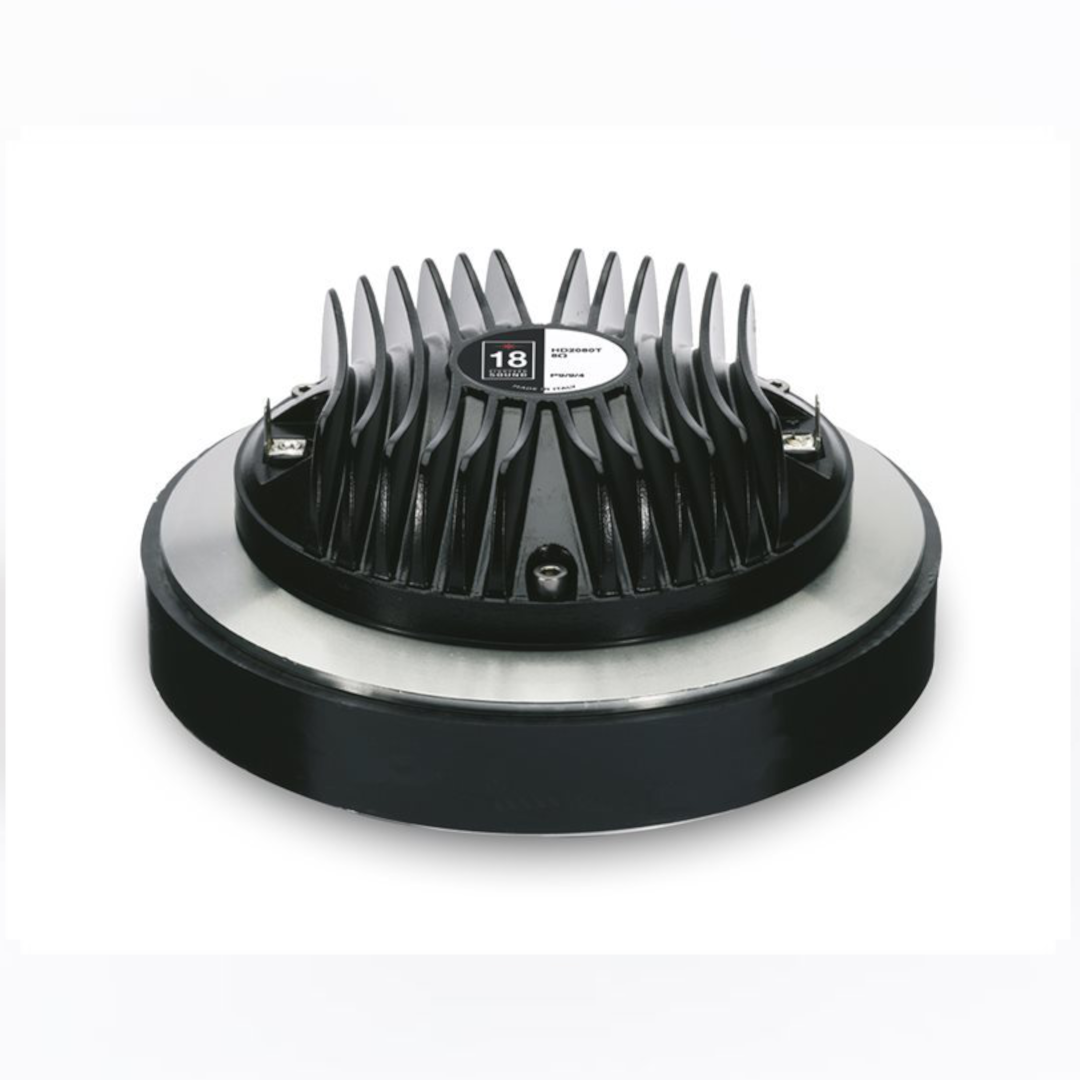

18 Sound HD2080T – HF Driver

18 Sound HD2080T – Fixed-Installation 2-Inch Compression Driver with Titanium-Polyester Diaphragm and 800 Hz Crossover

The 18 Sound HD2080T 2-inch exit high-frequency compression driver has been designed for use in high-quality installed audio systems, where weight is not the key issue — an explicit positioning distinct from every touring-oriented compression driver documented earlier in this session, confirming this driver trades portability for the acoustic and thermal performance that a substantially larger motor and diaphragm assembly can deliver.

The HD2080T diaphragm assembly is composed of a titanium dome sandwiched to a proprietary treated polyester suspension unit. It has been designed to maintain low resonance, lowering the minimum crossover point value at 1.2 kHz — though 18 Sound’s own published specification actually lists the recommended crossover at 0.8 kHz, the lowest crossover point of any conventional (non-AMT) compression driver documented anywhere in this session, suggesting the driver’s low-resonance diaphragm design achieves an even lower practical crossover than the text’s own stated design target.

Thanks to its physical properties, the proprietary treated Nomex former has a 30% higher value of tensile elongation at working operative temperature (200°C) when compared to Kapton — the identical figure and former treatment documented on the HD2020 and across 18 Sound’s PEN-diaphragm coaxial range, confirming this specific Nomex treatment as a consistent engineering thread throughout the company’s HF catalogue.

Design and Construction of the 18 Sound HD2080T

The motor structure, through the precisely coherent phase plug with 3 circumferential slots and copper ring on the pole piece, reduces inductance effects and distortion. This 3-slot phase plug geometry is distinct from the 3P proprietary phase plug documented on the HD2020, representing a different specific phase plug architecture within 18 Sound’s compression driver range.

Four top plate air ducts have been designed to act as a loading chamber for the diaphragm, implementing mid-band distortion and response figures — a specific acoustic loading feature not documented on the smaller HD2020, taking advantage of the HD2080T’s substantially larger 75 mm coil and motor assembly to provide additional acoustic chamber volume directly behind the diaphragm.

The powerful ceramic magnet assembly has been designed to obtain 16 kGauss in the gap — matching the HD2020’s flux density figure exactly, despite the considerably larger overall motor structure. Excellent heat dissipation and thermal exchange are guaranteed by the direct contact between the magnetic structure and the aluminium cover, which leads to a lower power compression value — a direct-contact thermal path distinct from the airway-based cooling documented on many other 18 Sound drivers throughout this session.

At 5.2 kg, 169 mm overall diameter, and just 75 mm depth, the 18 Sound HD2080T is nearly double the weight of the HD2020 (3.0 kg) despite being shallower — the 75 mm coil and substantial motor structure account for the additional mass, consistent with the driver’s explicit “weight is not the key issue” fixed-installation positioning.

Performance and Applications for the 18 Sound HD2080T

The 18 Sound HD2080T delivers 109 dB sensitivity across a 0.5 – 20 kHz frequency range, with a recommended crossover of 0.8 kHz using a 12 dB/octave or steeper high-pass filter — 400 Hz lower than the HD2020’s 1.2 kHz crossover point, giving system designers considerably more flexibility to position the woofer-to-compression-driver handoff lower in the frequency spectrum.

The 100 W AES / 200 W continuous program power handling is substantially higher than the HD2020’s 70 W AES / 140 W program — the larger 75 mm coil’s thermal mass, combined with the direct-contact aluminium cover cooling, delivers genuinely more sustained power capacity.

The four top-plate air ducts acting as a diaphragm loading chamber, combined with the titanium-polyester hybrid diaphragm’s low-resonance design, produce the extended low-frequency reach that makes the 0.8 kHz crossover point practical — most 2-inch titanium compression drivers require crossovers in the 1–1.5 kHz range to avoid diaphragm breakup or excessive distortion; the 18 Sound HD2080T’s engineering pushes that boundary meaningfully lower.

For fixed installations, permanent venue systems, and any application where the compression driver’s weight is a secondary consideration to acoustic performance, low crossover capability, and thermal headroom, the 18 Sound HD2080T delivers a genuinely differentiated specification from 18 Sound’s touring-oriented compression driver range.

Conclusion – 18 Sound HD2080T Compression Driver

The 18 Sound HD2080T is 18 Sound’s fixed-installation-focused 2-inch compression driver — a titanium-polyester hybrid diaphragm, 75 mm edgewound aluminium coil, 3-slot phase plug, and a four-duct diaphragm loading chamber combine to deliver 109 dB sensitivity, 200 W continuous program power handling, and a genuinely low 0.8 kHz recommended crossover.

For installed audio systems where weight is not the key issue and low crossover flexibility, high power handling, and thermal performance matter more than portability, the 18 Sound HD2080T delivers a distinctly engineered alternative to the lighter, more compact HD2020 documented immediately prior in this session.
