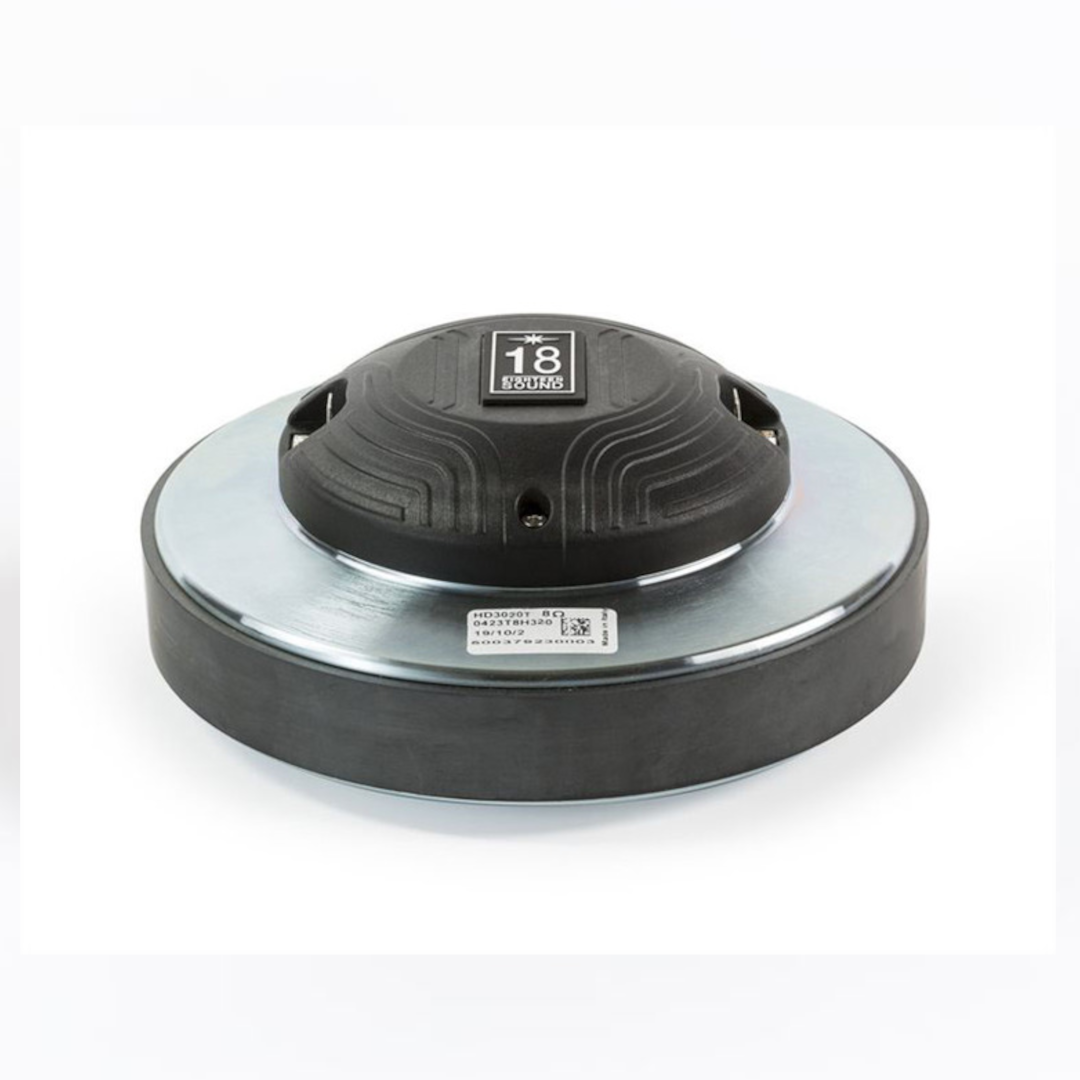

18 Sound HD3020T – Next-Generation 2-Inch Compression Driver with 4-Slot Phase Plug and 1.9T Flux Density
The 18 Sound HD3020T is 18 Sound’s next-generation evolution within the same 75 mm coil, 2-inch exit compression driver lineage as the HD2080T documented immediately prior in this session. Sharing the same titanium-over-PEN diaphragm philosophy and 75 mm edgewound CCAW voice coil format, the 18 Sound HD3020T advances the design with a next-gen 4-slot phase plug — one more slot than the HD2080T’s 3-slot geometry — and a substantially stronger 1.9 T flux density, up from the HD2080T and HD2020’s shared 1.6 T figure.
The titanium dome over PEN suspension diaphragm assembly combines titanium’s stiffness and projection characteristics with PEN’s superior dimensional stability, high elasticity modulus, and resistance to mid-band distortion — the same PEN (Polyethylene Naphthalate) suspension technology documented on 18 Sound’s premium coaxial drivers earlier in this session, here applied specifically to the diaphragm’s suspension element rather than the entire diaphragm structure.
HF copper ring for reduced distortion and increased output completes the motor’s distortion-control architecture, working alongside the substantially increased flux density to deliver the driver’s 110 dB sensitivity — 1 dB above the HD2080T and 2 dB above the HD2020.
Design and Construction of the 18 Sound HD3020T
The next-gen 4-slot phase plug design is the specific evolutionary refinement over the HD2080T’s 3-slot circumferential geometry — an additional slot in the phase plug’s radial pattern typically improves wavefront coherence and reduces the comb-filtering artefacts that can occur as sound waves recombine at the phase plug’s exit, producing smoother high-frequency response.
The edgewound 75 mm (3-inch) CCAW voice coil matches the HD2080T’s coil diameter exactly, but the 1.9 T flux density — a genuinely substantial increase over the 1.6 T shared by both the HD2020 and HD2080T — confirms a meaningfully more powerful magnetic circuit design, despite the driver’s overall lighter 4.9 kg weight.
The HF copper ring reduces distortion and increases output — the same electromagnetic distortion-control approach documented across 18 Sound’s premium compression driver range throughout this session, here paired with the stronger magnetic circuit for genuinely competitive output and linearity.
At 4.9 kg, 170 mm overall diameter, and just 68 mm depth, the 18 Sound HD3020T is both lighter and shallower than the HD2080T (5.2 kg, 75 mm depth) — a genuine engineering improvement in power-to-weight and compactness despite the stronger magnetic circuit, likely reflecting a more efficient magnetic structure design that requires less total magnet material to achieve the higher flux density.
Performance and Applications for the 18 Sound HD3020T
The 18 Sound HD3020T delivers 110 dB sensitivity across a 0.8 – 20 kHz frequency range, with a recommended crossover of 1.0 kHz using a 12 dB/octave or steeper high-pass filter — slightly higher than the HD2080T’s 0.8 kHz recommendation, though the published frequency range’s own 0.8 kHz lower limit confirms the driver maintains useful output at that lower frequency even with the more conservative 1.0 kHz crossover guidance.
The 110 W AES / 220 W continuous program power handling exceeds the HD2080T’s 100 W AES / 200 W program modestly, while the driver’s lighter, shallower construction makes it a more compact and easier-to-integrate option for cabinet designs where depth is constrained.
For system integrators seeking 18 Sound’s most current 2-inch compression driver technology — the evolved 4-slot phase plug, higher flux density, and titanium-over-PEN diaphragm — the 18 Sound HD3020T represents the natural upgrade path from the HD2080T’s proven but earlier-generation platform.
Conclusion – 18 Sound HD3020T Compression Driver
The 18 Sound HD3020T is 18 Sound’s next-generation 2-inch compression driver, advancing the HD2080T’s titanium-over-PEN diaphragm and 75 mm coil platform with a 4-slot phase plug, substantially higher 1.9 T flux density, and a lighter, shallower chassis. The 110 dB sensitivity and 220 W continuous program power handling confirm genuine performance gains alongside the improved compactness.
For two-way and multi-way systems requiring 18 Sound’s most current 2-inch compression driver engineering, the 18 Sound HD3020T delivers a meaningfully evolved specification over the earlier HD2080T platform.
