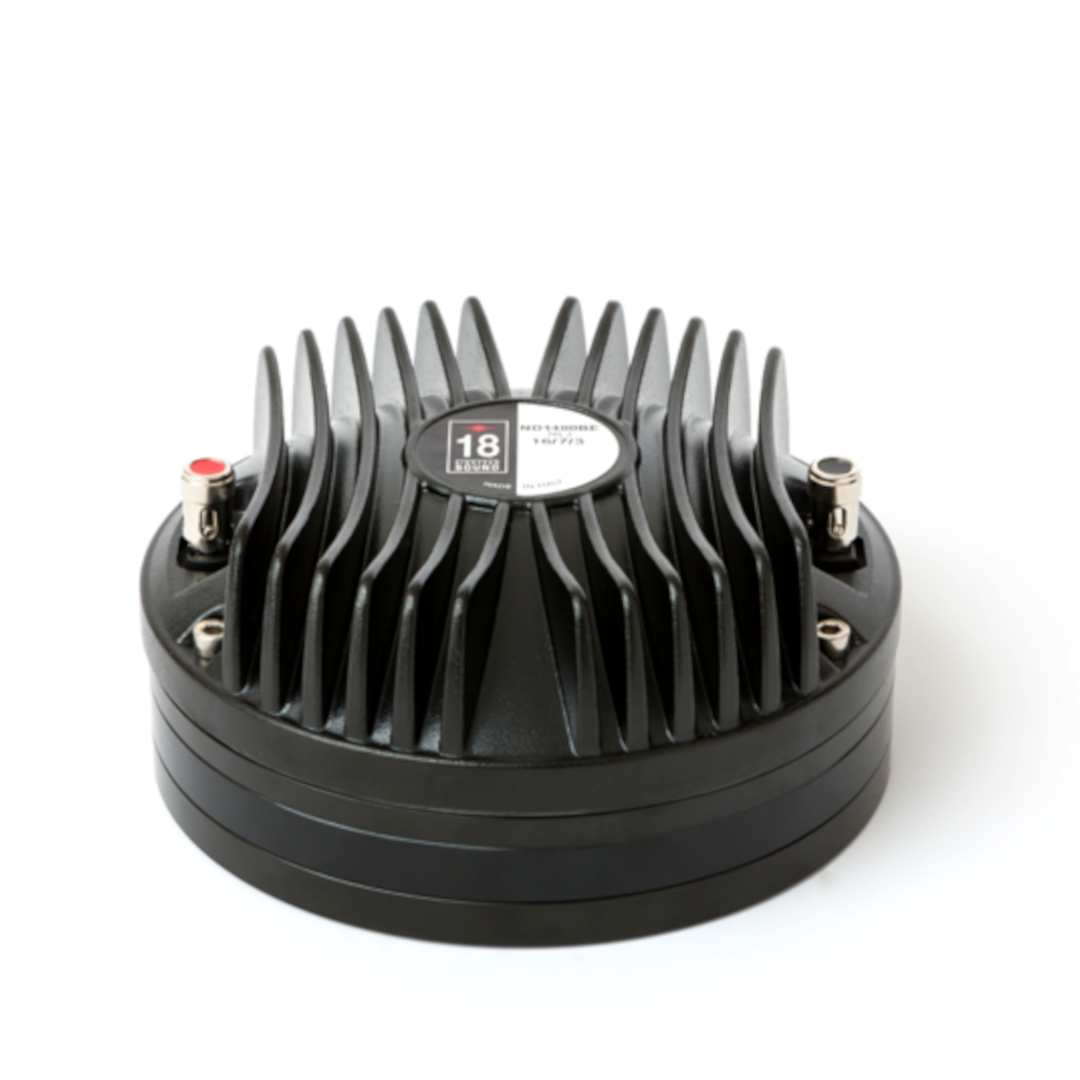

18 Sound ND1480BE – Beryllium Flagship of the 1.4-Inch Family with Class-Leading Sensitivity
The 18 Sound ND1480BE is a 1.4-inch exit, 3-inch diaphragm neodymium HF compression driver that has been designed for high-level sound systems applications requiring critical accuracy — the beryllium flagship completing this session’s comprehensive coverage of 18 Sound’s 1.4-inch platform family, and genuinely the highest-sensitivity driver documented within it.
The 75 mm (3-inch) diaphragm assembly is composed of a pure beryllium dome attached to a proprietary treated polymer suspension. With its high value of elasticity modulus, beryllium is capable of double the stiffness of titanium or aluminium, with great benefits in transient response, efficiency, and reduced distortion. The piston frequency range motion extends frequency by 25% — matching the exact figure documented on the ND4015BE — showing a predictable, ideal frequency response decay and avoiding high-frequency spurious resonances while achieving maximum sensitivity due to beryllium’s low mass versus stiffness ratio.
An angled former, edge-wound copper-clad aluminium (CCAW) 75 mm voice coil completes the diaphragm assembly, jointed in a sandwich configuration between the polymer suspension and the beryllium dome — assuring extended frequency energy transfer for improved response linearity, extended HF, and unparalleled reliability.
Design and Construction of the 18 Sound ND1480BE
The ND1480BE powerful neodymium magnet assembly has been designed to obtain 22 kGauss in the gap with major benefits in transient response and efficiency — matching the exact ring magnet architecture documented on the titanium ND1480 and aluminium-PEN ND1480A, here paired with beryllium’s superior stiffness for the combined sensitivity leadership within this family.
The motor structure, through the precisely coherent phase plug with 3 circumferential slots (3P) and copper ring on the pole piece, reduces inductance effects and distortion. The custom designed O-ring creates a tight seal between the plate and the cover, assuring optimal air chamber loading.
The ability to perform properly under inclement weather conditions is a key point of 18 Sound’s philosophy — the special coating applied to the magnet and the top and back plates makes the driver resistant to the corrosive effects of moisture, salts, and oxidisation, a slightly expanded description (adding “moisture” explicitly) beyond the standard salt/oxidisation language documented elsewhere.
At 3.1 kg, 131 mm overall diameter, and 62 mm depth, the 18 Sound ND1480BE matches the physical footprint of the ND1480A precisely, offered exclusively in 16 Ω — the only impedance variant published for this specific beryllium driver.
Performance and Applications for the 18 Sound ND1480BE
The 18 Sound ND1480BE delivers 112 dB sensitivity across a 500 Hz – 20 kHz frequency range. Extended HF with minimal breakup, exceptional clarity even at very high SPL, and excellent thermal exchange are 18 Sound’s own stated feature highlights, confirming this driver’s positioning for applications requiring critical accuracy above all else.
The 80 W AES / 200 W continuous power handling matches the titanium ND1480 exactly, while exceeding the aluminium-PEN ND1480A’s 160 W — a genuinely superior combination of both sensitivity and power handling that neither of the driver’s own 1.4-inch siblings achieves simultaneously, confirming beryllium’s fundamental stiffness advantage translates into a driver that doesn’t require the same sensitivity-versus-power-handling trade-off documented on the aluminium-PEN alternatives.
For applications demanding the absolute highest sensitivity and critical sonic accuracy within 18 Sound’s 1.4-inch range, without compromising on power handling, the 18 Sound ND1480BE represents the definitive choice.
Conclusion – 18 Sound ND1480BE Compression Driver
The 18 Sound ND1480BE is 18 Sound’s beryllium flagship 1.4-inch compression driver, delivering the highest sensitivity (112 dB) of any driver documented across this session’s complete 1.4-inch family, while matching the titanium ND1480’s full 200 W power handling — a genuine best-of-both-worlds combination that its aluminium-PEN sibling cannot match. This closes out an exceptionally comprehensive exploration of 18 Sound’s entire 1.4-inch platform: five neodymium variants spanning weight, sensitivity, power handling, and now beryllium’s uncompromising accuracy.
For high-level sound systems applications requiring critical accuracy above all other considerations, the 18 Sound ND1480BE is 18 Sound’s definitive 1.4-inch answer.
