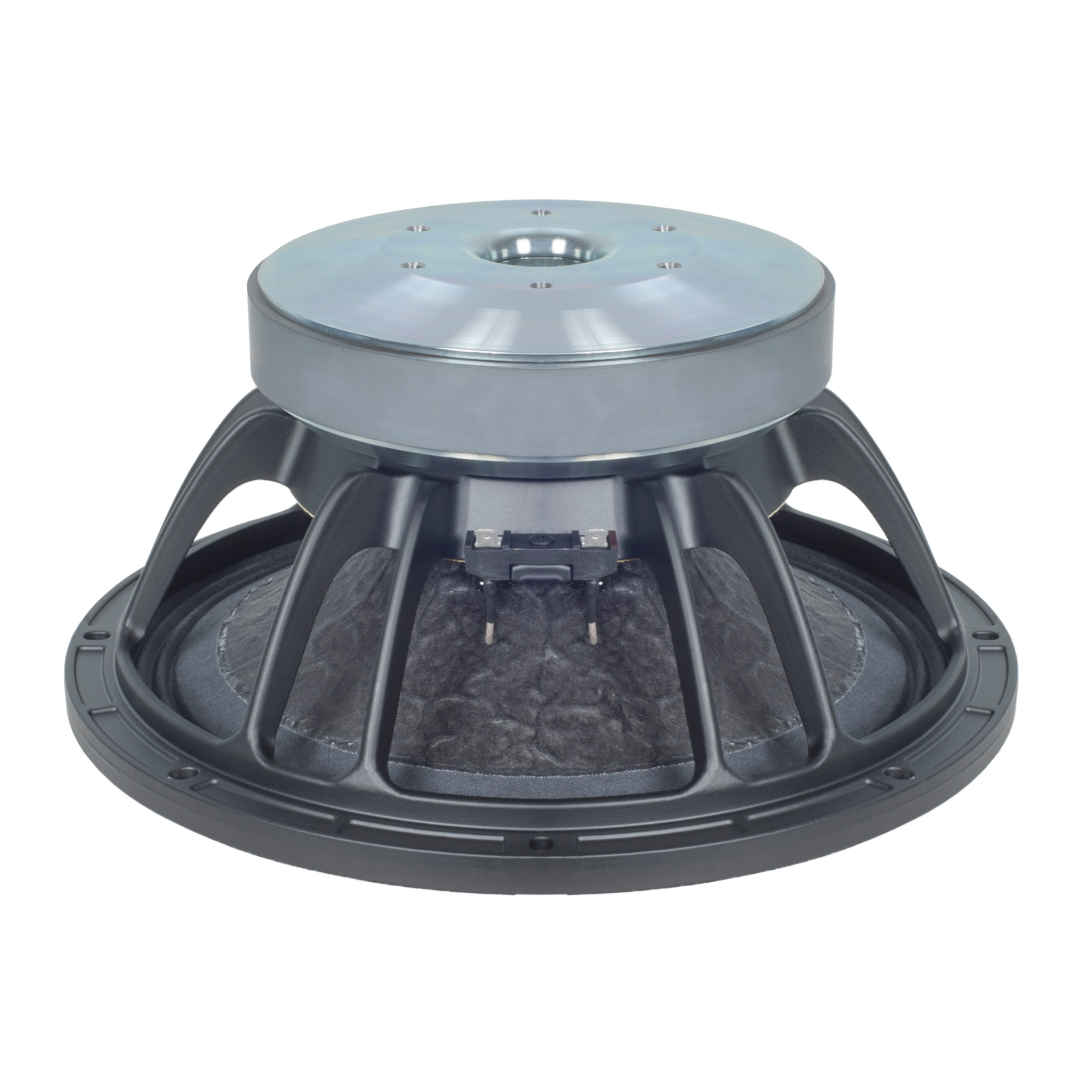

B&C 12FW88 High-Power 12-Inch Ferrite Woofer Designed for Modern Two-Way Loudspeaker Systems

The B&C 12FW88 is a high-performance 12-inch ferrite woofer developed for professional loudspeaker systems that require a balance of strong low-frequency output, extended midrange performance, and high power handling. As part of B&C’s FW88 series, this driver has been engineered to meet the demands of modern two-way enclosure designs where efficiency, output capability, and crossover flexibility are equally important.

At the centre of the B&C 12FW88 is an 88 mm aluminium voice coil coupled to a powerful ferrite motor structure. The result is a driver capable of handling substantial power while maintaining the sensitivity and midrange extension needed for professional sound reinforcement. Whether used in portable PA systems, installation loudspeakers, stage monitors, or high-output point source enclosures, the B&C 12FW88 delivers the combination of output and versatility required in today’s professional audio market. The design philosophy behind the FW88 series is simple: achieve more output and wider bandwidth from a compact and efficient motor platform.

High Power Handling Meets Excellent Efficiency

One of the most impressive aspects of the B&C 12FW88 is the balance between power handling and sensitivity. With a nominal AES rating of 700 W and a continuous program power rating of 1400 W, the driver is capable of operating at high output levels while maintaining reliable long-term performance. At the same time, its 97 dB sensitivity ensures that amplifier power is converted efficiently into usable acoustic output.

The 88 mm aluminium voice coil is wound on a glass fibre former, providing excellent thermal stability under sustained high-power operation. B&C has also incorporated a ventilated voice coil gap to reduce thermal compression, helping the driver maintain consistent performance as operating temperatures increase. An aluminium demodulation ring further improves linearity by reducing distortion and inductance-related effects, resulting in cleaner reproduction throughout the operating range.

This combination of efficiency, thermal management, and power handling makes the B&C 12FW88 particularly attractive for loudspeaker manufacturers seeking high output without excessive amplifier requirements.

Motor Strength and Thiele-Small Performance

The B&C 12FW88 utilises a high-flux ferrite motor producing a magnetic flux density of 1.04 T. Combined with a BL factor of 19.5 Tm, the motor provides excellent control over cone movement, contributing to strong transient response and improved accuracy under demanding operating conditions.

Examining the Thiele-Small parameters reveals a driver optimised for efficient vented enclosure applications. With an Fs of 53 Hz, Qts of 0.33, and Vas of 45.7 litres, the B&C 12FW88 offers a useful balance between low-frequency extension and system efficiency. The resulting EBP of approximately 151 strongly favours vented cabinet alignments and indicates a driver designed for maximum output and punch rather than deep subwoofer applications.

The moving mass of 76.4 g remains relatively controlled considering the power handling capability of the driver. This allows the B&C 12FW88 to maintain good midrange extension while still delivering substantial midbass performance, making it particularly suitable for two-way loudspeaker systems crossed to a compression driver.

Designed for Compact High-Output Enclosures

B&C recommends an enclosure volume of approximately 40 litres tuned to 65 Hz for the B&C 12FW88. This relatively compact cabinet requirement makes the driver highly attractive for portable sound reinforcement systems where enclosure size and weight are important considerations.

The driver’s response extends from 50 Hz to 3000 Hz, allowing designers significant flexibility when selecting crossover points. This extended bandwidth enables the B&C 12FW88 to integrate successfully with a wide range of high-frequency compression drivers and horn combinations.

Additional design features include a double silicone spider for improved suspension control, a triple-roll surround for stable excursion behaviour, and a waterproof-treated cone surface that enhances durability in demanding environments. These features contribute to long-term reliability while supporting the driver’s ability to maintain consistent performance under high mechanical stress.

For system designers building professional two-way loudspeakers, stage monitors, or compact front-of-house systems, the B&C 12FW88 provides an excellent balance of efficiency, output capability, and enclosure practicality.

Specifications

• Nominal Diameter: 320 mm (12″)
• Voice Coil Diameter: 88 mm (3.5″)
• Continuous Power Handling: 1400 W
• Nominal Power Handling: 700 W
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.3 Ω
• Frequency Range: 50 Hz – 3000 Hz
• Sensitivity: 97 dB
• Resonance Frequency (Fs): 53 Hz
• Qes: 0.35
• Qms: 7.7
• Qts: 0.33
• Vas: 45.7 dm³
• BL Factor: 19.5 Tm
• Xmax: 8 mm
• Xvar: 8.6 mm
• Moving Mass (Mms): 76.4 g
• Flux Density: 1.04 T
• Recommended Enclosure Volume: 40 dm³
• Recommended Tuning Frequency: 65 Hz
• Net Weight: 8.25 kg

Conclusion

The B&C 12FW88 has been engineered for loudspeaker designers who require substantial power handling, strong sensitivity, and broad operating bandwidth from a compact 12-inch platform. Its powerful ferrite motor, 88 mm voice coil, low-distortion motor design, and vented-box-friendly parameters make it particularly effective in modern two-way loudspeaker systems where output, efficiency, and crossover flexibility are critical. For professional audio applications requiring a durable and versatile woofer capable of delivering both impactful midbass and extended midrange performance, the B&C 12FW88 is an exceptionally well-balanced solution.
