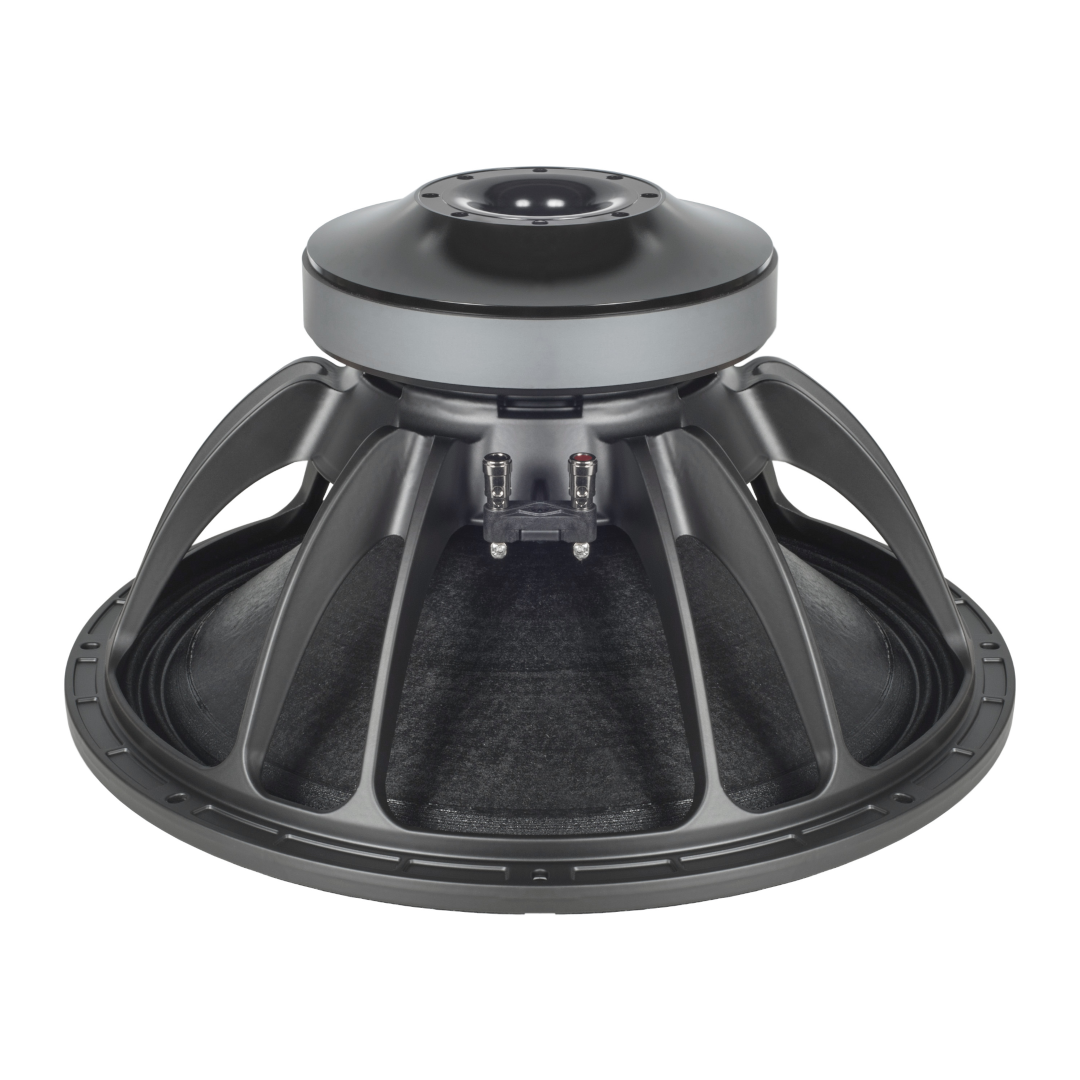

B&C 18TBW100 – Ultimate 18-Inch Subwoofer Driver for High-Power Low-Distortion Bass

The B&C 18TBW100 is the flagship of B&C’s ferrite 18-inch range — a driver that refuses to compromise between power handling, excursion, sensitivity, and distortion performance. With a 1500 W AES rating, 3000 W continuous program power, 12 mm of linear excursion, and a feature set that includes a split winding voice coil, aluminium demodulating ring, and ventilated gap, the B&C 18TBW100 delivers a level of engineering normally reserved for neodymium-motor designs.

At 96 dB sensitivity across a 35 Hz – 1000 Hz bandwidth, this driver maintains strong efficiency despite carrying a heavier moving assembly than B&C’s lighter PZ-series 18s. The difference is in what you get for that extra mass — significantly more excursion, substantially more power handling, and measurably lower distortion under load.

For builders who want the best 18-inch ferrite subwoofer driver B&C makes — without stepping up to neodymium pricing — the B&C 18TBW100 is where the conversation starts and ends.

Design and Construction of the B&C 18TBW100

The B&C 18TBW100 uses a 100 mm (4-inch) split winding copper voice coil wound on a glass fibre former. The split winding topology distributes the coil into separate sections, improving thermal dissipation and allowing more even heat distribution across the winding. This is a meaningful upgrade over conventional single-section coils and directly supports the driver’s 1500 W AES power rating — the highest in B&C’s ferrite 18-inch range.

The 31 mm winding depth operating in a 15 mm magnetic gap yields 12 mm of linear one-way excursion (Xmax) with a generous 14 mm of additional travel (Xvar) before mechanical limits. That total of 26 mm one-way excursion before damage provides serious headroom for transient peaks and sustained high-output use. Excursion-optimised lead wires woven through the spider prevent fatigue and breakage at these displacement levels.

The motor runs a ferrite magnet in a T-pole configuration, producing 1.15 T of flux density and a force factor (Bl) of 26.4 Tm. An aluminium demodulating ring in the motor assembly reduces flux modulation in the voice coil gap, which directly lowers harmonic and intermodulation distortion. This is the feature that separates the B&C 18TBW100 from the PZ-series drivers — under heavy load, the demodulating ring keeps the output cleaner and more controlled as excursion and power increase.

A ventilated voice coil gap reduces power compression by allowing air to circulate around the coil during operation. Suspension is handled by a double silicone spider with optimised compliance and a triple-roll surround. The radial cone features TWP waterproof treatment on both sides. At 15.4 kg, the B&C 18TBW100 is heavier than the PZ-series drivers but remains manageable for a ferrite-motored 18 with this level of capability.

Performance and Applications for the B&C 18TBW100

The B&C 18TBW100 delivers 96 dB sensitivity and 1.76% reference efficiency across a 35 Hz – 1000 Hz bandwidth. While sensitivity is slightly lower than the PZW100’s 97.6 dB, the trade-off is clear — you gain 50% more linear excursion (12 mm vs 8 mm), more than double the power handling (1500 W vs 1000 W AES), and significantly lower distortion thanks to the demodulating ring and ventilated gap.

The Thiele–Small parameters reveal a flexible alignment profile. A Qts of 0.39 and an EBP of 85 Hz place the B&C 18TBW100 comfortably in vented enclosure territory while sitting close enough to the sealed/vented boundary to offer real design flexibility. B&C recommends a 200-litre (7.06 ft³) vented enclosure tuned to 32 Hz — a deeper tuning than the PZ-series drivers, reflecting this driver’s ability to produce meaningful output in the sub-bass region below 40 Hz.

The combination of 12 mm Xmax and 1210 cm² of radiating area gives the B&C 18TBW100 displacement capability that approaches some entry-level long-throw neodymium designs. Combined with 3000 W of continuous program power and the thermal management provided by the ventilated gap and split winding coil, this driver can sustain high output levels through long sets without the power compression or thermal shutdown that would compromise lesser drivers.

Ideal applications for the B&C 18TBW100 include:

• High-power vented subwoofer cabinets for touring and live sound reinforcement
• Permanent install systems in clubs, venues, and houses of worship
• DIY builds where low distortion and sustained output matter more than peak sensitivity
• Dual-driver sub cabinets using the 8 Ω variant in parallel pairs for 4 Ω loading
• Applications requiring deep tuning below 35 Hz with reliable thermal performance

Specifications – B&C 18TBW100

• Nominal Diameter: 460 mm (18 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.5 Ω
• Nominal Power Handling: 1500 W
• Continuous Power Handling: 3000 W
• Sensitivity: 96 dB
• Frequency Range: 35 Hz – 1000 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Copper (split winding)
• Former Material: Glass Fibre
• Winding Depth: 31 mm (1.22 in)
• Magnetic Gap Depth: 15 mm (0.59 in)
• Flux Density: 1.15 T
• Magnet Material: Ferrite
• Cone Shape: Radial
• Cone Treatment: TWP Waterproof (both sides)
• Surround Shape: Triple Roll
• Spider: Double Silicone
• Pole Design: T-Pole
• Net Weight: 15.4 kg (33.95 lb)

Thiele–Small Parameters – B&C 18TBW100

• Fs: 35 Hz
• Re: 5.3 Ω
• Qes: 0.41
• Qms: 8
• Qts: 0.39
• Vas: 175 dm³ (6.18 ft³)
• Sd: 1210 cm² (187.6 in²)
• η0: 1.76%
• Xmax: 12 mm
• Xvar: 14 mm
• Mms: 245 g
• Bl: 26.4 Tm
• Le: 2.45 mH
• EBP: 85 Hz

Mounting Information – B&C 18TBW100

• Overall Diameter: 460 mm (18 in)
• Bolt Circle Diameter: 442 mm (17.4 in)
• Baffle Cutout Diameter: 425 mm (16.73 in)
• Depth: 241 mm (9.5 in)
• Flange and Gasket Thickness: 16 mm (0.63 in)
• Air Volume Occupied by Driver: 11 dm³ (0.39 ft³)
• Recommended Enclosure Volume: 200 dm³ (7.06 ft³)
• Recommended Tuning Frequency: 32 Hz

Conclusion – B&C 18TBW100 Subwoofer Driver

The B&C 18TBW100 is the most capable ferrite 18-inch subwoofer driver in B&C’s lineup. Every feature on this driver exists for a reason — the split winding coil manages heat, the demodulating ring cleans up distortion, the ventilated gap fights power compression, and the woven lead wires survive the 12 mm of linear excursion this driver delivers on every stroke. Nothing is there for marketing — it all contributes to sustained, clean, high-output performance.

If you’ve been comparing B&C’s ferrite 18-inch options and want the one that handles the most power, moves the most air, and stays cleanest under load, the B&C 18TBW100 is the clear choice. It gives up a small amount of sensitivity compared to the PZ-series drivers but more than makes up for it in excursion, power handling, and distortion performance.

For serious sub builds — touring cabinets, permanent installs, or high-output DIY projects — the B&C 18TBW100 delivers ferrite-priced performance with features and output that punch into neodymium territory. It’s the ferrite 18 that leaves nothing on the table.
