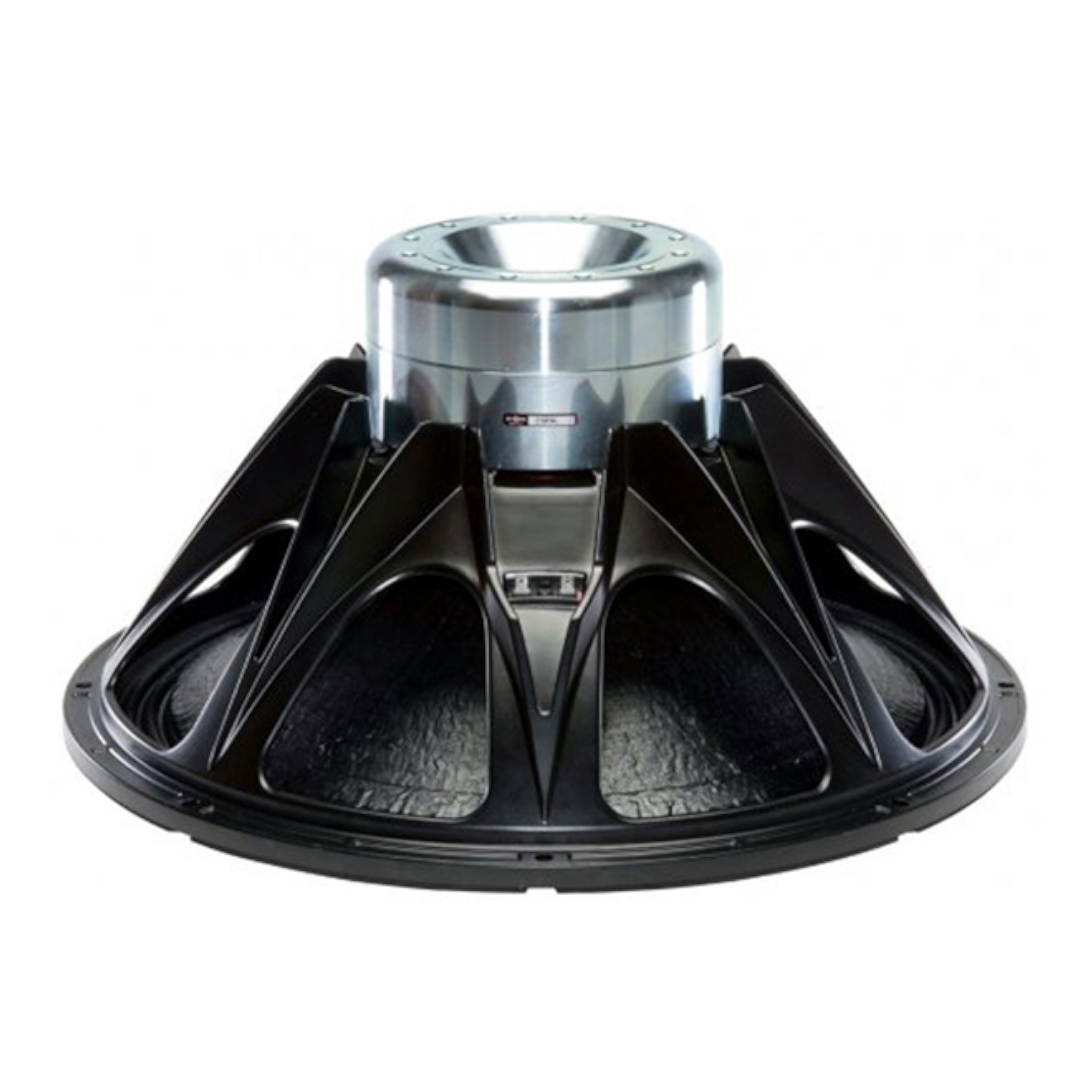

B&C 21IPAL – Superior 21-Inch IPAL Subwoofer Driver for Maximum Output

The B&C 21IPAL is not just another 21-inch subwoofer driver — it’s a purpose-built powerhouse engineered to work hand-in-hand with Powersoft’s IPAL amplifier technology. When paired with the right amp module, this driver delivers extreme low-frequency output from a surprisingly compact enclosure, giving you real-world performance that few conventional drivers can match.

With a 5000 W continuous program power rating and 80 mm of peak-to-peak excursion before damage, the B&C 21IPAL is designed for builders who need serious displacement and headroom in demanding applications. Whether you’re building touring sub cabinets, permanent install systems, or high-output infrasub rigs, this driver sets the benchmark for output density.

At 23 kg thanks to its neodymium motor, the B&C 21IPAL keeps weight manageable for a driver of this calibre — a critical factor when you’re loading trucks or rigging subs overhead.

Design and Construction of the B&C 21IPAL

At the core of the B&C 21IPAL sits a massive 153 mm (6-inch) split winding aluminium voice coil wound on a glass fibre former. The split winding design is what makes the IPAL system possible — it allows direct integration with the Powersoft IPAL amp modules, enabling real-time impedance monitoring and motional feedback for unprecedented driver control.

The motor uses an inside-slug neodymium magnet in a T-pole configuration, producing a flux density of 1.35 T and a force factor (Bl) of 19.1 Tm. That combination drives the heavy 487 g moving mass with authority, maintaining control even at extreme excursion levels. The ventilated voice coil gap reduces power compression under sustained high-power use — critical when you’re pushing 5 kW continuously.

Suspension is handled by a double silicone spider with optimised compliance, paired with a triple-roll surround. This setup delivers 22 mm of linear one-way excursion (Xmax) and a total of 80 mm peak-to-peak before mechanical damage. The radial cone features TWP waterproof treatment on both sides, giving you weather resistance for outdoor installations and festival rigs.

With a 1 Ω nominal impedance and 0.7 Ω DC resistance, the B&C 21IPAL is purpose-designed for the IPAL amplifier platform. This is not a drop-in replacement for conventional 4 Ω or 8 Ω subs — it’s a system-level component meant to be deployed with the matching Powersoft technology.

Performance and Applications for the B&C 21IPAL

The B&C 21IPAL operates across a 37 Hz – 1000 Hz frequency range with 99 dB sensitivity. Those numbers alone tell a strong story, but the real advantage is in displacement. The combination of 1680 cm² of radiating area and 22 mm of Xmax means this driver moves serious air — exactly what you need for deep, visceral sub-bass reproduction in large-format systems.

Efficiency sits at 3.2%, which is strong for a long-throw 21-inch transducer with this much moving mass. The low Qts of 0.21 and high EBP of 168 Hz confirm what the data suggests: this driver belongs in a vented or horn-loaded enclosure, not a sealed box. B&C recommends a 200-litre (7.06 ft³) vented enclosure tuned to 40 Hz — a practical size for a touring sub cabinet.

The IPAL ecosystem is what sets this driver apart from other high-power 21-inch options. With the Powersoft module handling real-time feedback, you get tighter transient response, reduced distortion at excursion limits, and thermal protection that allows sustained output at levels that would cook a conventional driver. For touring rigs, festival systems, and permanent installs where output and reliability are non-negotiable, this is the benchmark.

Ideal applications for the B&C 21IPAL include:

• Touring subwoofer cabinets requiring maximum output density
• Large-scale permanent install systems (clubs, arenas, houses of worship)
• High-output infrasub designs for EDM and live bass-heavy music
• Custom cardioid subwoofer arrays using IPAL-driven cabinets

Specifications – B&C 21IPAL

• Nominal Diameter: 530 mm (21 in)
• Nominal Impedance: 1 Ω
• Minimum Impedance: 1.1 Ω
• Nominal Power Handling: 2500 W
• Continuous Power Handling: 5000 W
• Sensitivity: 99 dB
• Frequency Range: 37 Hz – 1000 Hz
• Voice Coil Diameter: 153 mm (6 in)
• Winding Material: Aluminium (split winding)
• Former Material: Glass Fibre
• Winding Depth: 48 mm (1.9 in)
• Magnetic Gap Depth: 18 mm (0.7 in)
• Flux Density: 1.35 T
• Magnet Material: Neodymium (inside slug)
• Cone Shape: Radial
• Cone Treatment: TWP Waterproof (both sides)
• Surround Shape: Triple Roll
• Spider: Double Silicone
• Pole Design: T-Pole
• Net Weight: 23 kg (50.71 lb)

Thiele–Small Parameters – B&C 21IPAL

• Fs: 37 Hz
• Re: 0.7 Ω
• Qes: 0.22
• Qms: 4.9
• Qts: 0.21
• Vas: 155 dm³ (5.47 ft³)
• Sd: 1680 cm² (260.4 in²)
• η0: 3.2%
• Xmax: 22 mm
• Xvar: 15 mm
• Mms: 487 g
• Bl: 19.1 Tm
• Le: 0.5 mH
• EBP: 168 Hz

Mounting Information – B&C 21IPAL

• Overall Diameter: 547 mm (21.5 in)
• Bolt Circle Diameter: 527 mm (20.7 in)
• Baffle Cutout Diameter: 508 mm (20 in)
• Depth: 269 mm (10.59 in)
• Flange and Gasket Thickness: 13 mm (0.51 in)
• Air Volume Occupied by Driver: 16 dm³ (0.56 ft³)
• Recommended Enclosure Volume: 200 dm³ (7.06 ft³)
• Recommended Tuning Frequency: 40 Hz

Conclusion – B&C 21IPAL Subwoofer Driver

The B&C 21IPAL is a purpose-built transducer for builders who want the absolute maximum from a 21-inch platform. Its split winding voice coil, massive displacement capability, and tight integration with Powersoft’s IPAL amplifier technology put it in a class of its own — this isn’t a conventional subwoofer driver, it’s one half of a closed-loop drive system.

For touring companies, system integrators, and serious DIY builders working on large-format subwoofer projects, the B&C 21IPAL delivers the output density, thermal resilience, and control that high-demand applications require. Pair it with the Powersoft IPAL module, load it in a well-designed 200-litre vented cabinet, and you’ve got a sub system that hits hard and stays reliable night after night.

If you’re building for maximum impact with minimum compromise, the B&C 21IPAL belongs on your shortlist.
