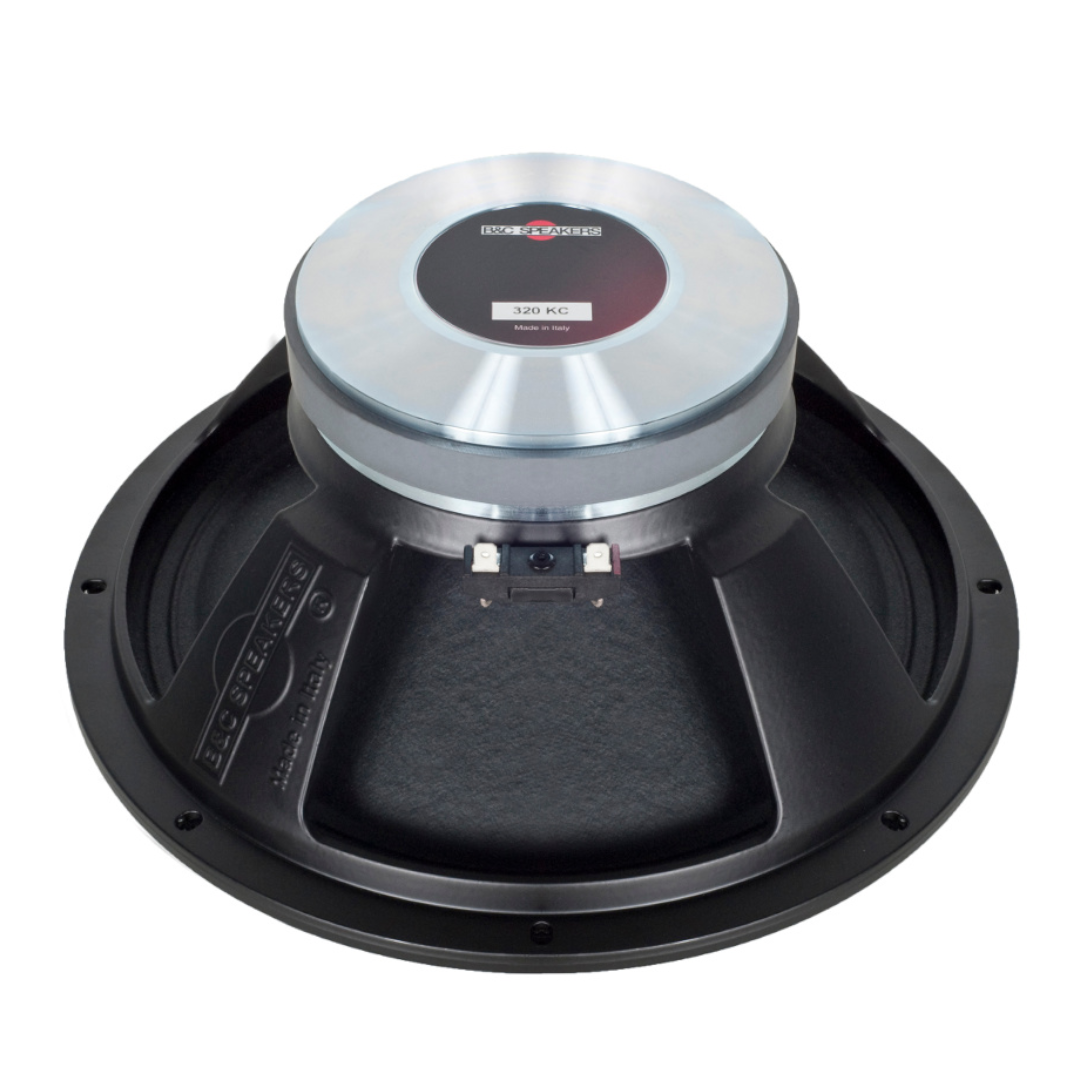

B&C 320K/C-A – Superior 12-Inch Full-Range Driver for High-Sensitivity Applications
The B&C 320K/C-A is a 12-inch full-range driver delivering 101 dB sensitivity, 5.4% reference efficiency, and a massive 80 Hz – 16000 Hz bandwidth from a single transducer weighing just 4.6 kg. This isn’t a bass driver or a woofer — it’s a true full-range unit designed to reproduce everything from low-mid fundamentals through the high treble without requiring a separate tweeter or compression driver. The B&C 320K/C-A covers the kind of bandwidth that most speaker systems need two or three drivers to achieve.
The 101 dB sensitivity and 5.4% efficiency are the headline numbers — this is one of the most efficient 12-inch drivers available from any manufacturer. The 27 g moving mass is the engineering behind those figures: an ultra-light cone assembly that responds instantly to the input signal, producing output with the kind of immediacy and transient speed that heavier-cone drivers can’t replicate. A shorting copper cap extends the high-frequency response, keeping the output smooth and usable well into the treble region.
Available in both 8 Ω and 16 Ω variants, the B&C 320K/C-A is built for guitar amplifier cabinets, single-driver full-range PA speakers, vocal reinforcement systems, and any application where a single transducer needs to cover the entire audible frequency range with maximum efficiency and minimum amplifier power.
Design and Construction of the B&C 320K/C-A
The B&C 320K/C-A uses a 38 mm (1.5-inch) copper voice coil wound on a kraft paper former. The kraft paper former is a deliberate material choice — it’s lighter than glass fibre and contributes to the extraordinarily low 27 g moving mass that makes the driver’s extreme efficiency possible. The 9 mm winding depth operating in a 9 mm magnetic gap yields 2 mm of linear one-way excursion (Xmax). The short Xmax is by design — this is a sensitivity-first driver, not a displacement driver, and every gram of moving mass has been eliminated in pursuit of maximum output per watt.
The motor uses a ferrite magnet in a straight pole configuration, producing an impressive 1.4 T of flux density — one of the highest flux figures of any ferrite-motored driver in B&C’s range — and a force factor (Bl) of 12.2 Tm. That 1.4 T flux driving the 27 g moving mass creates the extreme acceleration factor responsible for the 5.4% reference efficiency. The motor grips the featherweight cone assembly with authority that produces instantaneous transient response — exactly the kind of snappy, dynamic character that guitar players and vocal reproduction demand.
A shorting copper cap on the pole piece is the key to the B&C 320K/C-A’s extended high-frequency response. The copper cap reduces voice coil inductance rise at higher frequencies, keeping the impedance curve flatter and allowing the driver to maintain output up to 16000 Hz — well into the treble region where most 12-inch drivers have rolled off completely. Without the copper cap, the driver’s high-frequency response would fall off much sooner.
The surround is an accordion type — a pleated fabric design that provides high compliance with minimal mass, supporting the full-range excursion behaviour and upper-frequency output that the driver requires. The radial cone has no waterproof treatment, keeping the moving mass as low as possible. A single spider handles suspension. At 4.6 kg and 136 mm deep, the B&C 320K/C-A is compact and light — easy to build into guitar cabinets, vocal columns, and single-driver enclosures of all kinds.
Performance and Applications for the B&C 320K/C-A
The B&C 320K/C-A delivers 101 dB sensitivity and 5.4% reference efficiency across an 80 Hz – 16000 Hz bandwidth. That 5.4% efficiency means this driver converts more than five watts out of every hundred into acoustic energy — the highest conversion rate of any 12-inch driver in B&C’s range by a significant margin. A 30 W tube amplifier driving the B&C 320K/C-A produces output that would require well over 100 W into a typical 95 dB woofer to match.
The Thiele–Small parameters tell the story of a full-range driver rather than a bass transducer. The 82 Hz Fs means the B&C 320K/C-A doesn’t reach into deep bass — it’s designed to reproduce content from the low-mid range upward. A Qts of 0.5 and an EBP of 158 Hz place it on the sealed/vented boundary, and B&C recommends a 60-litre (2.12 ft³) vented enclosure tuned to 75 Hz. That high tuning frequency confirms the driver’s intent: maximum output and efficiency in the mid-range and upper-bass frequencies, not sub-bass extension.
The 16000 Hz upper limit is what makes the B&C 320K/C-A a genuine full-range driver. Most 12-inch woofers roll off by 2000–3000 Hz and require a compression driver or tweeter to cover the upper frequencies. The B&C 320K/C-A handles the entire range itself, making it ideal for single-driver speaker designs where simplicity and natural tonal coherence matter more than extreme low-frequency extension. The shorting copper cap keeps the treble response smooth and extended without the harshness that uncompensated inductance rise would cause.
Ideal applications for the B&C 320K/C-A include:
- Guitar amplifier cabinets (1×12, 2×12, 4×12 configurations)
- Single-driver full-range PA and vocal reinforcement speakers
- High-efficiency vocal columns and speech reinforcement systems
- Vintage-style PA systems where maximum sensitivity from low-power amplification is essential
- Multi-driver parallel configurations using the 16 Ω variant for impedance management
Specifications – B&C 320K/C-A
- Nominal Diameter: 320 mm (12 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.3 Ω
- Nominal Power Handling: 120 W
- Continuous Power Handling: 240 W
- Sensitivity: 101 dB
- Frequency Range: 80 Hz – 16000 Hz
- Voice Coil Diameter: 38 mm (1.5 in)
- Winding Material: Copper
- Former Material: Kraft Paper
- Winding Depth: 9 mm (0.37 in)
- Magnetic Gap Depth: 9 mm (0.35 in)
- Flux Density: 1.4 T
- Magnet Material: Ferrite
- Cone Shape: Radial
- Cone Treatment: None
- Surround Shape: Accordion
- Spider: Single
- Pole Design: Straight Pole
- Net Weight: 4.6 kg (10.14 lb)
Thiele–Small Parameters – B&C 320K/C-A
- Fs: 82 Hz
- Re: 5.4 Ω
- Qes: 0.52
- Qms: 13.3
- Qts: 0.5
- Vas: 53 dm³ (1.87 ft³)
- Sd: 522 cm² (80.91 in²)
- η0: 5.4%
- Xmax: 2 mm
- Mms: 27 g
- Bl: 12.2 Tm
- Le: 1.1 mH
- EBP: 158 Hz
Mounting Information – B&C 320K/C-A
- Overall Diameter: 316 mm (12.44 in)
- Bolt Circle Diameter: 298 mm (11.73 in)
- Baffle Cutout Diameter: 286 mm (11.26 in)
- Depth: 136 mm (5.35 in)
- Flange and Gasket Thickness: 12 mm (0.47 in)
- Air Volume Occupied by Driver: 3 dm³ (0.11 ft³)
- Recommended Enclosure Volume: 60 dm³ (2.12 ft³)
- Recommended Tuning Frequency: 75 Hz
Conclusion – B&C 320K/C-A Full-Range Driver
The B&C 320K/C-A is a fundamentally different kind of driver from the woofers and subwoofers that make up most of B&C’s LF range. It’s a true full-range transducer — 80 Hz to 16000 Hz from a single cone, no tweeter required. The 101 dB sensitivity and 5.4% efficiency make it one of the most efficient 12-inch drivers available from any professional manufacturer, and the 27 g moving mass ensures that every watt of input translates into immediate, dynamic acoustic output.
The trade-off is simple and honest: 120 W AES power handling and 2 mm of Xmax mean this is not a high-power bass driver. The B&C 320K/C-A earns its output through efficiency, not brute force — and in applications where that approach makes sense, nothing in B&C’s range delivers more output per watt across a wider bandwidth. A good 30 W tube amp driving this driver fills a room with authority.
For guitar cabinets, vocal reinforcement, single-driver full-range systems, and any build where the goal is maximum bandwidth and sensitivity from one transducer, the B&C 320K/C-A is the 12-inch full-range driver that delivers the complete picture — from the low-mids through the high treble, with the kind of efficiency that makes low-power amplification sound bigger than it has any right to be.
