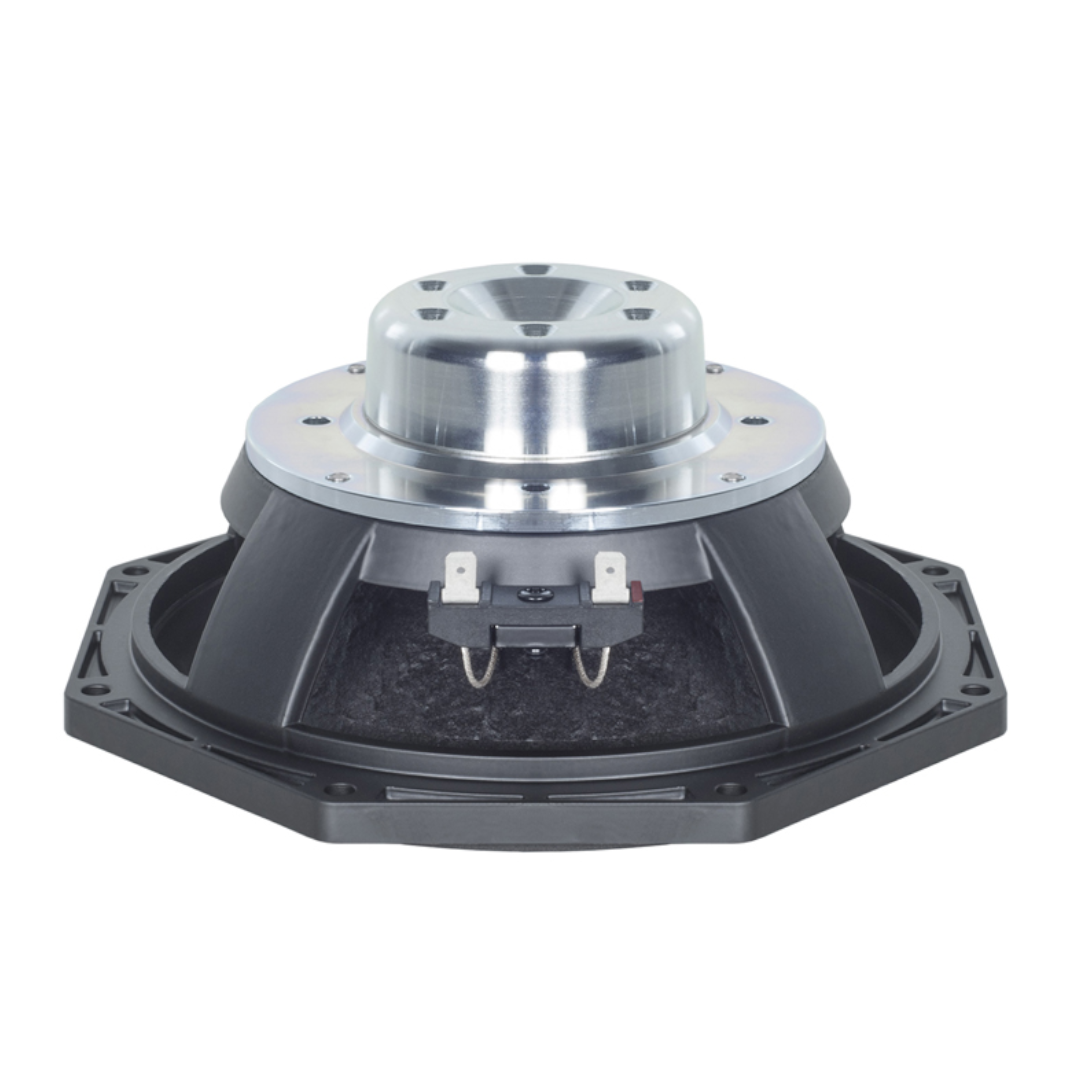

B&C 8BG51 8″ Professional Woofer LF Driver
The B&C 8BG51 is a professional 8-inch woofer LF driver engineered for compact loudspeaker systems requiring lightweight construction, controlled low-frequency performance, and strong thermal stability. Built around a neodymium inside slug motor assembly and optimized moving system, the B&C 8BG51 provides professional output capability while maintaining low overall weight for portable and installed sound reinforcement applications.
Designed for compact bass reflex systems, portable PA cabinets, stage monitoring applications, and professional two-way loudspeaker systems, the B&C 8BG51 combines efficient motor control with compact enclosure compatibility. Its lightweight motor architecture and optimized suspension geometry allow system designers to build smaller and lighter systems while maintaining reliable low-frequency performance.
Key Features
- 250 W nominal power handling
- 500 W continuous program power capacity
- 51 mm (2 inch) copper voice coil
- 92 dB sensitivity
- 50 Hz – 4000 Hz frequency response
- Neodymium inside slug motor structure
- Shorting copper cap for extended HF response
- Ventilated voice coil gap for reduced power compression
- WP waterproof front cone treatment
- Compact enclosure optimization for professional loudspeaker systems
Lightweight Neodymium Motor Design
The B&C 8BG51 utilizes a neodymium inside slug motor assembly, allowing the driver to maintain strong magnetic performance while significantly reducing weight compared to conventional ferrite designs. This reduced mass makes the driver particularly suitable for portable sound systems and lightweight loudspeaker designs where overall cabinet weight is important.
The motor incorporates a shorting copper cap, helping reduce inductance variation while extending upper frequency response characteristics. Lower inductance modulation contributes to smoother crossover integration and improved response behavior in compact multi-way loudspeaker systems.
With a measured 1.15 T flux density and 11.8 Tm BL factor, the motor maintains strong cone control while supporting efficient energy transfer and stable output performance throughout the operating range.
Voice Coil Construction and Thermal Performance
At the center of the B&C 8BG51 is a 51 mm copper voice coil wound on a glass fibre former. This construction provides improved thermal stability while maintaining the mechanical strength required for professional continuous-duty applications.
The driver supports 250 W nominal power handling and 500 W continuous program power handling, making it suitable for professional applications requiring sustained output capability. The large voice coil diameter improves heat handling while supporting stable long-term performance.
A ventilated voice coil gap increases airflow through the motor structure, helping reduce thermal buildup and minimizing power compression during prolonged operation. This contributes to more consistent acoustic performance at higher output levels.
Cone Geometry and Suspension Design
The B&C 8BG51 utilizes an exponential cone profile combined with a roll surround geometry. This design provides controlled cone movement while maintaining excursion capability suitable for compact low-frequency applications. The cone geometry has been optimized to balance efficiency with controlled low-frequency performance.
A single spider suspension system provides mechanical stability and helps maintain predictable movement characteristics under higher output conditions. This suspension configuration contributes to controlled excursion behavior and stable long-term operation.
The cone assembly incorporates WP waterproof front-side treatment, improving resistance against humidity and environmental exposure in both portable and installed sound reinforcement systems.
Compact Enclosure Integration
One of the major strengths of the B&C 8BG51 is its compact enclosure compatibility.
The manufacturer recommends a 19 dm³ enclosure volume with a 49 Hz tuning frequency, allowing system designers to achieve useful low-frequency extension from relatively small vented cabinet designs. These loading characteristics make the driver particularly suitable for compact professional loudspeaker systems.
Typical applications include:
- Compact two-way loudspeaker systems
- Portable PA systems
- Stage monitor systems
- Compact bass reflex cabinets
- Installed sound reinforcement systems
- Lightweight professional loudspeakers
Technical Specifications
Nominal Diameter: 200 mm (8 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6 Ω
Nominal Power Handling: 250 W
Continuous Program Power: 500 W
Sensitivity: 92 dB
Frequency Range: 50 Hz – 4000 Hz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 17 mm
Magnetic Gap Depth: 8 mm
Flux Density: 1.15 T
Magnet Material: Neodymium Inside Slug
Cone Shape: Exponential
Surround Shape: Roll
Spider Design: Single
Pole Design: T-Pole
Cone Treatment: WP Waterproof Front Side
Recommended Enclosure: 19 dm³
Recommended Tuning: 49 Hz
Thiele-Small Parameters
Fs: 52 Hz
Re: 5.1 Ω
Qes: 0.42
Qms: 12.3
Qts: 0.40
Vas: 18 dm³
Sd: 220 cm²
η₀: 0.6 %
Xmax: ±6.5 mm
Xvar: ±8 mm
Mms: 35 g
BL Factor: 11.8 Tm
Le: 0.5 mH
EBP: 123 Hz
Mounting Information
Overall Diameter: 225 mm
Bolt Circle Diameter: 210 mm
Baffle Cutout Diameter: 187 mm
Depth: 90 mm
Flange and Gasket Thickness: 11 mm
Air Volume Occupied by Driver: 1.1 dm³
Net Weight: 1.85 kg
Shipping Weight: 2.3 kg
Shipping Box: 255 × 255 × 150 mm
Recone Kit: RCK008BG518
Applications
The B&C 8BG51 is engineered for professional low-frequency applications where lightweight construction, compact enclosure loading, and reliable thermal performance are priorities. Its neodymium motor structure, compact cabinet compatibility, and optimized cooling design make it suitable for portable sound reinforcement systems, compact PA loudspeakers, stage monitoring applications, and professional installed audio systems.
For system designers requiring a lightweight professional woofer optimized for compact cabinet designs and reduced overall system weight, the B&C 8BG51 provides an effective balance of portability, efficiency, and dependable professional performance.
