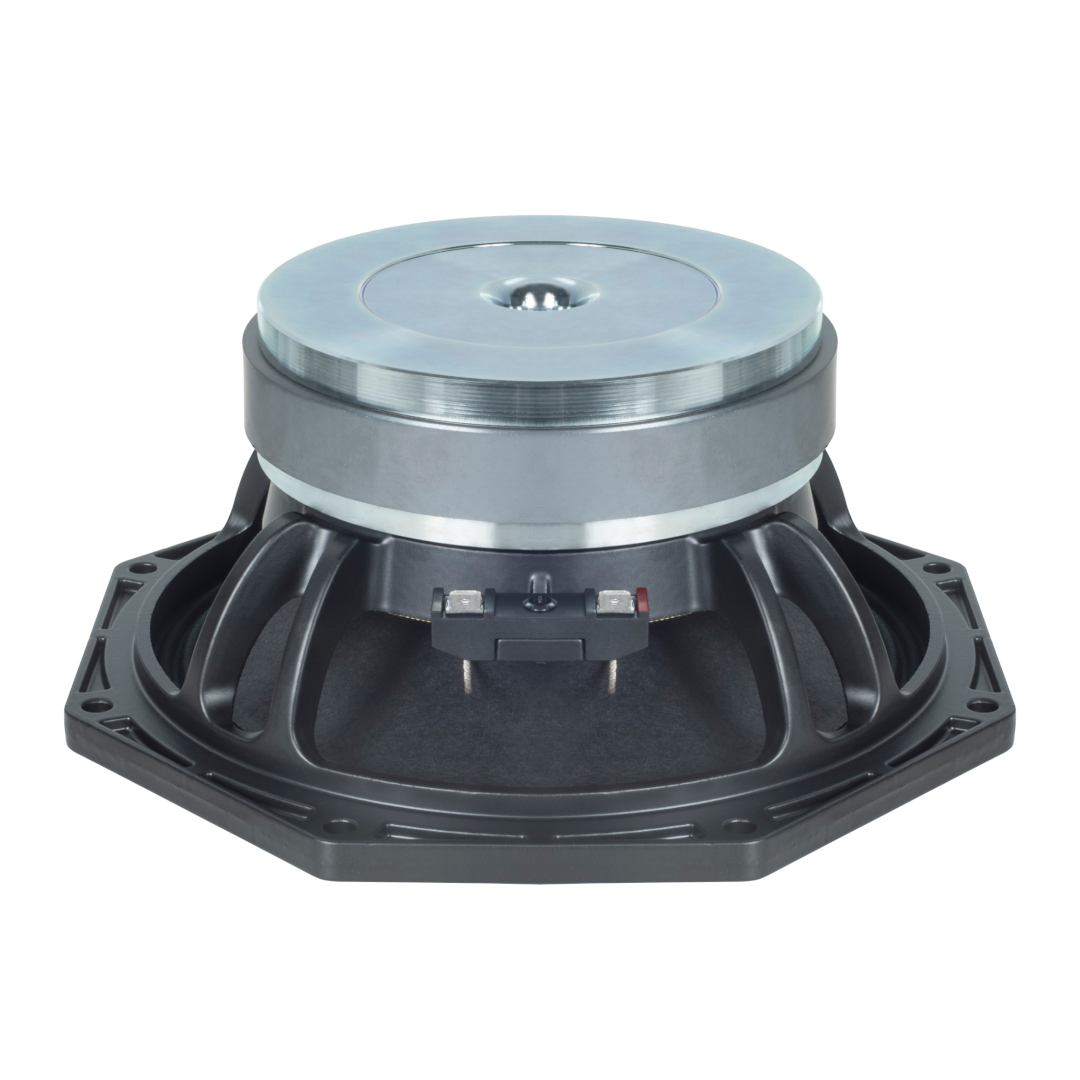

B&C 8FMB51 8″ Professional Mid-Bass LF Driver
The B&C 8FMB51 is a professional 8-inch mid-bass driver engineered for compact high-output loudspeaker systems requiring strong efficiency, broad bandwidth performance, and reliable power handling. Developed as part of the B&C FMB series, the B&C 8FMB51 combines an efficient ferrite motor structure with a lightweight moving assembly to provide strong acoustic output while maintaining compact system integration.
Designed primarily for two-way loudspeaker systems, portable PA enclosures, compact bass reflex cabinets, and professional sound reinforcement applications, the B&C 8FMB51 delivers balanced performance across low-frequency and mid-bass regions. Its optimized motor structure and symmetrical inductance profile contribute to cleaner response characteristics and improved integration into modern loudspeaker designs.
Key Features
- 250 W nominal power handling
- 500 W continuous program power capacity
- 51 mm (2 inch) aluminium voice coil
- Ferrite magnet motor structure
- 96.5 dB sensitivity
- 67 Hz – 4500 Hz frequency response
- Symmetrical inductance profile
- Ventilated voice coil gap for reduced power compression
- Waterproof impregnated cone treatment
- Optimized for compact two-way loudspeaker systems
Ferrite Motor Design and Magnetic Structure
The B&C 8FMB51 utilizes a ferrite motor assembly designed to deliver stable magnetic performance and long-term reliability in demanding professional applications. Ferrite motors remain widely used in sound reinforcement systems because they provide consistent magnetic characteristics and dependable thermal performance under continuous operation.
The driver incorporates a symmetrical inductance profile, helping reduce inductance variation throughout cone movement. Lower inductance variation contributes to smoother response characteristics and improved system integration, particularly in two-way loudspeaker systems where mid-bass drivers operate across a broader frequency range.
A ventilated voice coil gap improves airflow through the motor structure, helping reduce heat buildup during extended high-output operation. Better thermal management reduces power compression and contributes to more consistent performance levels.
Voice Coil Construction and Thermal Management
At the center of the B&C 8FMB51 is a 51 mm (2 inch) aluminium voice coil wound using an inside/outside copper clad aluminium wire configuration on a glass fibre former. This design helps maintain low moving mass while improving thermal performance and mechanical stability.
The driver supports 250 W nominal power handling and 500 W continuous program power handling, allowing it to maintain stable performance in professional applications requiring sustained output capability. The optimized winding geometry and ventilated cooling system help maintain consistent thermal behavior during continuous operation.
Its relatively low 20.2 g moving mass contributes to fast transient response and improved mid-bass articulation, making it particularly suitable for applications requiring punch and detail.
Cone Geometry and Suspension Design
The B&C 8FMB51 utilizes a curvilinear cone profile paired with a triple-roll surround geometry. This combination provides controlled cone movement while supporting sufficient excursion capability for compact bass applications.
The cone assembly uses a waterproof impregnated paper cone treatment, improving resistance against moisture and environmental exposure. This treatment increases long-term reliability in portable and installed sound systems operating in varying conditions.
A single spider suspension system helps maintain mechanical stability while preserving lower moving mass characteristics, contributing to improved responsiveness and efficiency.
Compact System Integration and Acoustic Performance
The B&C 8FMB51 has been optimized for compact loudspeaker designs where enclosure volume and efficiency are critical considerations.
With a manufacturer recommended enclosure volume of 14 dm³ and recommended tuning frequency of 80 Hz, the driver performs effectively in smaller vented cabinet designs while maintaining strong mid-bass output.
Typical applications include:
- Compact two-way loudspeaker systems
- Portable PA systems
- Stage monitor systems
- Compact bass reflex cabinets
- Installed sound reinforcement systems
- Mid-bass reinforcement applications
Its combination of compact loading requirements and high sensitivity makes it well suited for space-efficient professional systems.
Technical Specifications
Nominal Diameter: 200 mm (8 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 5.5 Ω
Nominal Power Handling: 250 W
Continuous Program Power: 500 W
Sensitivity: 96.5 dB
Frequency Range: 67 Hz – 4500 Hz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Aluminium
Former Material: Glass Fibre
Winding Depth: 15 mm
Magnetic Gap Depth: 8 mm
Flux Density: 1.19 T
Magnet Material: Ferrite
Cone Shape: Curvilinear
Surround Shape: Triple Roll
Spider Design: Single
Pole Design: T-Pole
Cone Treatment: Waterproof Impregnated Cone
Thiele-Small Parameters
Fs: 67 Hz
Re: 4.7 Ω
Qes: 0.31
Qms: 3.07
Qts: 0.28
Vas: 20.7 dm³
Sd: 227 cm²
η₀: 1.91 %
Xmax: 5.5 mm
Xvar: 5 mm
Mms: 20.2 g
BL Factor: 11.3 Tm
Le: 0.48 mH
EBP: 216 Hz
Mounting Information
Overall Diameter: 225 mm
Bolt Circle Diameter: 210 mm
Baffle Cutout Diameter: 187 mm
Depth: 92 mm
Flange and Gasket Thickness: 9 mm
Air Volume Occupied by Driver: 1.2 dm³
Net Weight: 3.4 kg
Shipping Weight: 3.85 kg
Shipping Box: 255 × 255 × 150 mm
Recone Kit: RCK008FMB518
Applications
The B&C 8FMB51 is engineered for professional applications where efficiency, compact enclosure loading, and broad bandwidth performance are priorities. Its combination of high sensitivity, symmetrical inductance behavior, and compact cabinet compatibility makes it particularly effective in two-way loudspeaker systems and compact professional audio designs.
For system designers looking for an efficient 8-inch mid-bass driver capable of delivering strong output from compact enclosures, the B&C 8FMB51 provides a balanced combination of efficiency, reliability, and professional-grade performance.
